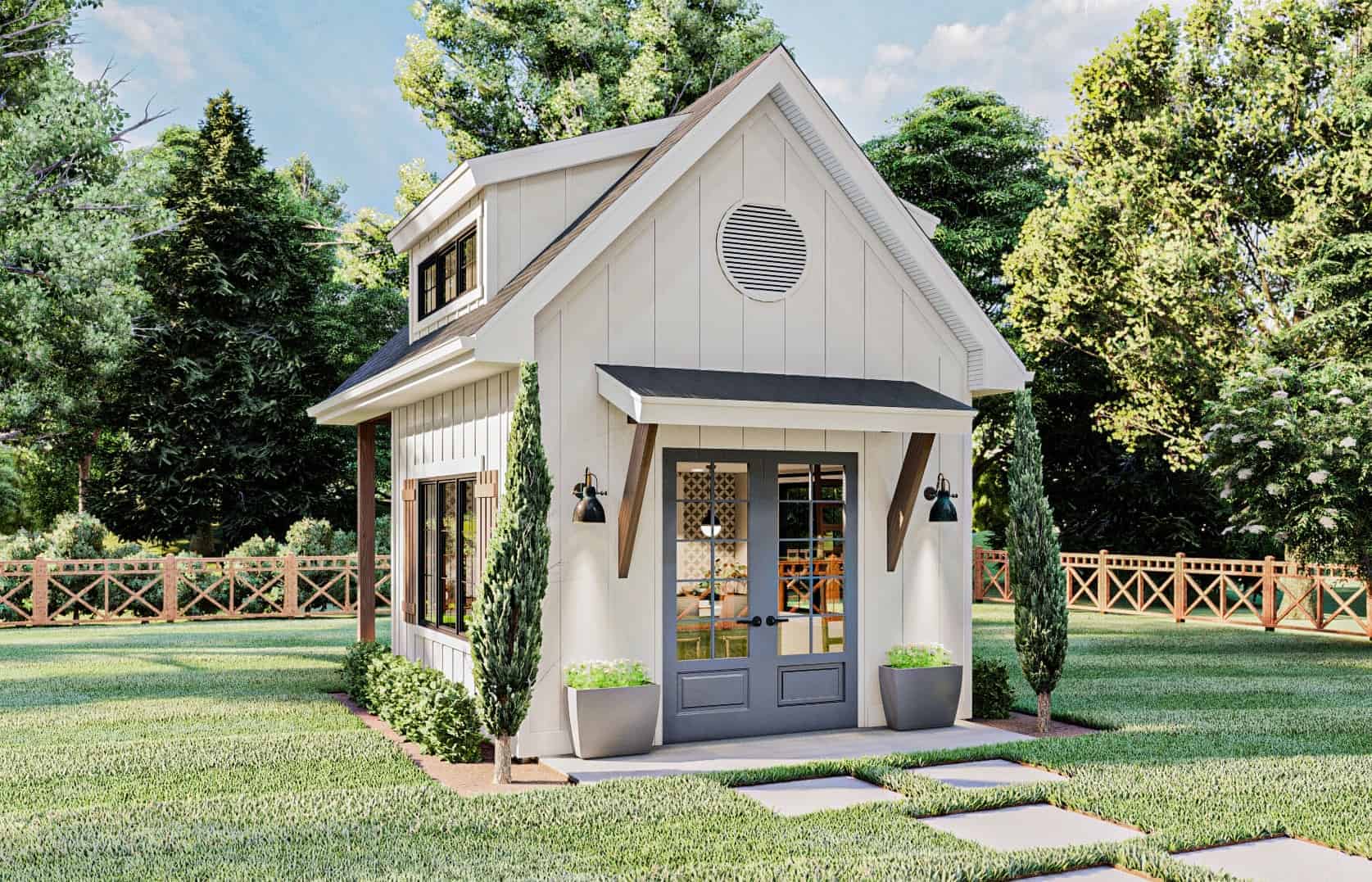

Front elevation of backyard bar cottage shed(ThePlanCollection: House Plan #100-1364)

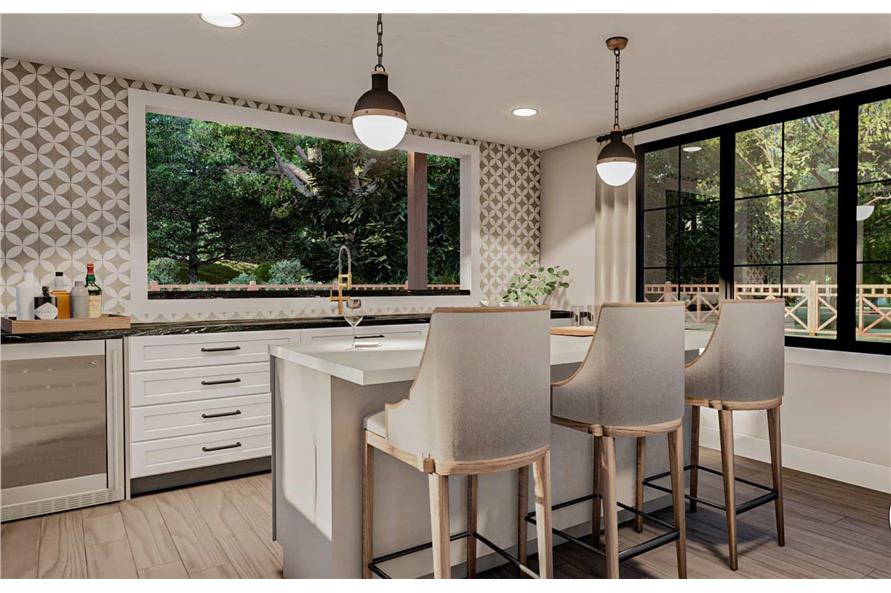

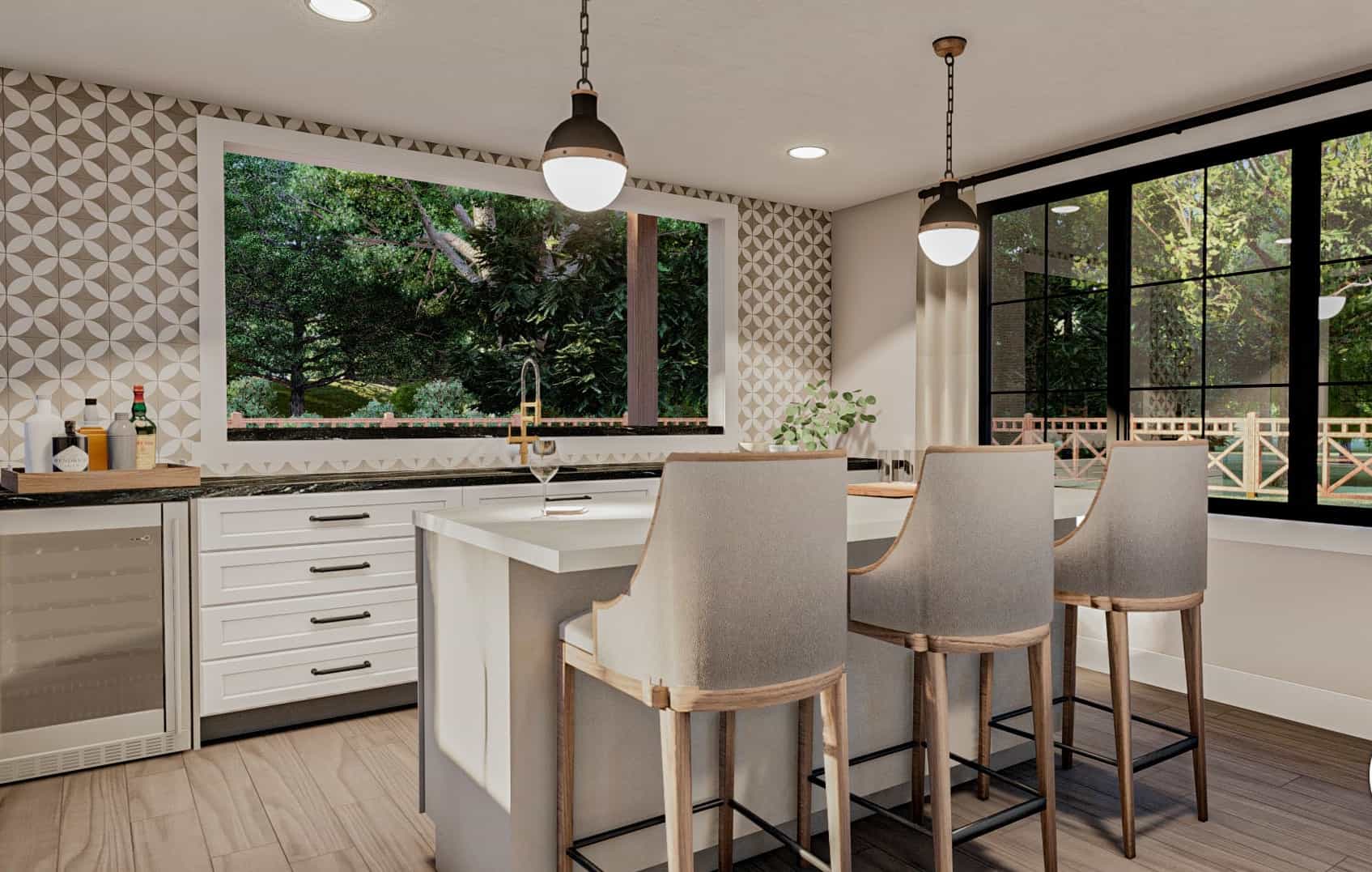

100-1364: Home Other Image-Kitchen

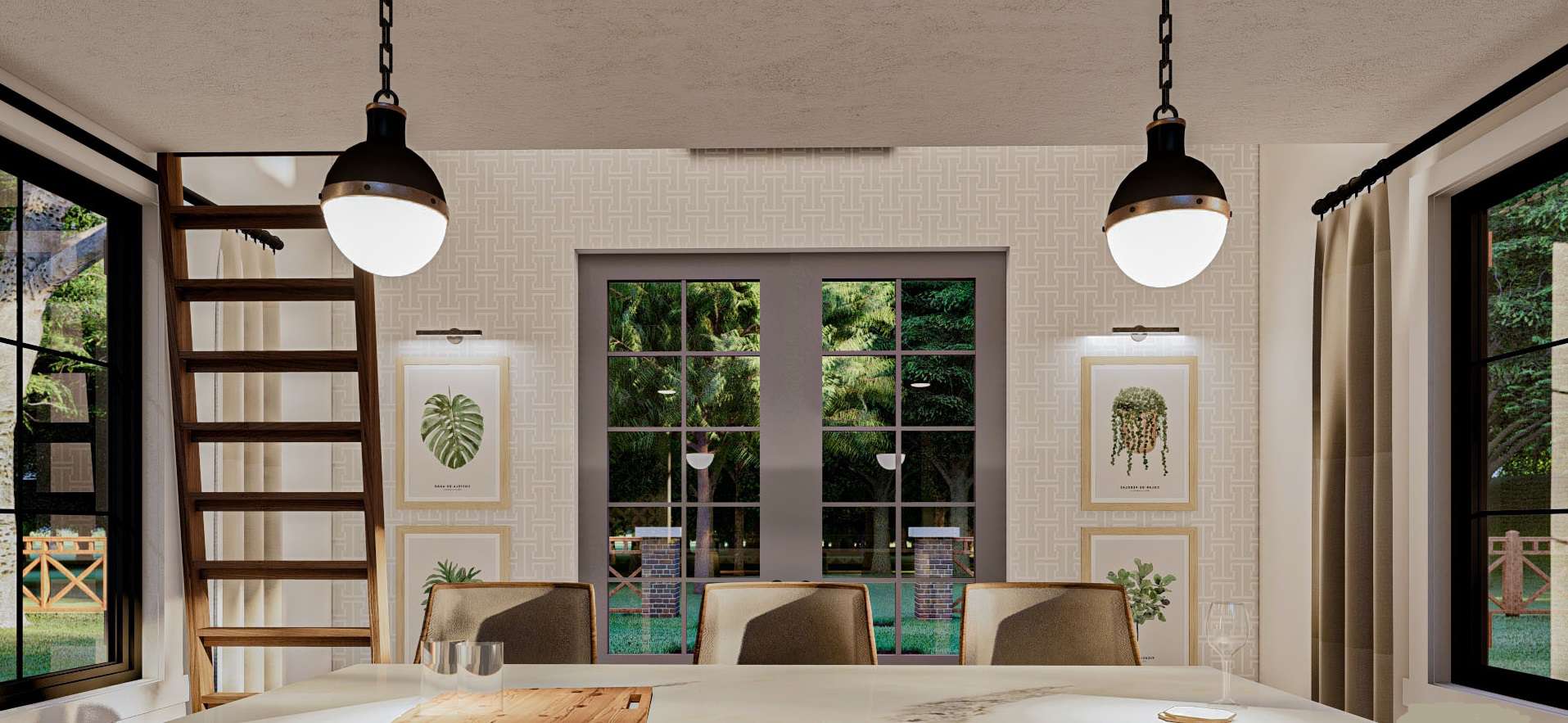

100-1364: Home Other Image-Kitchen: Breakfast Nook

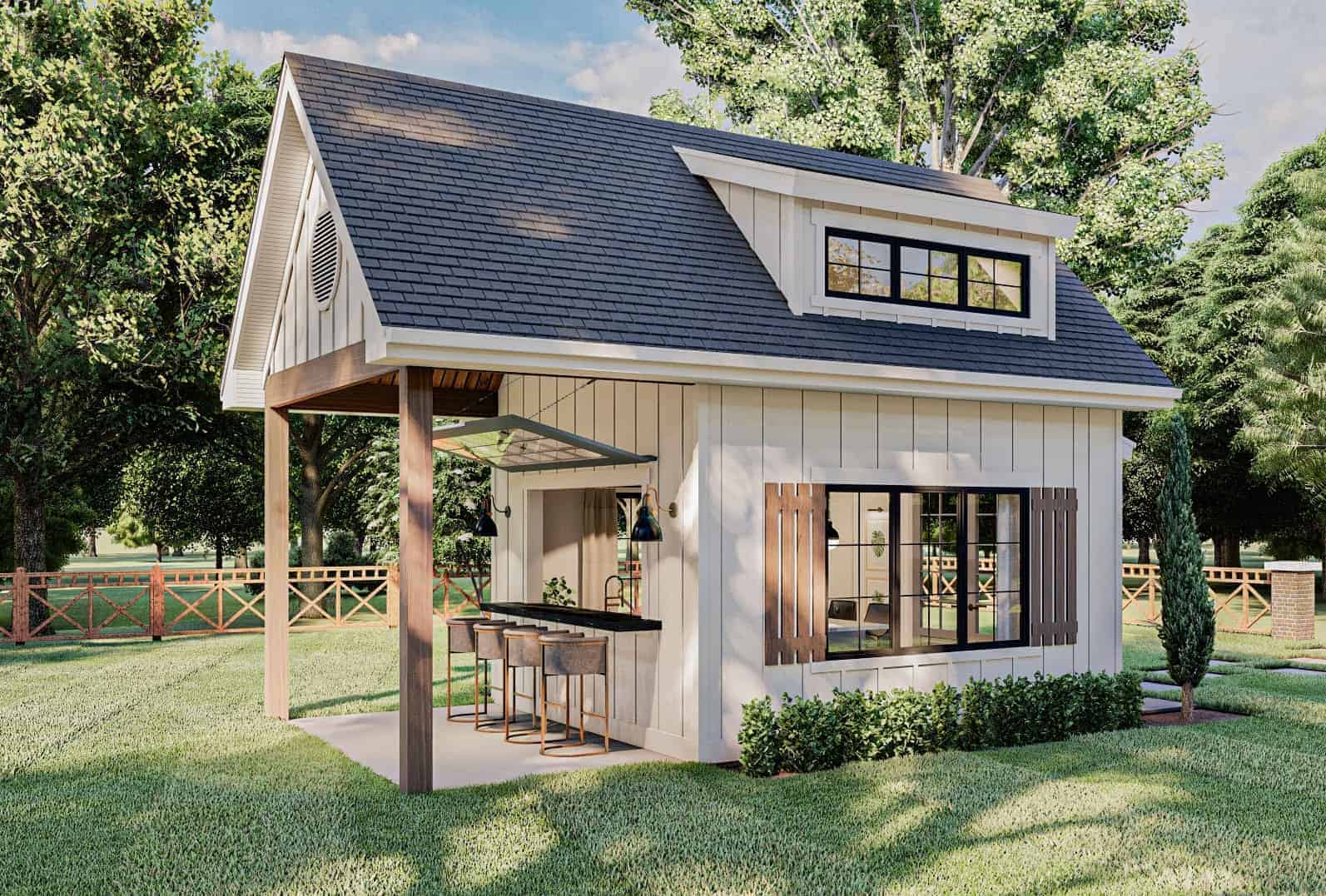

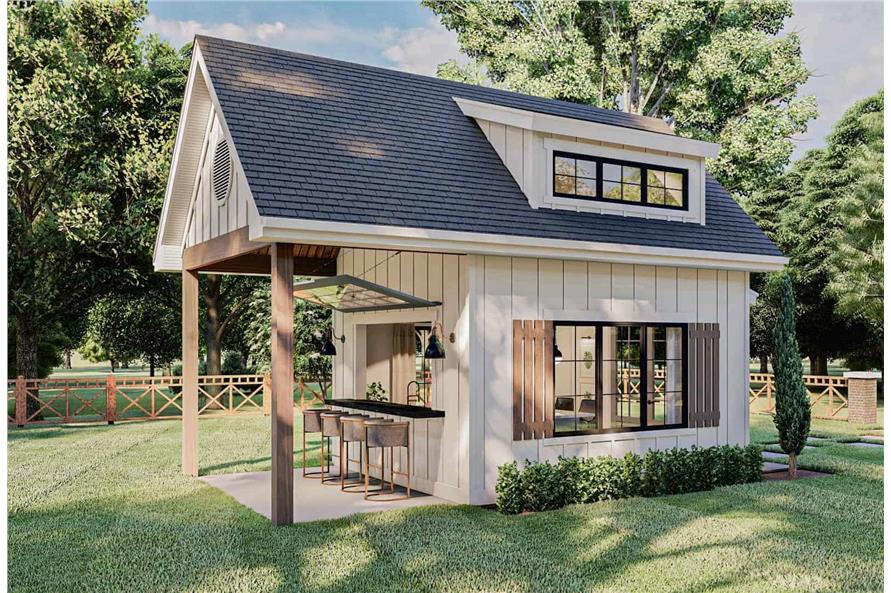

100-1364: Home Other Image-Left Side View

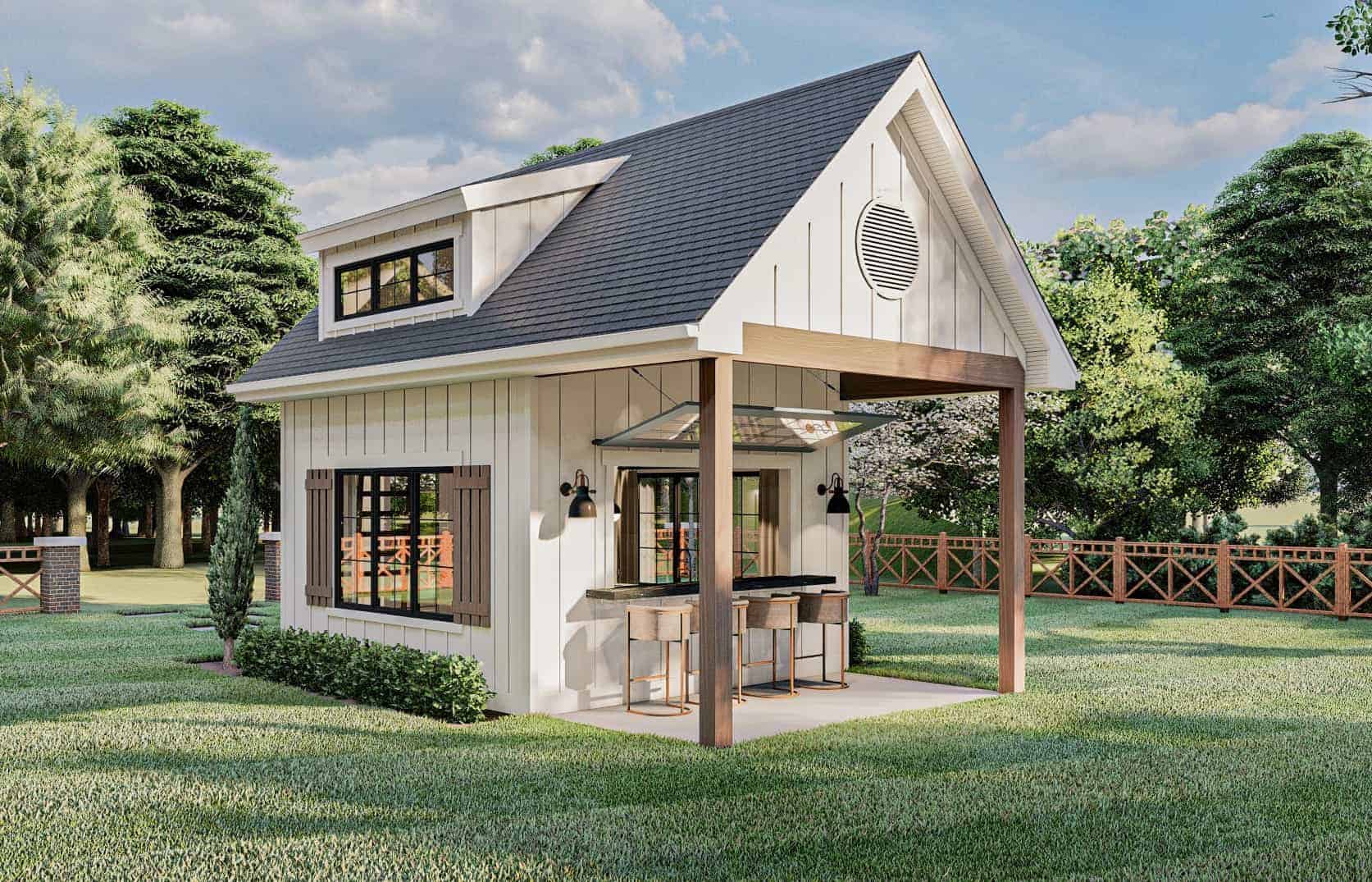

100-1364: Home Other Image-Rear View

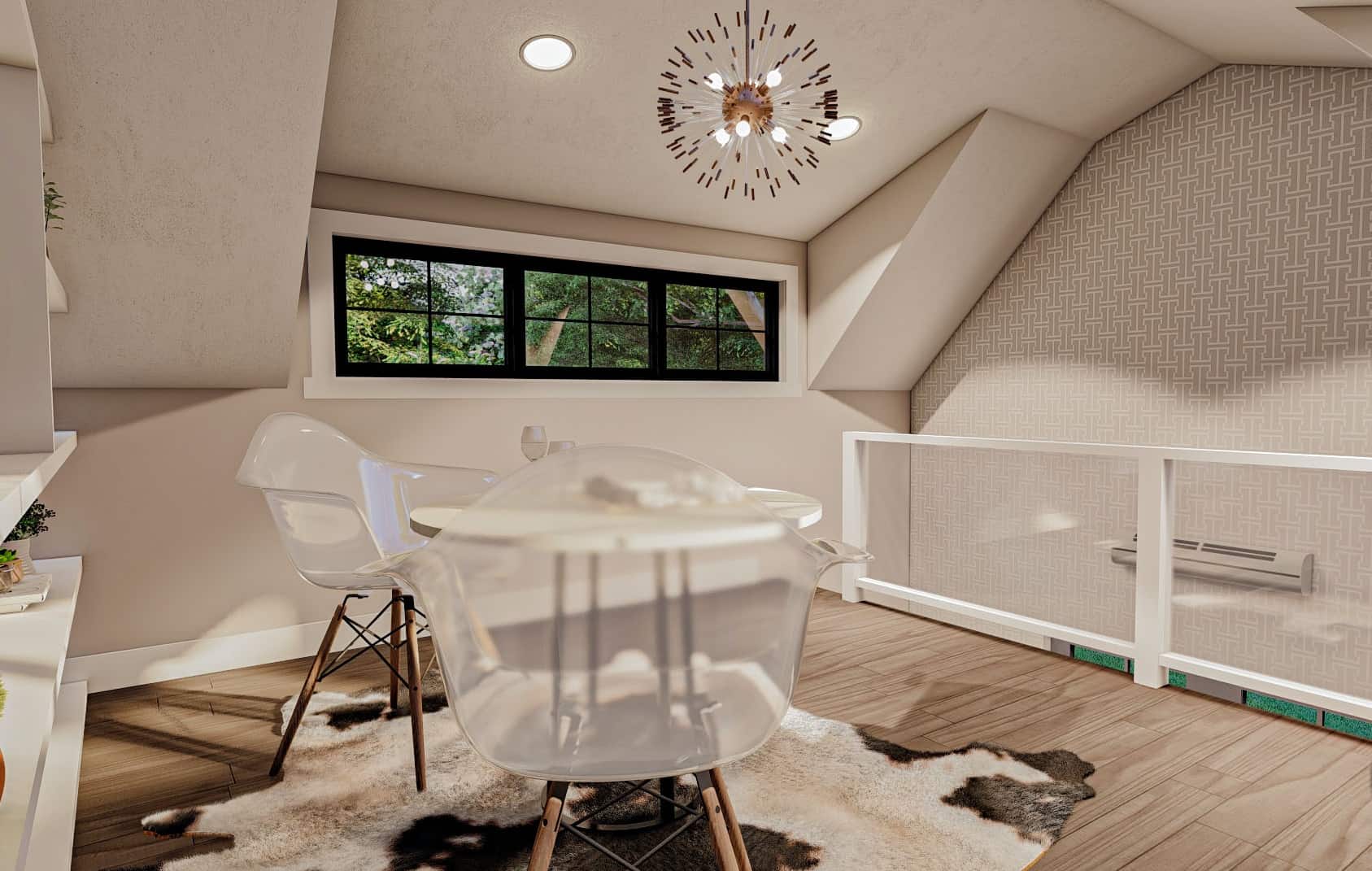

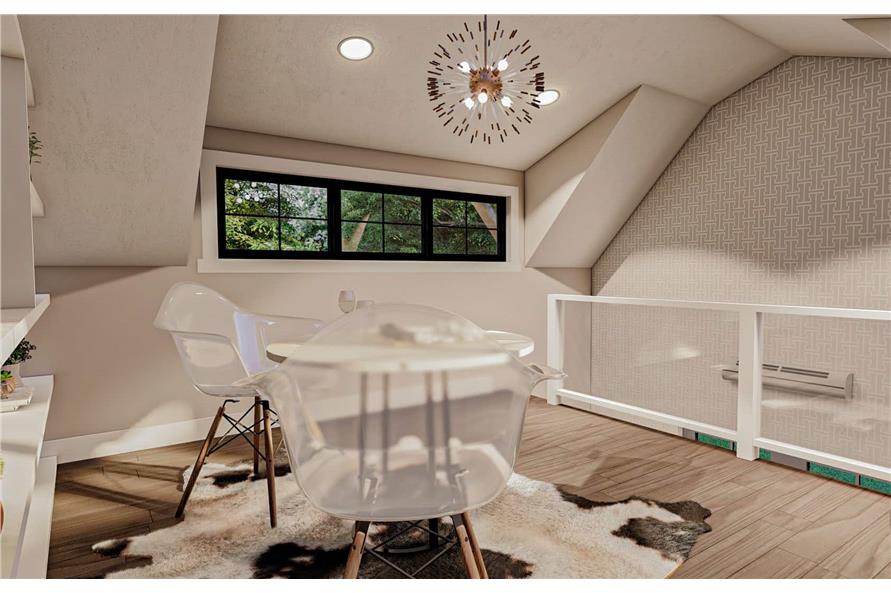

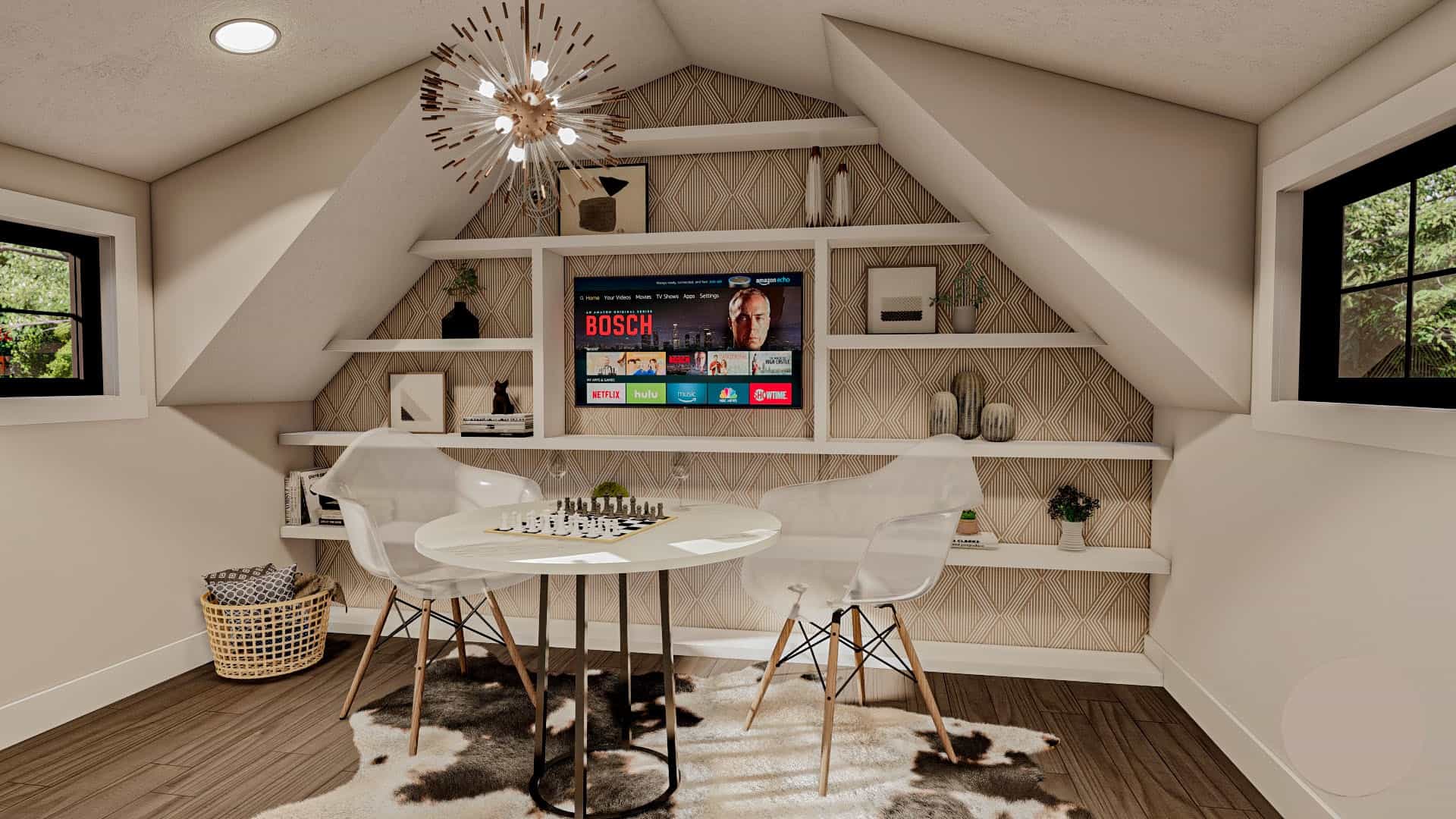

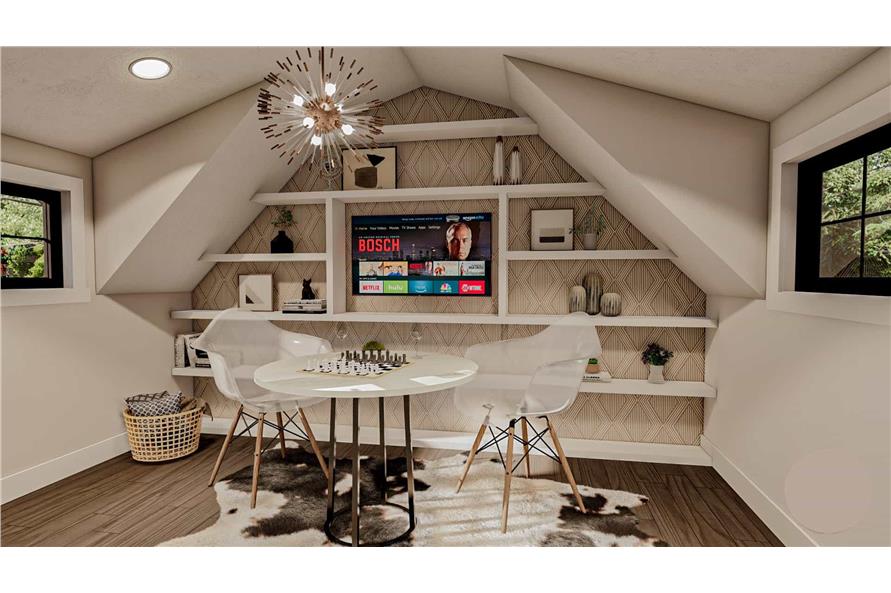

100-1364: Home Other Image-Loft

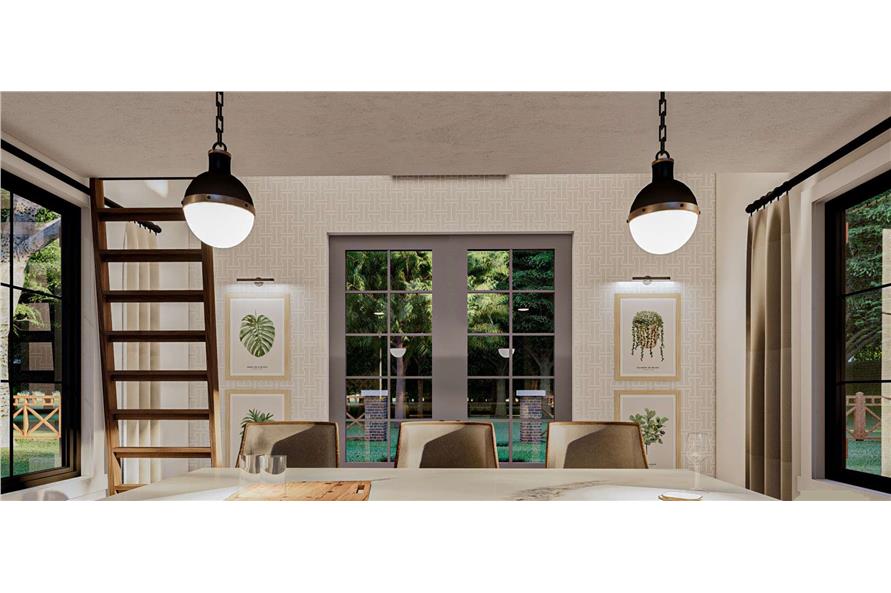

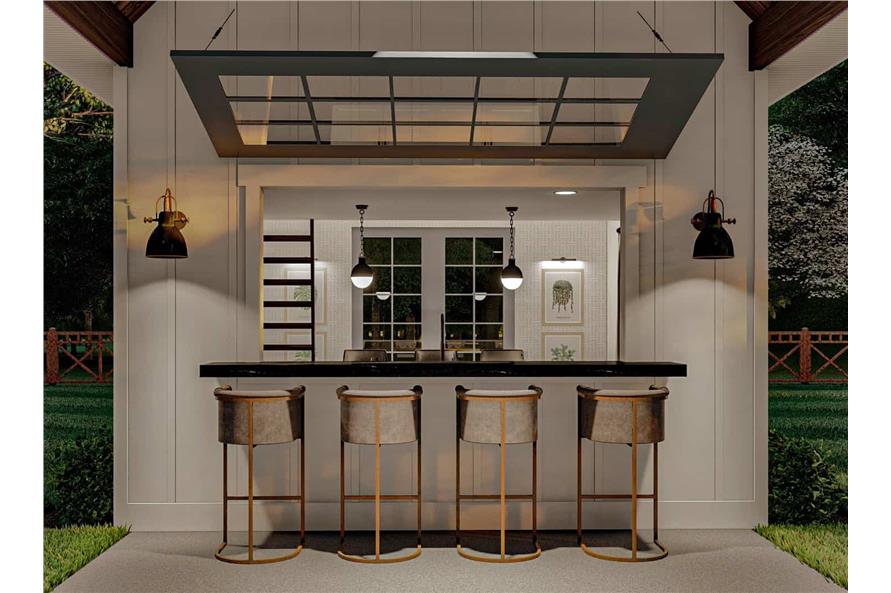

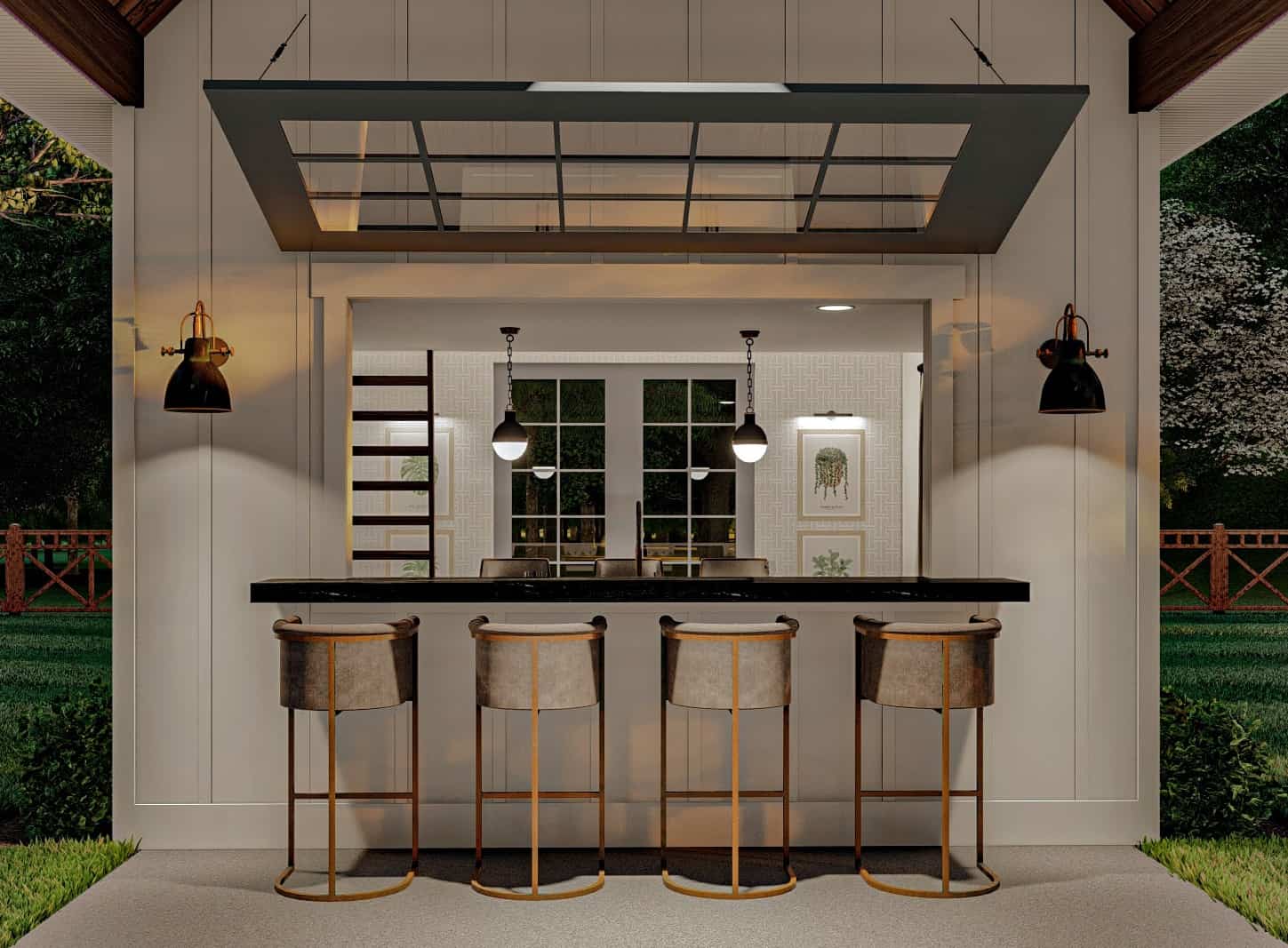

100-1364: Home Other Image-Wet Bar
100-1364: Home Other Image-Loft

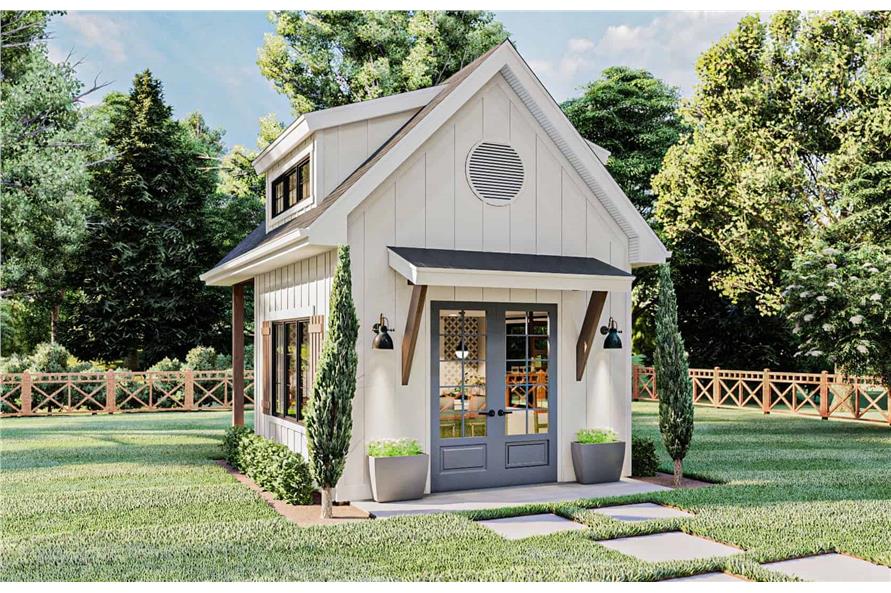

224 Sq Ft Backyard Bar Shed Plan - 100-1364 - Front Exterior
100-1364: Home Other Image-Kitchen
100-1364: Home Other Image-Kitchen: Breakfast Nook
100-1364: Home Other Image-Left Side View
100-1364: Home Other Image-Rear View
100-1364: Home Other Image-Loft
100-1364: Home Other Image-Wet Bar
100-1364: Home Other Image-Loft

About Plan # 100-1364

About Plan # 100-1364

224 SQUARE FEET 0 BEDROOMS 0 FULL BATH 0 HALF BATH
1.5 FLOOR 14' 0" WIDTH 16' 0" DEPTH 0 GARAGE BAY

Talk about outdoor living and entertaining in style! This 224-square-foot farmhouse-inspired shed creates a relaxing ambiance for entertaining friends either in the backyard or by the pool. Here are some more characteristics that enhance its curb appeal:

  • Gabled dormer
  • Lift-up pass-through window to serve from the bar to the covered patio
  • Multi-pane windows
  • Vertical siding with white paint hues that exude a clean vibe

Each plan set includes the following:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

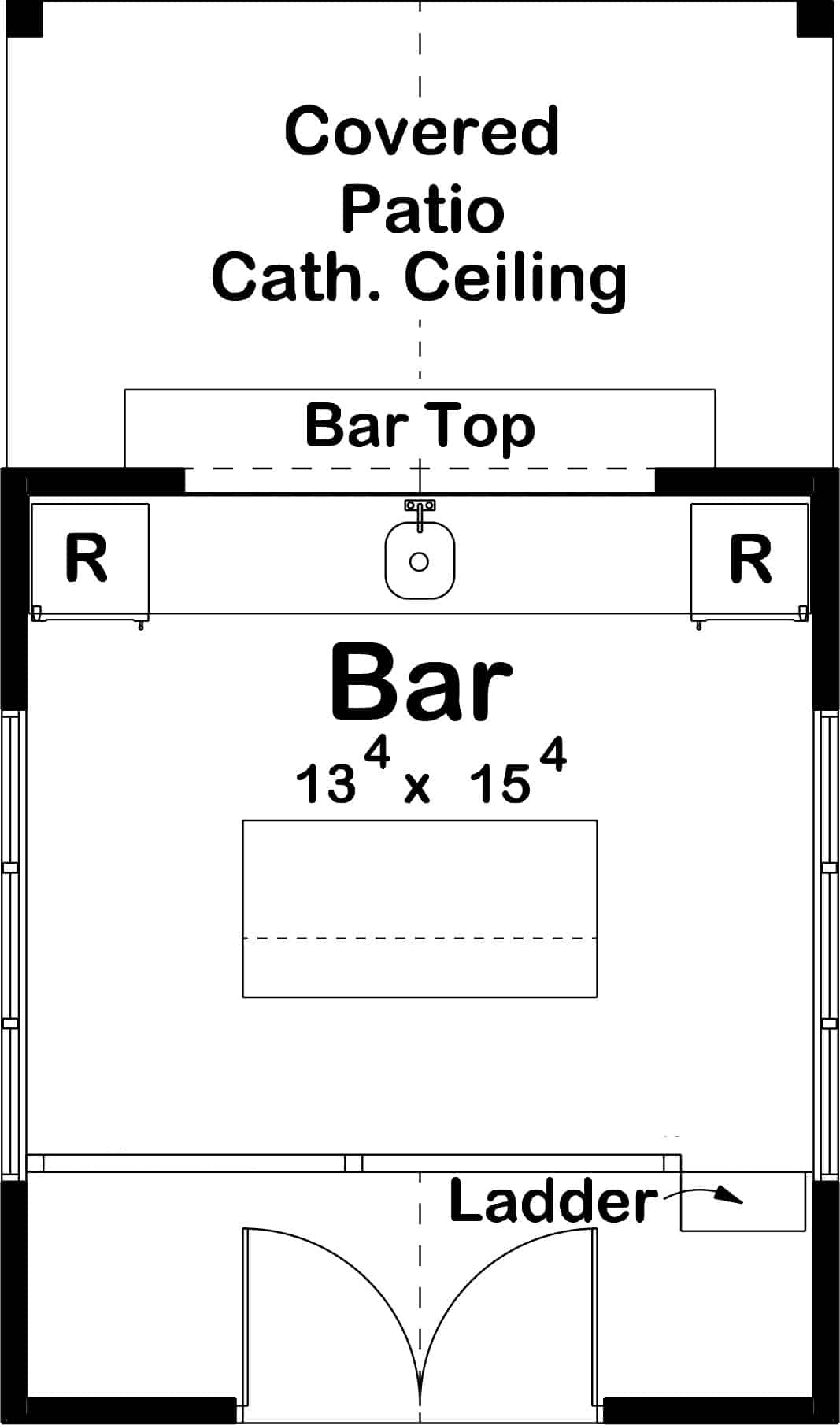

Home Plan: #100-1364 Floor Plan First Story - main level Main Level of Farmhouse Plan #100-1364

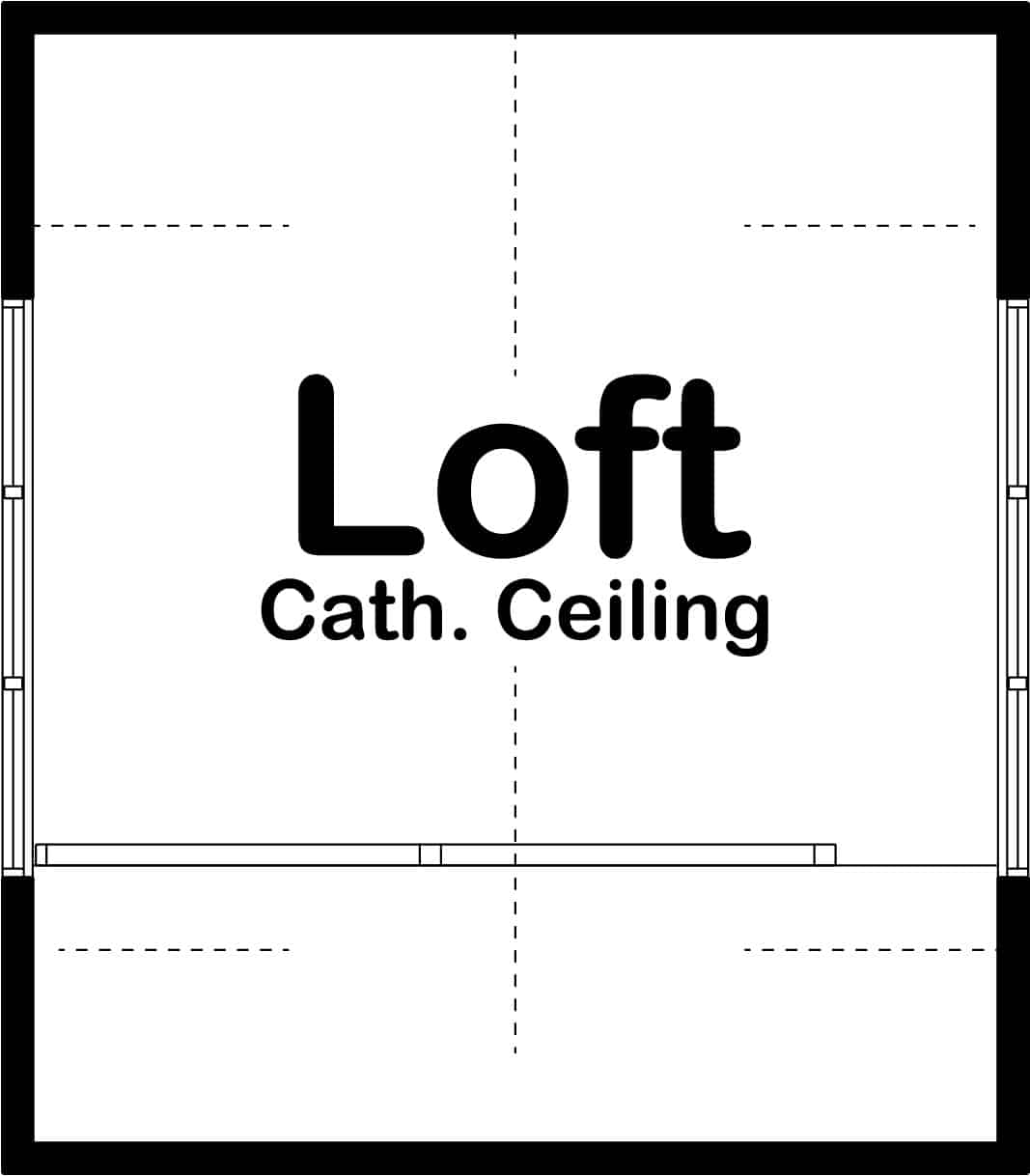

#100-1364 Floor Plan Second Story - upper level Upper Level of Farmhouse Plan #100-1364
Home Plan: #100-1364 Floor Plan First Story - main level Main Level of Farmhouse Plan #100-1364
#100-1364 Floor Plan Second Story - upper level Upper Level of Farmhouse Plan #100-1364
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 100-1364
Floors:
1.5

Square Footage

Heated Sq Feet:
224
Main Floor:
224
Unfinished Sq Ft:

Dimensions

Width:
14' 0"
Depth:
16' 0"

Architectural Styles

Farmhouse
Small House Plans
Cottage

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
4/12

Ceiling Height

8 Foot Ceiling

Special Feature

Loft
Vaulted Ceilings

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Portico
Covered Rear Patio

Additional Notes from Designer

The CAD File formats are drawn in SoftPlan. PLEASE NOTE: Plans by this designer do NOT come with FRAMING! This designer does not do ICF.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
