3-Bedroom, 1579 Sq Ft Ranch Plan with Nook/Breakfast Area

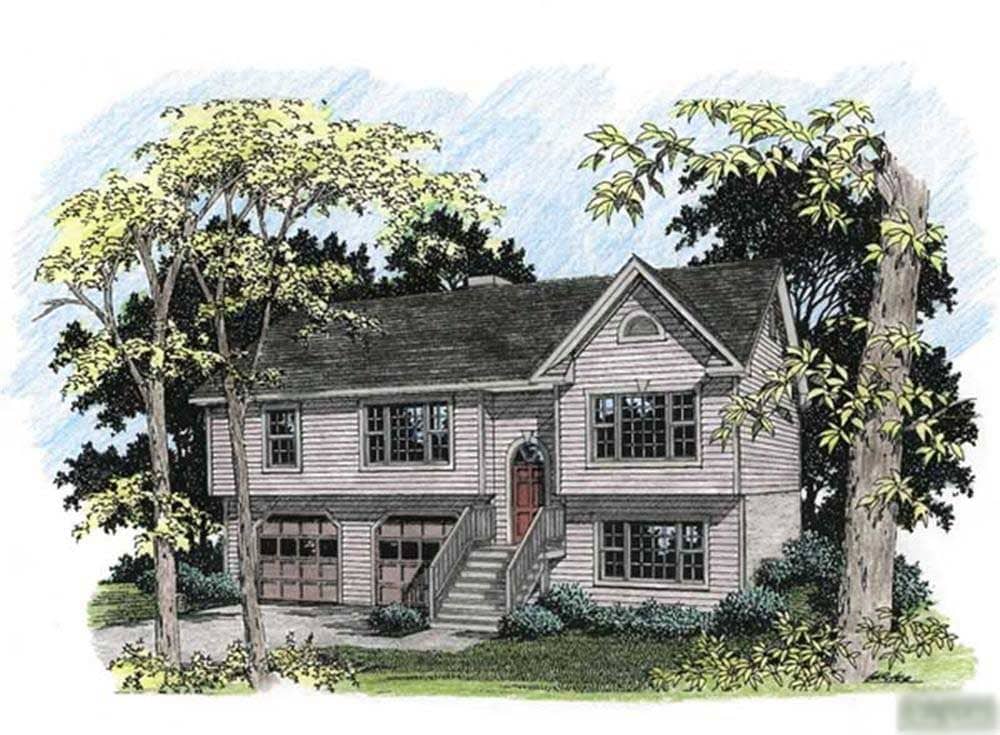

Main image for house plan # 14404

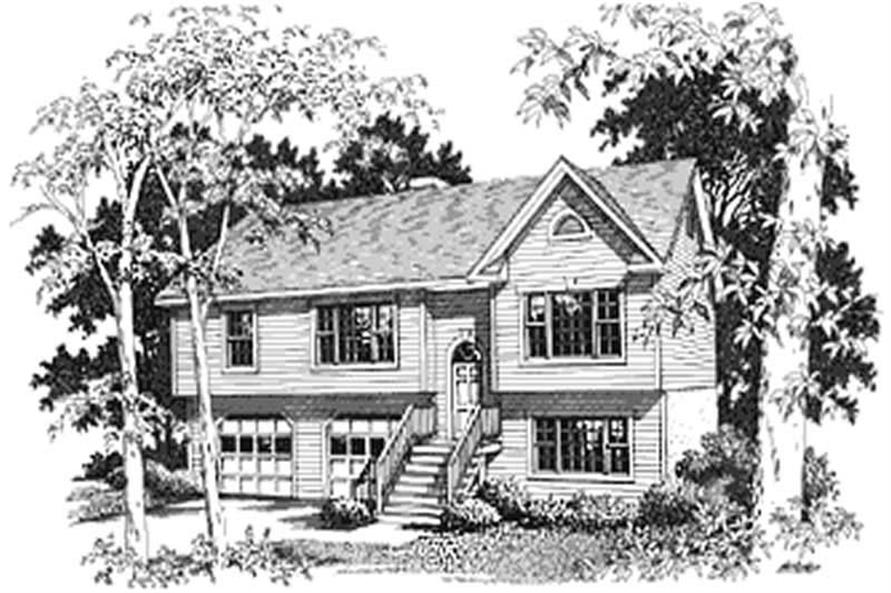

FRONT ELEVATION

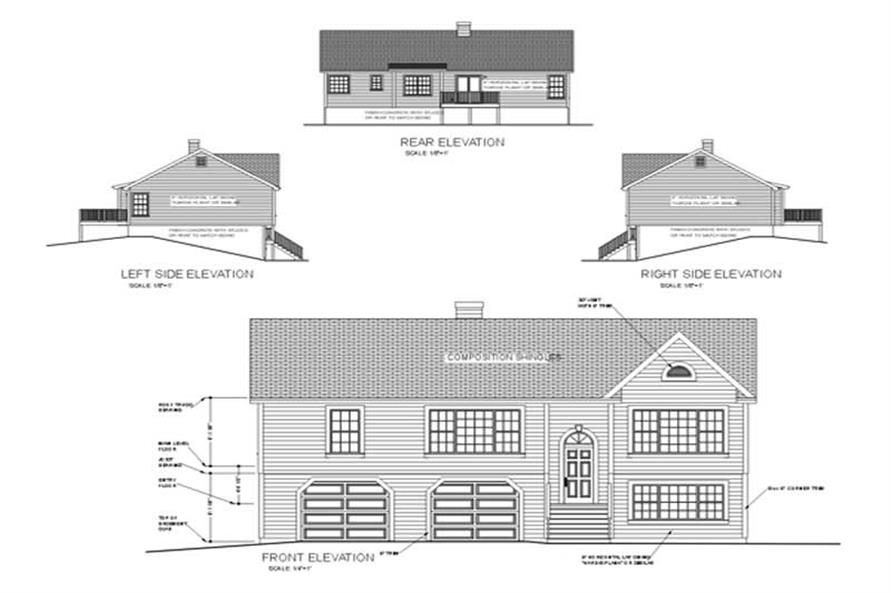

REAR ELEVATION

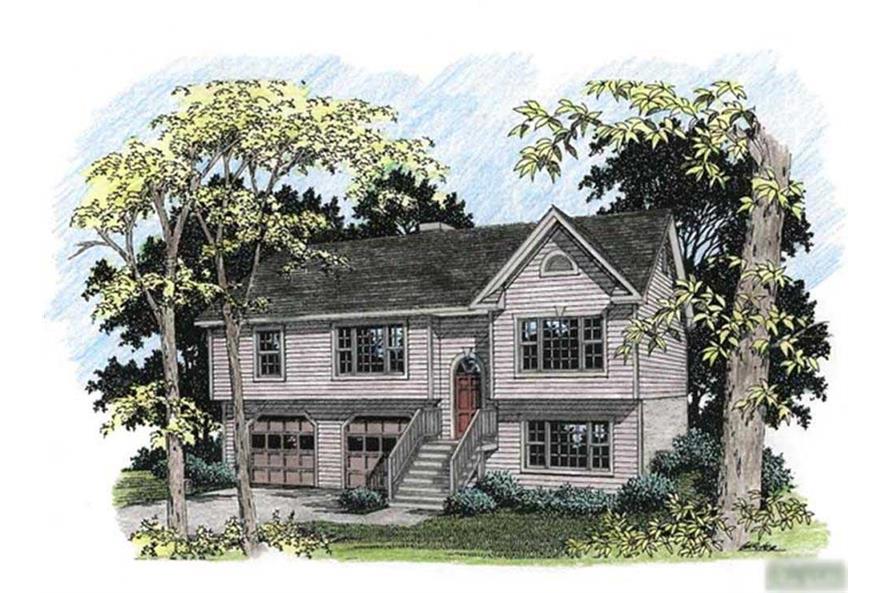

3-Bedroom, 1579 Sq Ft Ranch Home Plan - 109-1129 - Main Exterior
FRONT ELEVATION
REAR ELEVATION

About Plan # 109-1129

About Plan # 109-1129

1579 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 50' 0" WIDTH 30' 0" DEPTH 2 GARAGE BAY
This delightful split-foyer design features 1,579 sq. ft. of living space plus future expansion area in the unfinished basement. The main level is a split-bedroom design with the master suite isolated from the remaining two bedrooms. The master bedroom measures 14'x16' and has a vaulted ceiling. Highlighting the master bath are separate corner garden tub and shower and twin vanities. A roomy walk-in closet completes the master suite. The vaulted living and dining rooms are separated by a dramatic see-thru fireplace. The sunny kitchen/breakfast area features double windows for maximum sunlight exposure. Bedrooms #2 and #3, measuring 12'x13' and 12'x11' respectively, share a hall bath. The lower level houses the laundry area and room for future expansion.

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

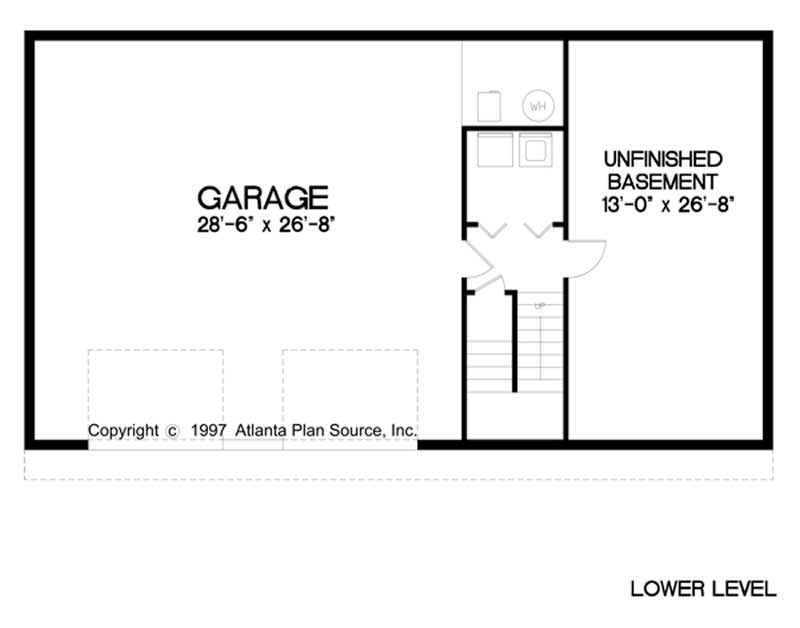

Home Plan: #109-1129 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #109-1129

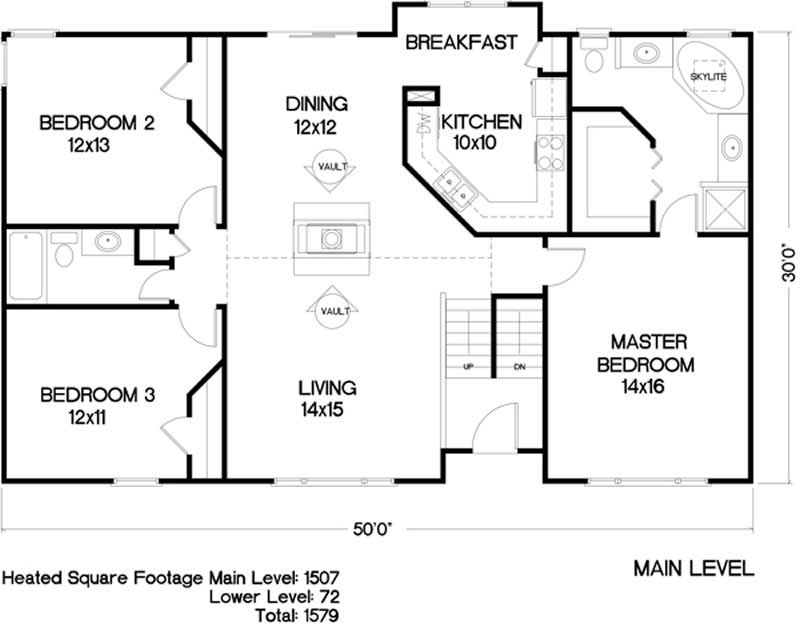

#109-1129 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #109-1129
Home Plan: #109-1129 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #109-1129
#109-1129 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #109-1129
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1129
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1579
Main Floor:
1507
Unfinished Sq Ft:
Lower Floor:
72

Dimensions

Width:
50' 0"
Depth:
30' 0"

Architectural Styles

Ranch
Traditional

Exterior Wall Material

Vinyl Siding

Roof Pitch

7/12

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room
Fireplace

Garage Type

Under Main Floor Entry

Exterior Wall Framing

2x4

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
