About Plan # 109-1085

About Plan # 109-1085

1564 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 55' 0" WIDTH 46' 0" DEPTH 0 GARAGE BAY
This traditional brick ranch features 1,564 sq. ft. of living space. Perfect for a first home, it has a spacious master suite as well as two additional bedrooms. The master suite features a luxurious master bath with separate garden tub and shower. The dining room and family room are highlighted by a vaulted ceiling. A fireplace warms the family room. An oversized patio is accessible from the master suite, the family room and the breakfast room. Highlighting the 12'x9' breakfast room is a bay window. The well-planned kitchen measures 12'x11'. Completing this plan are a laundry room and a hall bath.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

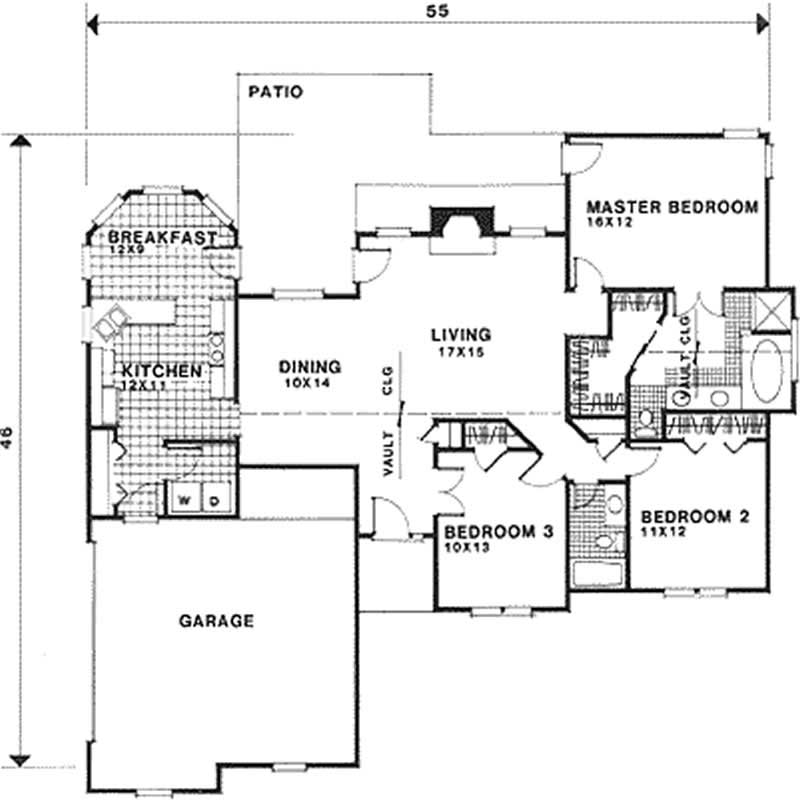

Home Plan: #109-1085 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #109-1085
