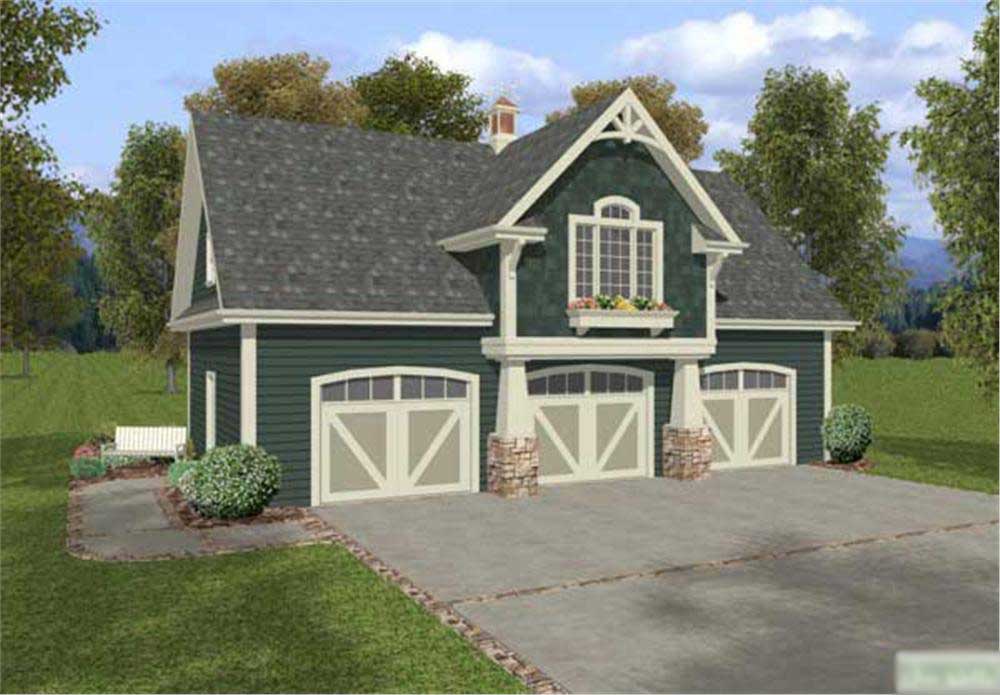

Front elevation of Small House Plans home (ThePlanCollection: House Plan #109-1023)
109-1023: Home Other Image-Front View
1-Bedroom, 838 Sq Ft Small House Plans - 109-1023 - Main Exterior
109-1023: Home Other Image-Front View

About Plan # 109-1023

About Plan # 109-1023

838 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 42' 0" WIDTH 24' 0" DEPTH 3 GARAGE BAY

This striking barn style "carriage house" has 838 sq ft of living space. The two-story floor plan includes 1 bedroom and a 3-car garage. The apartment upstairs would be perfect for in-laws. The barn home with garage fits in many suburban and rural landscapes.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

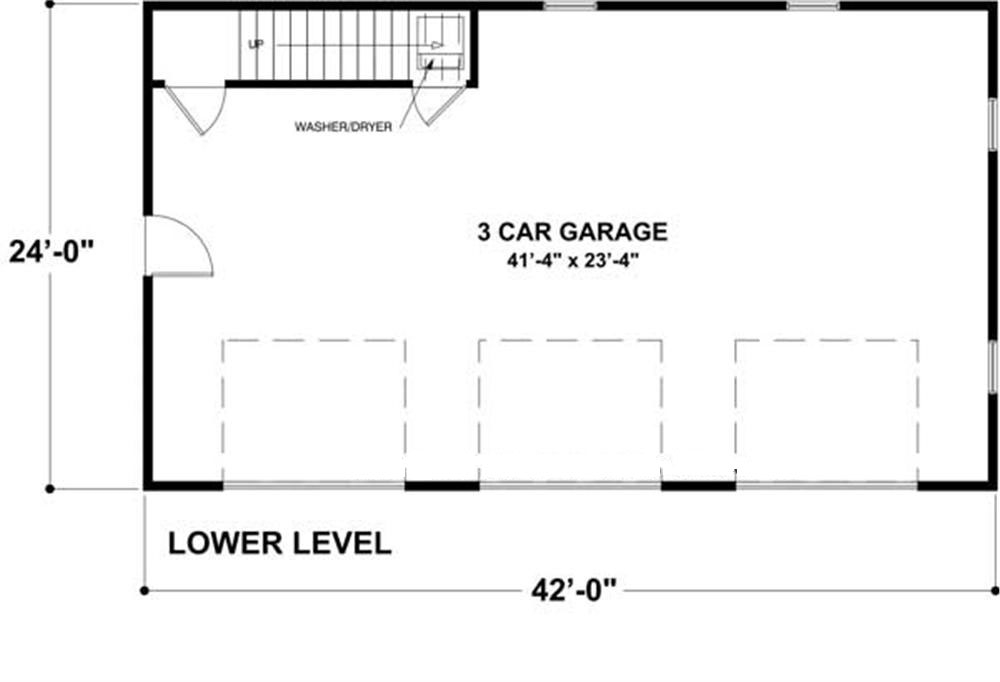

Home Plan: #109-1023 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1023

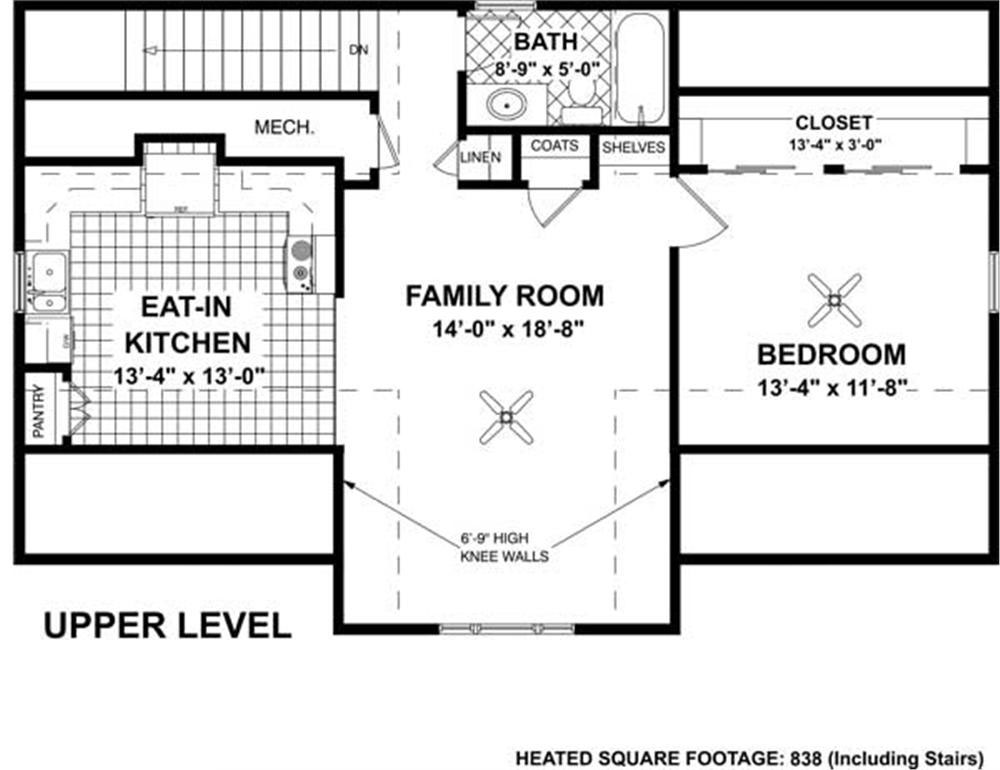

#109-1023 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #109-1023
Home Plan: #109-1023 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1023
#109-1023 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #109-1023
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1023
Floors:
2
Bedrooms:
1
Full Baths:
1

Square Footage

Heated Sq Feet:
838
Main Floor:
954
Upper Floor:
838
Unfinished Sq Ft:

Dimensions

Width:
42' 0"
Depth:
24' 0"
Ridge Height:
23' 9"

Architectural Styles

Garage w/Apartments
Small House Plans

Exterior Wall Material

Wood Siding
Shakes

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Special Feature

Family Room
Main Level Laundry
Storage

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x4

Building Lot Type

Flat Site
Narrow Lot Design

Kitchen Features

Eat-In Kitchen

Master Suite Features

Second Floor Master

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you! PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
