1-Bedroom, 784 Sq Ft Garage w/Apartments Plan with Covered Front Porch

Color rendering of Garage w/Apartment home plan (ThePlanCollection: House Plan #116-1117)
116-1117: Home Plan Rendering
116-1117: Home Plan Rendering
116-1117: Home Plan Rendering-Entry Hall: Staircase
116-1117: Home Plan Rendering-Kitchen
116-1117: Home Plan Rendering
116-1117: Home Plan Rendering-Living Room
1-Bedroom, 784 Sq Ft Garage w/Apartments House Plan - 116-1117 - Front Exterior
116-1117: Home Plan Rendering
116-1117: Home Plan Rendering
116-1117: Home Plan Rendering-Entry Hall: Staircase
116-1117: Home Plan Rendering-Kitchen
116-1117: Home Plan Rendering
116-1117: Home Plan Rendering-Living Room

About Plan # 116-1117

About Plan # 116-1117

784 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 28' 0" WIDTH 28' 0" DEPTH 1 GARAGE BAY

This lovely Garage w/Apartment style home plan with Modern influences (House Plan #116-1117) has 784 square feet of living space. The 2 story floor plan includes 1 bedroom and 1 bathroom.

Each plan set includes the following:

  • FLOOR PLAN: Showing views of each floor, looking down from above. The plans show window and door locations, room sizes, cabinets and fixtures.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings and concrete slabs.
  • ROOF & FLOOR STRUCTURE LAYOUTS: Shows the outline of the floor truss systems and slopes, valleys, ridges and hips on the roof.
  • ELECTRICAL LAYOUT: Shows the location of lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall sections.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

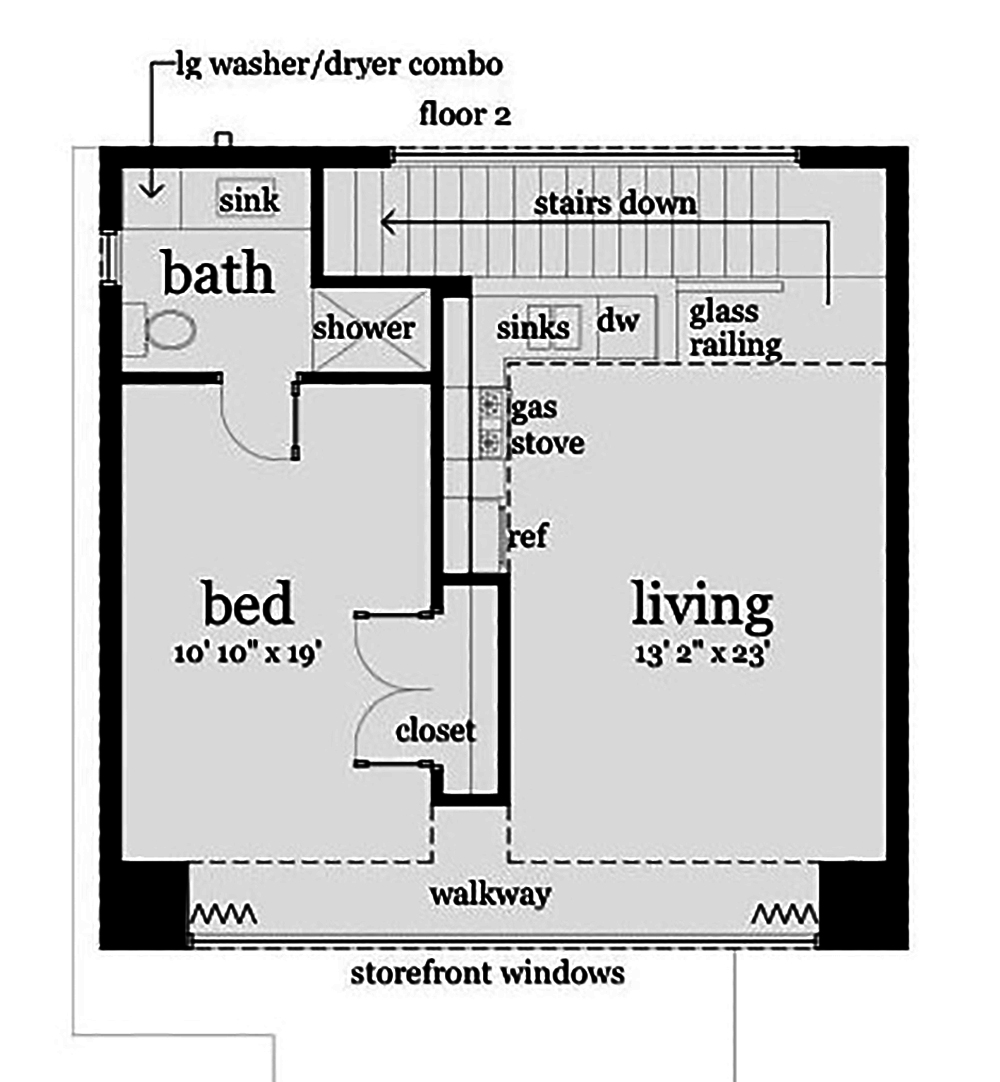

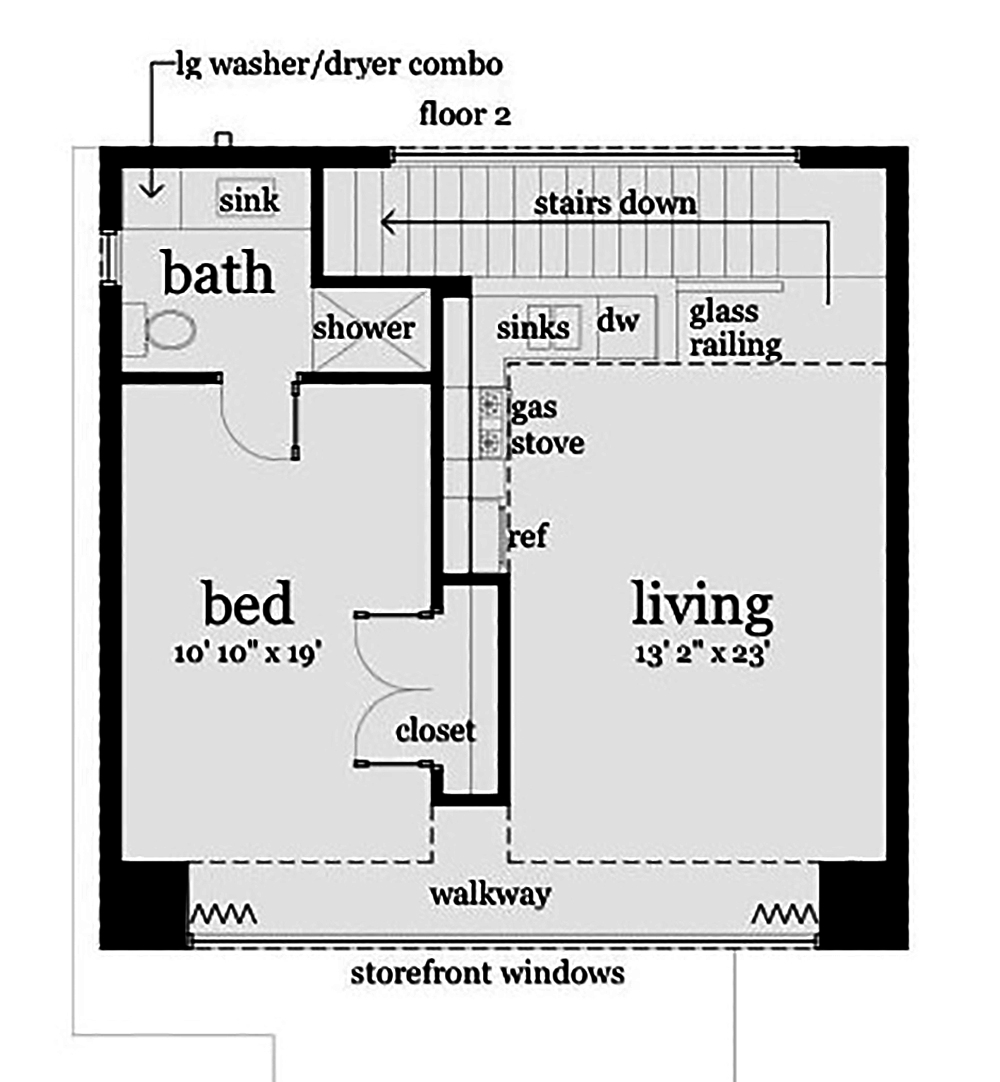

Home Plan: #116-1117 Floor Plan Second Story - upper level Floor Plan Second Story of Garage w/Apartments Plan #116-1117

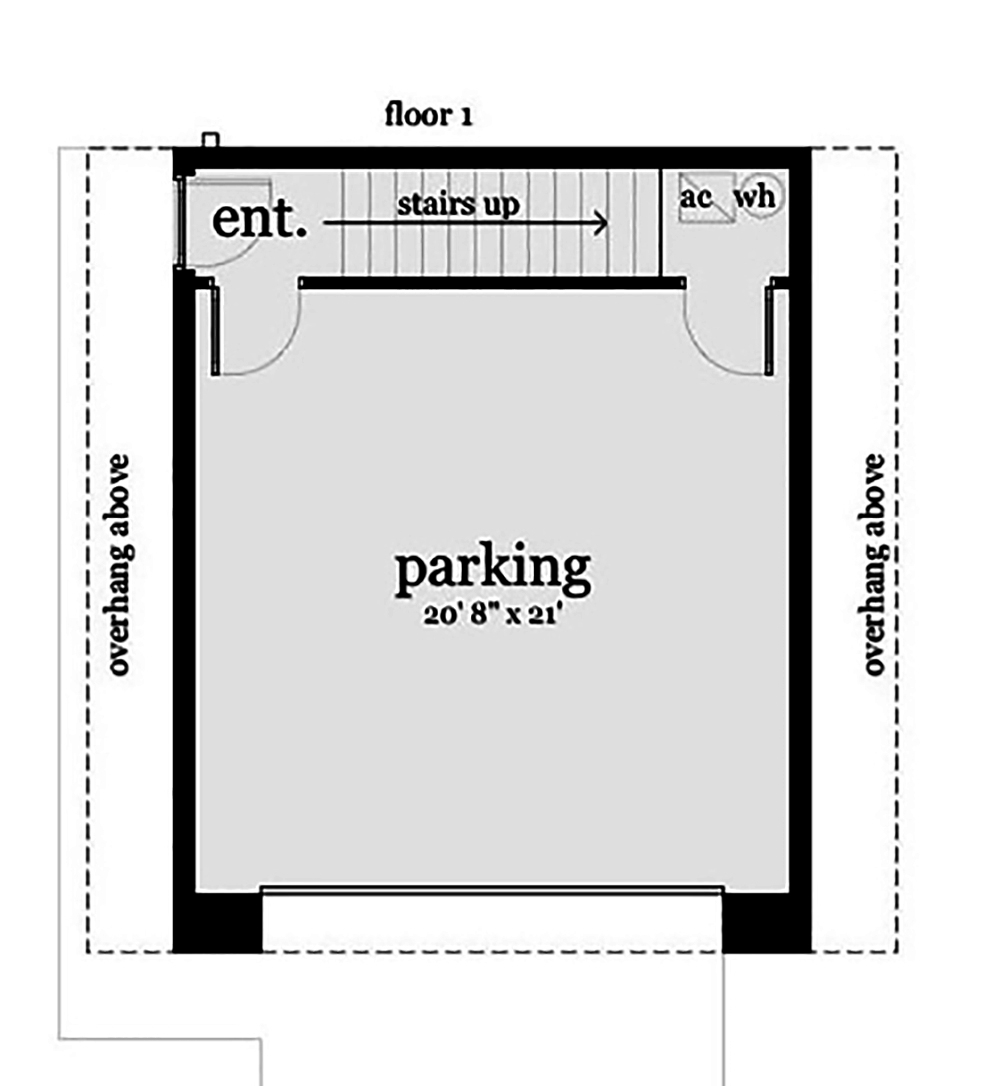

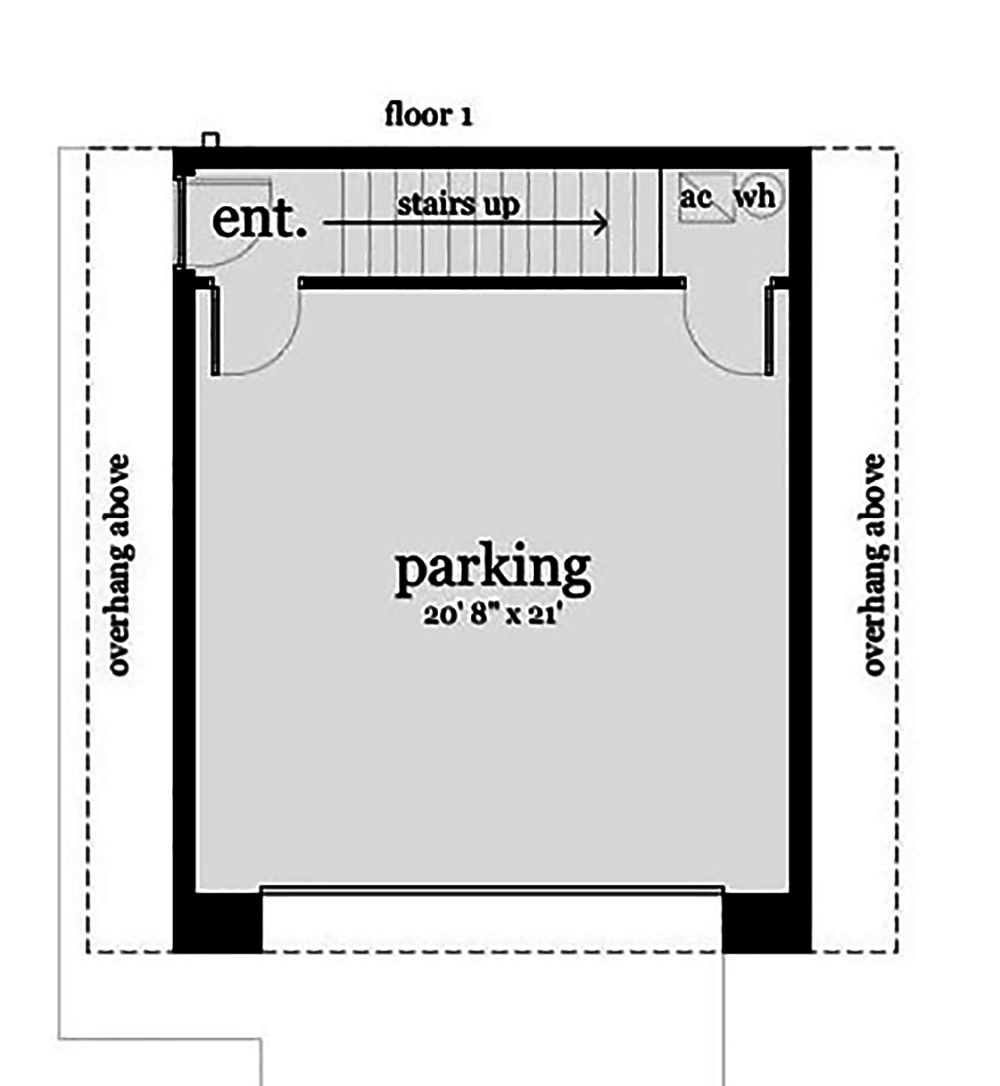

#116-1117 Floor Plan Garage - garage Floor Plan Garage of Garage w/Apartments Plan #116-1117
Home Plan: #116-1117 Floor Plan Second Story - upper level Floor Plan Second Story of Garage w/Apartments Plan #116-1117
#116-1117 Floor Plan Garage - garage Floor Plan Garage of Garage w/Apartments Plan #116-1117
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1117
Floors:
2
Bedrooms:
1
Full Baths:
1
Garage :
1

Square Footage

Heated Sq Feet:
784
Main Floor:
784
Unfinished Sq Ft:
Garage :
583

Dimensions

Width:
28' 0"
Depth:
28' 0"
Ridge Height:
22' 0"

Architectural Styles

California Style
Garage
Garage w/Apartments
Modern

Exterior Wall Material

Stucco

Roofing Type

Flat

Roofing Material

Metal

Roof Pitch

Other

Ceiling Height

9 Foot Ceiling

Special Feature

Main Level Laundry

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x8

Building Lot Type

Narrow Lot Design

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
