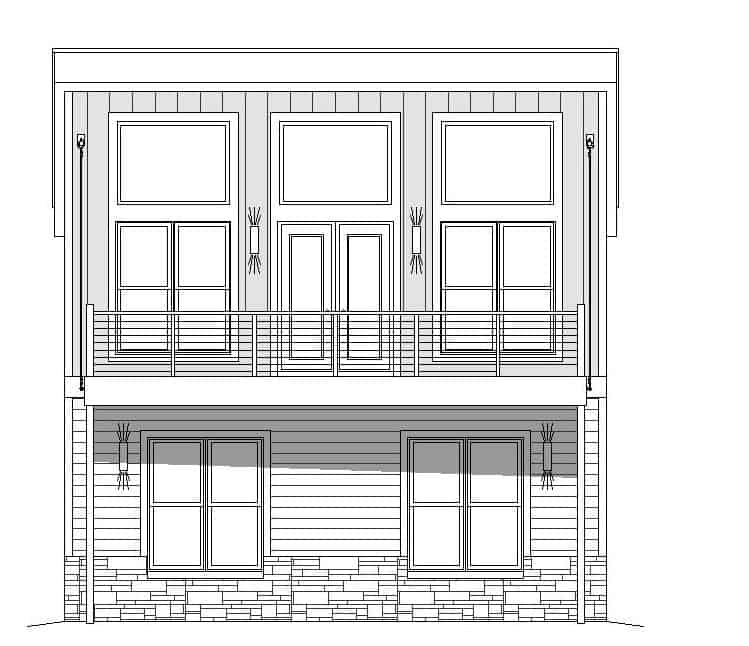

196-1100: Home Plan Rear Elevation

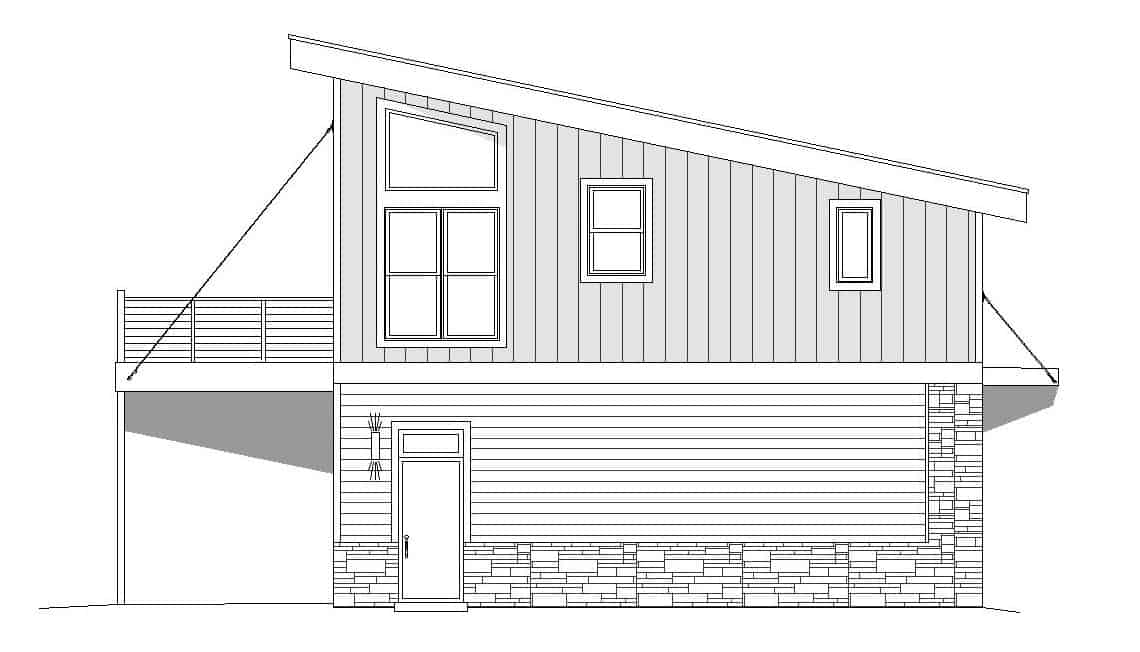

196-1100: Home Plan Left Elevation

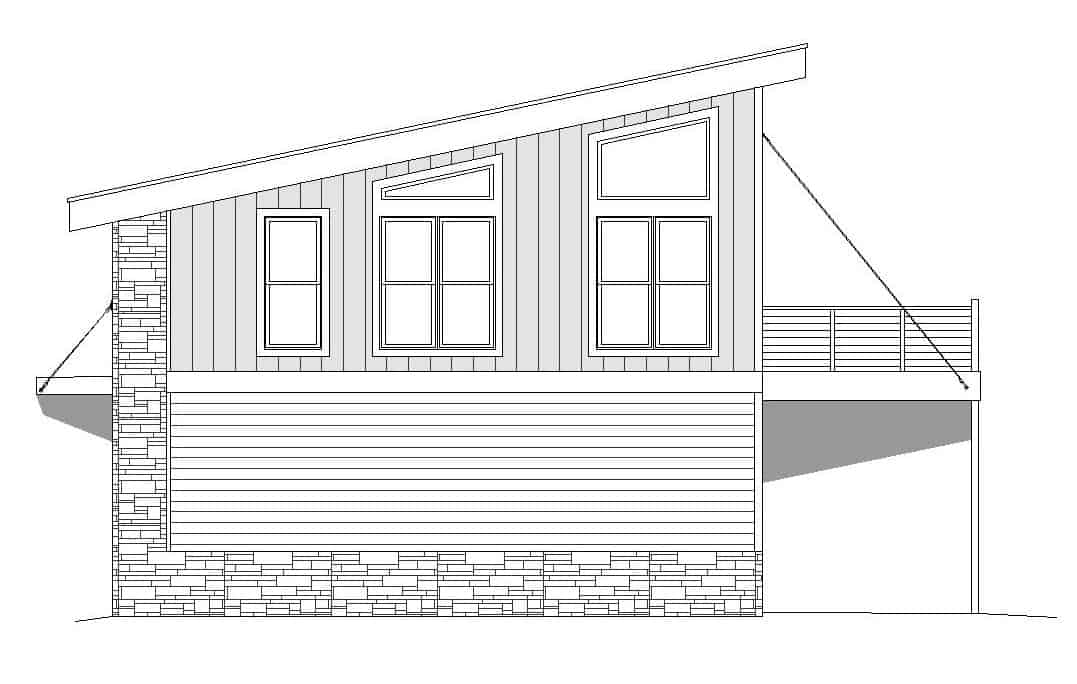

196-1100: Home Plan Right Elevation

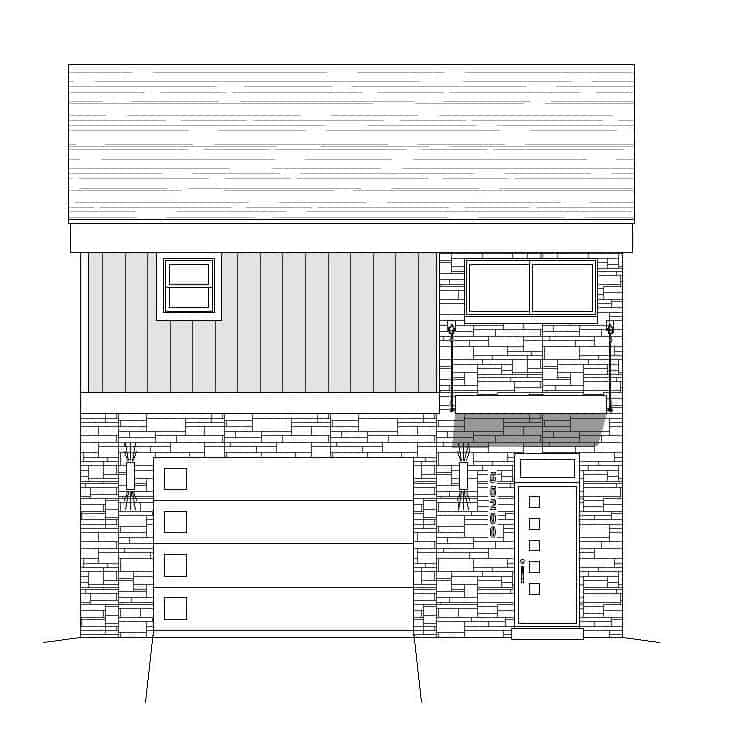

196-1100: Home Plan Front Elevation
196-1100: Home Plan Rendering
1-Bedroom, 825 Sq Ft Garage w/Apartments Home Plan - 196-1100 - Main Exterior
196-1100: Home Plan Rear Elevation
196-1100: Home Plan Left Elevation
196-1100: Home Plan Right Elevation
196-1100: Home Plan Front Elevation
196-1100: Home Plan Rendering

About Plan # 196-1100

About Plan # 196-1100

825 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 23' 0" WIDTH 30' 0" DEPTH 2 GARAGE BAY

This lovely Garage w/Apartments style home has 825 square feet of living space. The 2 story floor plan includes 1 bedroom with a full bathroom.

Each plan set includes the following:

a) Floor Plans: Floor plan drawings indicating dimensions for construction
b) Roof Plan: Drawings indicating roof slopes and unique conditions
c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
d) Building Sections: Drawings cut through important locations in the structure
e) Construction Details: Drawings showing specific construction of building elements at a large scale
f) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches, and outlets)
g) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
h) A building license: A single-use license for construction at one location only

Additional notes about engineering and building codes:

Our plans are designed to meet national building codes. We do not guarantee they will meet all local building requirements or building codes influenced by local geographic or climatic factors. It is the responsibility of the owner or builder to ensure these plans comply with city, county, municipal, and/or state/provincial building codes. Additionally, your plans will not be sealed or stamped by an engineer or architect. It is the owner’s (or builder’s) responsibility to hire a local professional to review and seal or stamp the plans if required by the building department. This must be handled by an engineer or architect licensed in the state/province where the plan is to be built.






Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

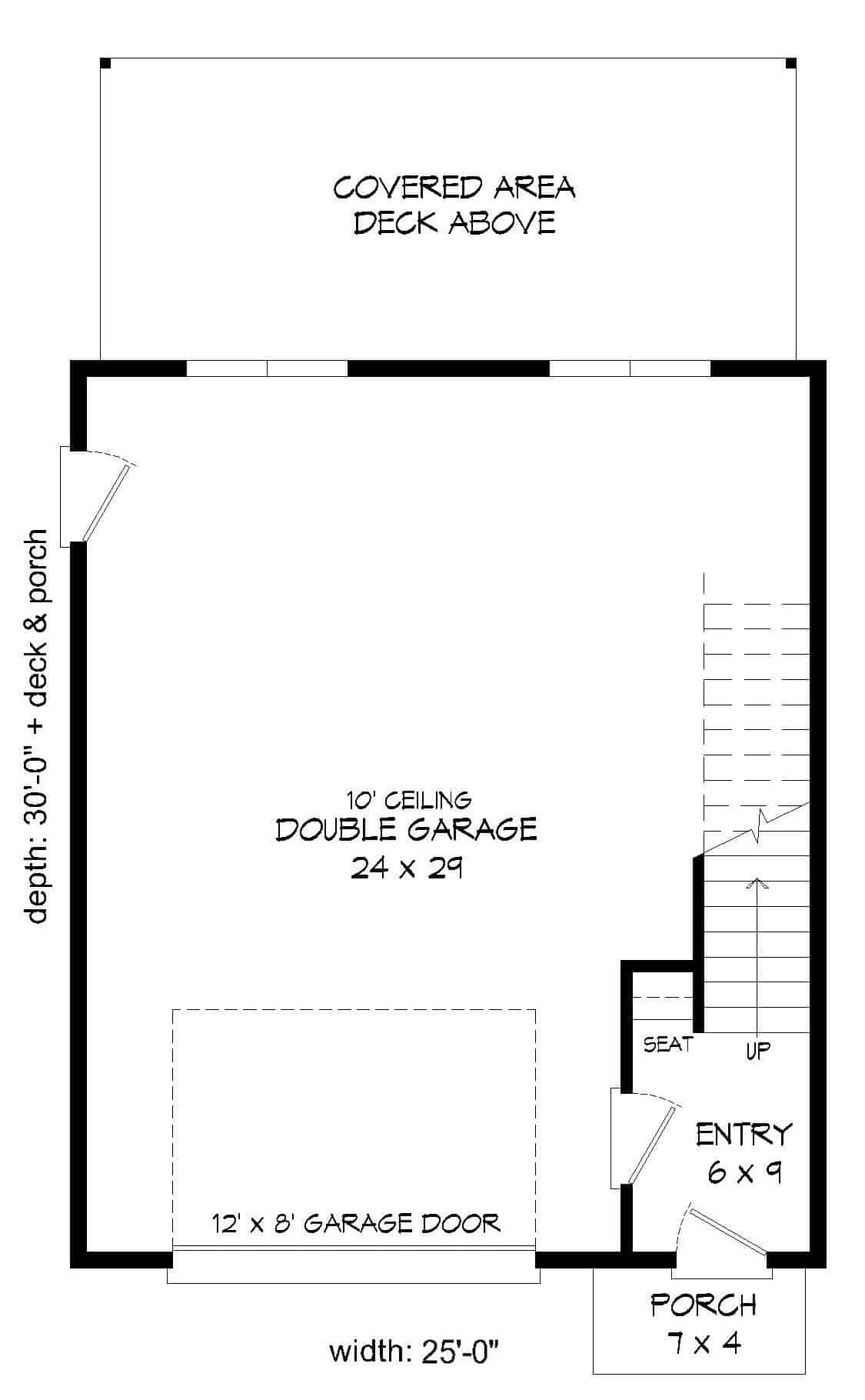

Home Plan: #196-1100 Floor Plan First Story - main level Floor Plan Main Level of Garage w/Apartments Plan #196-1100

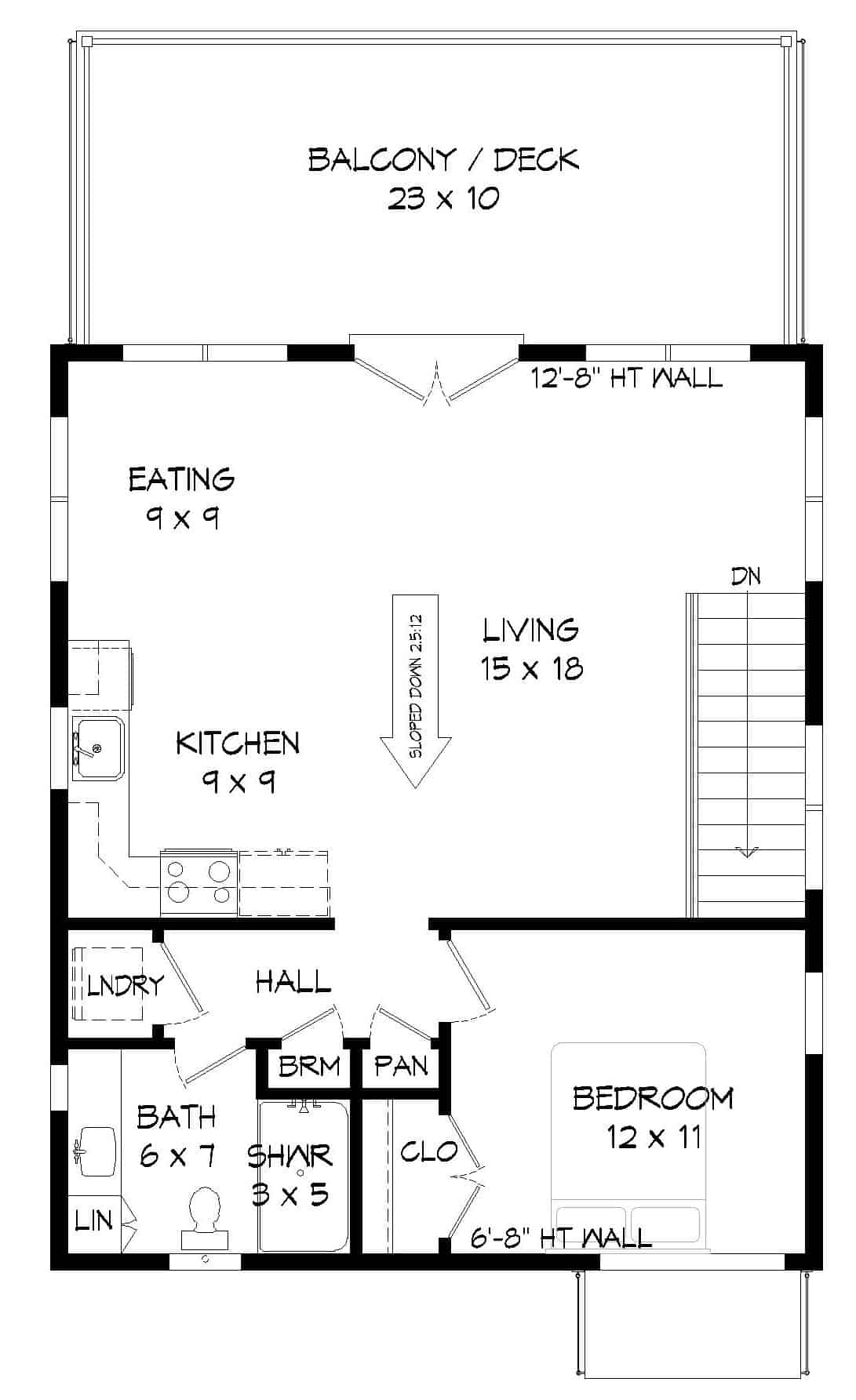

#196-1100 Floor Plan Second Story - upper level Floor Plan Upper Level of Garage w/Apartments Plan #196-1100
Home Plan: #196-1100 Floor Plan First Story - main level Floor Plan Main Level of Garage w/Apartments Plan #196-1100
#196-1100 Floor Plan Second Story - upper level Floor Plan Upper Level of Garage w/Apartments Plan #196-1100
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 196-1100
Floors:
2
Bedrooms:
1
Full Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
825
Main Floor:
75
Upper Floor:
750
Unfinished Sq Ft:
Garage :
675
Porch :
255

Dimensions

Width:
23' 0"
Depth:
30' 0"
Ridge Height:
26' 0"

Architectural Styles

Garage
Garage w/Apartments

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Flat

Roofing Material

Metal

Roof Pitch

Other

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Family Room
Balcony
Second Level Laundry
Open Floor Plan

Garage Type

Front Entry

Exterior Wall Framing

2x6

Kitchen Features

Nook/Breakfast Area
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Sundeck

Master Suite Features

Second Floor Master

Additional Notes from Designer

NOTE FROM DESIGNER REGARDING PLAN PURCHASES: 80% of a 5 set purchase price can be applied to any PDF or CAD license upgrade. Additionally, 80% of PDF Study purchase price can be applied to any CAD or PDF license upgrade.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this PDF file set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.

Package & Price Help
