1-Bedroom, 630 Sq Ft Garage w/Apartments Plan with Peninsula/Eating Bar

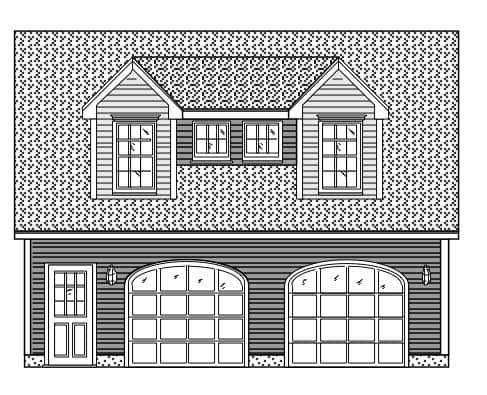

This is a black and white rendering of these garage plans.
1-Bedroom, 630 Sq Ft Garage w/Apartments Home Plan - 110-1128 - Main Exterior

About Plan # 110-1128

About Plan # 110-1128

630 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 28' 0" WIDTH 25' 0" DEPTH 2 GARAGE BAY

This garage plan has a nice open apartment upstairs.

Each plan set includes the following:

  • ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window sizes.
  • UPPER FLOOR PLAN (if applicable): Same details as the main floor plan.
  • SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Framing plans.
  • Electrical layout.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

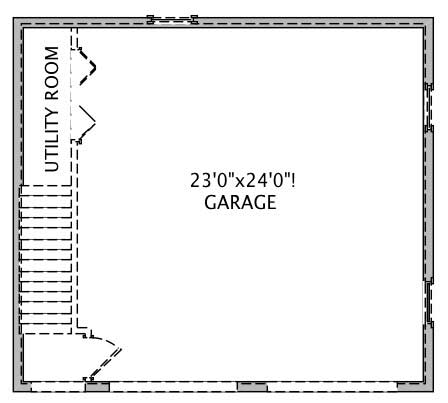

Home Plan: #110-1128 Floor Plan First Story - first story Floor Plan First Story of Garage w/Apartments Plan #110-1128

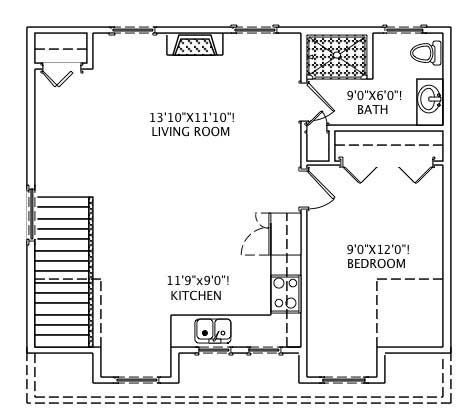

#110-1128 Floor Plan Second Story - second story Floor Plan Second Story of Garage w/Apartments Plan #110-1128
Home Plan: #110-1128 Floor Plan First Story - first story Floor Plan First Story of Garage w/Apartments Plan #110-1128
#110-1128 Floor Plan Second Story - second story Floor Plan Second Story of Garage w/Apartments Plan #110-1128
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 110-1128
Floors:
2
Bedrooms:
1
Full Baths:
1

Square Footage

Heated Sq Feet:
630
Main Floor:
630
Unfinished Sq Ft:

Dimensions

Width:
28' 0"
Depth:
25' 0"

Architectural Styles

Garage w/Apartments

Exterior Wall Material

Wood Siding

Roofing Type

Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Special Feature

Fireplace
Storage

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Building Lot Type

Flat Site
Narrow Lot Design

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area

Master Suite Features

Second Floor Master

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

One full printed set with a license to build one home. Generally, we advise customers to purchase a package with more than one set as it is illegal to make copies of a set, and you typically need multiple sets to complete construction of your home.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
