1-Bedroom, 2 Story A-Frame House Floor Plan

Front elevation of A Frame home (ThePlanCollection: House Plan #146-1841)
1-Bedroom, 908 Sq Ft A Frame House Plan - 146-1841 - Front Exterior

About Plan # 146-1841

About Plan # 146-1841

908 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 26' 0" WIDTH 36' 0" DEPTH 0 GARAGE BAY

Loved by some and disliked by others, the A-Frame house plan is truly one of those distinctive designs. It is also one that has lasted for decades given its many practical features. On the main floor, this A-Frame floor plan design enjoys a spacious living/dining area with a wood stove, a U-shaped kitchen, a bedroom with closet and storage, and a full bath. Of special note, the living area is flooded with natural light thanks to the large windows and sloped ceiling or vaulted interior that the A-Frame design affords. Outside, there are large decks on both the front and rear of the home.

Need a bit more space for guests? This floor plan boasts a spacious loft or "balcony room" on the second floor that overlooks the living area.

There are no roof trusses, plan is designed by using Glu-Lam beams ever 4’-0” on center with 2x8 roof joists in between. No timber frame.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

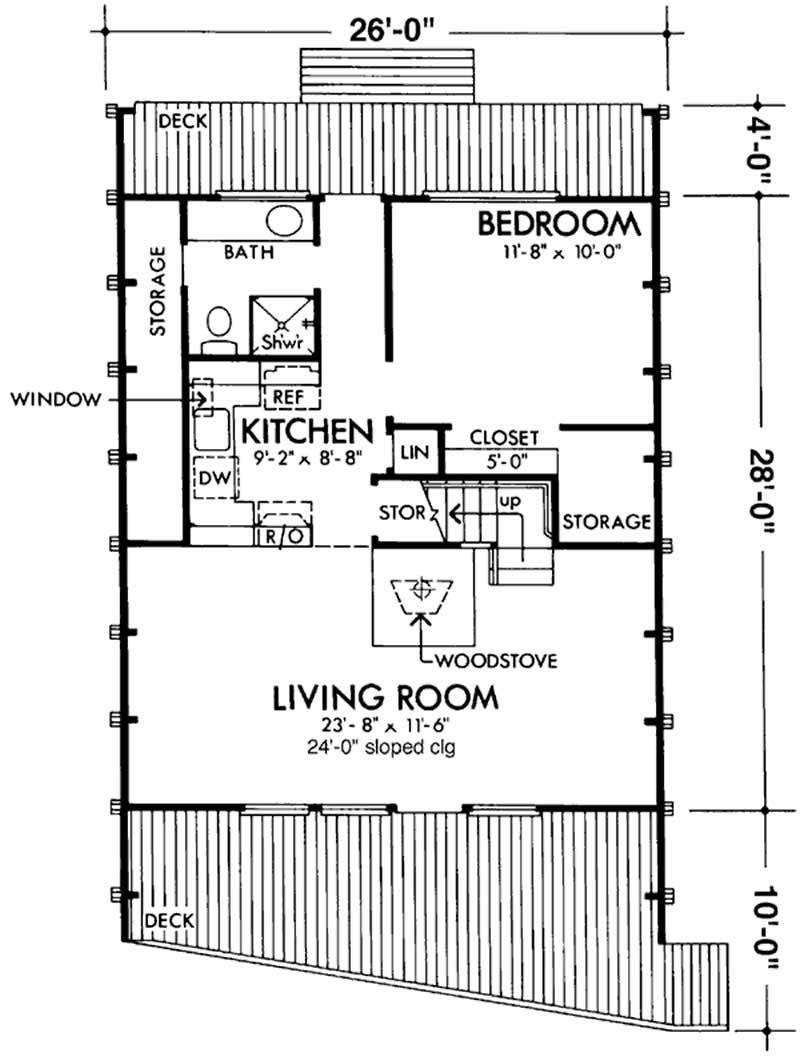

Home Plan: #146-1841 Floor Plan First Story - first story Floor Plan First Story of A Frame Plan #146-1841

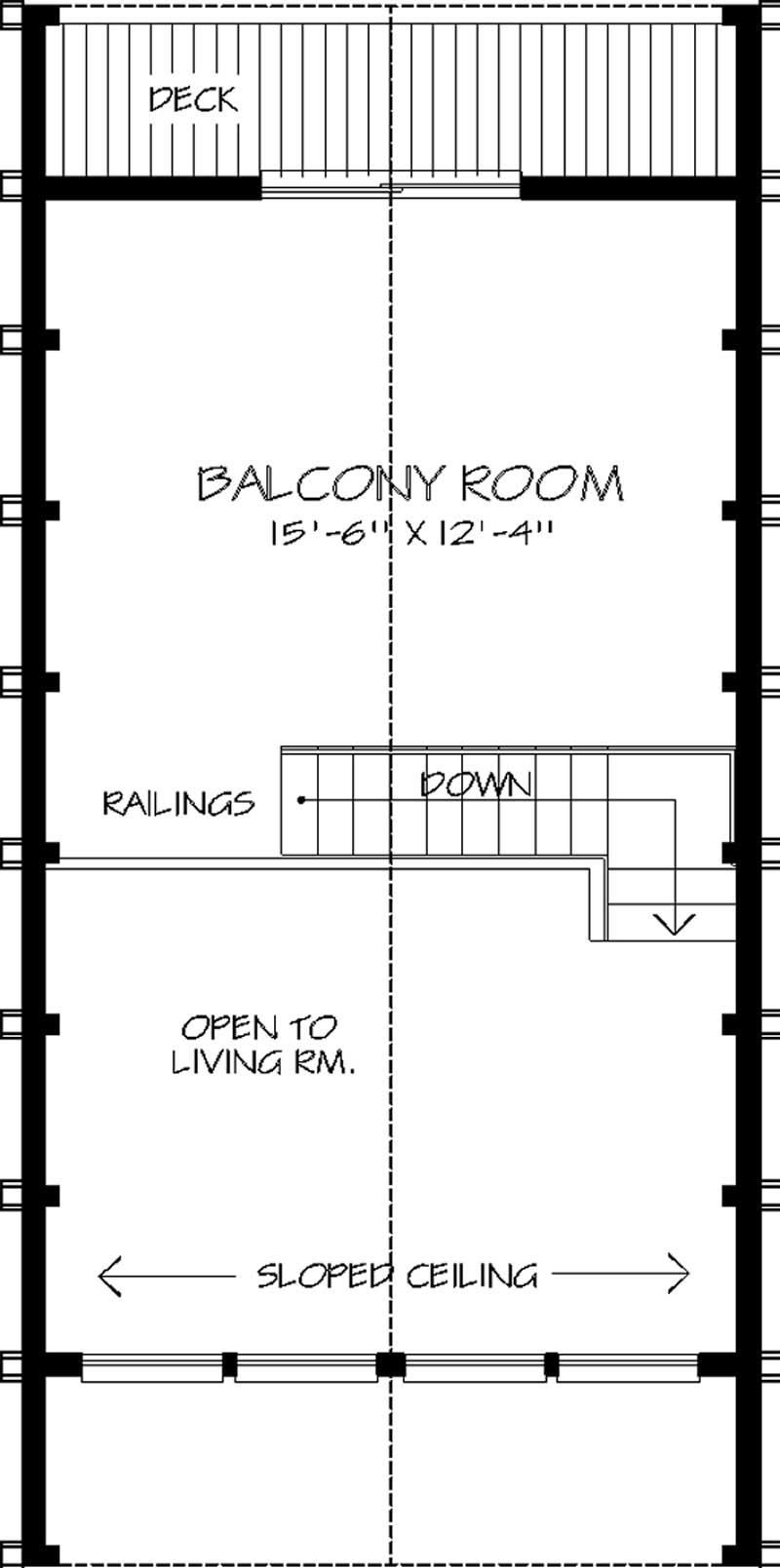

#146-1841 Floor Plan Second Story - second story Floor Plan Second Story of A Frame Plan #146-1841
Home Plan: #146-1841 Floor Plan First Story - first story Floor Plan First Story of A Frame Plan #146-1841
#146-1841 Floor Plan Second Story - second story Floor Plan Second Story of A Frame Plan #146-1841
