1-Bedroom, 796 Sq Ft Log Cabin Home Plan - 160-1000 - Main Exterior

About Plan # 160-1000

About Plan # 160-1000

796 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 20' 0" WIDTH 40' 0" DEPTH 0 GARAGE BAY
This economical cottage design is ideally suited for a compact or narrow building site. The versatile two storey great room features a window wall enhancing all the available rear views. The second level sleeping loft could easily be partitioned if additional privacy is warranted. The covered front entry is protected from the elements and adds to the curb appeal.

Each plan set includes the following:

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan
  • Main floor plan
  • Second-floor plan (if applicable)
  • Structural floor/Roof information
  • Electrical layout
  • Minimum of two cross-sections Details
  • Exterior Elevations Generic detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

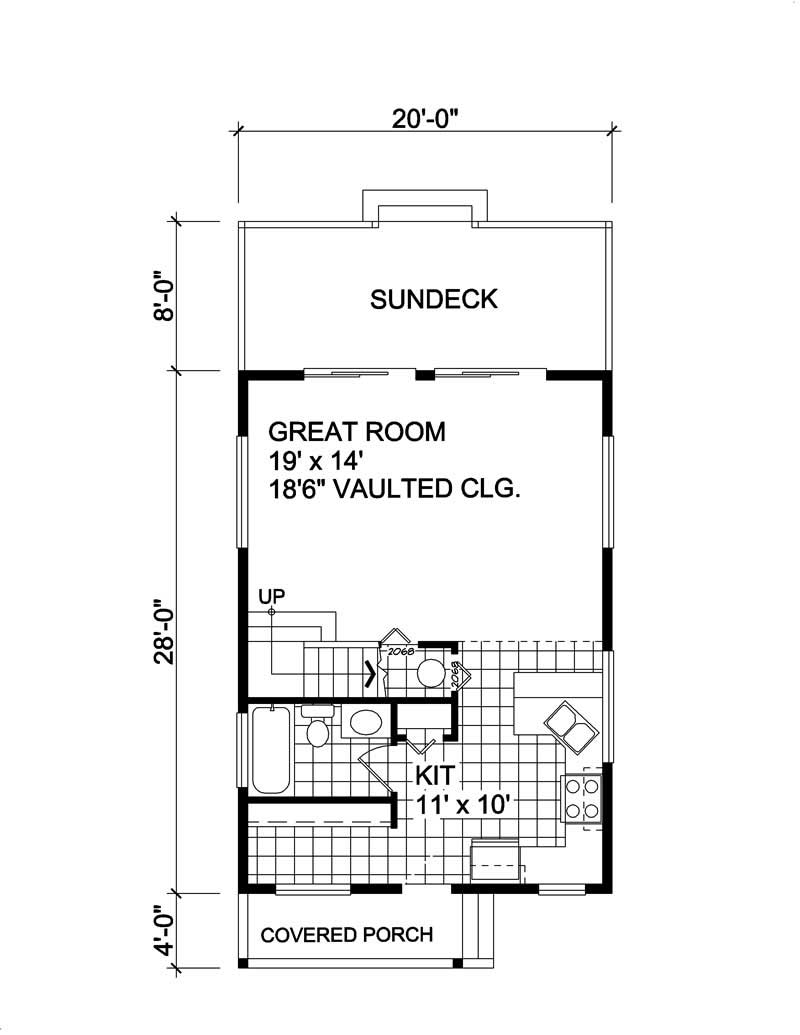

Home Plan: #160-1000 Floor Plan First Story - main level Floor Plan First Story of Log Cabin Plan #160-1000

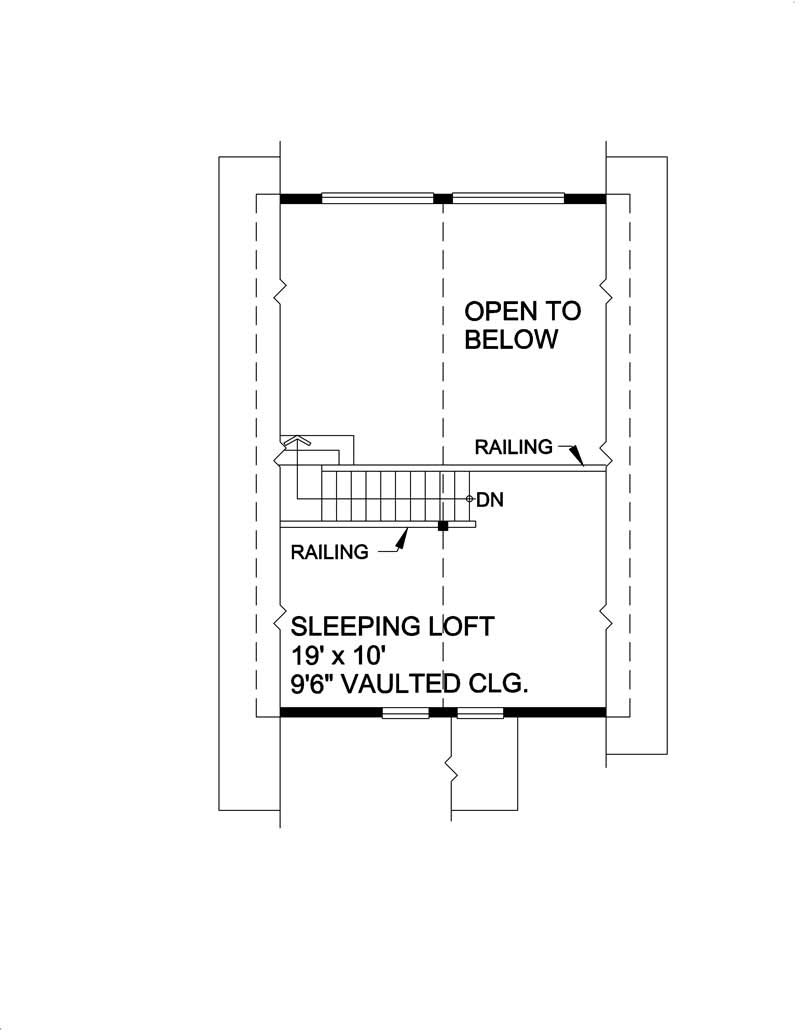

#160-1000 Floor Plan Second Story - second level Floor Plan Second Story of Log Cabin Plan #160-1000
Home Plan: #160-1000 Floor Plan First Story - main level Floor Plan First Story of Log Cabin Plan #160-1000
#160-1000 Floor Plan Second Story - second level Floor Plan Second Story of Log Cabin Plan #160-1000
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 160-1000
Floors:
2
Bedrooms:
1
Full Baths:
1

Square Footage

Heated Sq Feet:
796
Main Floor:
560
Upper Floor:
236
Unfinished Sq Ft:

Dimensions

Width:
20' 0"
Depth:
40' 0"
Ridge Height:
23'' 0"

Architectural Styles

Vacation Homes
Cabin

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roof Pitch

12/12
6/12

Ceiling Height

10 Foot Ceiling
8 Foot Ceiling

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
