2-Bed, 1417 Sq Ft Vacation Home with Vaulted Ceilings

Rustic vacation home (ThePlanCollection: Plan #160-1037)

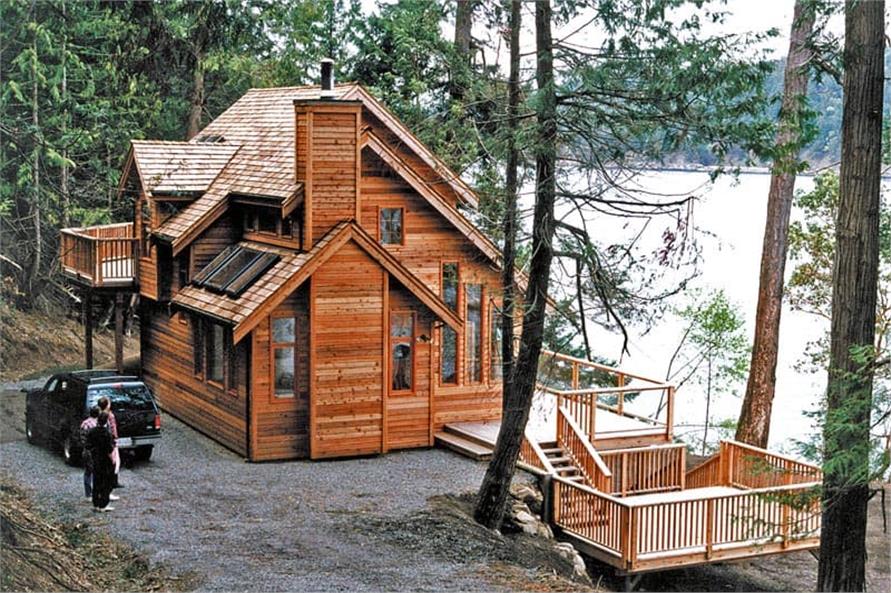

2-Bedroom, 1417 Sq Ft Vacation Home - Plan #160-1038 - Front Exterior

About Plan # 160-1038

About Plan # 160-1038

1.5 FLOOR 46' 0" WIDTH 28' 0" DEPTH 0 GARAGE BAY

This splendid vacation home with rustic details (Plan #160-1037) has 1417 square feet of heated and cooled living space. The 1.5-story floor plan includes 2 bedrooms and the following features:

• Oversize kitchen island with eating bar

• Vaulted ceiling

• Second floor master bedroom suite with 11-foot ceiling and private deck

• Wrap-around sun deck in the rear

Note: For a similar plan with 3 bedrooms and 1235 living square feet, visit Plan #160-1009.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

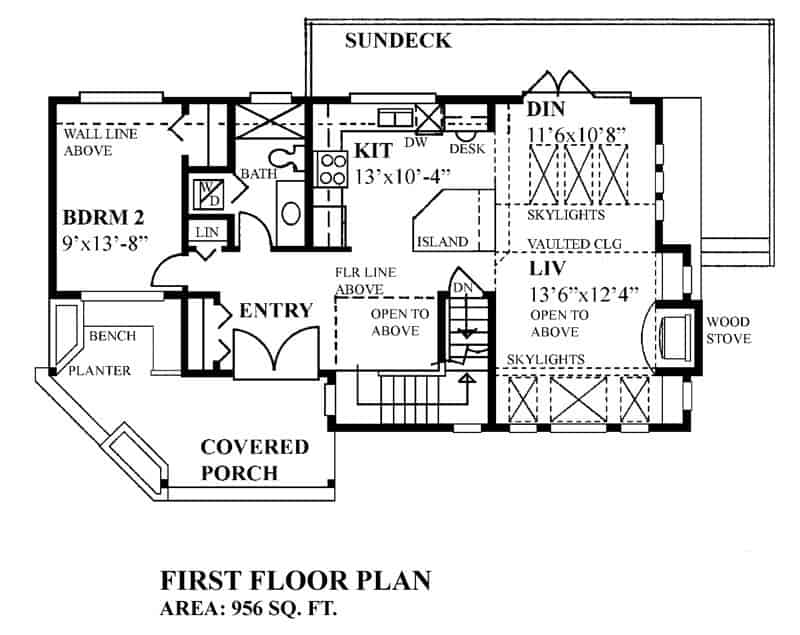

Home Plan: #160-1038 Floor Plan First Story - first story Main Level of Vacation Homes Plan #160-1038

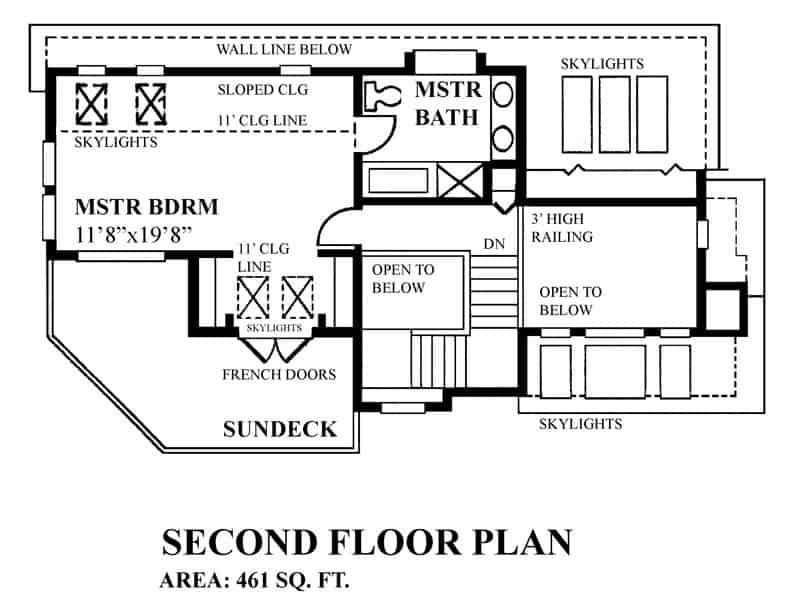

#160-1038 Floor Plan Second Story - second story Upper Level of Vacation Homes Plan #160-1038
