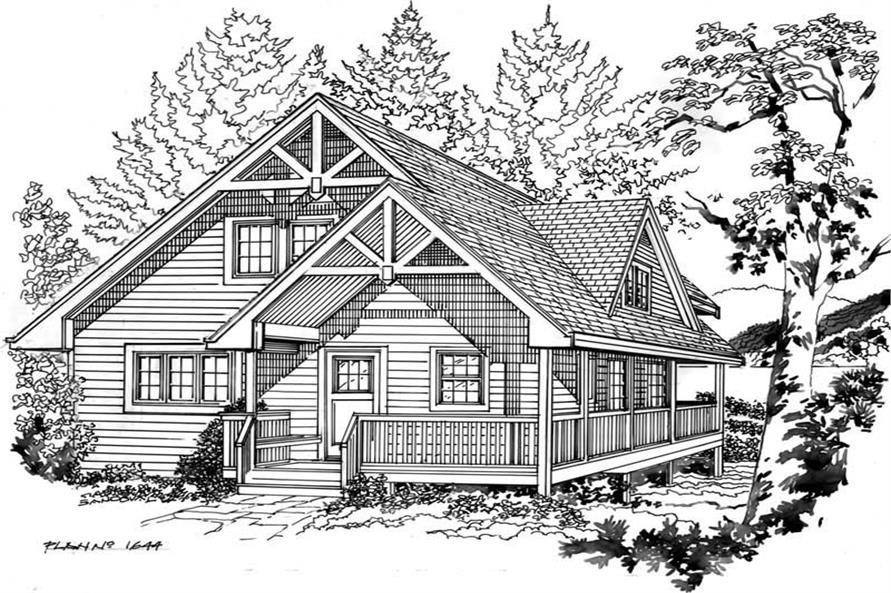

Front elevation of Lake home (ThePlanCollection: House Plan #160-1005)

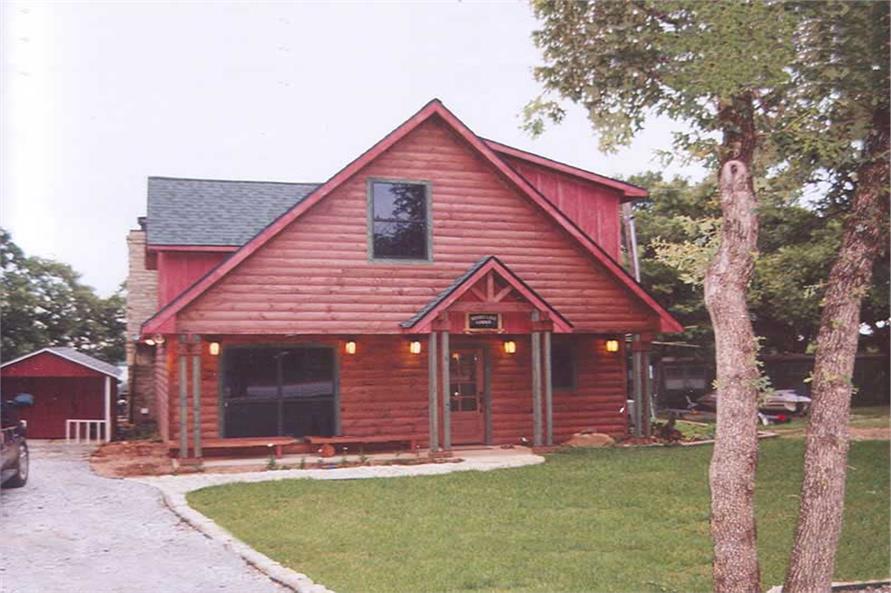

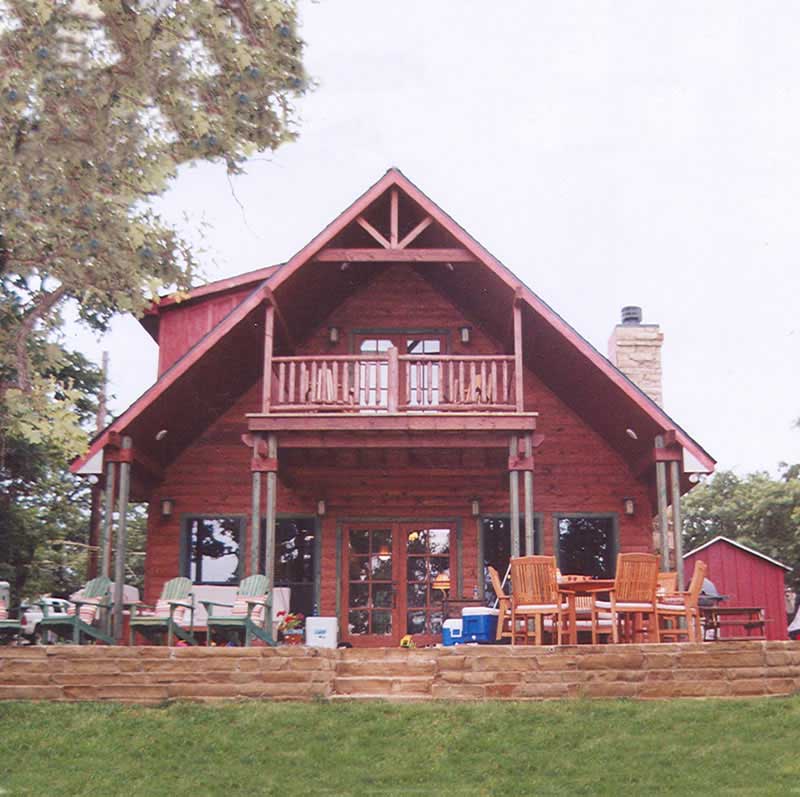

160-1005: Home Exterior Photograph-Front View

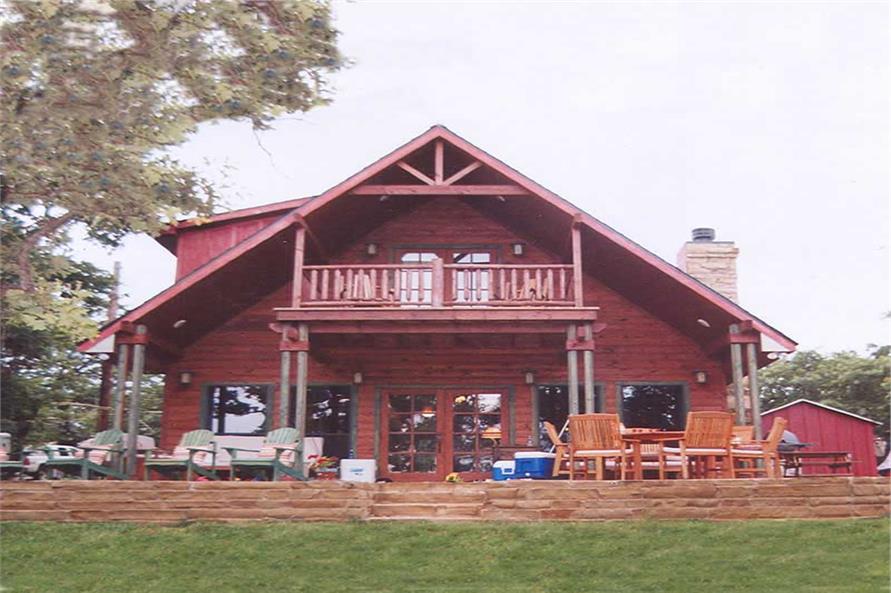

160-1005: Home Exterior Photograph-Rear View
160-1005: Home Exterior Photograph-Rear View
160-1005: Home Other Image-Front View
2-Bedroom, 1644 Sq Ft Lake House Plan - 160-1005 - Front Exterior
160-1005: Home Exterior Photograph-Front View
160-1005: Home Exterior Photograph-Rear View
160-1005: Home Exterior Photograph-Rear View
160-1005: Home Other Image-Front View

About Plan # 160-1005

About Plan # 160-1005

1644 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 36' 0" WIDTH 50' 6" DEPTH 0 GARAGE BAY

The multi-purpose great room with wrap-around covered porch encourages relaxed entertaining and is perfectly suited for evolving family activities. The large u-shaped kitchen with raised breakfast bar is open to the great room ensuring everyone is included in the fun. The second level vaulted studio with private covered balcony easily transforms this retreat space into a home office or voluminous third bedroom if desired.

Each plan set includes the following:

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan
  • Main floor plan
  • Second-floor plan (if applicable)
  • Structural floor/Roof information
  • Electrical layout
  • Minimum of two cross-sections Details
  • Exterior Elevations Generic detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

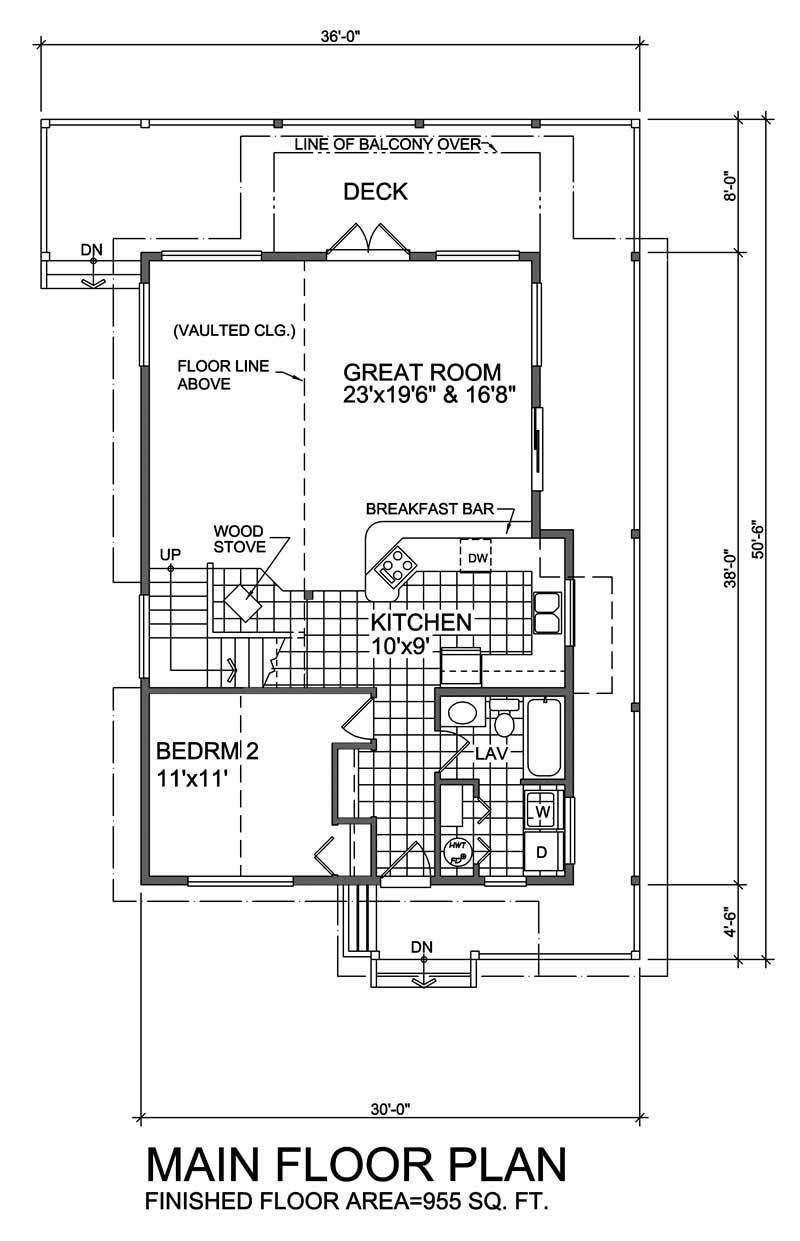

Home Plan: #160-1005 Floor Plan First Story - main Floor Plan First Story of Log Cabin Plan #160-1005

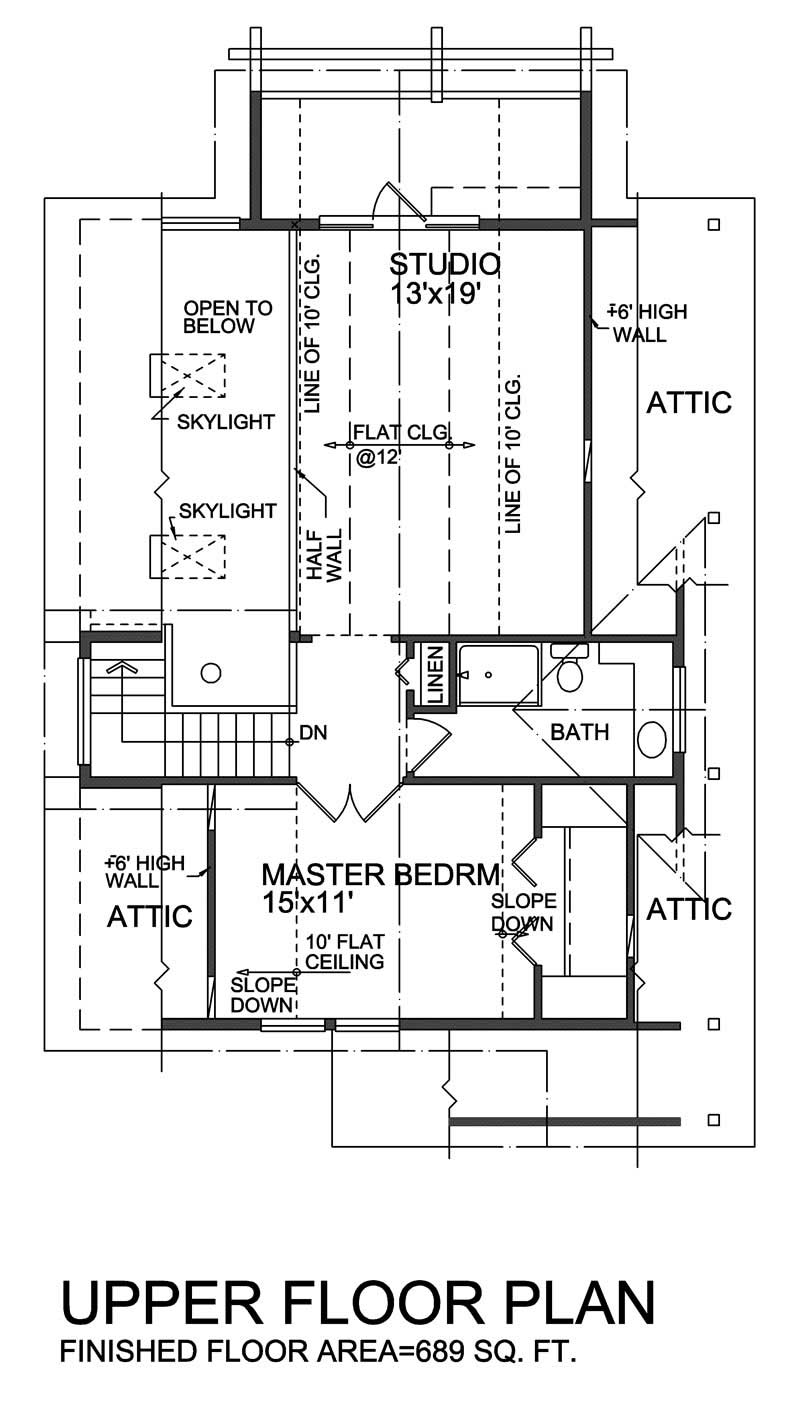

#160-1005 Floor Plan Second Story - second Floor Plan Second Story of Log Cabin Plan #160-1005
Home Plan: #160-1005 Floor Plan First Story - main Floor Plan First Story of Log Cabin Plan #160-1005
#160-1005 Floor Plan Second Story - second Floor Plan Second Story of Log Cabin Plan #160-1005
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 160-1005
Floors:
2
Bedrooms:
2
Full Baths:
2

Square Footage

Heated Sq Feet:
1644
Main Floor:
955
Upper Floor:
689
Unfinished Sq Ft:

Dimensions

Width:
36' 0"
Depth:
50' 6"
Ridge Height:
25'' 0"

Architectural Styles

Vacation Homes
Cabin
Rustic
Lake

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roof Pitch

12/12
6/12

Ceiling Height

10 Foot Ceiling
8 Foot Ceiling

Special Feature

Home Office
Main Level Laundry
Color Photos
Color Photos
Loft
Vaulted Ceilings
Open Floor Plan

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Wrap Around Porch
Sundeck

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
