3-Bedroom, 1741 Sq Ft Craftsman Plan with Kitchen Island

This is a computerized rendering of these log cabin house plans.
3-Bedroom, 1741 Sq Ft Craftsman Home Plan - 160-1018 - Main Exterior

About Plan # 160-1018

About Plan # 160-1018

1741 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 42' 0" WIDTH 56' 6" DEPTH 0 GARAGE BAY

The Great room in this compact narrow lot cottage design boasts: a versatile floor plan, a wood stove, partially vaulted ceilings, window seats, access through French doors to a partially covered wrap around sundeck, access to a side screened porch via folding French doors, all while being open to the adjacent kitchen . An abundance of windows and glass door openings transforms this expansive space into a truly inviting ever evolving multipurpose environment. The vaulted second floor is dedicated to two bedrooms, one a massive open studio bedroom with access to a large private covered balcony. The ceilings on this floor level flatten out at a voluminous ten foot height. The daylight basement plan is a totally open unfinished space awaiting your personal development, whether it be additional bedrooms, recreational space, home theatre media room or hobby / workshop. The separate private entrance easily transforms this level into an in-law suite, a home office or business space.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

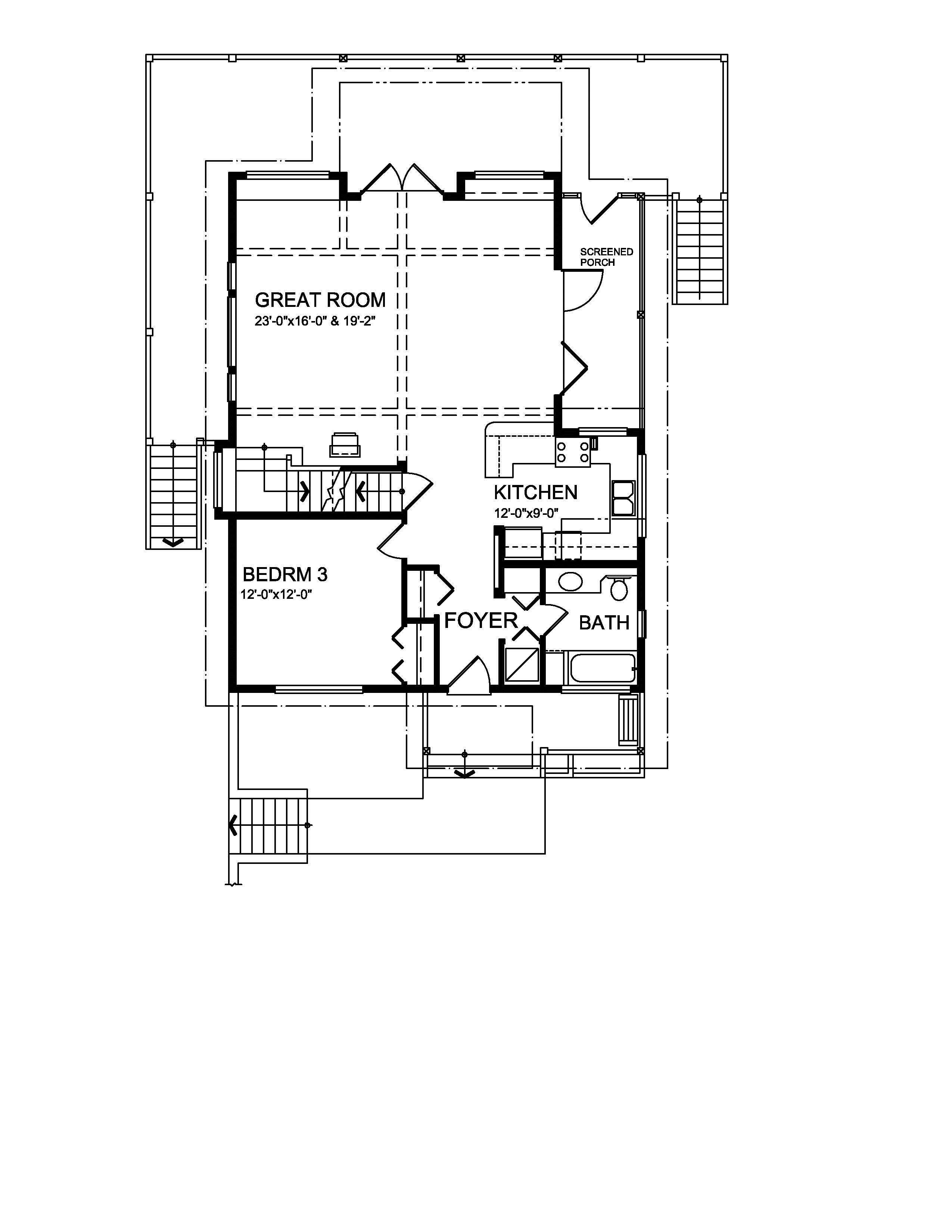

Home Plan: #160-1018 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #160-1018

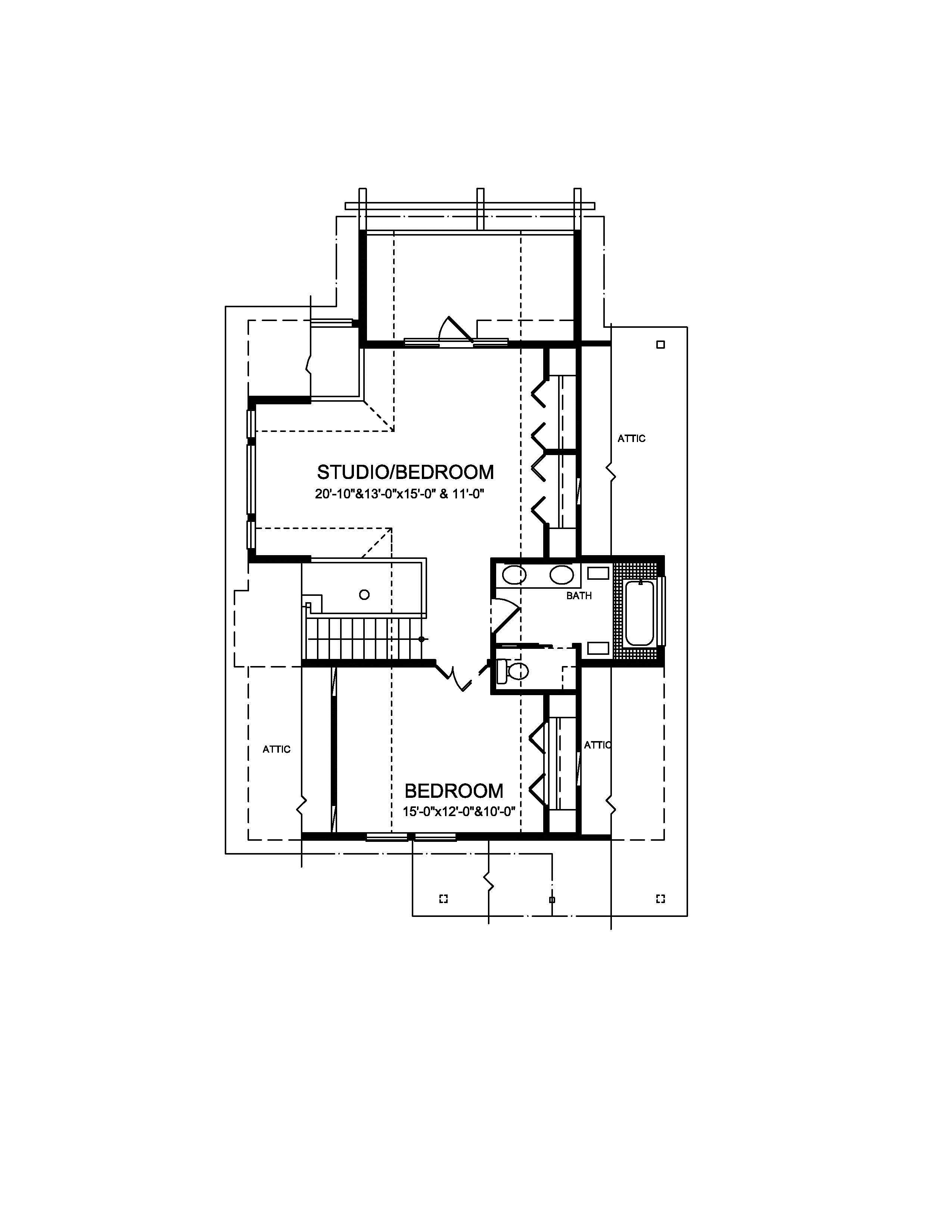

#160-1018 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #160-1018
Home Plan: #160-1018 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #160-1018
#160-1018 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #160-1018
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 160-1018
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1741
Main Floor:
978
Upper Floor:
763
Unfinished Sq Ft:

Dimensions

Width:
42' 0"
Depth:
56' 6"
Ridge Height:
25' 0"

Architectural Styles

Craftsman
Log Cabin
Vacation Homes

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Special Feature

Main Level Laundry

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Screened Porch/Sunroom
Wrap Around Porch

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
