1-Bedroom, 840 Sq Ft Cape Cod Plan with Walk In Closet

Front elevation of Cape Cod home (ThePlanCollection: House Plan #160-1017)
1-Bedroom, 840 Sq Ft Cape Cod Home Plan - 160-1017 - Main Exterior

About Plan # 160-1017

About Plan # 160-1017

840 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 20' 0" WIDTH 28' 0" DEPTH 0 GARAGE BAY

The versatile two storey great room features a window wall enhancing all the available rear views. A spiral staircase helps maximize the living space and adds a charming detail to the living area.

Each plan set includes the following:

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan
  • Main floor plan
  • Second-floor plan (if applicable)
  • Structural floor/Roof information
  • Electrical layout
  • Minimum of two cross-sections Details
  • Exterior Elevations Generic detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

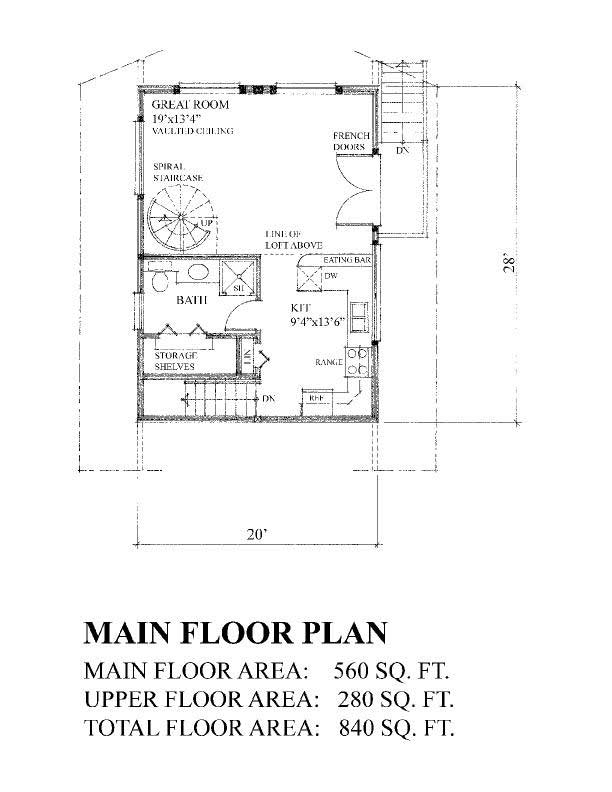

Home Plan: #160-1017 Floor Plan First Story - first story Floor Plan First Story of Cape Cod Plan #160-1017

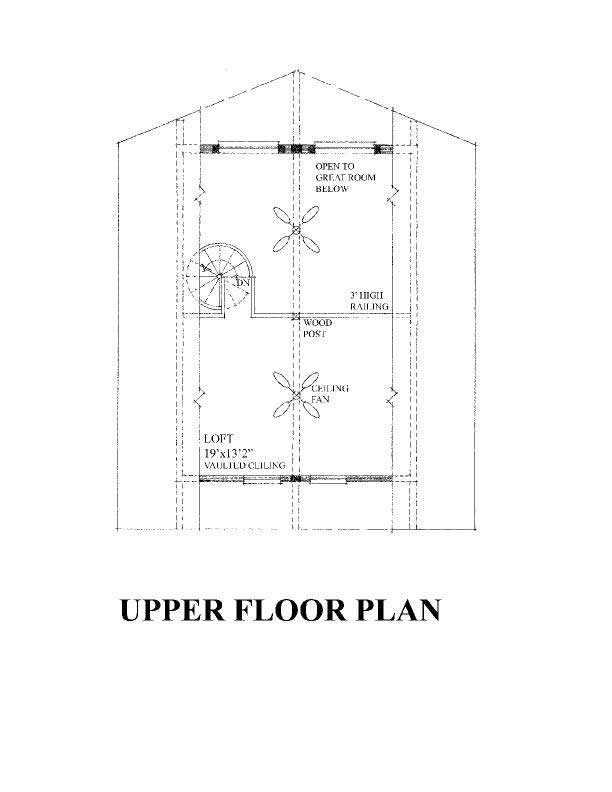

#160-1017 Floor Plan Second Story - second story Floor Plan Second Story of Cape Cod Plan #160-1017
Home Plan: #160-1017 Floor Plan First Story - first story Floor Plan First Story of Cape Cod Plan #160-1017
#160-1017 Floor Plan Second Story - second story Floor Plan Second Story of Cape Cod Plan #160-1017
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 160-1017
Floors:
2
Bedrooms:
1
Full Baths:
1

Square Footage

Heated Sq Feet:
840
Main Floor:
560
Upper Floor:
280
Unfinished Sq Ft:

Dimensions

Width:
20' 0"
Depth:
28' 0"
Ridge Height:
30' 0"

Architectural Styles

Vacation Homes
1 1/2 Story
Small House Plans

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Special Feature

Loft
Storage
Vaulted Ceilings

Exterior Wall Framing

2x6

Building Lot Type

Flat Site
Narrow Lot Design

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Master Suite Features

Second Floor Master

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.
