3-Bedroom, 2098 Sq Ft Craftsman Plan with Elevator

Front elevation of Craftsman home (ThePlanCollection: House Plan #109-1033)
Home Plan Rear Elevation
109-1033: Home Plan Rendering-Rear View
109-1033: Home Plan Rendering-Front View
3-Bedroom, 2098 Sq Ft Craftsman Home Plan - 109-1033 - Main Exterior
Home Plan Rear Elevation
109-1033: Home Plan Rendering-Rear View
109-1033: Home Plan Rendering-Front View

About Plan # 109-1033

About Plan # 109-1033

2058 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 35' 0" WIDTH 43' 6" DEPTH 2 GARAGE BAY

With Craftsman details and clever design, this home is ideal for a narrow lot — and for empty nesters! While all the bedrooms are located on the second floor, an elevator whisks you away to the upper level with ease. Enter through the front porch with its tapered columns and into the foyer of this 3-bedroom home. Immediately to your left is the open dining room. Straight ahead is the large family room with fireplace and windows looking out to the rear deck. With an open floor plan layout, the kitchen with its raised eating bar is just a few steps away. The breakfast nook enjoys bay windows looking over the backyard. An attached 2-car garage and powder room complete the first floor.

After ascending in the elevator (or walking up the staircase, your choice), you find yourself at the landing providing access to the three bedrooms as well as the laundry room. The master suite is impressive. The master bedroom has a tray ceiling. The sitting room is a comfortable place to read a book. Alternatively, head out to the balcony to enjoy some sunshine.  The master bath is spa-like with its separate his-and-her sink vanities, water closet, large tub, and generous shower. There are also separate his-and-her walk-in closets. Bedroom #2 and #3 are well-sized and share a Jack-and-Jill style bathroom.

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

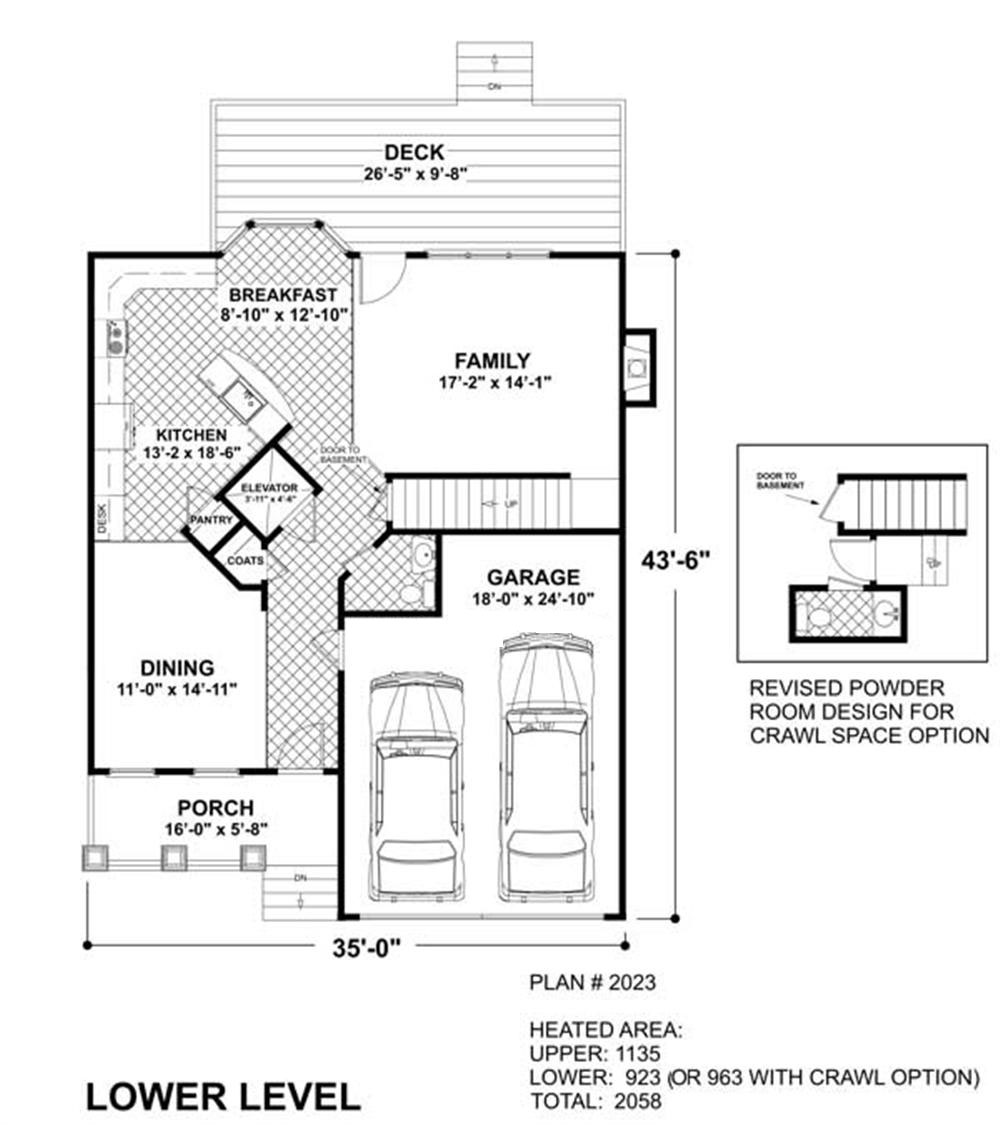

Home Plan: #109-1033 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1033

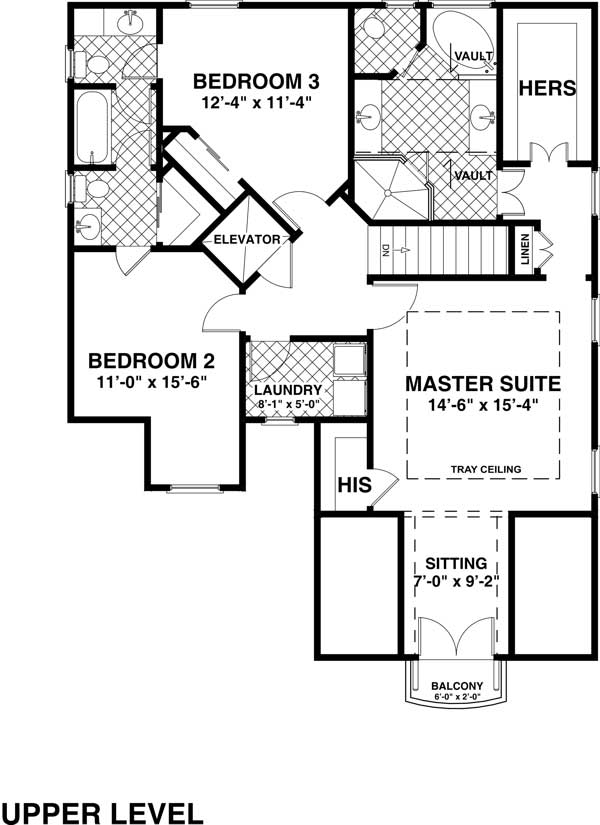

#109-1033 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #109-1033
Home Plan: #109-1033 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1033
#109-1033 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #109-1033
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1033
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
2058
Main Floor:
923
Upper Floor:
1135
Unfinished Sq Ft:

Dimensions

Width:
35' 0"
Depth:
43' 6"
Ridge Height:
28' 11"

Architectural Styles

Arts and Crafts
Craftsman
Traditional

Exterior Wall Material

Rock/Stone
Shakes
Wood Siding

Roofing Type

Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
6/12

Ceiling Height

8 Foot Ceiling
9 Foot Ceiling

Special Feature

Balcony
Dining Room
Elevator
Family Room
Fireplace
Open Floor Plan
Second Level Laundry
Split Bathroom
Vaulted Ceilings

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site
Narrow Lot Design

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Sundeck

Master Suite Features

Master Bathroom
Private Deck
Second Floor Master
Sitting Area
Walk In Closet

Additional Notes from Designer

Note: Crawl space option adds 40 living sq ft to the floor plan.


Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
