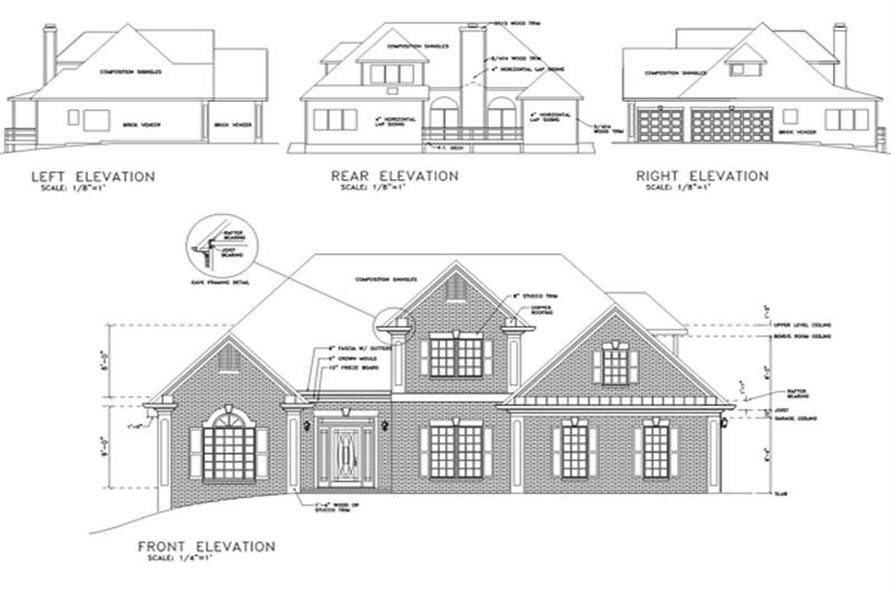

REAR ELEVATION
3-Bedroom, 1991 Sq Ft Craftsman House Plan - 109-1084 - Front Exterior
REAR ELEVATION

About Plan # 109-1084

About Plan # 109-1084

1991 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 55' 0" WIDTH 49' 0" DEPTH 0 GARAGE BAY
Just beyond the beveled glass front door with it's sidelights and transom lies an open foyer which vaults to 18'. To the right is an 12' x 15' dining room with a 4 raised floor surrounded by decorative columns. Just beyond the bridge is the 24' x 14' great room with a fireplace centered between two French door units with radius windows above. The master suite vaults to 12' and is brightened by a 6' Palladian window. It includes a full-featured vaulted bath and a 6' x 11' closet. The open 11'x13' kitchen provides 2 breakfast bars serving both the breakfast and great rooms. The large breakfast area allows space for a recipe desk and additional cabinetry. There's also a spacious laundry room with a laundry tub. Lower level rooms which are not vaulted have 9' ceilings.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

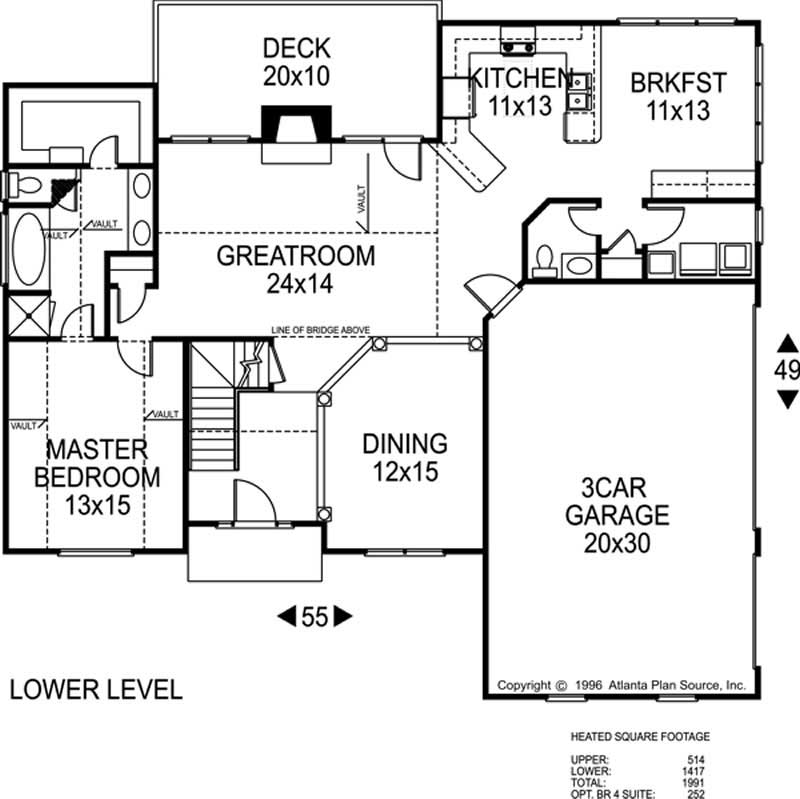

Home Plan: #109-1084 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #109-1084

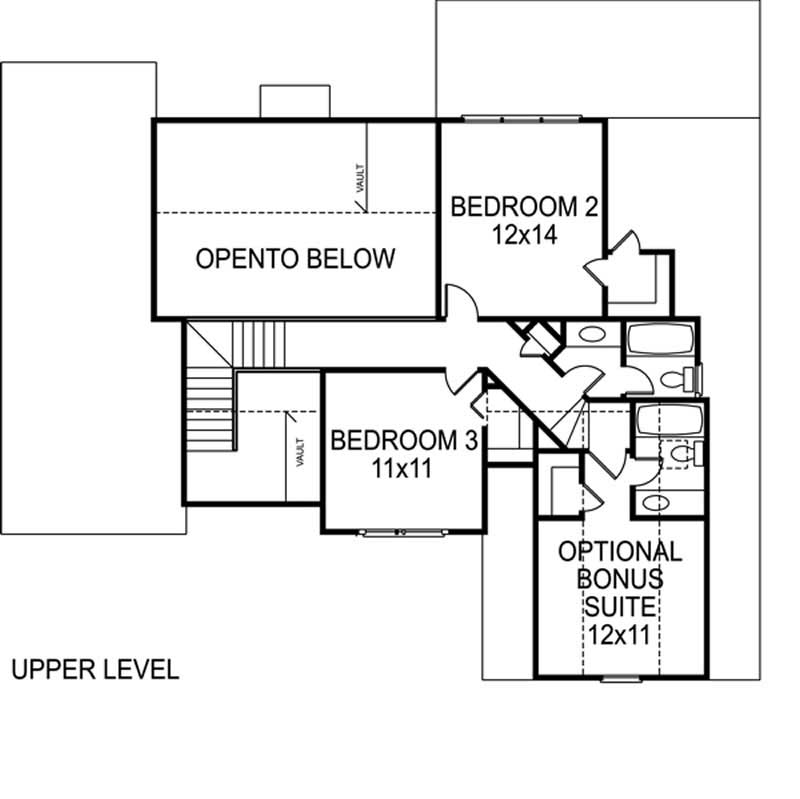

#109-1084 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #109-1084
