Front elevation of Mediterranean home (ThePlanCollection: House Plan #190-1013)
190-1013: Home Plan Rear Elevation
190-1013: Home Plan Front Elevation

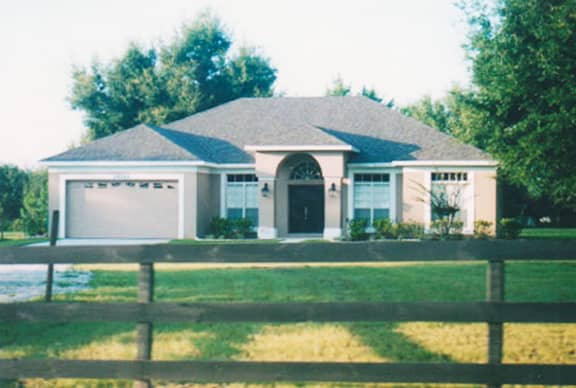

3-Bedroom, 1783 Sq Ft Mediterranean Home Plan - 190-1013 - Main Exterior
190-1013: Home Plan Rear Elevation
190-1013: Home Plan Front Elevation

About Plan # 190-1013

About Plan # 190-1013

1783 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 60' 0" WIDTH 45' 0" DEPTH 2 GARAGE BAY

This lovely ranch home with contemporary influences (House Plan #190-1013) has 1783 square feet of living space. The 1 story floor plan includes 3 bedrooms. The floor plan also comes with an alternate layout for an additional 4th bedroom.

Each plan set includes the following:

  • Cover Sheet
  • Notes Page
  • Floor Plans
  • Foundation Plan
  • Exterior Elevations & Section
  • Roof Plan – The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes. Our roofs are designed for trusses and a local truss manufacturer is needed to design the trusses for each home to comply with local codes and regulations
  • Electrical Plan
  • Detail Sheet(s)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

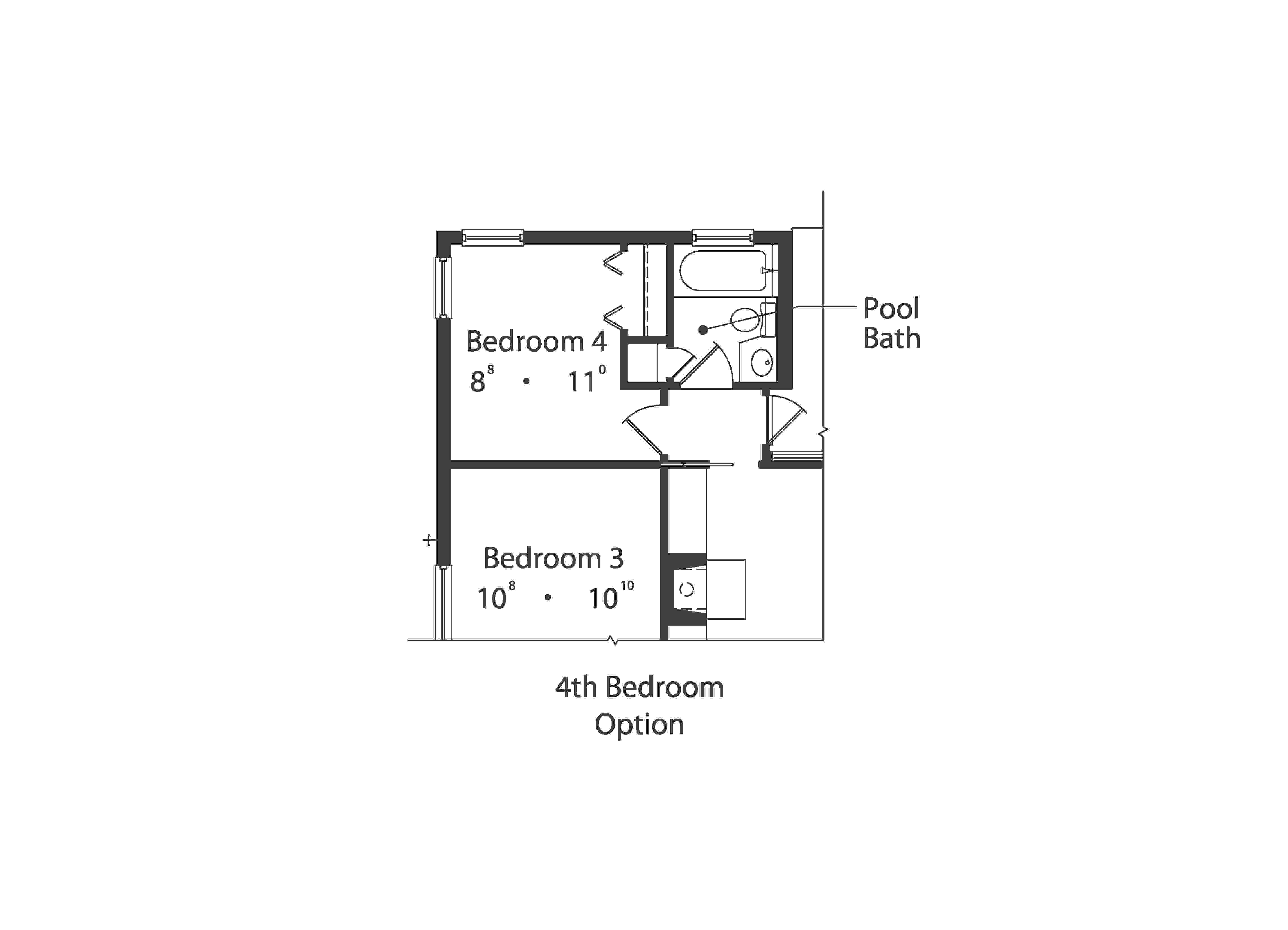

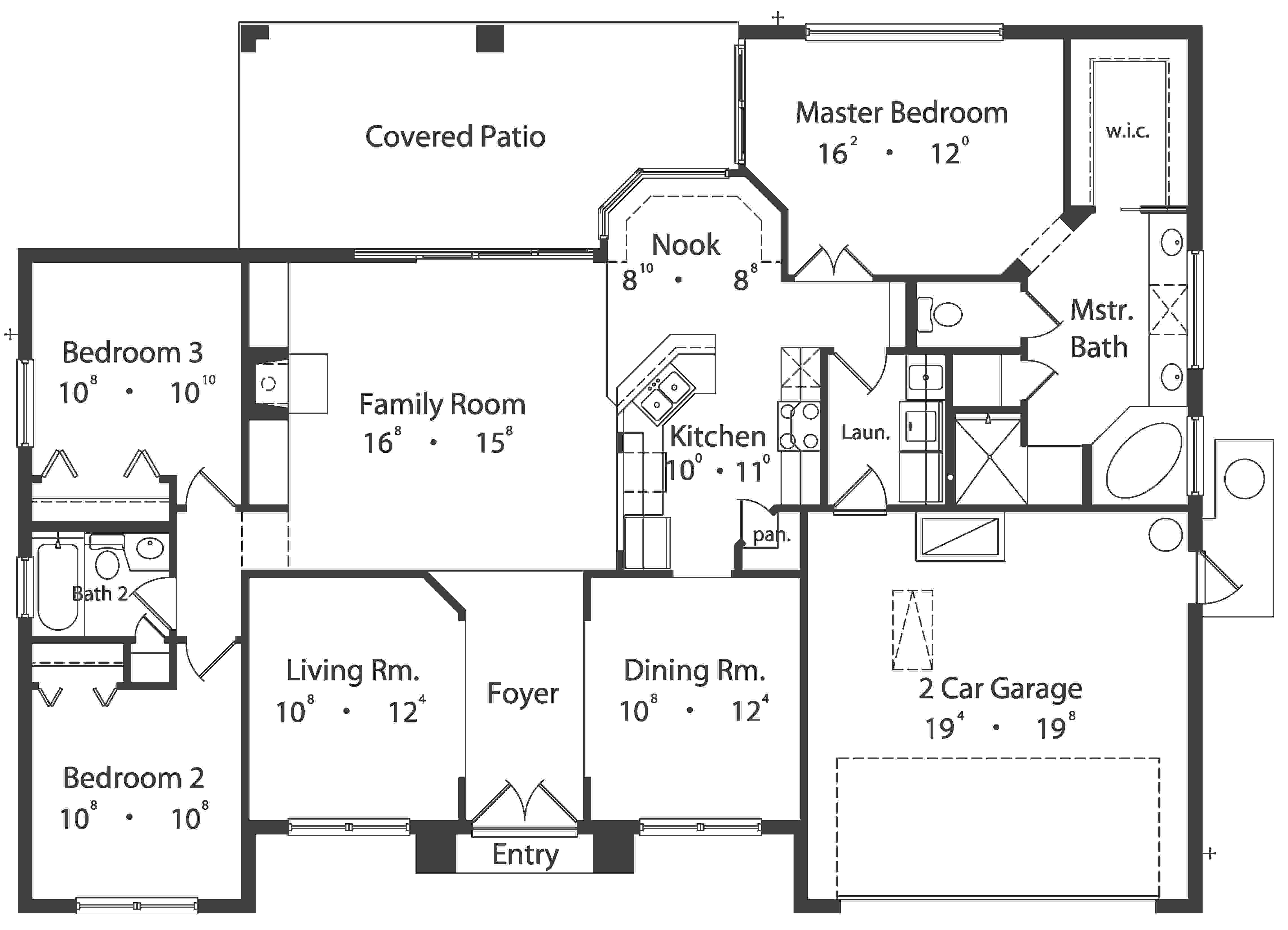

Home Plan: #190-1013 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #190-1013
#190-1013 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #190-1013
Home Plan: #190-1013 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #190-1013
#190-1013 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #190-1013
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 190-1013
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1783
Main Floor:
1783
Unfinished Sq Ft:
Garage :
409
Porch :
279

Dimensions

Width:
60' 0"
Depth:
45' 0"
Ridge Height:
20' 6"

Architectural Styles

Ranch
Mediterranean
Contemporary
Southwest
Florida Style
Texas Style

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling

Special Feature

Fireplace
Dining Room
Family Room
Main Level Laundry
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Patio

Master Suite Features

Main Floor Master
Split Master Bedroom

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.

Package & Price Help
Select Plan Package
Select Foundation
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}

How much will this plan cost to build?

- OR -

Modify this plan

This plan can be customized
Contact us for free quote

Modify this plan

This plan can be customized
Contact us for free quote
