4-Bedroom, 2597 Sq Ft Mediterranean Plan with Covered Front Porch

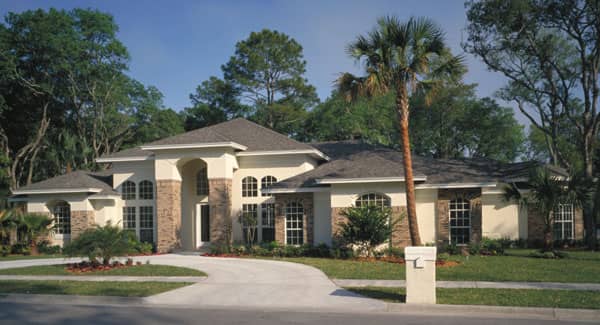

Front elevation of Beachfront home (ThePlanCollection: House Plan #190-1002)

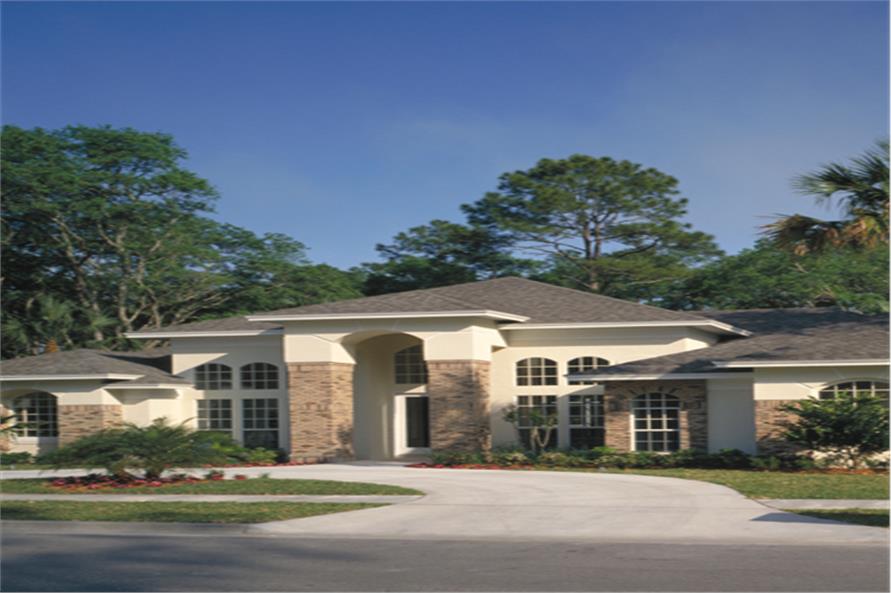

190-1002: Home Exterior Photograph

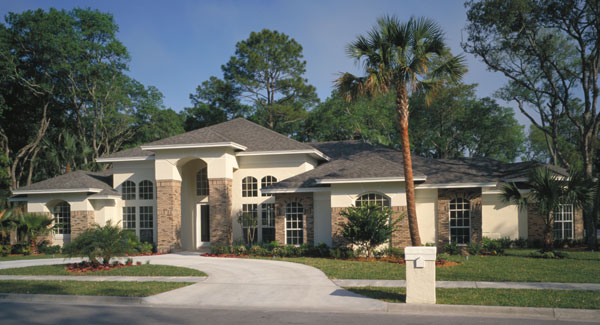

4-Bedroom, 2597 Sq Ft Mediterranean Home Plan - 190-1002 - Main Exterior
190-1002: Home Exterior Photograph

About Plan # 190-1002

About Plan # 190-1002

2597 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 98' 6" WIDTH 50' 0" DEPTH 3 GARAGE BAY

This lovely Mediterranean style home with contemporary influences (House Plan #190-1002) has 2597 square feet of living space. The 1 story floor plan includes 4 bedrooms.

Each plan set includes the following:

  • Cover Sheet
  • Notes Page
  • Floor Plans
  • Foundation Plan
  • Exterior Elevations & Section
  • Roof Plan – The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes. Our roofs are designed for trusses and a local truss manufacturer is needed to design the trusses for each home to comply with local codes and regulations
  • Electrical Plan
  • Detail Sheet(s)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

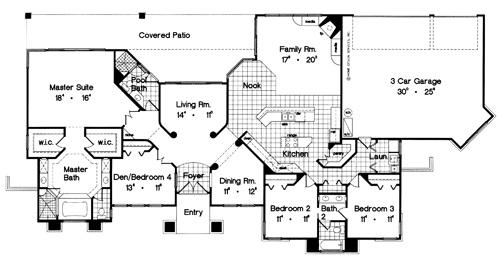

Home Plan: #190-1002 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #190-1002
Home Plan: #190-1002 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #190-1002
