4-Bedroom, 2928 Sq Ft Mid-Century Modern with Main Floor Master

Mid-Century Modern home (ThePlanCollection: Plan #108-1923)

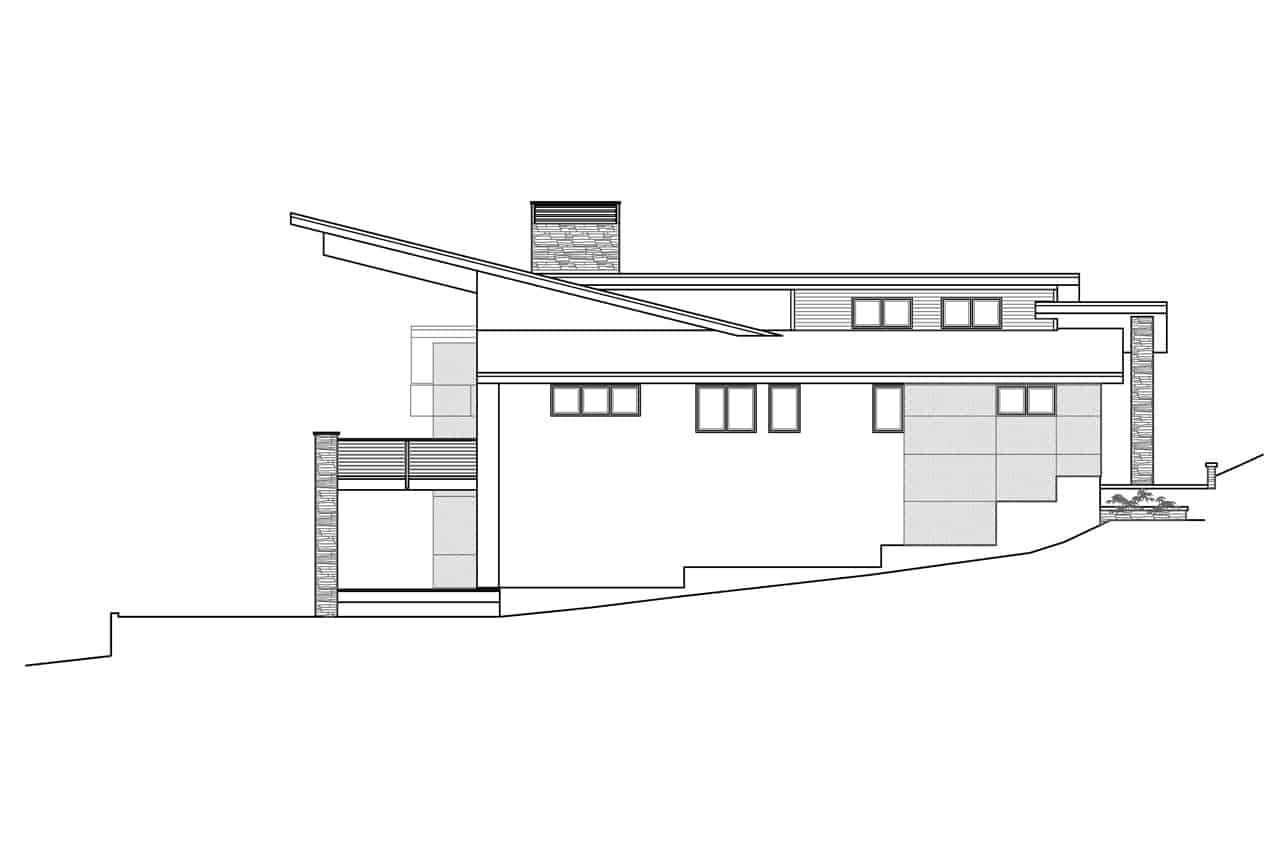

108-1923: Home Plan Left Elevation

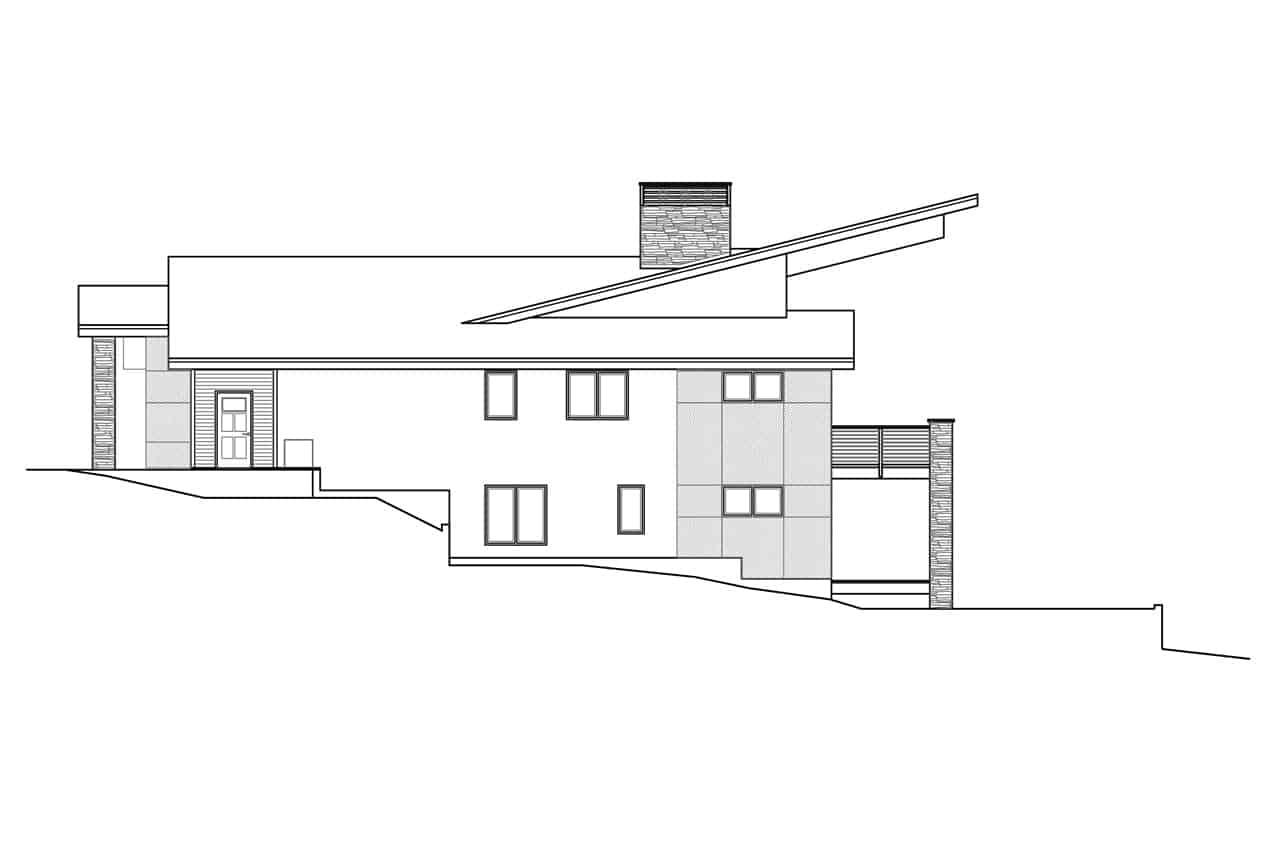

108-1923: Home Plan Right Elevation
108-1923: Home Plan Rendering
4-Bedroom, 2928 Sq Ft Mid-Century Modern Home - Plan #108-1923 - Main Exterior
108-1923: Home Plan Left Elevation
108-1923: Home Plan Right Elevation
108-1923: Home Plan Rendering

About Plan # 108-1923

About Plan # 108-1923

2928 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 46' 0" WIDTH 75' 0" DEPTH 2 GARAGE BAY

This remarkable Mid-Century Modern style home with contemporary influences has 2928 square feet of living space. The 2-story floor plan includes 4 bedrooms.

  • Vaulted great room boasts fireplace and access to the vaulted covered deck.
  • Open concept kitchen with island and walk-in pantry.
  • Den could also be a guest bedroom.
  • Owners' suite inlcudes spacious walk-in closet.
  • Walk-out basement enjoys family room and two additional bedrooms.



Each plan set includes the following:

  • ARTIST'S RENDERING: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Each plan set is drawn at 1/4"=1' scale. Showing the placement and dimensions of all walls, windows, and doors. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • SECOND FLOOR PLAN (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • FOUNDATION PLAN: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • ROOF FRAMING PLAN: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
  • SECTIONS AND DETAILS: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints. These details can be helpful for the contractor.
  • ELECTRICAL PLAN: A schematic layout of all lighting, switches, and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

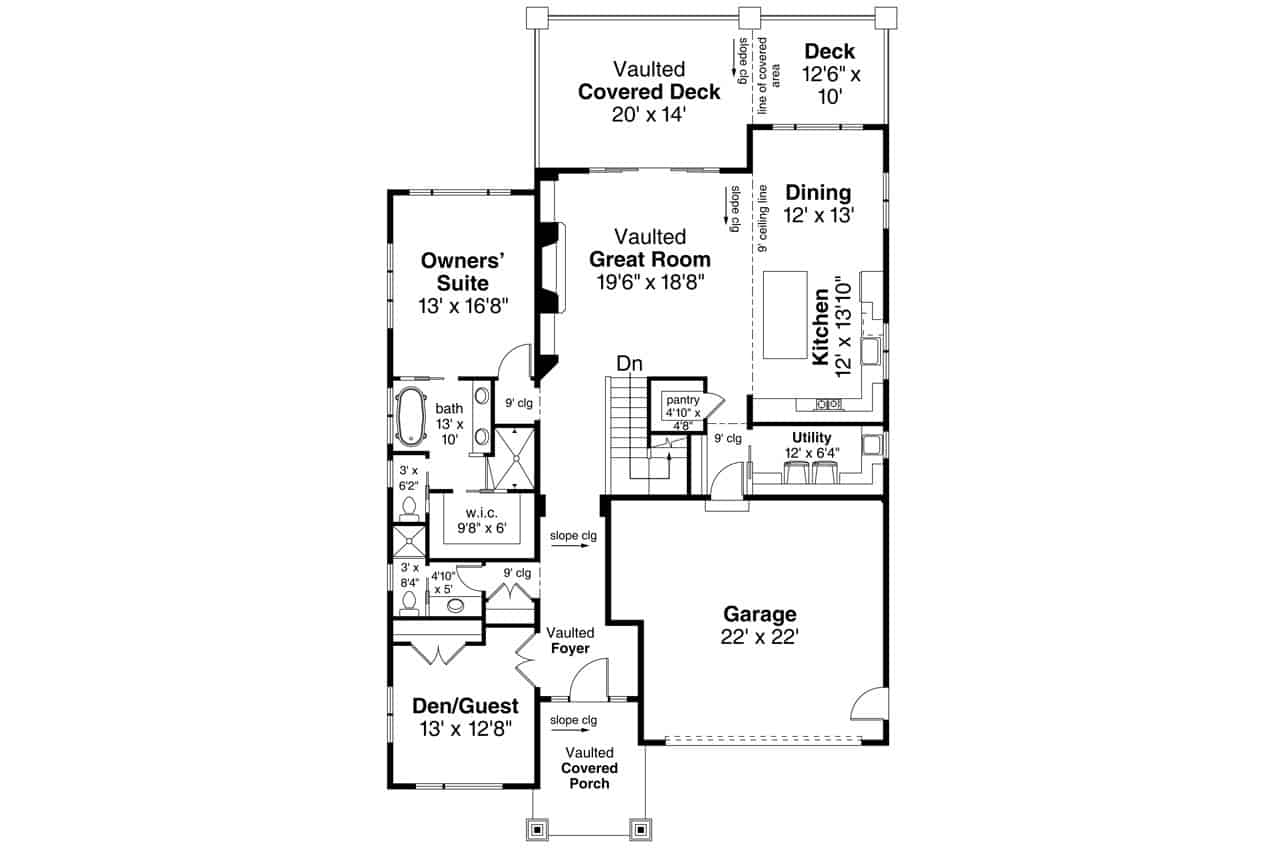

Home Plan: #108-1923 Floor Plan First Story - main level Floor Plan Main Level of Modern Plan #108-1923

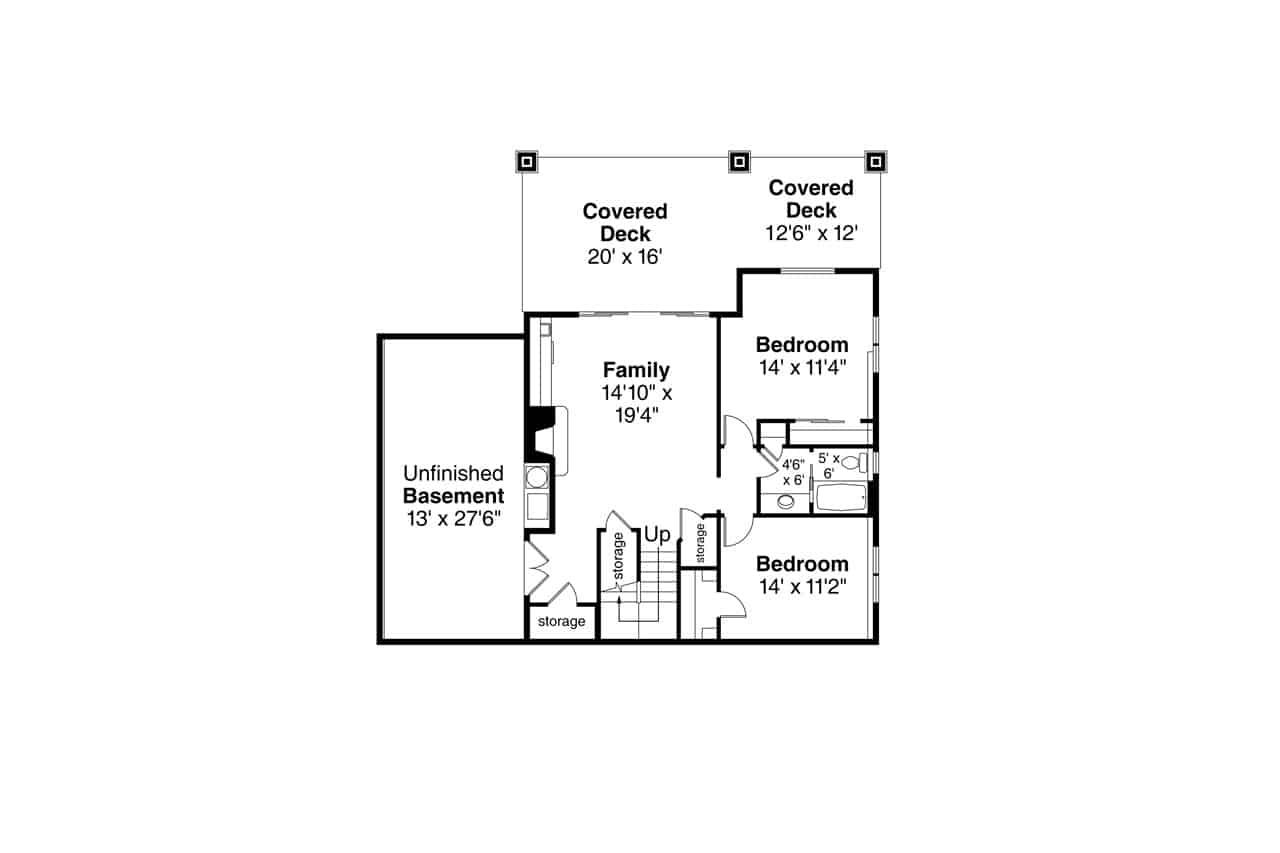

#108-1923 Floor Plan Basement - basement Floor Plan Basement of Modern Plan #108-1923
