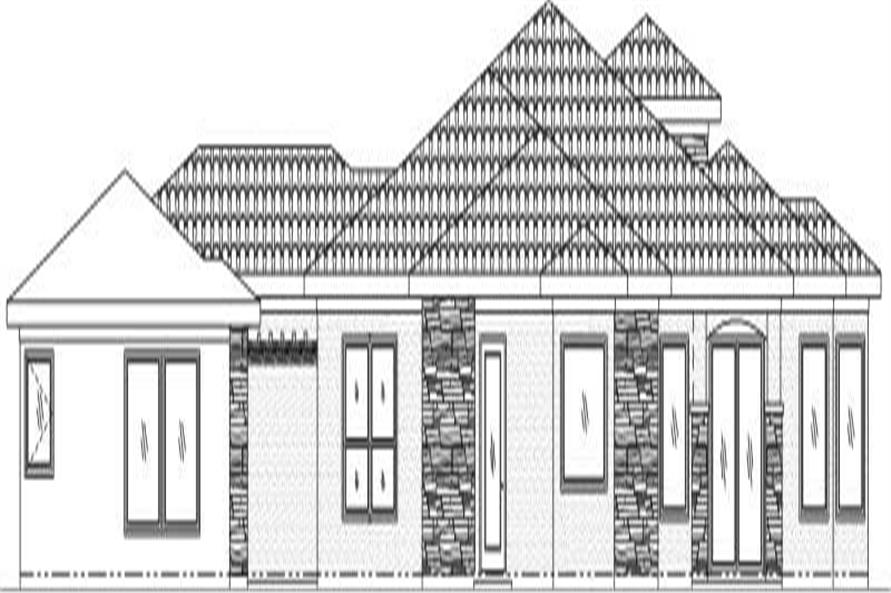

125-1025: Home Plan Rear Elevation

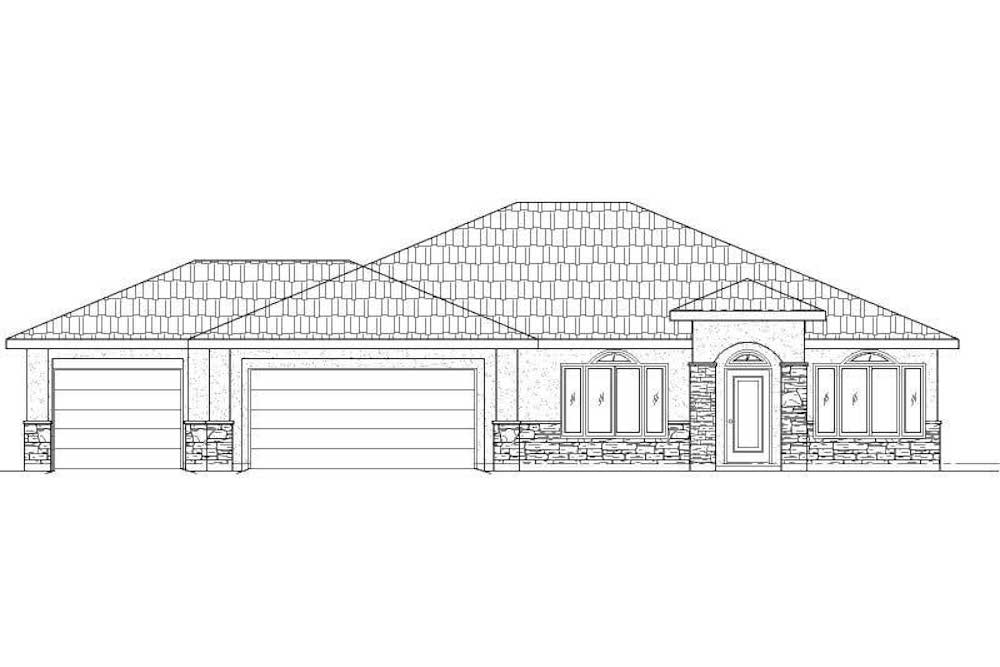

4-Bedroom, 3443 Sq Ft California Style Home Plan - 125-1025 - Main Exterior
125-1025: Home Plan Rear Elevation

About Plan # 125-1025

About Plan # 125-1025

3443 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 97' 0" WIDTH 91' 8" DEPTH 3 GARAGE BAY

This southwestern Mediterranean style home plan has comfort and luxury written all over it. The house plans feature both formal and in-formal areas for you and your guests. The large open kitchen with an island serves both the dining room and the great room. The covered patio behind offers cool shade in the summer, and shelter from inclement weather. Beyond is a spacious casita for guests and perfect for a mother in-law suite. The master suite is private with a large master bathroom and walk-in closet. Two more bedrooms share a split bathroom. The laundry room and garage are both large as well. These home plans will give you a versatile dwelling, perfect for a family or for empty nesters, and capable of housing both at the same time.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • DETAIL SHEET

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

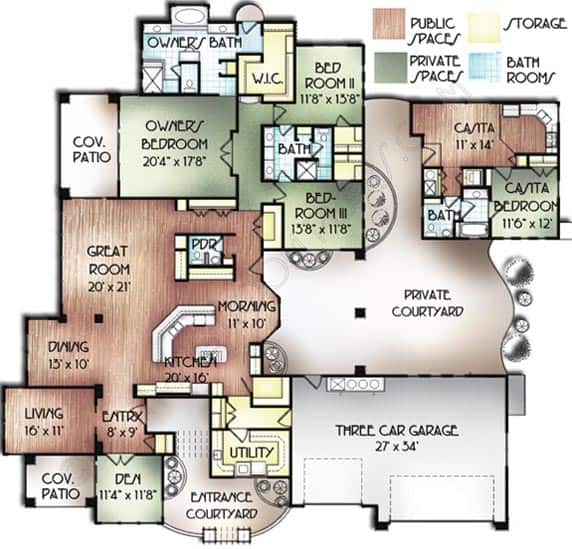

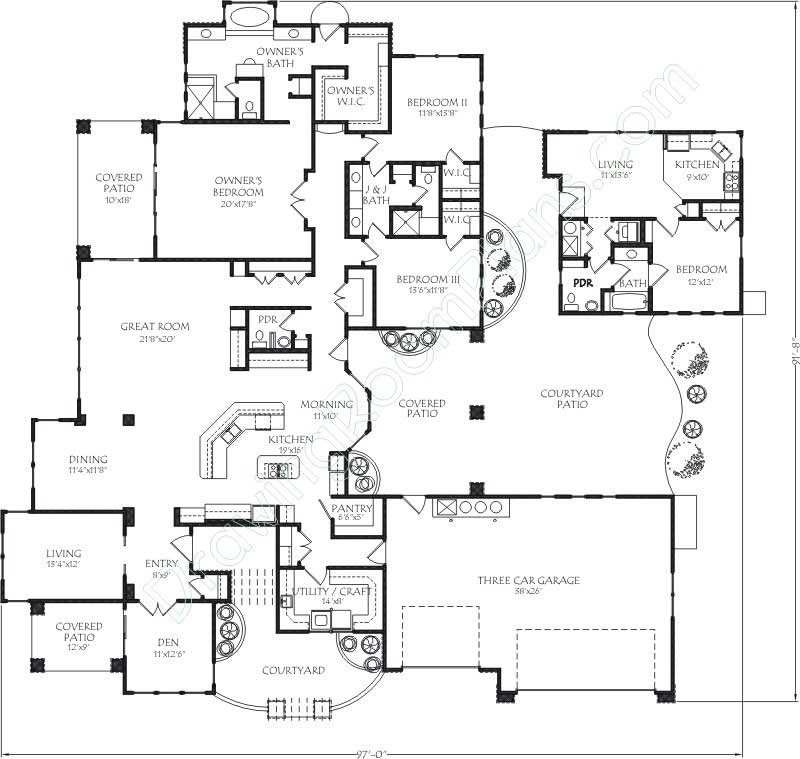

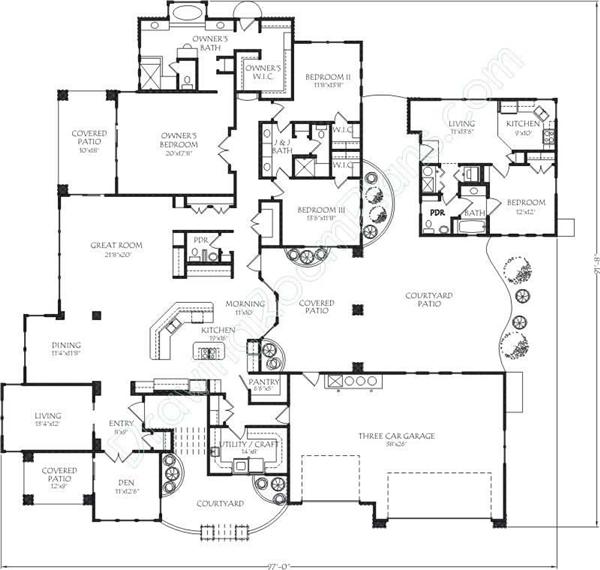

Home Plan: #125-1025 Floor Plan First Story - main level Main Level of California Style Plan #125-1025
#125-1025 Floor Plan First Story - main level Main Level of California Style Plan #125-1025
Home Plan: #125-1025 Floor Plan First Story - main level Main Level of California Style Plan #125-1025
#125-1025 Floor Plan First Story - main level Main Level of California Style Plan #125-1025
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 125-1025
Floors:
1
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
3443
Main Floor:
3443
Unfinished Sq Ft:
Garage :
937

Dimensions

Width:
97' 0"
Depth:
91' 8"

Architectural Styles

Mediterranean
Contemporary
Southwest
Prairie
Transitional
California Style
In-Law Suite

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Other Composites

Roof Pitch

4/12

Ceiling Height

10 Foot Ceiling

Special Feature

Dining Room
Guest Room
Home Office
Family Room
Main Level Laundry
Apartment
Library
Split Bathroom
Den

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Courtyard
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
