5-Bedroom, 2422 Sq Ft Contemporary Plan with Master Bathroom

Main image for southwest house plans # 19320

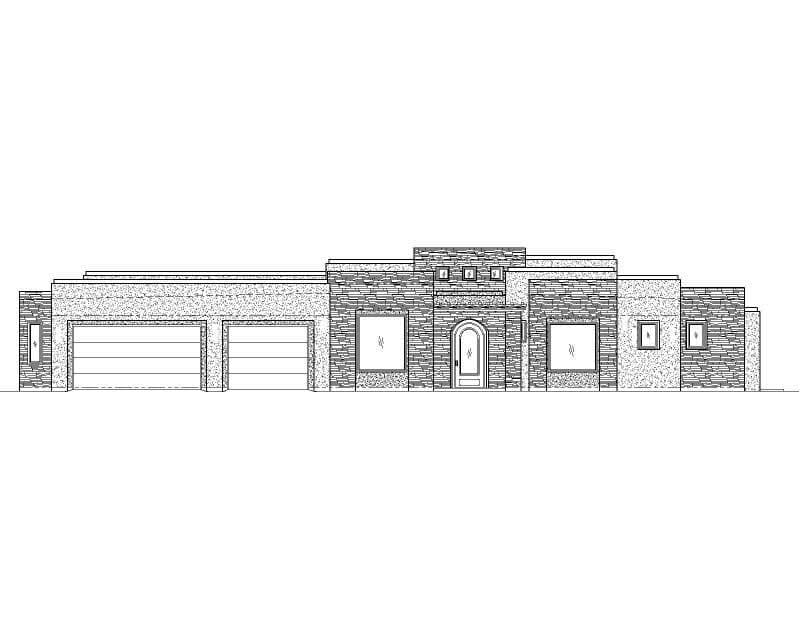

125-1039: Home Plan Rear Elevation

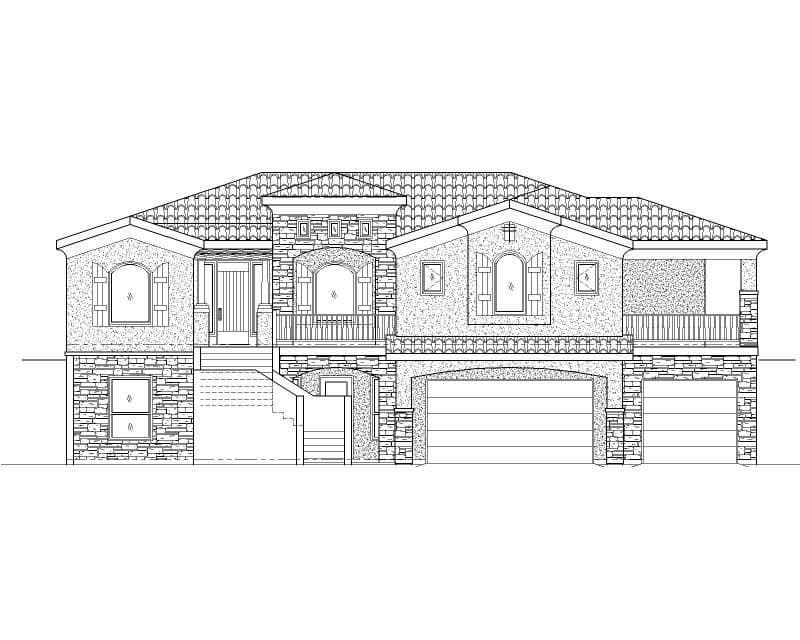

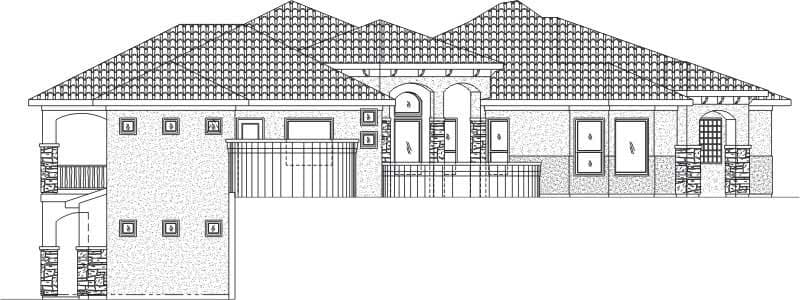

125-1039: Home Plan Left Elevation

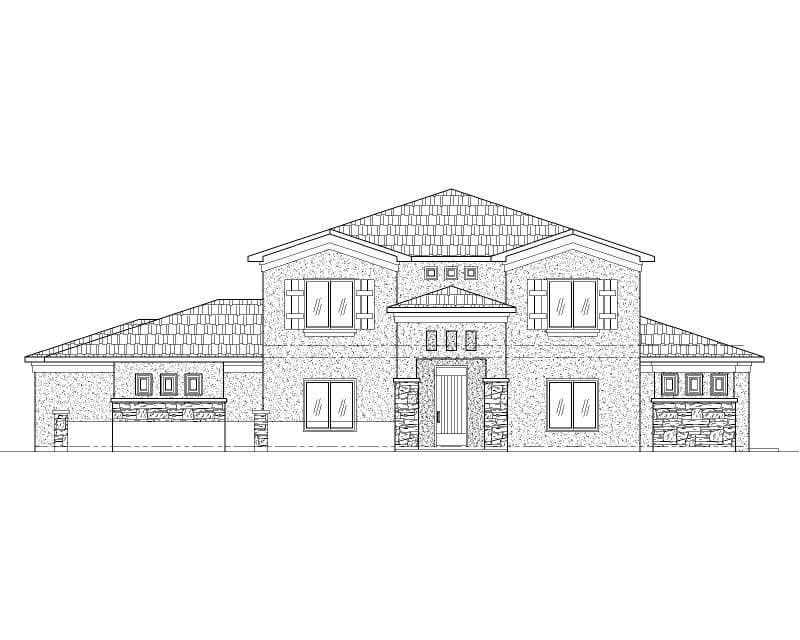

125-1039: Home Plan Right Elevation

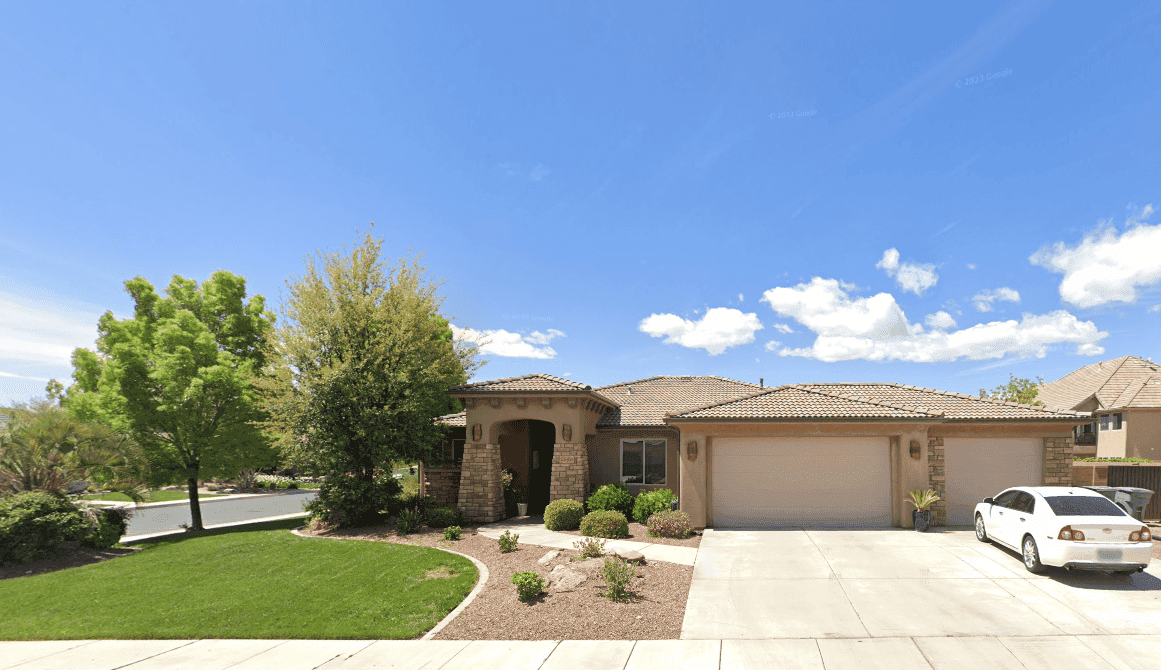

5-Bedroom, 2422 Sq Ft Contemporary Home Plan - 125-1039 - Main Exterior

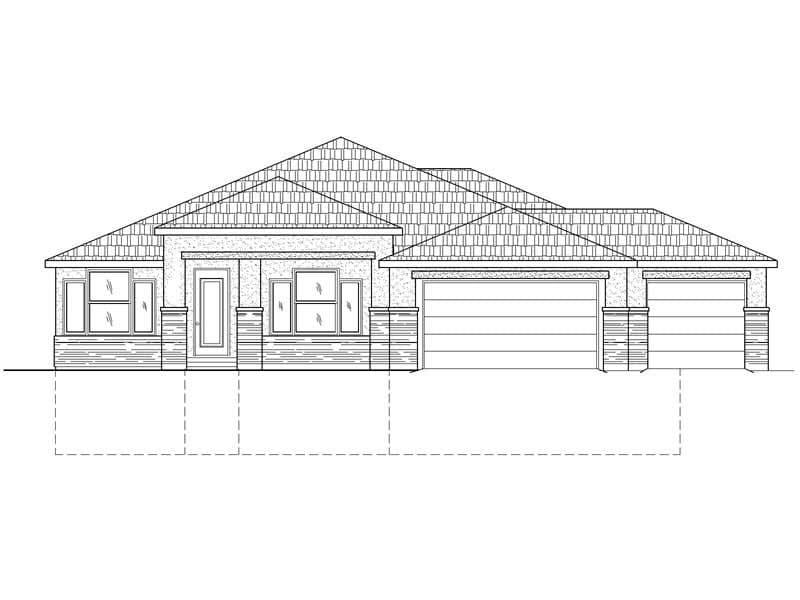

125-1039: Home Plan Rear Elevation

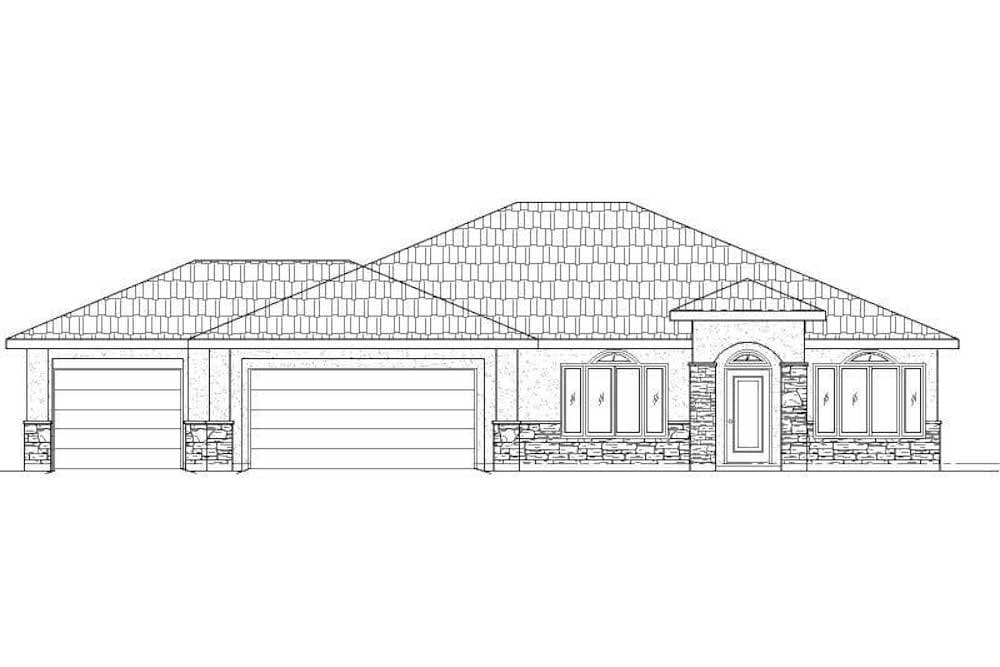

125-1039: Home Plan Left Elevation

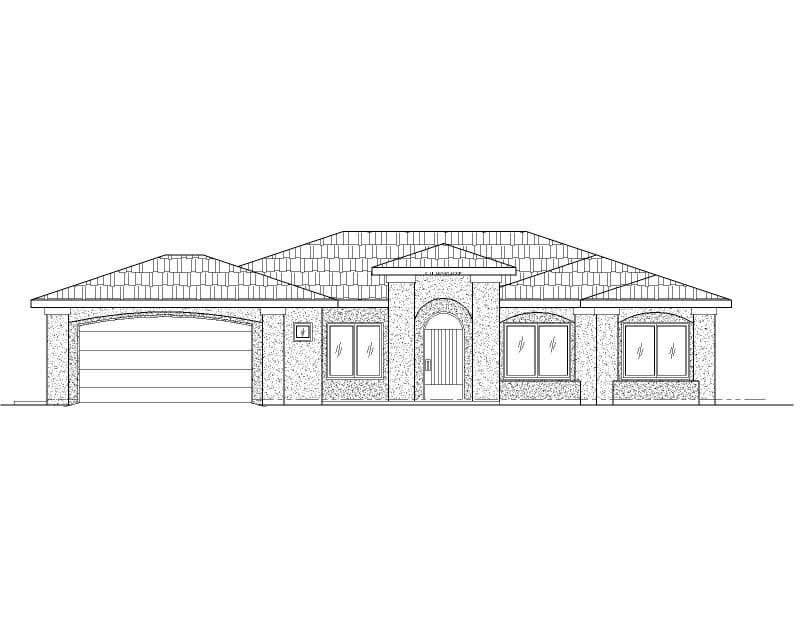

125-1039: Home Plan Right Elevation

About Plan # 125-1039

About Plan # 125-1039

2422 SQUARE FEET 5 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 80' 0" WIDTH 75' 6" DEPTH 3 GARAGE BAY

This southwest house plan is a beautiful design. This floor plans layout has great space between the living and dining areas, making this house plan feel much, much bigger.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • DETAIL SHEET

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

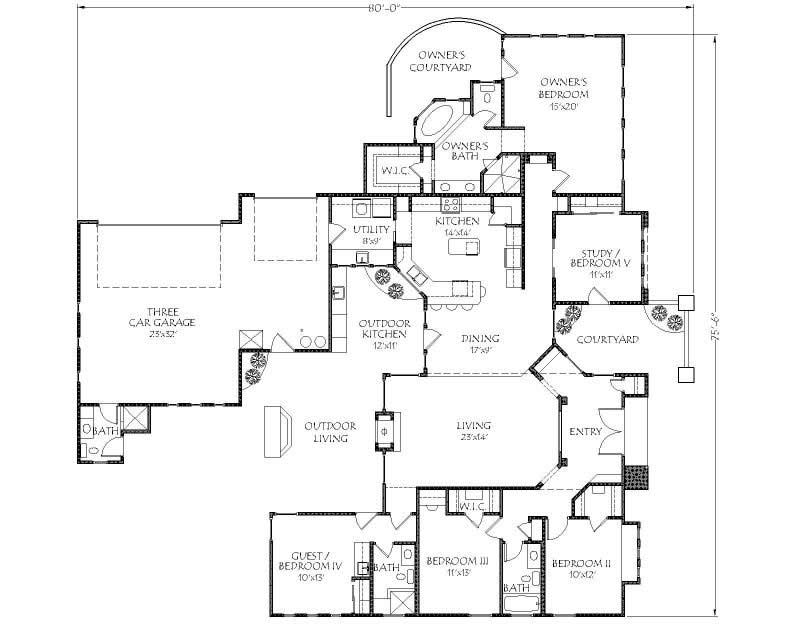

Home Plan: #125-1039 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #125-1039
