2880 Sq Ft, 5-Bedroom Ranch Floor Plan with In-Law Suite

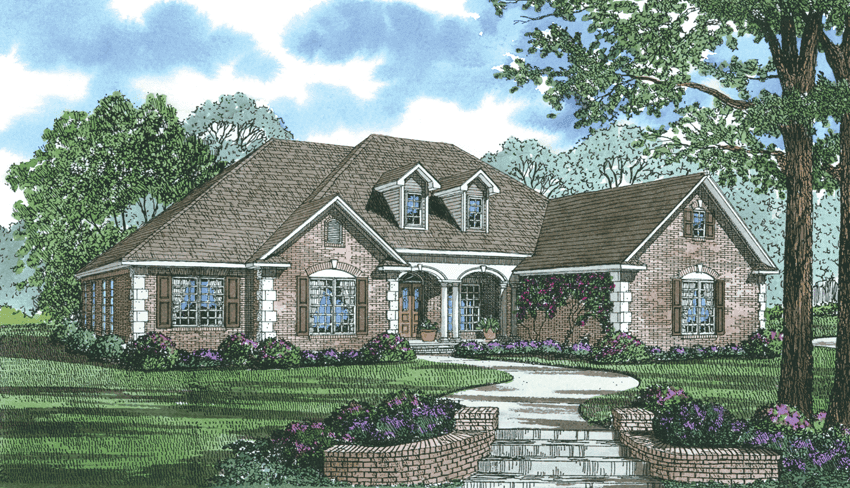

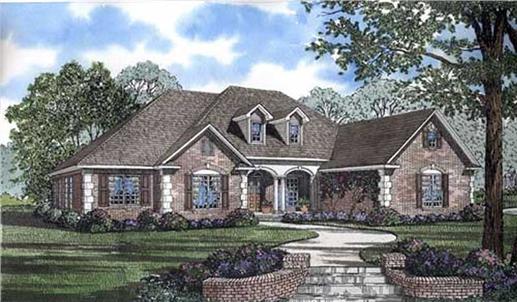

Front elevation of Fench country home with in-law suite (ThePlanCollection: House Plan #153-1868)
5-Bedroom, 2875 Sq Ft Home Plan with In-Law Suite - 153-1868 - Main Exterior

About Plan # 153-1868

About Plan # 153-1868


This inviting, 5-bedroom French country enjoys a traditional exterior and a contemporary, one-story interior. As you approach, you will notice the attention to detail in the front facade. The archways and 8-inch columns along the porch. The repetition of arches in the masonry above the windows. The two dormers in the roofline above. And the pleasing impression of a sense of balance by the pair of gabled rooflines.

Inside, the foyer opens up to the formal living areas in an open floor plan design. To the right, 8-inch columns define the boundaries of the dining room. Ahead is the Great Room with its fireplace, built-ins, and french doors leading out to the covered porch. Step through a wide, cased opening into the informal living areas of the home. the open-concept kitchen is the hub of this large space. The huge kitchen island with an eating bar is the focal point. Steps away are the hearth room with a fireplace and the breakfast room — both of which are open to the kitchen. A door leads out to the grilling porch. To stow away appliances and extra groceries, there is also a walk-in pantry. The laundry room is not far away and access to the attached, 3-car garage is just off the kitchen.

Just off the hearth room is the spacious in-law suite. It is also only steps away from a friend's entry door for more privacy and convenience. The in-law suite includes a walk-in closet as well as an ensuite bathroom with a separate shower and tub. The sink vanity counter is wide leaving plenty of space for toiletries. There is also a linen closet to store towels.

On the other side of the floor plan are four more bedrooms. Bedroom #2 boasts a large walk-in closet, built-in bookshelves, and an ensuite bathroom with double sinks. This room could also be converted into a study. Bedroom #3 and #4 share a hall bathroom with double sinks. It is the master suite that is truly impressive. The master bedroom is at the rear of the home for added privacy. There is a sitting area with bay windows looking out to the backyard. The master walk-in closet is huge. The master bathroom has his-and-her sinks, a water closet, a glass shower with a seat, and a large soaking tub.

Need additional space? The upstairs bonus room could be converted into a media space or a playroom.

Each plan set includes the following:

  • FLOOR PLAN(S): Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF OVERVIEW PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • BUILDING SECTIONS AND MISCELLANEOUS DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • KITCHEN AND BATH ELEVATIONS: Showing the kitchen and bath details such as cabinets.
  • ELECTRICAL DIAGRAM: Bird's-eye view of rooms defining the location of lights, fans, switches, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

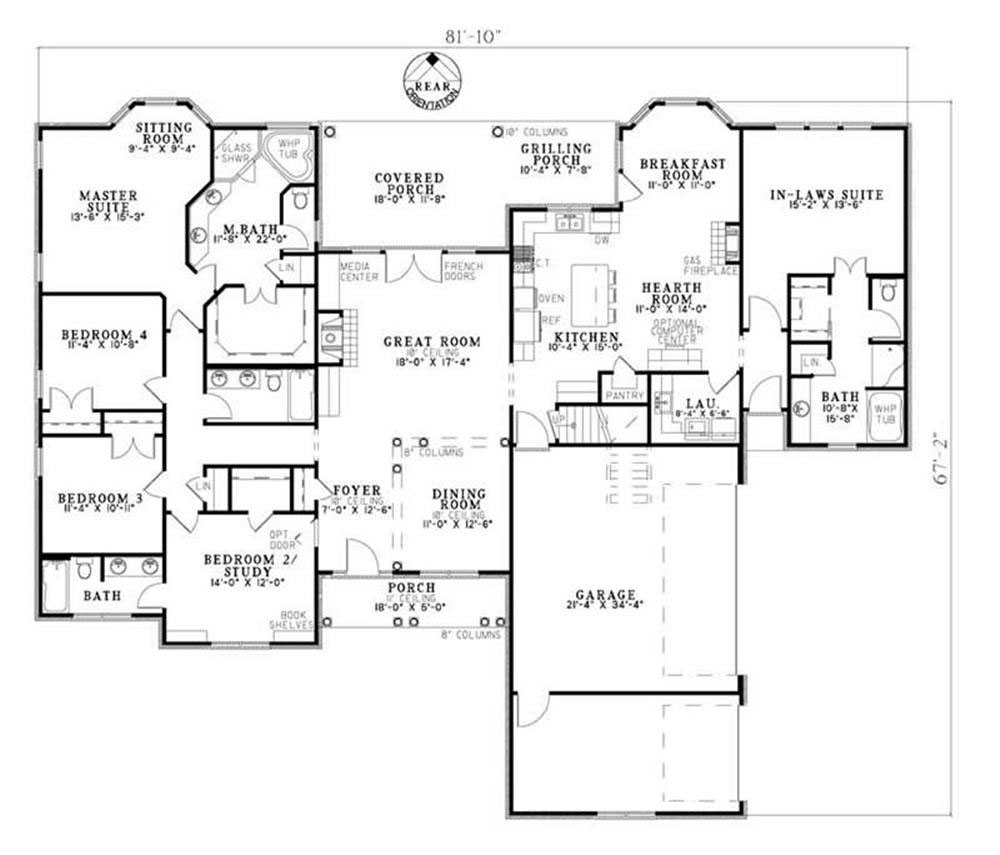

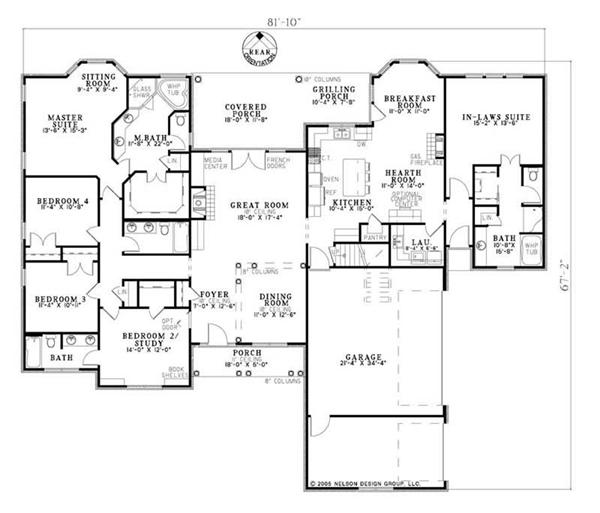

Home Plan: #153-1868 Floor Plan First Story - main level Floor Plan Main Level of In-Law Suite Plan #153-1868

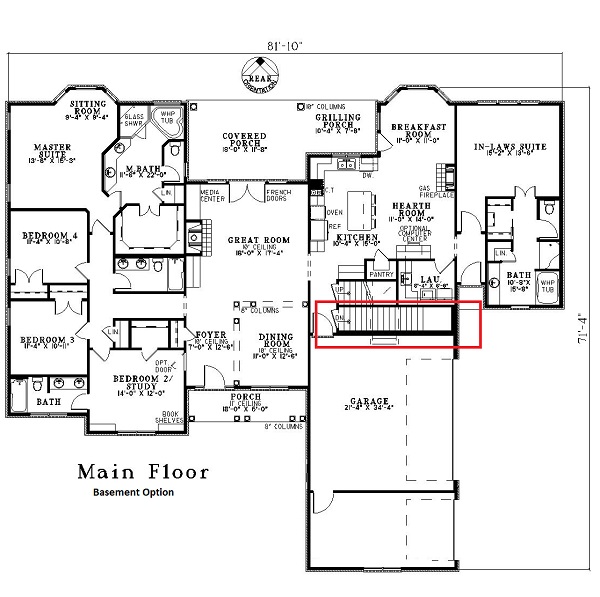

#153-1868 Floor Plan First Story - basement option stair location Floor Plan Main Level of In-Law Suite Plan #153-1868 - Basement Option Stair Location

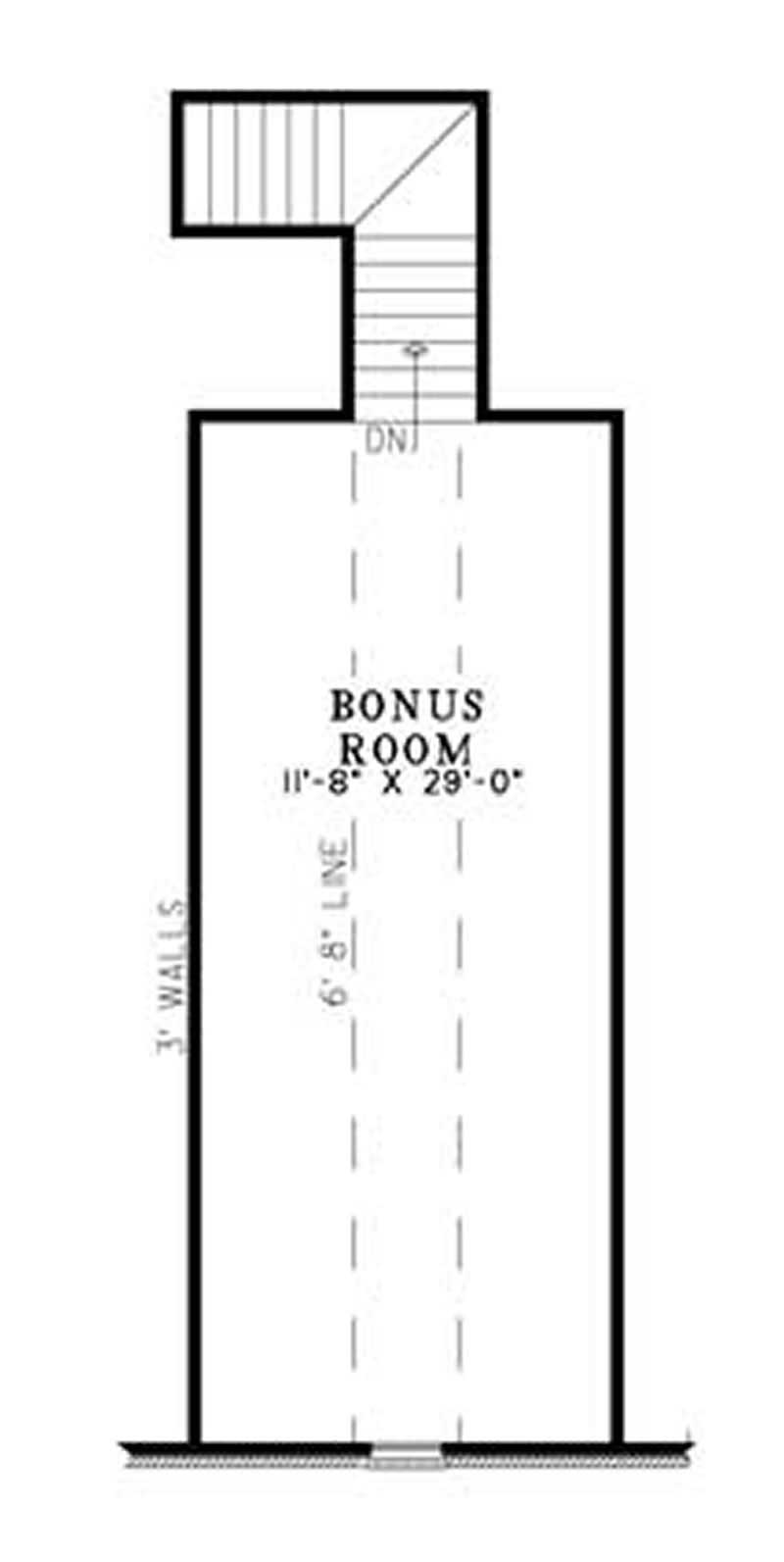

#153-1868 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of In-Law Suite Plan #153-1868
Home Plan: #153-1868 Floor Plan First Story - main level Floor Plan Main Level of In-Law Suite Plan #153-1868
#153-1868 Floor Plan First Story - basement option stair location Floor Plan Main Level of In-Law Suite Plan #153-1868 - Basement Option Stair Location
#153-1868 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of In-Law Suite Plan #153-1868
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1868
Full Baths:

Square Footage

Heated Sq Feet:
Main Floor:
Unfinished Sq Ft:
Bonus Room:
Garage :
Porch :


81' 10"
67' 2"
Ridge Height:
30' 0"

Architectural Styles

In-Law Suite

Exterior Wall Material


Roofing Type


Roofing Material

Asphalt Shingles

Roof Pitch


Ceiling Height

8 Foot Ceiling
9 Foot Ceiling

Special Feature

Bonus Room
Dining Room
Main Level Laundry
Mother in law apartment
Open Floor Plan

Garage Type

Attached Garage
Side Entry


One Fireplace

Exterior Wall Framing


Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Sitting Area
Two or More Master Suites
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. Please contact us with any questions.


A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.


All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
