About Plan # 190-1017

About Plan # 190-1017

3743 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 86' 8" WIDTH 94' 8" DEPTH 3 GARAGE BAY

This attractive Florida style home (House Plan #190-1017) has 3743 square feet of living space. The 1 story floor plan includes 4 bedrooms - ideal for vacation or coastal front living.

Each plan set includes the following:

  • Cover Sheet
  • Notes Page
  • Floor Plans
  • Foundation Plan
  • Exterior Elevations & Section
  • Roof Plan – The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes. Our roofs are designed for trusses and a local truss manufacturer is needed to design the trusses for each home to comply with local codes and regulations
  • Electrical Plan
  • Detail Sheet(s)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

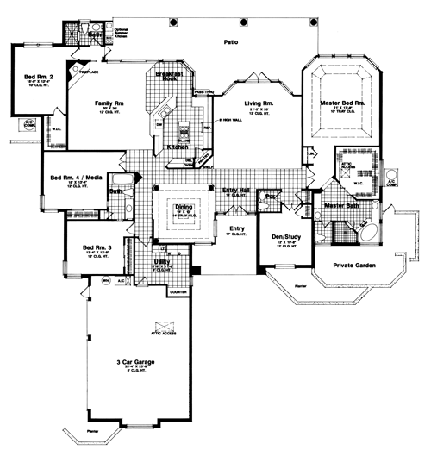

Home Plan: #190-1017 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #190-1017
Home Plan: #190-1017 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #190-1017
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 190-1017
Floors:
1
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
3743
Main Floor:
3743
Unfinished Sq Ft:
Garage :
790
Porch :
823

Dimensions

Width:
86' 8"
Depth:
94' 8"
Ridge Height:
27' 0"

Architectural Styles

Mediterranean
Contemporary
Coastal
Concrete Block/ ICF Design
Florida Style

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

6/12

Special Feature

Fireplace
Dining Room
Family Room
Main Level Laundry
Storage
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
