Mediterranean House Plan - 4 Bedrms, 3 Baths - 2224 Sq Ft

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #190-1008

2224

Sq Ft

4

Bedrooms

3

Baths

0

Half Baths

2

Cars

1

Stories

58' 6'

Width

72

Depth

From$1050What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

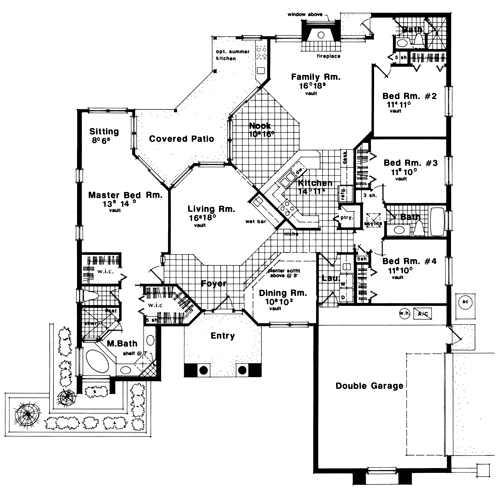

Floor Plan Main Level

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

This lovely Florida style home with contemporary influences (House Plan #190-1008) has 2224 square feet of living space. The 1 story floor plan includes 4 bedrooms.

Home Details

Summary

Plan #:190-1008

Floors:1

Bedrooms:4

Full Baths:3

Half Baths:0

Garage:

Square Footage

Heated Area::2224 Sq. Ft.

Main Floor:2224 Sq. Ft.

Dimensions

Width:58' 6''

Ridge Height:23' 0''

Architectural Styles

European Mediterranean Contemporary Southwest Florida Style

Exterior Wall Material

Stucco

Roofing Type

GableHip

Roofing Material

Asphalt Shingles

Roof Pitch

6/12

Ceiling Height

8 Foot Ceiling

Special Feature

FireplaceFamily RoomMain Level LaundryColor PhotosVaulted CeilingsOpen Floor Plan

Garage Type

Attached GarageSide Entry

Fireplaces

One Fireplace

Exterior Wall Framing

Log

Building Lot Type

Flat Site

Kitchen Features

Kitchen IslandNook/Breakfast AreaWalk-in PantryPeninsula/Eating BarEat-In Kitchen

Porches and Exterior Features

Covered Front PorchCovered Rear Porch

Master Suite Features

Main Floor MasterMaster BathroomWalk In ClosetSitting AreaSplit Master Bedroom

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Cover Sheet

Notes Page

Floor Plans

Foundation Plan

Exterior Elevations & Section

Roof Plan – The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes. Our roofs are designed for trusses and a local truss manufacturer is needed to design the trusses for each home to comply with local codes and regulations

Electrical Plan

Detail Sheet(s)

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
