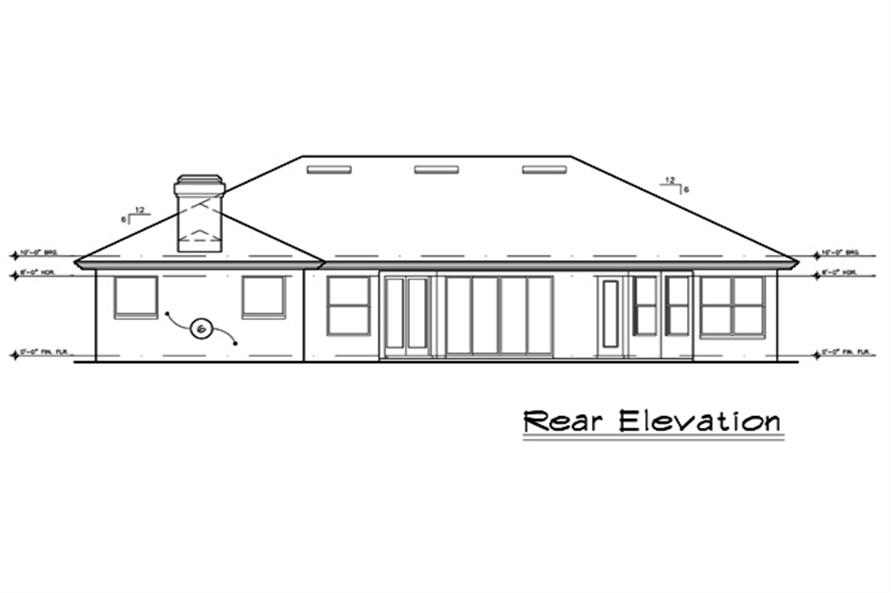

190-1020: Home Plan Rear Elevation
4-Bedroom, 2409 Sq Ft Mediterranean House Plan - 190-1020 - Front Exterior
190-1020: Home Plan Rear Elevation

About Plan # 190-1020

About Plan # 190-1020

2409 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 65' 0" WIDTH 85' 0" DEPTH 3 GARAGE BAY

This contemporary Mediterranean home plan (#190-1020) has 2409 sq ft of space. The impressive 1-story plan includes a front and back patio & a 3-car garage.

Each plan set includes the following:

  • Cover Sheet
  • Notes Page
  • Floor Plans
  • Foundation Plan
  • Exterior Elevations & Section
  • Roof Plan – The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes. Our roofs are designed for trusses and a local truss manufacturer is needed to design the trusses for each home to comply with local codes and regulations
  • Electrical Plan
  • Detail Sheet(s)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

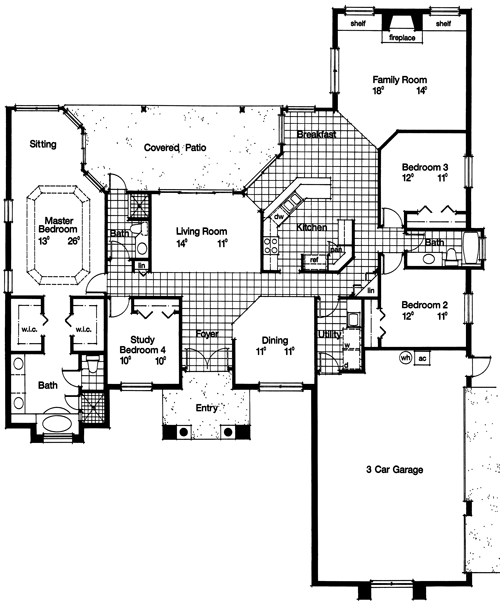

Home Plan: #190-1020 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #190-1020
