4-Bedroom, 2953 Sq Ft Contemporary Plan with Covered Rear Porch

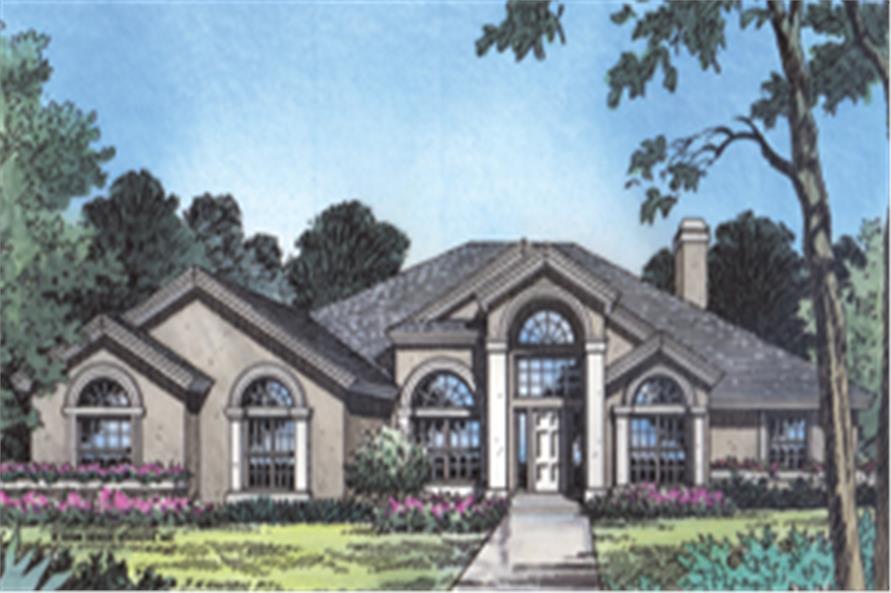

Front elevation of Contemporary home (ThePlanCollection: House Plan #190-1010)

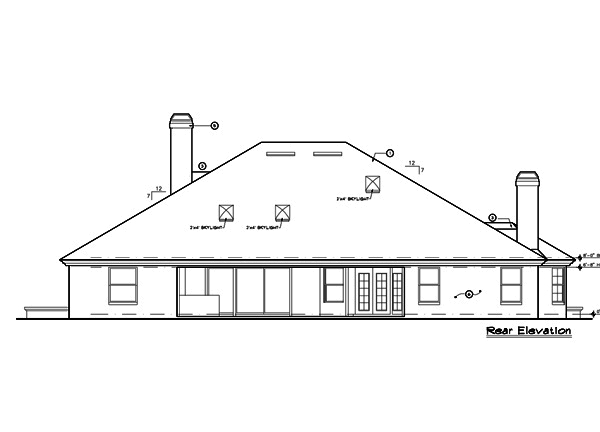

190-1010: Home Plan Rear Elevation
4-Bedroom, 2953 Sq Ft Contemporary House Plan - 190-1010 - Front Exterior

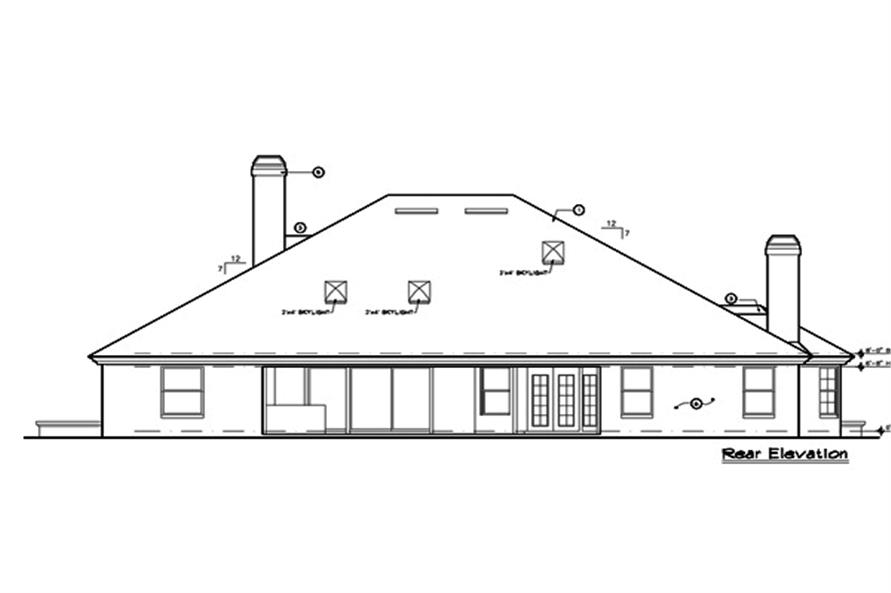

190-1010: Home Plan Rear Elevation

About Plan # 190-1010

About Plan # 190-1010

2953 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 70' 8" WIDTH 76' 8" DEPTH 3 GARAGE BAY

The total area square footage, which includes the heated living sf, front entry, back patio, and the garage is 4224 square feet.

Each plan set includes the following:

  • Cover Sheet
  • Notes Page
  • Floor Plans
  • Foundation Plan
  • Exterior Elevations & Section
  • Roof Plan – The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes. Our roofs are designed for trusses and a local truss manufacturer is needed to design the trusses for each home to comply with local codes and regulations
  • Electrical Plan
  • Detail Sheet(s)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

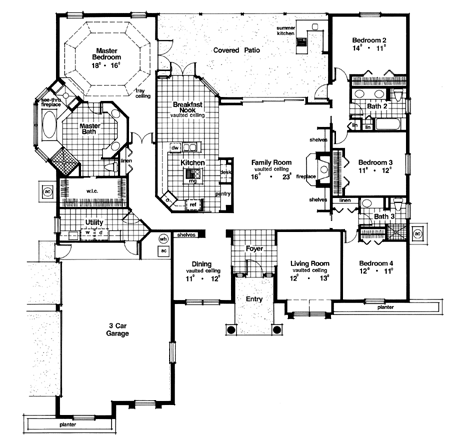

Home Plan: #190-1010 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #190-1010
Home Plan: #190-1010 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #190-1010
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 190-1010
Floors:
1
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
2953
Main Floor:
2953
Unfinished Sq Ft:
Garage :
737

Dimensions

Width:
70' 8"
Depth:
76' 8"

Architectural Styles

European
Mediterranean
Contemporary
Modern
Beachfront
California Style
Florida Style
Texas Style

Exterior Wall Material

Stucco

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Special Feature

Dining Room
Main Level Laundry

Garage Type

Attached Garage

Fireplaces

Two Fireplaces

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Split Master Bedroom

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
