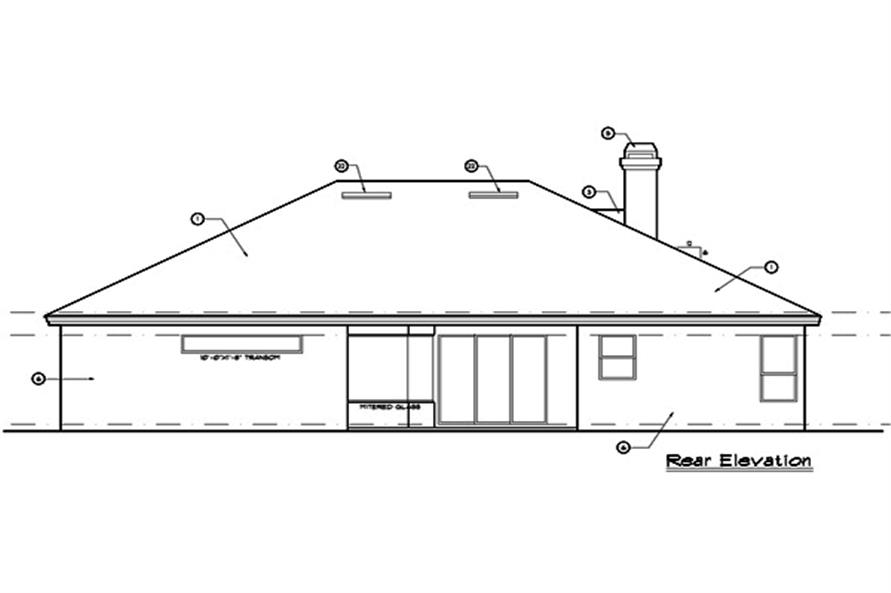

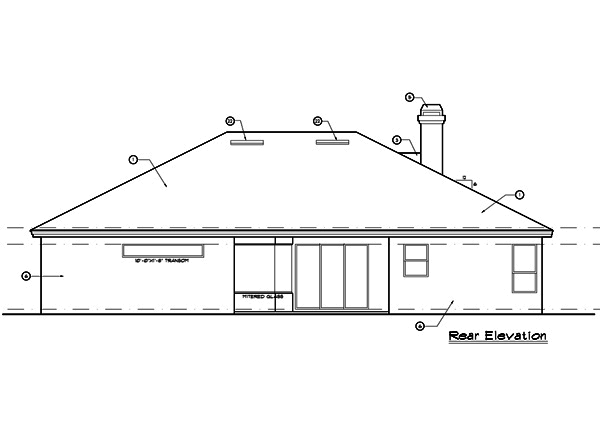

190-1005: Home Plan Rear Elevation

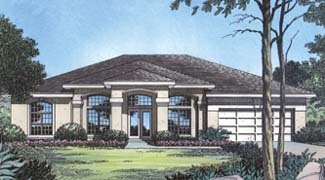

190-1005: Home Plan Front Elevation

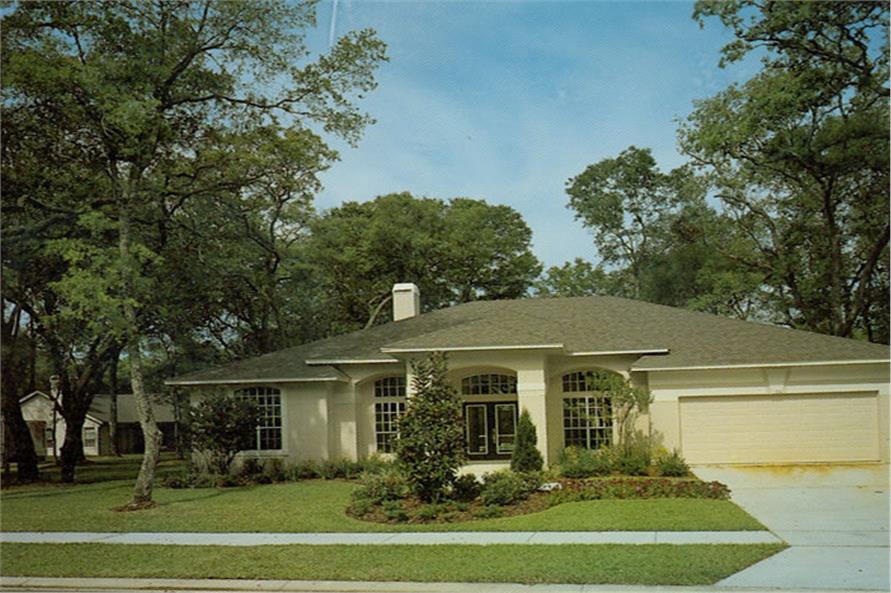

4-Bedroom, 2089 Sq Ft Mediterranean House Plan - 190-1005 - Front Exterior
190-1005: Home Plan Rear Elevation
190-1005: Home Plan Front Elevation

About Plan # 190-1005

About Plan # 190-1005

2089 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 61' 8" WIDTH 50' 4" DEPTH 2 GARAGE BAY

This attractive Mediterranean style colonial home (House Plan #190-1005) has 2089 square feet of living space. The 1-story floor plan includes 4 bedrooms.

Each plan set includes the following:

  • Cover Sheet
  • Notes Page
  • Floor Plans
  • Foundation Plan
  • Exterior Elevations & Section
  • Roof Plan – The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes. Our roofs are designed for trusses and a local truss manufacturer is needed to design the trusses for each home to comply with local codes and regulations
  • Electrical Plan
  • Detail Sheet(s)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

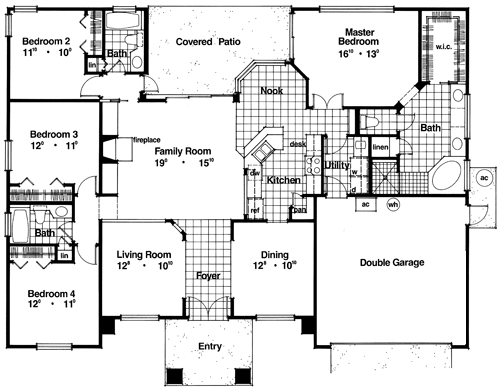

Home Plan: #190-1005 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #190-1005
Home Plan: #190-1005 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #190-1005
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 190-1005
Floors:
1
Bedrooms:
4
Full Baths:
3
Garage :
2

Square Footage

Heated Sq Feet:
2089
Main Floor:
2089
Unfinished Sq Ft:
Garage :
415
Porch :
199

Dimensions

Width:
61' 8"
Depth:
50' 4"
Ridge Height:
21' 10"

Architectural Styles

Colonial
Ranch
Mediterranean
Contemporary
Coastal
Florida Style

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling

Special Feature

Fireplace
Dining Room
Family Room
Main Level Laundry
Color Photos
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
