4-Bedroom, 2000 Sq Ft Craftsman Plan with Main Floor Master

This is the final front elevation of this category of Ranch Houseplans.
4-Bedroom, 2000 Sq Ft Craftsman Home Plan - 109-1051 - Main Exterior

About Plan # 109-1051

About Plan # 109-1051

2000 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 63' 0" WIDTH 62' 8" DEPTH 3 GARAGE BAY

We've integrated our customer's most requested features into a mid-sized ranch in the creation of this attractive new design. The Craftsman style siding and stone exterior is accented with a "Palladian" window, multi-level trim and an inviting front porch. A flex room, an exquisite master suite, a 3-car garage, and a large screened porch are sure to make this 2000 square foot home irresistible. The exceptional master suite, with direct access to the deck, features a grand, fully-appointed bath and a spacious walk-in closet to create a true "Master's Retreat." A bay window brightens the casual dining room and kitchen. Vaulted or tray ceilings adorn the flex room, family room, master suite and cozy coffee corner. Other rooms have 9' ceilings. The upper level bonus room features 495 sq. ft. of functional living space with 5 ft. knee walls rising up to an 8 ft. ceiling. The secondary bedroom suites, each measuring approx. 13' x 11', have walk-in closets and private baths.

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

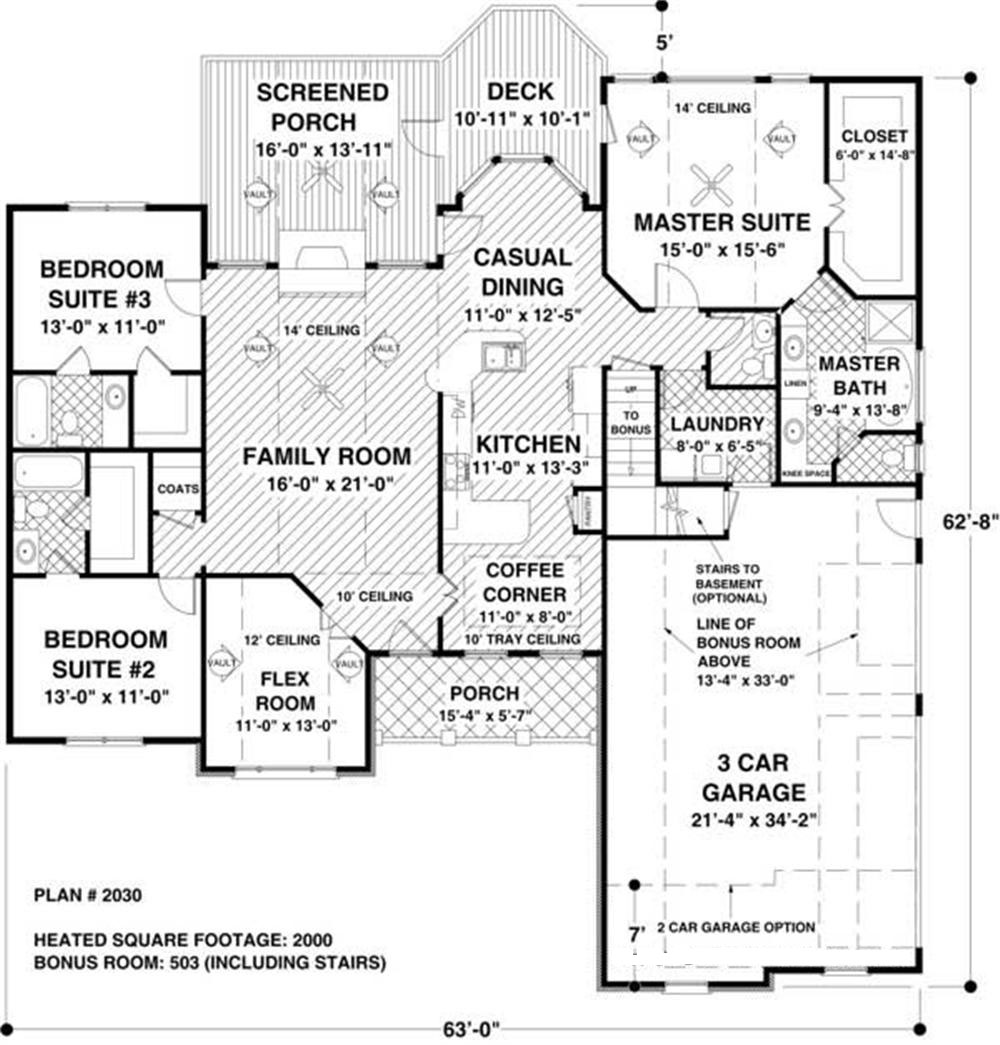

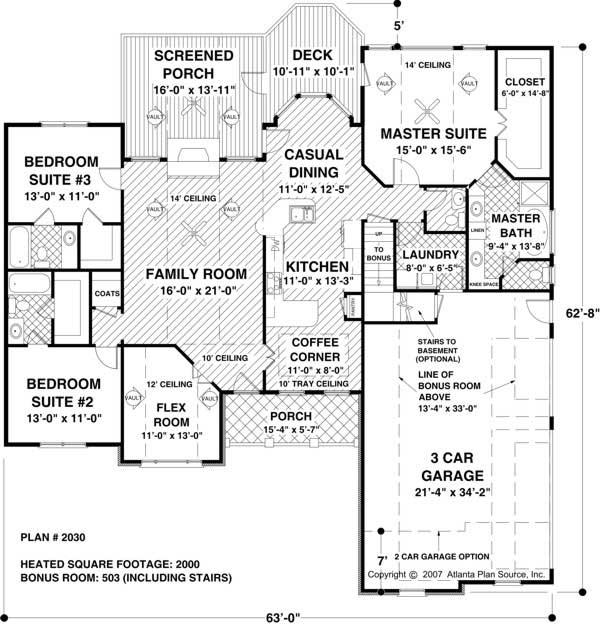

Home Plan: #109-1051 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1051
Home Plan: #109-1051 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1051
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1051
Floors:
1
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
2000
Main Floor:
2000
Unfinished Sq Ft:

Dimensions

Width:
63' 0"
Depth:
62' 8"
Ridge Height:
23-6' 0"

Architectural Styles

Arts and Crafts
Craftsman
Ranch

Exterior Wall Material

Rock/Stone
Wood Siding

Roofing Type

Gable/Dormer
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

10/12
8/12

Special Feature

Bonus Room
Dining Room
Exercise Room
Family Room
Fireplace
Main Level Laundry
Mud Room
Split Bathroom
Vaulted Ceilings

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Screened Porch/Sunroom
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Private Deck
Sitting Area
Walk In Closet

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
