4-Bedroom, 2750 Sq Ft Acadian Plan with Kitchen Island

Front elevation of Acadian home (ThePlanCollection: House Plan #141-1082)
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
4-Bedroom, 2750 Sq Ft Acadian Home Plan - 141-1082 - Main Exterior
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph

About Plan # 141-1082

About Plan # 141-1082

2750 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 75' 6" WIDTH 70' 10" DEPTH 2 GARAGE BAY

This traditional country ranch house plan includes an open floor plan with 4 spacious bedrooms, 3 1/2 baths, a split-bedroom layout, and other unique features.  The master suite includes a raised ceiling in the master bedroom, 2 large his and her walk-in closets, a jet tub, and an over-sized shower. The kitchen is fully-equipped with a wraparound raised bar, pantry, and a large adjoining breakfast area. Just off of the kitchen is a beautiful formal dining room complete with built-in shelves and 10' ceilings. One bedroom can even be used as a family member suite. Expansive great room features 12' ceilings, a gas log fireplace, and great views to the rear porch beyond.  Large front and rear covered porches complement the livability of this home. This plan even features a large bonus room area perfect for storage or future expansion. An over-sized garage is also provided for real-sized vehicles. Room spaces are designed large enough to have added space for a comfortable lifestyle! Heated Area: 2750 sq. ft. Unheated Area: (Front Porch 217 sq. ft.) (Rear Porch 194 sq. ft.) (Garage/Storage 720 sq. ft.) (Bonus Room 414 sq. ft.)

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • COVER SHEET: Artist’s architectural rendering of the residence provides an idea of what the house would look like once built.
  • FLOOR PLAN(S): In general, each set includes floor plans at 1/4″ scale with a door and window schedule. Floor plans are typically drawn with 4″ exterior walls. However, details/sections for both 2″x4″ and 2″x6″ wall framing may also be included as part of the plans or purchased separately.
  • FOUNDATION PLAN & DETAILS: Dimensioned plan detailing the and construction of the foundation. Foundation types offered typically include:
    Slab: A type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the “water table” refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.
    Crawlspace: A type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the homeowner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    Basement: A type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • ELECTRICAL PLAN: In general, each plan set includes an electrical plan with an electrical symbols legend which will show the locations of lights, receptacles, switches, etc.
  • ROOF DRAINAGE PLAN: In general, each plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

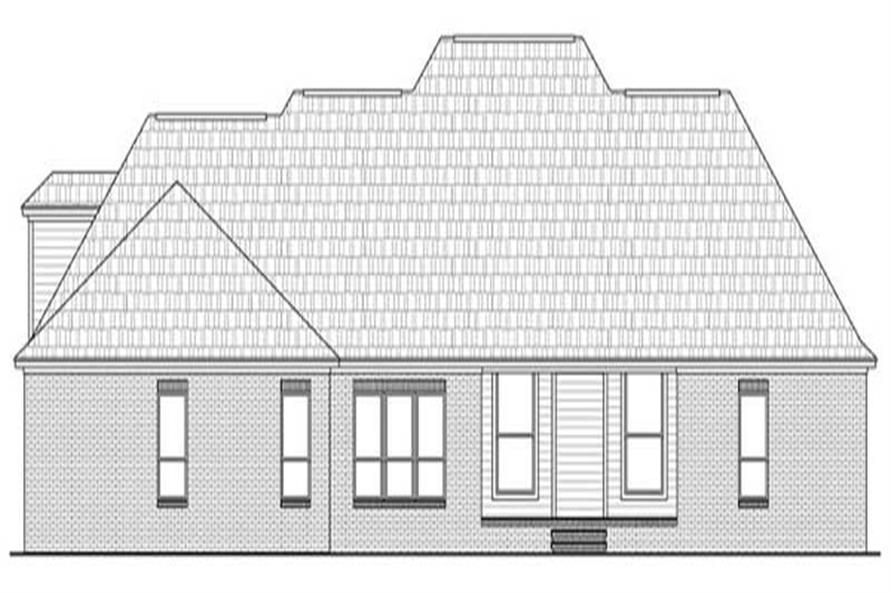

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • INTERIOR ELEVATIONS: Where applicable, each plan set includes relevant interior elevations, including cabinets, cabinet details, columns, and walls with unique conditions.
  • SECTIONS AND DETAILS: Explain certain special conditions more appropriately as needed.
  • SPECIFICATION FORM: In general, each plan set includes a blank short-form FHA/VA specifications document for your reference.
  • LICENSE TO BUILD: Each set of construction plans includes one license to build unless a multi-use license is otherwise purchased.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

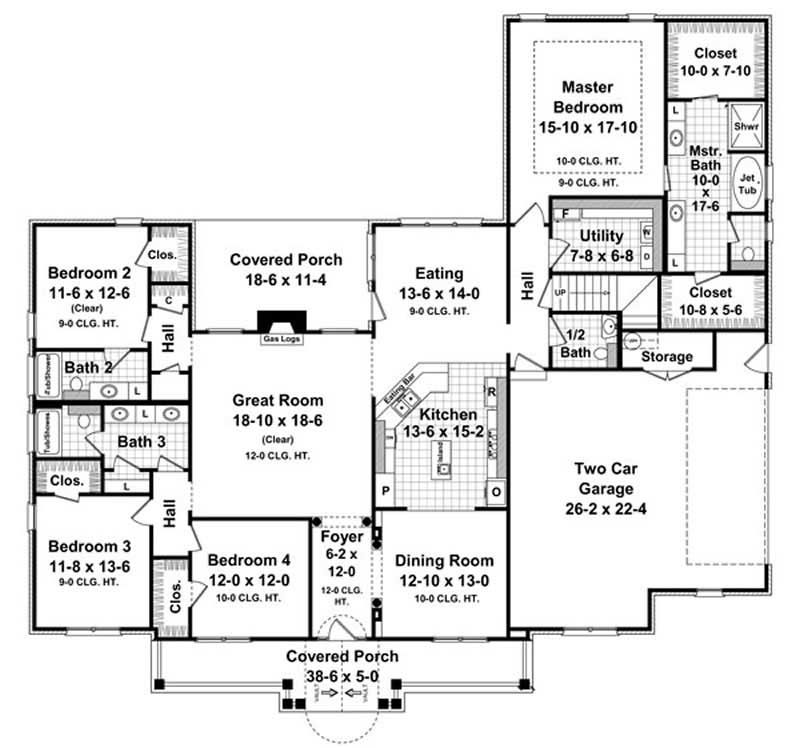

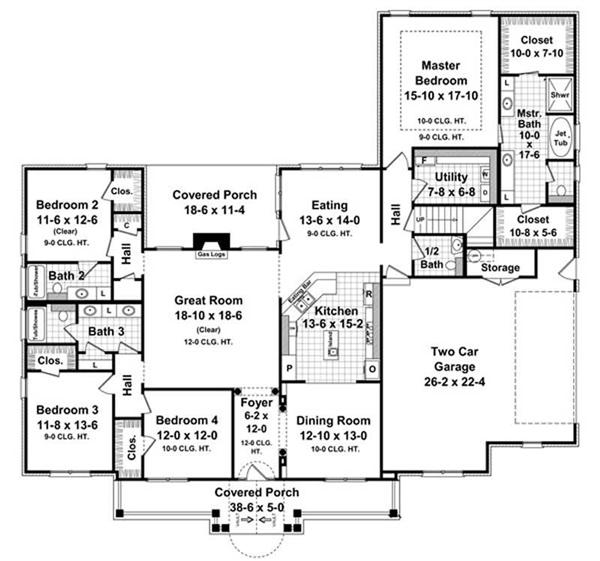

Home Plan: #141-1082 Floor Plan First Story - main Floor Plan First Story of Acadian Plan #141-1082

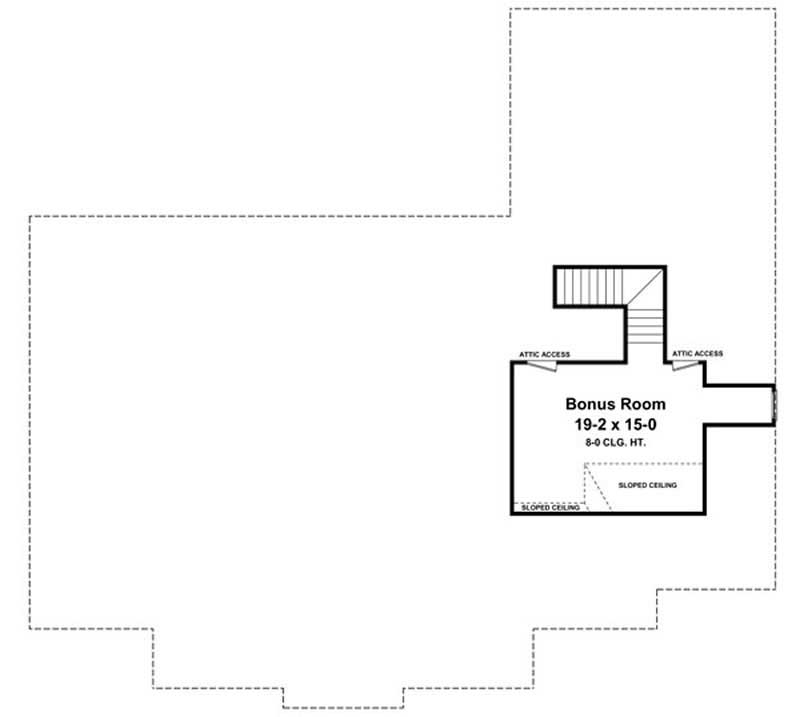

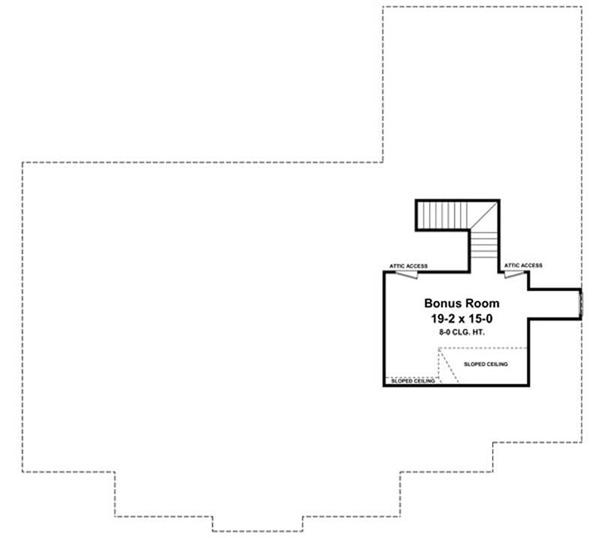

#141-1082 Floor Plan Second Story - second Floor Plan Second Story of Acadian Plan #141-1082
Home Plan: #141-1082 Floor Plan First Story - main Floor Plan First Story of Acadian Plan #141-1082
#141-1082 Floor Plan Second Story - second Floor Plan Second Story of Acadian Plan #141-1082
