3-Bedroom, 1296 Sq Ft Small House Plans Plan with Nook/Breakfast Area
| 1296 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 46' 0" WIDTH | 42' 0" DEPTH | 0 GARAGE BAY |
This strikingly attractive compact home is affordable, yet full-featured. The beveled glass front door provides a luxurious entry into the foyer. You'll be impressed with the 16' by 20' family room with it's vaulted ceiling. The open kitchen/dining area offers an optional bay for additional space. The master suite in this split bedroom plan is truly the highlight of this design. There are his and hers closets, a vaulted bath with an elegant corner tub, separate vanities, and a shower.
Each plan set includes the following:
- Rendering cover page

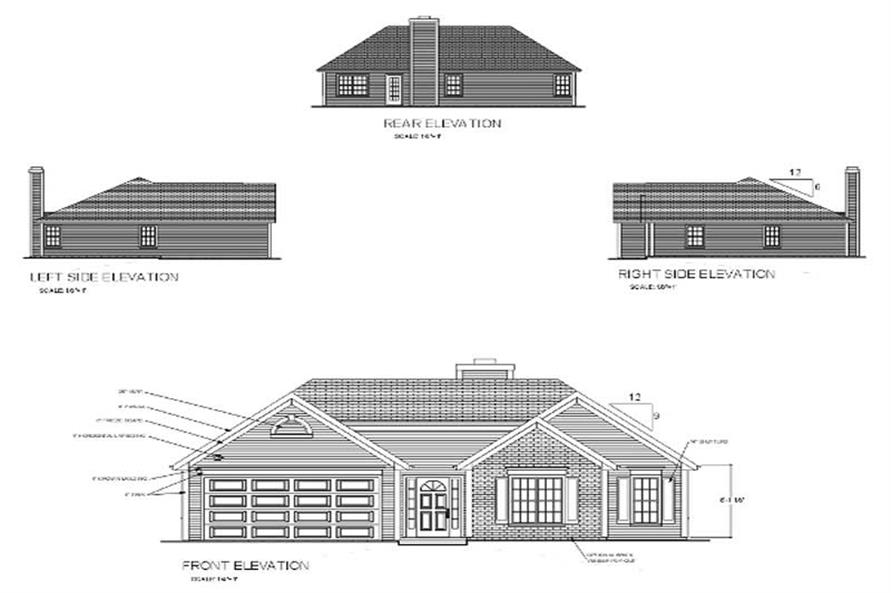

- Elevations
- Floor plans
- Foundation plan
- Cabinet/interior elevations
- Roof plan
- Section
- Construction details
- IRC code specifications
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

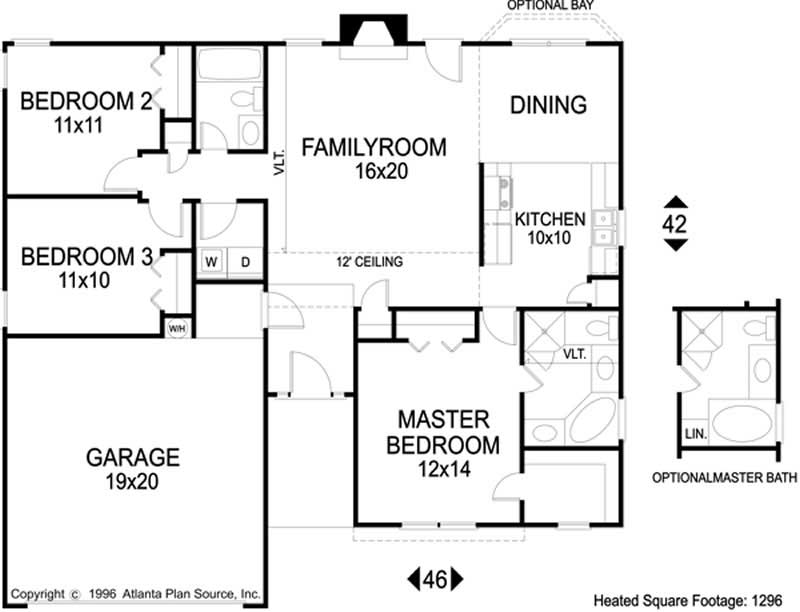

Home Plan: #109-1063 Floor Plan First Story
-
main
![Floor Plan First Story of Small House Plans #109-1063]( "MAIN FLOOR PLAN")
Home Plan: #109-1063 Floor Plan First Story
-
main
![Floor Plan First Story of Small House Plans #109-1063]( "MAIN FLOOR PLAN")
Special Offer
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Plan #:
# 109-1063
Floors:
1
Bedrooms:
3
Full Baths:
2
Square Footage
Heated Sq Feet:
1296
Main Floor:
1296
Unfinished Sq Ft:
Dimensions
Width:
46' 0"
Depth:
42' 0"
Architectural Styles
Ranch
Traditional
Small House Plans
Exterior Wall Material
Vinyl Siding
Roof Pitch
6/12
Ceiling Height
8 Foot Ceiling
Special Feature
Family Room
Exterior Wall Framing
2x4
Additional Notes from Designer
Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you!
PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.
PRICING OPTIONS
A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.
Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.
Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
