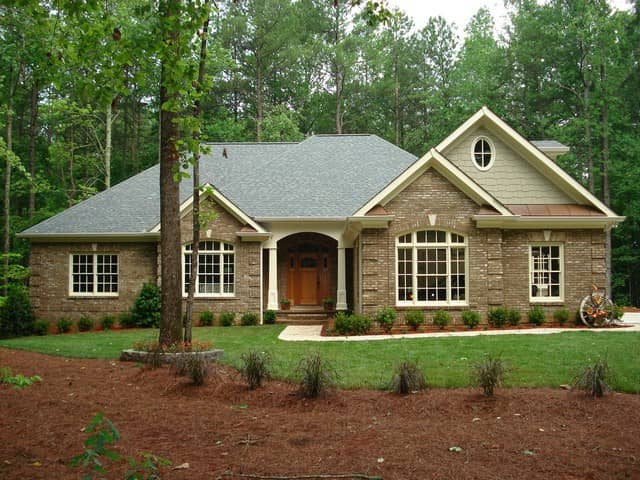

Front elevation of Country home (ThePlanCollection: House Plan #109-1103)

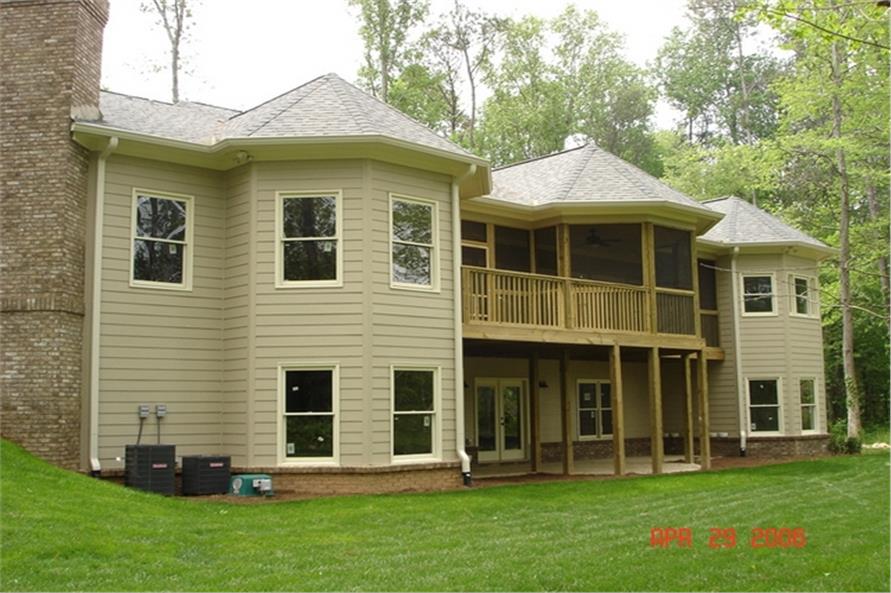

109-1103 house plan rear photo
SIDING RENDERING
109-1103 house plan front elevation

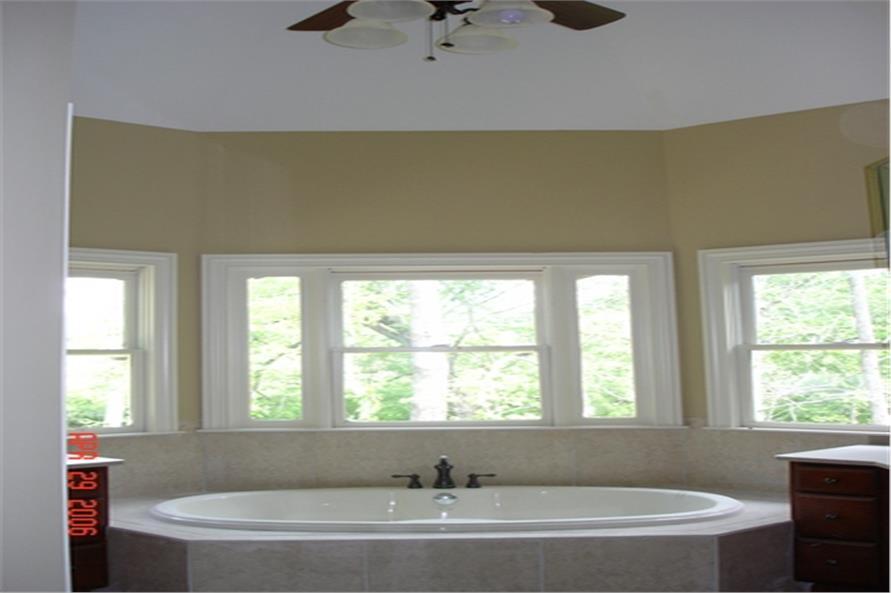

109-1103 house plan master bath
109-1103 house plan kitchen

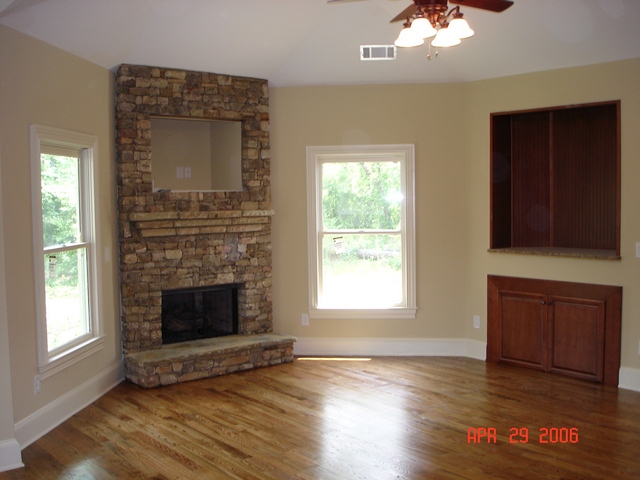

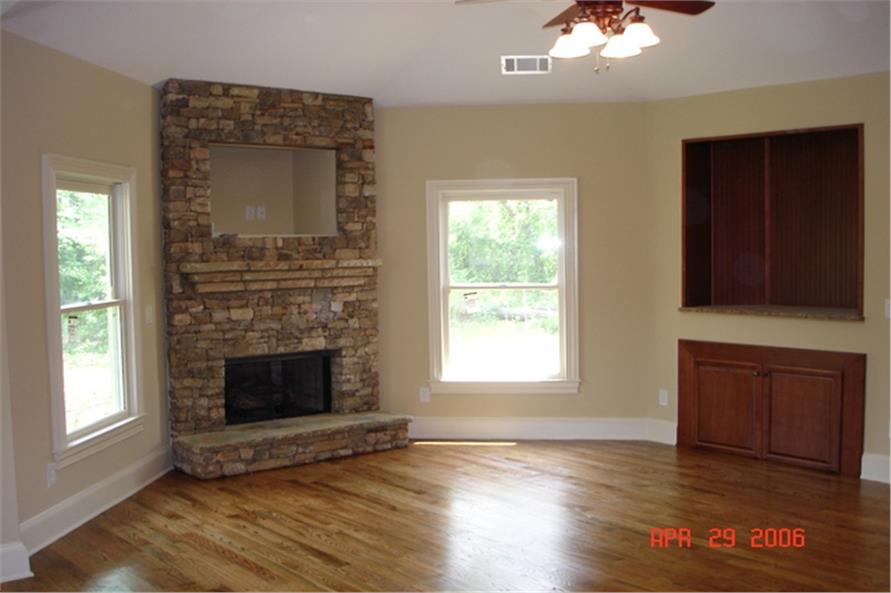

109-1103 house plan great room
STUCCO RENDERING

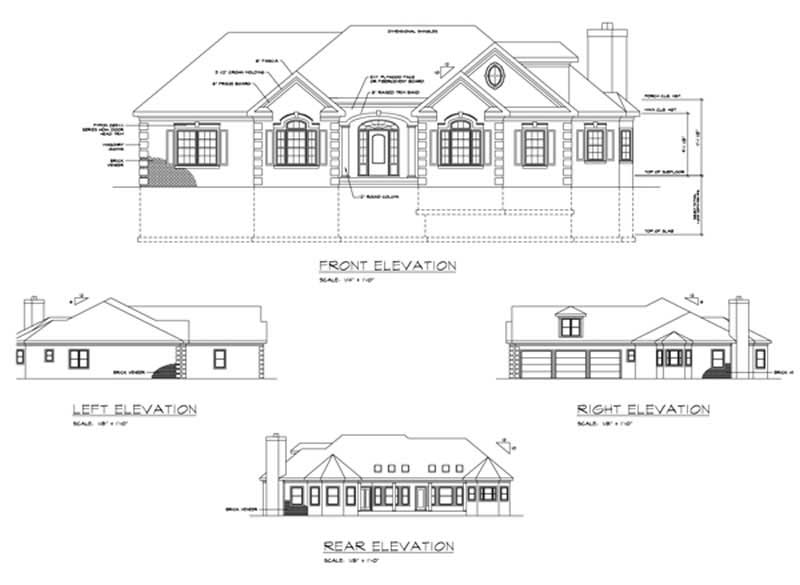

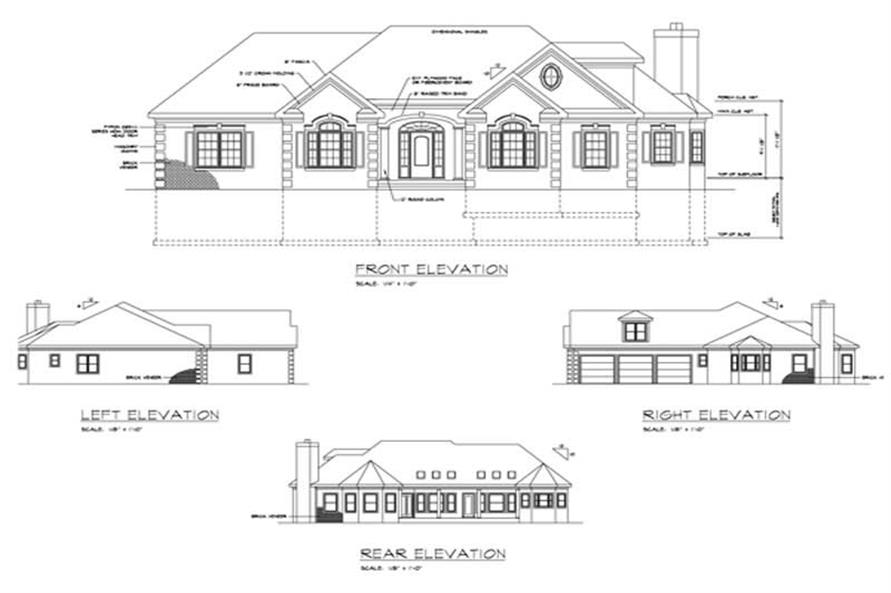

REAR ELEVATION
3-Bedroom, 2461 Sq Ft Country House Plan - 109-1103 - Front Exterior
109-1103 house plan rear photo
SIDING RENDERING
109-1103 house plan front elevation
109-1103 house plan master bath
109-1103 house plan kitchen
109-1103 house plan great room
STUCCO RENDERING
REAR ELEVATION

About Plan # 109-1103

About Plan # 109-1103

2461 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 71' 4" WIDTH 74' 8" DEPTH 3 GARAGE BAY

Here is a ranch house plan worth your consideration. The inviting front porch features an 11' high ceiling as does the entry. Just beyond the entry are stairs leading to an expansive bonus room with its own bath. The 16'x19' family room has a 11' ceiling and a rear window wall with French doors leading to the enormous covered porch brightened by 6 skylights. The angled kitchen, dining and hearth room are open, crowned with vaulted ceilings, and surrounded by windows. The hearth room includes a TV niche. The 16'x15' master suite is truly sumptuous with its 11' tray ceiling, sitting area, his & hers walk-in closets and full-featured bath. Each of the secondary bedrooms features a private bath and walk-in closet. Bedroom 2 also has a built-in desk with bookshelves. Ceiling heights not noted otherwise are 9 except for the bonus room which is 8

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

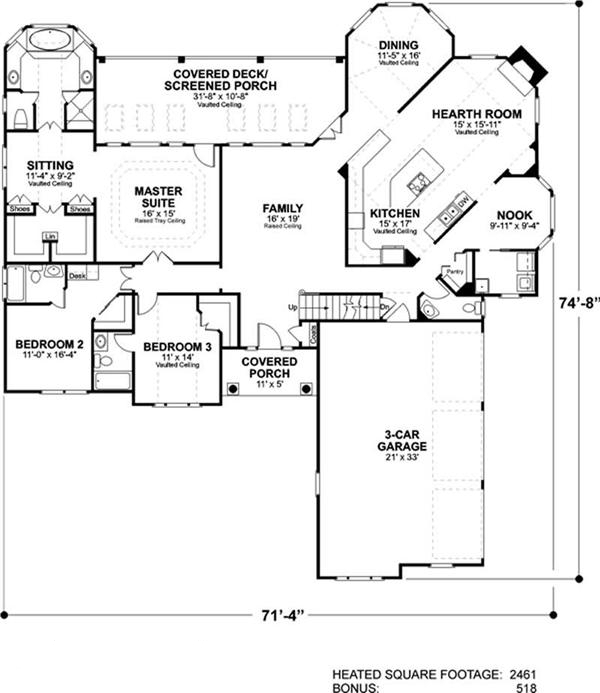

Home Plan: #109-1103 Floor Plan First Story - main level Floor Plan First Story of Country Plan #109-1103

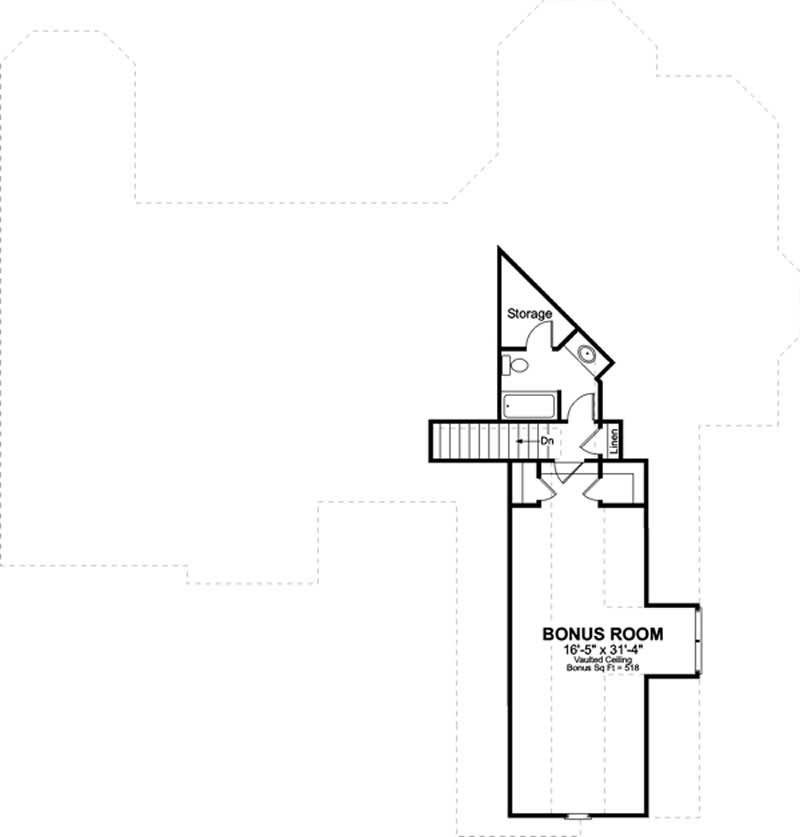

#109-1103 Floor Plan Bonus Room - bonus floorplan Floor Plan Bonus Room of Country Plan #109-1103
