2504 Sq Ft , 3-Bedroom Texas Style House Plan

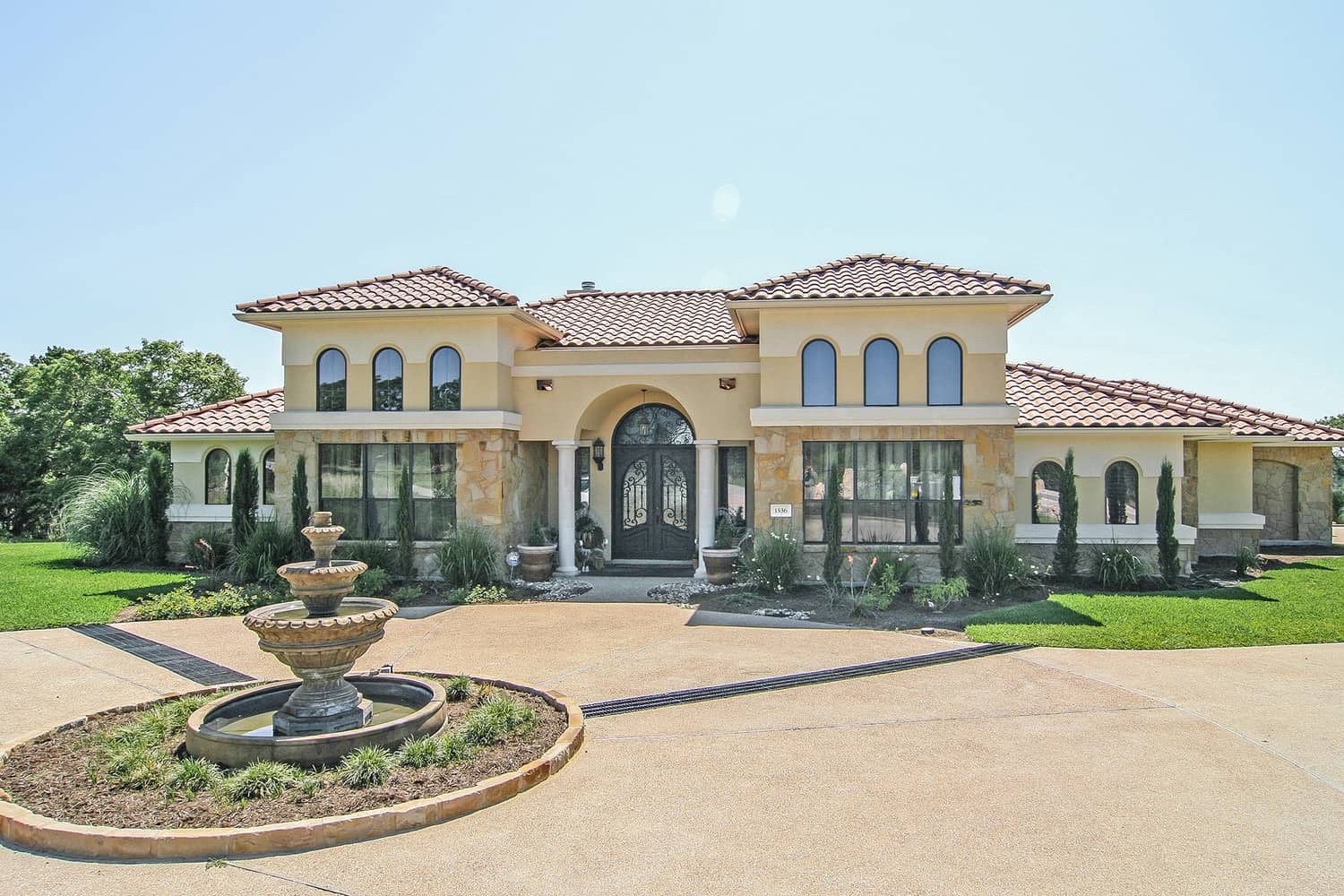

Front elevation of Texas Style home (ThePlanCollection: House Plan #136-1031)

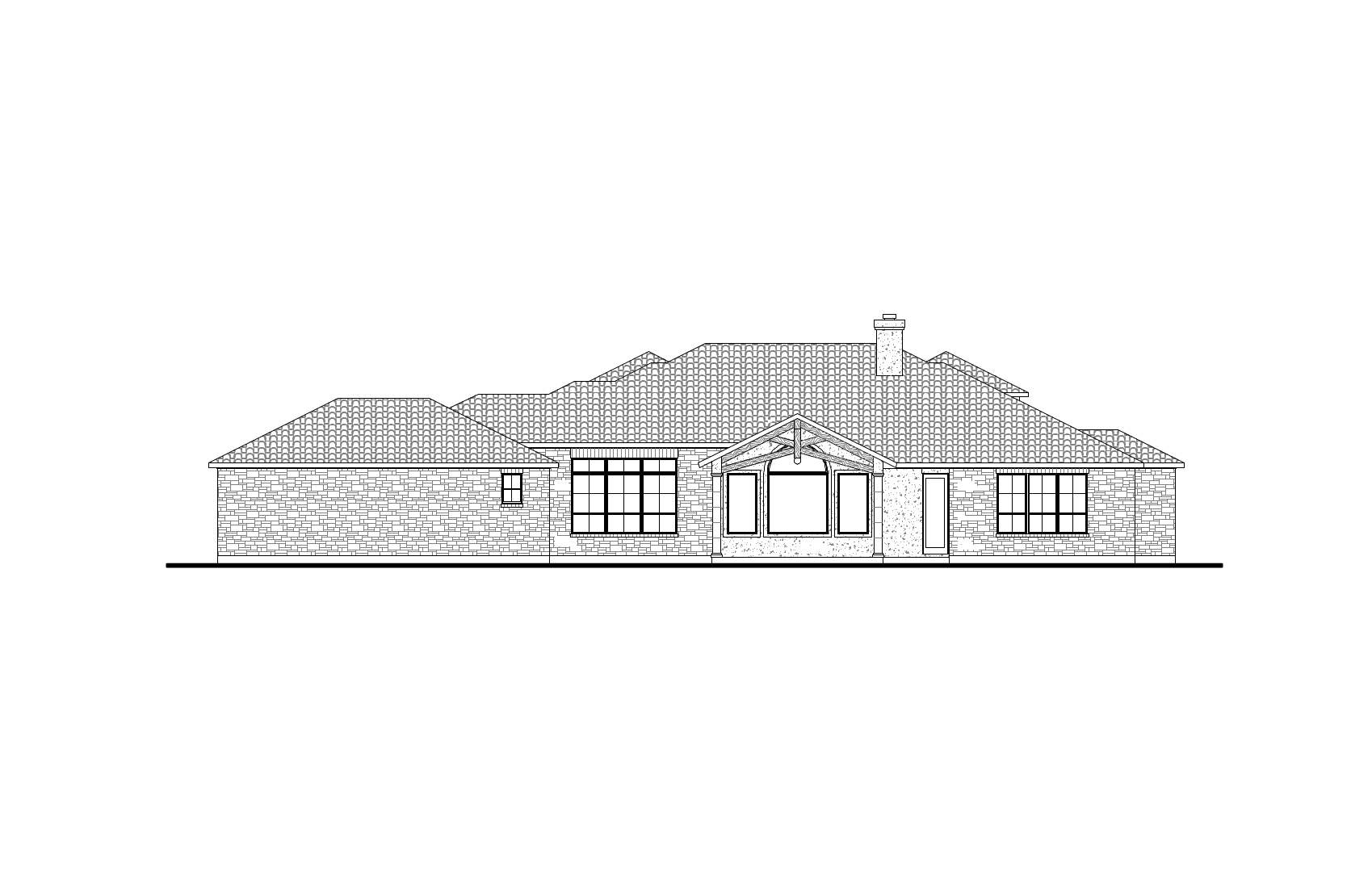

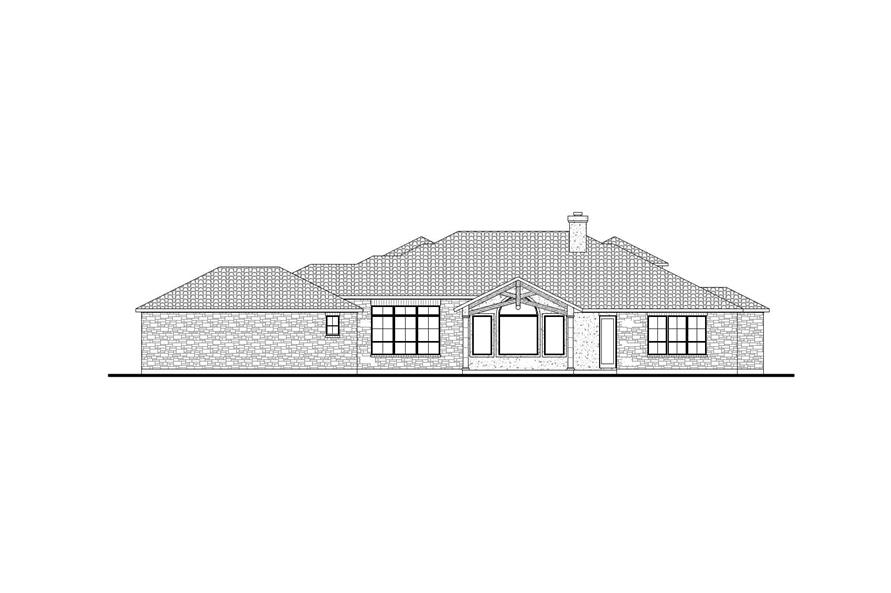

136-1031: Home Plan Rear Elevation

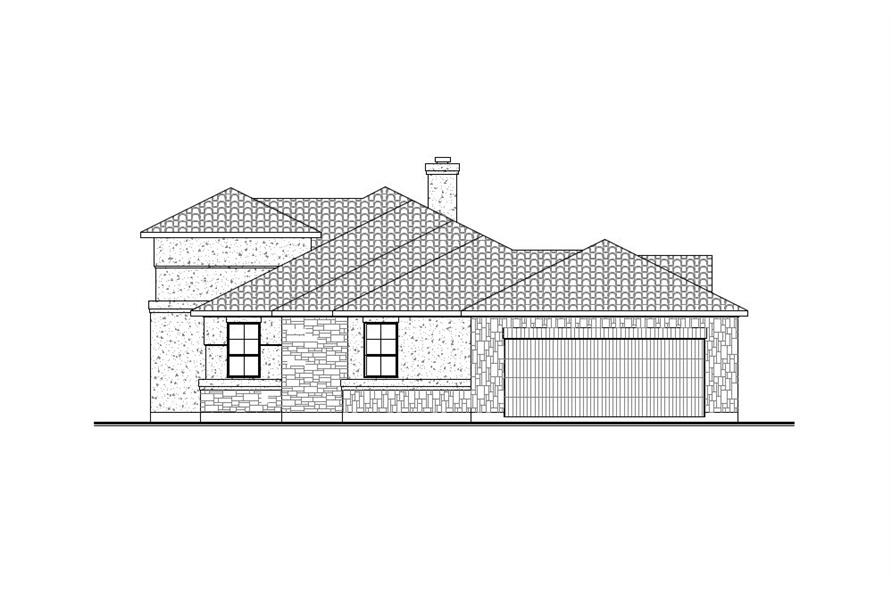

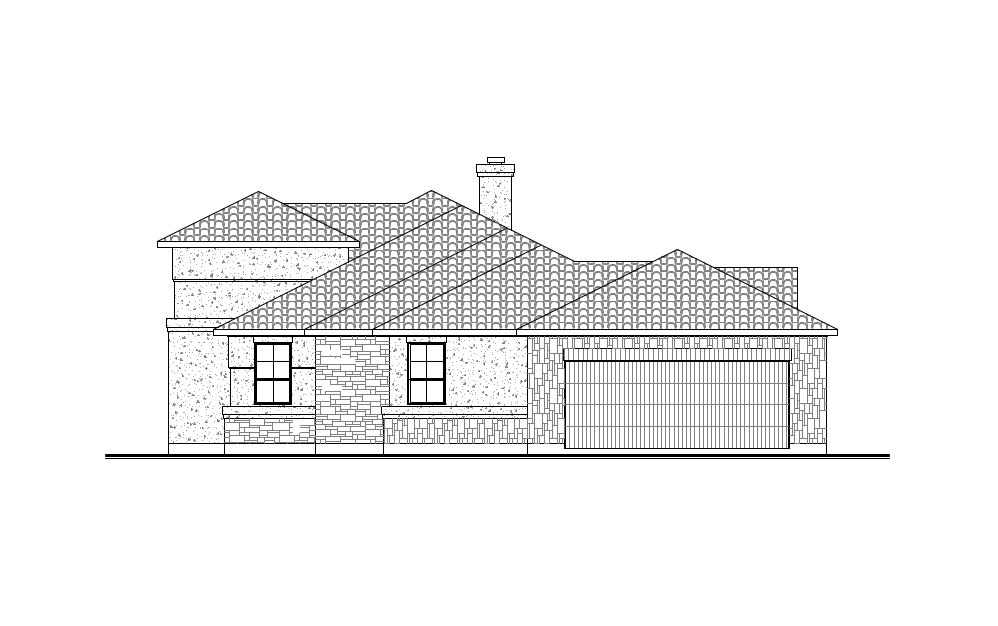

136-1031: Home Plan Left Elevation

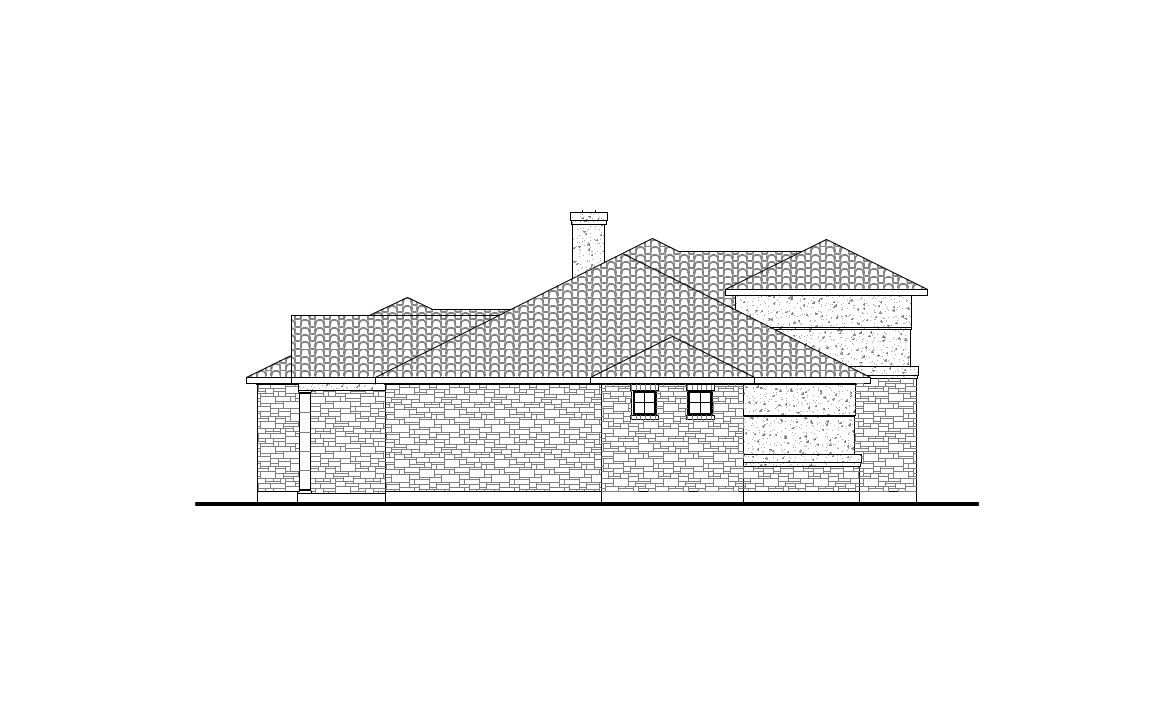

136-1031: Home Plan Right Elevation

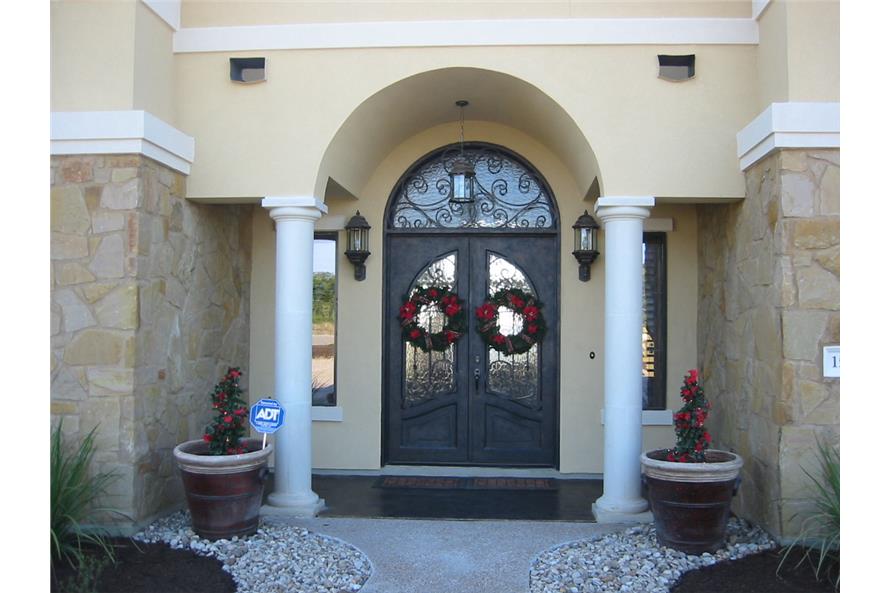

136-1031: Home Exterior Photograph-Front View

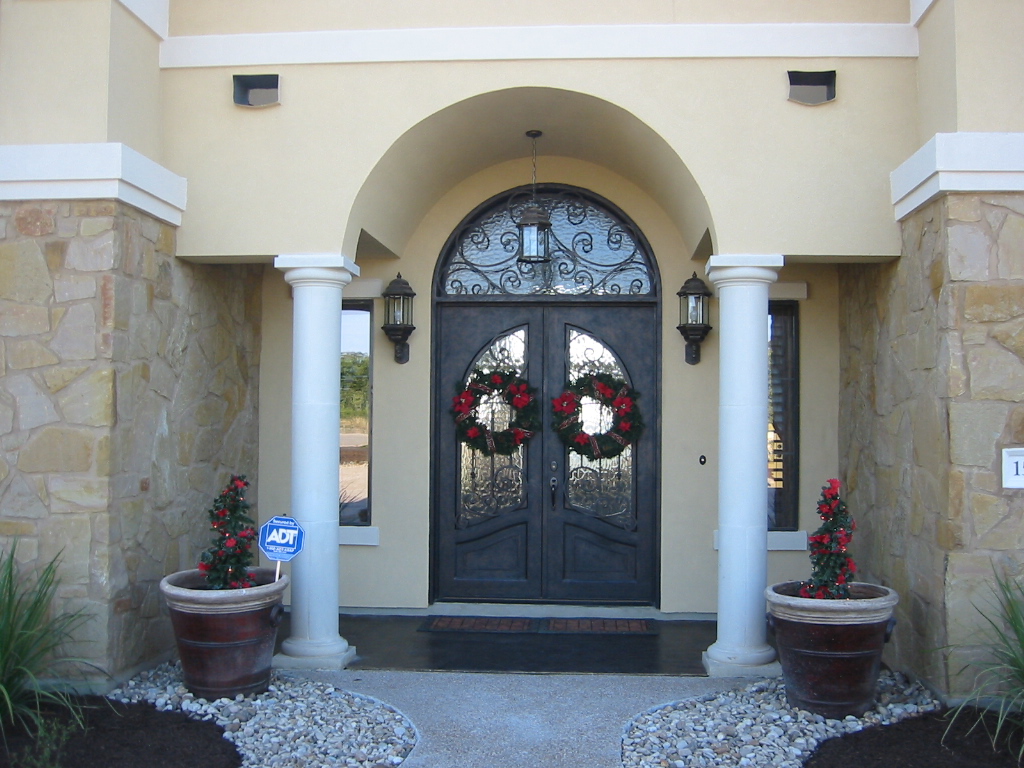

136-1031: Home Exterior Photograph-Front Door
136-1031: Home Exterior Photograph-Front View

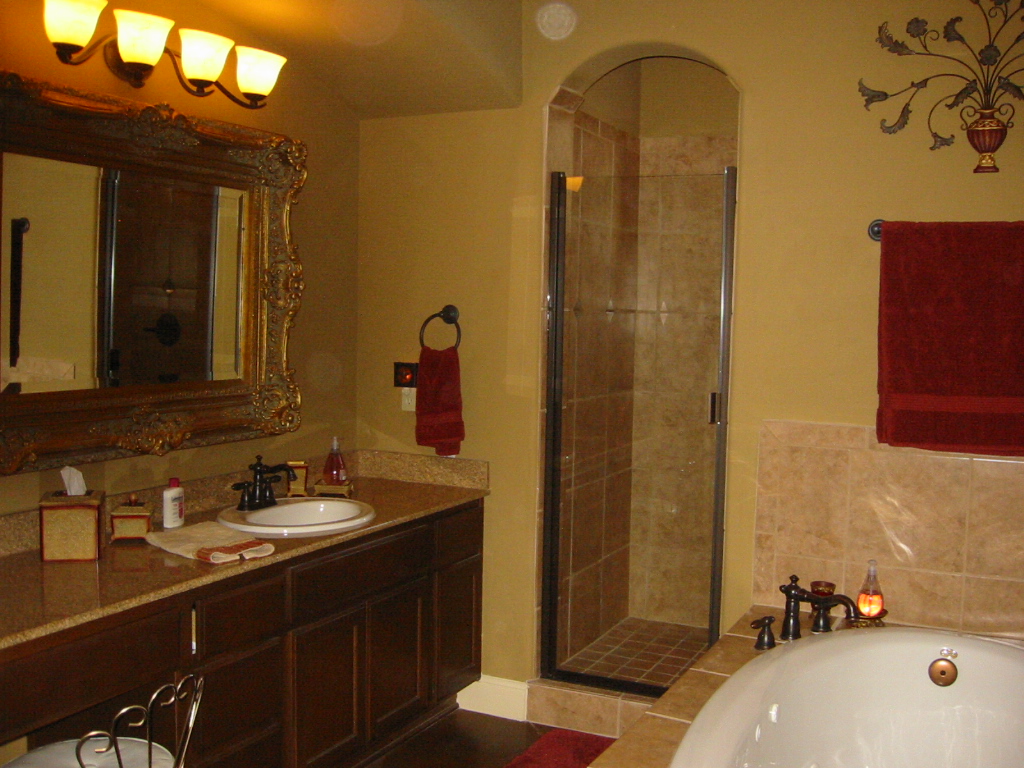

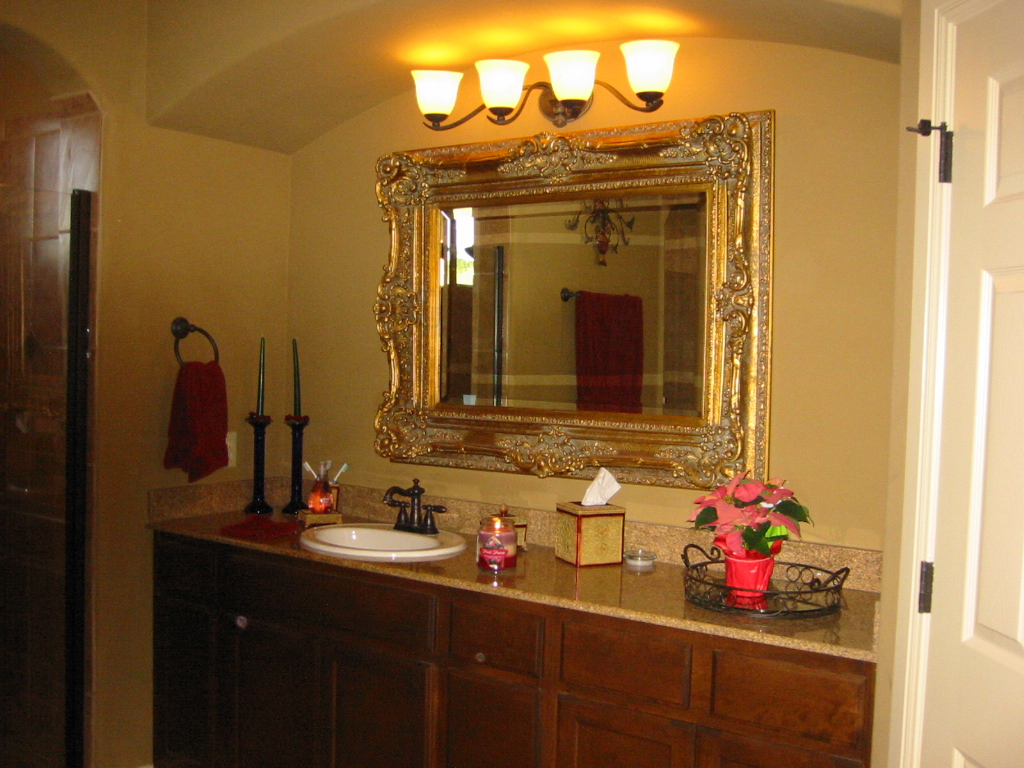

136-1031: Home Interior Photograph-Bathroom

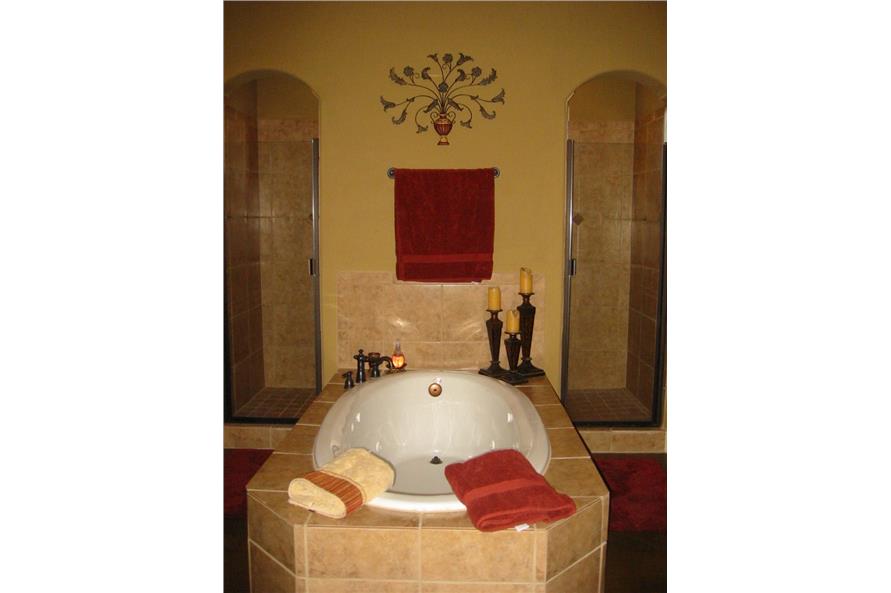

136-1031: Home Interior Photograph-Master Bathroom

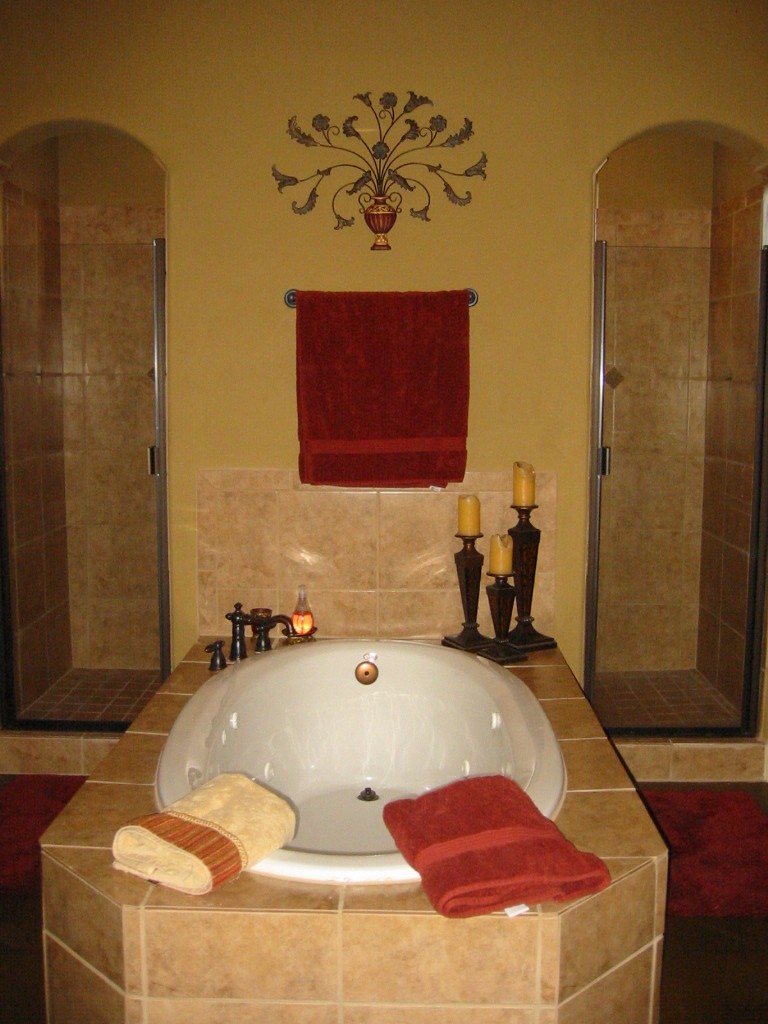

136-1031: Home Interior Photograph-Master Bathroom
136-1031: Home Interior Photograph-Master Bathroom
3-Bedroom, 2504 Sq Ft Texas Style House Plan - 136-1031 - Front Exterior
136-1031: Home Plan Rear Elevation
136-1031: Home Plan Left Elevation
136-1031: Home Plan Right Elevation
136-1031: Home Exterior Photograph-Front View
136-1031: Home Exterior Photograph-Front Door
136-1031: Home Exterior Photograph-Front View
136-1031: Home Interior Photograph-Bathroom
136-1031: Home Interior Photograph-Master Bathroom
136-1031: Home Interior Photograph-Master Bathroom
136-1031: Home Interior Photograph-Master Bathroom

About Plan # 136-1031

About Plan # 136-1031

2504 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 95' 0" WIDTH 52' 9" DEPTH 2 GARAGE BAY

This is a great Southwestern and Texas-style house plan with Spanish flair. The columns at the entry and tiled roof give ti great curb appeal. Incredible attention to detail gives this Mediterranean-inspired manor a bold presence. Inside, the foyer boasts a barrel vault ceiling and is located between the study and formal dining room, each with soaring 16-foot ceilings. The great room enjoys a cathedral ceiling, fireplace, and windows overlooking the rear porch. Steps away are the chef-worthy kitchen with an arched kitchen island eating bar and windows to view the backyard. For enjoying the outdoors, a dedicated pool bathroom with shower has easy access to the outdoor porch.

The master suite is truly impressive with a large bedroom and private access to the rear porch. The spa-like master bath includes his-and-her sink vanities, a water closet, a huge walk-in shower with his-and-her entrances, and a large soaking tub. There is also a walk-in closet for plenty of space for clothing, shoes, and accessories.

On the opposite side are two flexible bedrooms with a Jack-and-Jill bath as well as a 2-car garage.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

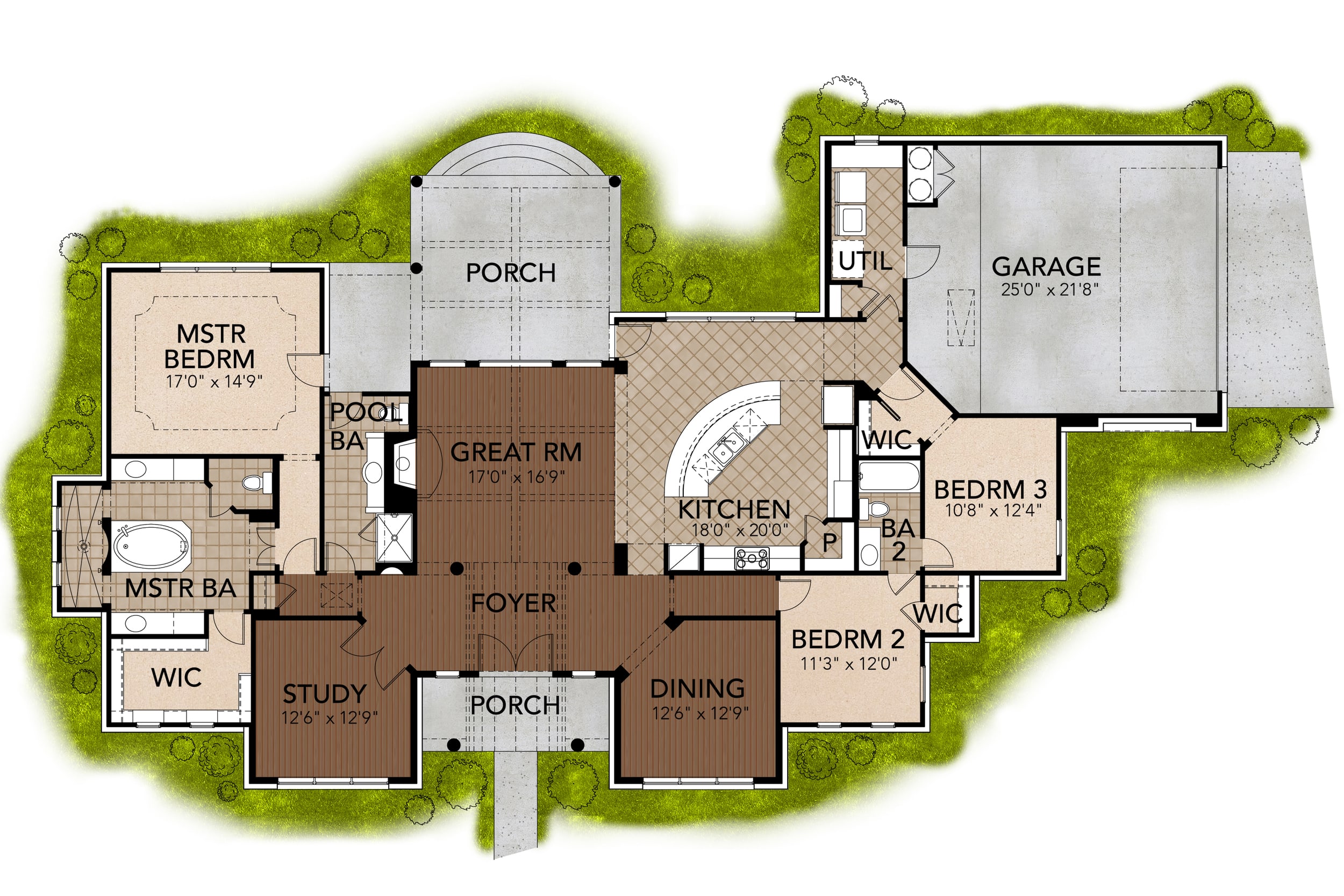

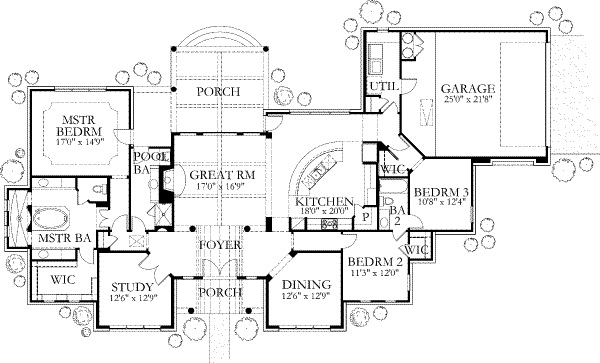

Home Plan: #136-1031 Floor Plan First Story - main level Floor Plan First Story of Texas Style Plan #136-1031
#136-1031 Floor Plan First Story - main level Floor Plan First Story of Texas Style Plan #136-1031
Home Plan: #136-1031 Floor Plan First Story - main level Floor Plan First Story of Texas Style Plan #136-1031
#136-1031 Floor Plan First Story - main level Floor Plan First Story of Texas Style Plan #136-1031
