Front elevation of Coastal home (ThePlanCollection: House Plan #133-1031)
133-1031: Home Exterior Photograph-Front View
3-Bedroom, 1991 Sq Ft Coastal Home Plan - 133-1031 - Main Exterior
133-1031: Home Exterior Photograph-Front View

About Plan # 133-1031

About Plan # 133-1031

1991 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 76' 8" WIDTH 65' 2" DEPTH 2 GARAGE BAY

Perfect symmetry defines this Florida style house plan with 3 Bedrooms, 3 Baths, Great Room with Cupola above and 2-Car Garage. An open airy feeling prevails in the Great Home leading to the back lanai and veranda. Relax the evening away sitting on your front porch. An optional 3rd bath and walk-in pantry complete this package.

  • The exterior walls are CMU block.
  • These Florida House Plans are not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

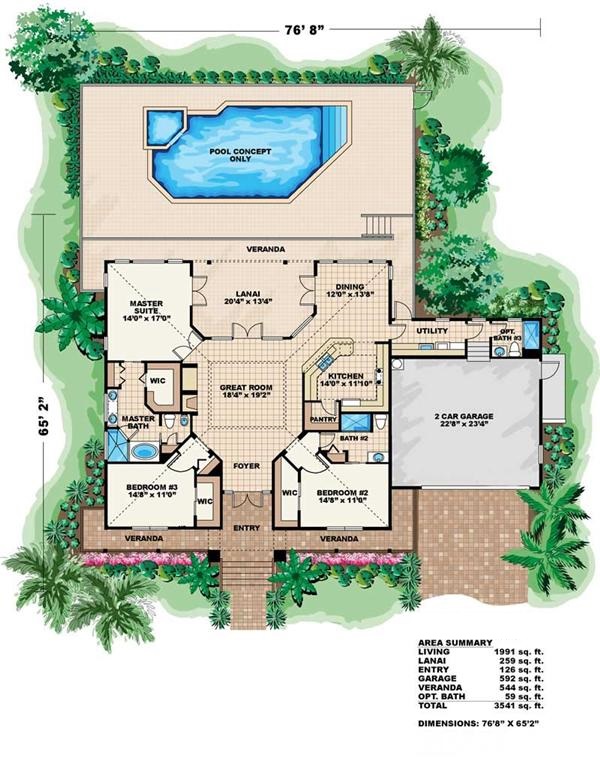

Home Plan: #133-1031 Floor Plan First Story - main level Floor Plan First Story of Coastal Plan #133-1031

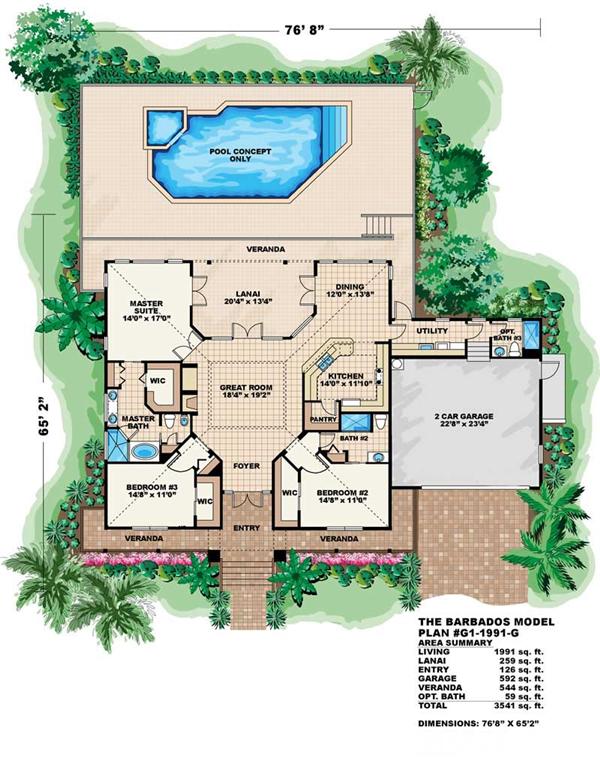

Home Plan: #133-1031 Floor Plan First Story - main level Floor Plan First Story of Coastal Plan #133-1031
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 133-1031
Floors:
1
Bedrooms:
3
Full Baths:
3

Square Footage

Heated Sq Feet:
1991
Main Floor:
1991
Unfinished Sq Ft:
Garage :
592

Dimensions

Width:
76' 8"
Depth:
65' 2"
Ridge Height:
28' 0"

Architectural Styles

Vacation Homes
Mediterranean
Coastal
Florida Style

Roofing Type

Hip

Roofing Material

Metal

Roof Pitch

5/12

Ceiling Height

9 Foot Ceiling

Special Feature

Mother in law apartment
Dining Room
Main Level Laundry
Color Photos
Vaulted Ceilings

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

Concrete

Building Lot Type

Flat Site

Kitchen Features

Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Wrap Around Porch
Covered Front Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Please Note: Not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas.


Please Note that the designer's office will be closed between 8/4/22 to 8/9/2022. Any orders placed during this time will be processed once the designer resumes office after 8/9-2022.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
