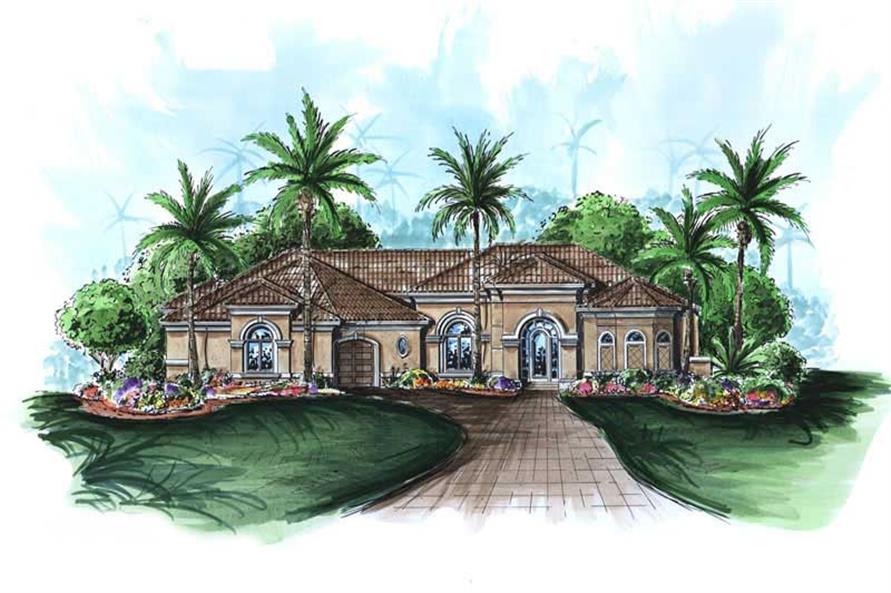

This image shows the exterior of these Mediterranean Plans, Florida Designs.
3-Bedroom, 3514 Sq Ft Mediterranean House Plan - 133-1025 - Front Exterior

About Plan # 133-1025

About Plan # 133-1025

3514 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 92' 8" WIDTH 104' 0" DEPTH 3 GARAGE BAY

Arched windows greet you as you drive up to this Mediterranean 3514 sq. ft of living space that you will love to call home. You will walk in to an open floor plan combining the living room and dining area to create a great traffic flow for entertaining. Access the Florida type lanai from the master suite, the living area, study and family room. The master suite will become your retreat with two walk-in closets, and a master bath with center garden tub and massive shower with dual showerheads. The opposite wing consists of 2 additional bedrooms, the study, huge family room, kitchen with island, bar and breakfast nook, and 2.5 baths. You'll also find a large utility room and extra storage off your 3-car garage. The covered lanai seems to never end, encompassing the entire rear of the house where you can continue your party by the outdoor kitchen and bar. This plan is not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this Mediterranean plan in those areas. Concrete block exterior construction

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

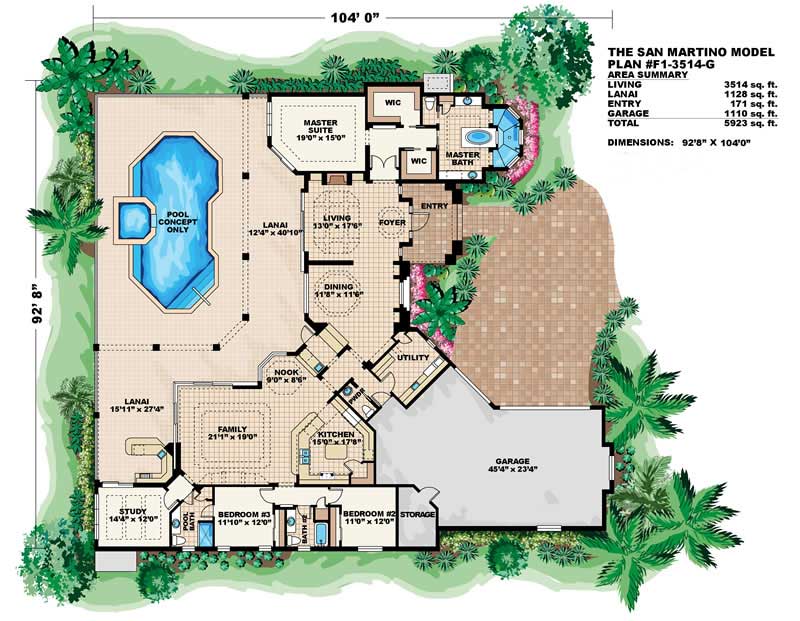

Home Plan: #133-1025 Floor Plan First Story Floor Plan First Story of Mediterranean Plan #133-1025
Home Plan: #133-1025 Floor Plan First Story Floor Plan First Story of Mediterranean Plan #133-1025
