4-Bedroom, 3470 Sq Ft Coastal Plan with Main Floor Master

Main image for house plan # 9540
4-Bedroom, 3470 Sq Ft Coastal House Plan - 133-1030 - Front Exterior

About Plan # 133-1030

About Plan # 133-1030

3470 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 64' 8" WIDTH 109' 2" DEPTH 2 GARAGE BAY

The front facade of this home is a modern design blend with a Mediterranean feel. The inside features a formal living room, dining room, library, master suite with two walk-in closets and an open master bath with tub and large walk around shower, three guest bedrooms, two guest baths including a pool bath, computer center, family room open to the dinette and large functional kitchen, a utility room, two-car garage with golf cart space, and a storage area. This plan is not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas. Concrete block exterior construction

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

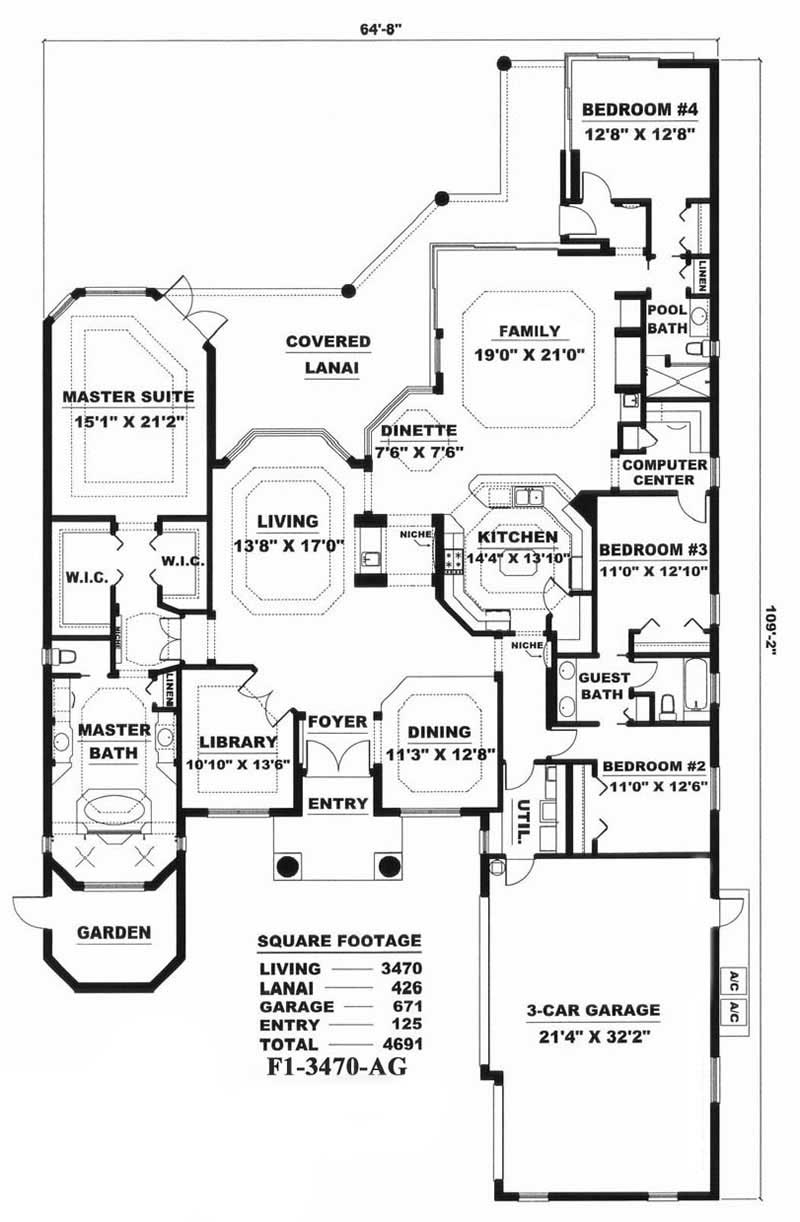

Home Plan: #133-1030 Floor Plan First Story Floor Plan First Story of Coastal Plan #133-1030
Home Plan: #133-1030 Floor Plan First Story Floor Plan First Story of Coastal Plan #133-1030
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 133-1030
Floors:
1
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
3470
Main Floor:
3470
Unfinished Sq Ft:
Garage :
671

Dimensions

Width:
64' 8"
Depth:
109' 2"
Ridge Height:
25' 0"

Architectural Styles

Beachfront
Coastal
Concrete Block/ ICF Design
Luxury
Mediterranean

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling

Special Feature

Dining Room
Family Room
Guest Room
Library
Main Level Laundry

Garage Type

Attached Garage

Exterior Wall Framing

Concrete

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
