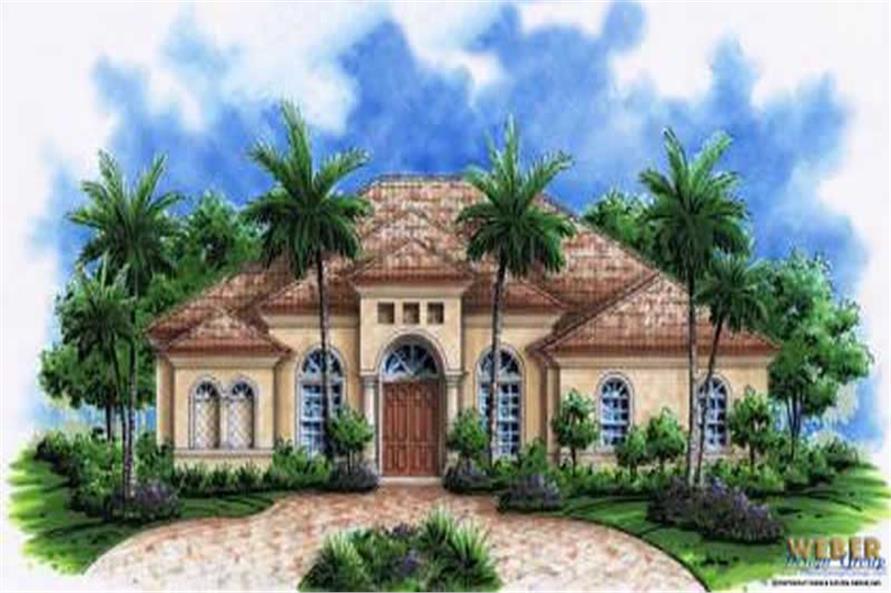

Color Rendering of this house plan
3-Bedroom, 2511 Sq Ft Mediterranean Home Plan - 133-1010 - Main Exterior

About Plan # 133-1010

About Plan # 133-1010

2511 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 66' 6" WIDTH 84' 4" DEPTH 3 GARAGE BAY

The Palm Coast house plan, with its arched windows and classy covered entrance, only hints to the elegance of what you will find inside. From the large great room to the outdoor spaces with optional summer kitchen, this Mediterranean house design offers functional livability. The secluded master suite delivers to the owner large walk-in closets and a luxurious bath. The island kitchen and breakfast nook provide a large area for preparing and serving meals. The large walk-in pantry is also a plus. With its oversized, side entry garage and optional storage area, the Palm Coast house plan is a perfect family home.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

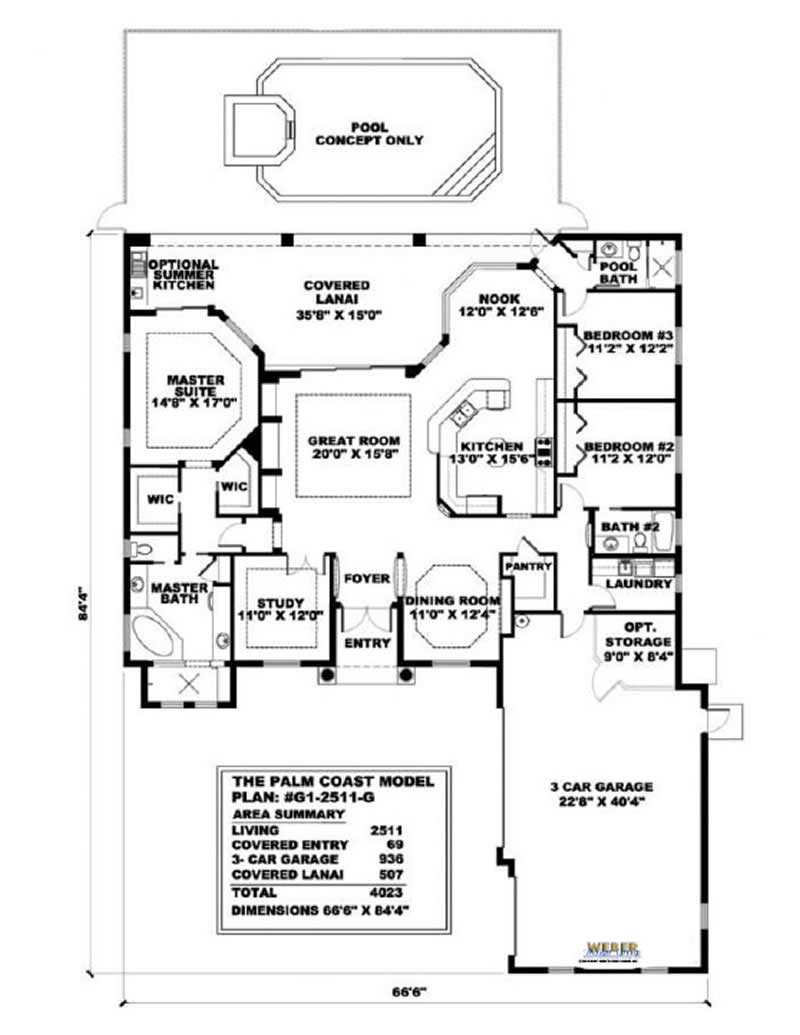

Home Plan: #133-1010 Floor Plan First Story - first story Floor Plan First Story of Mediterranean Plan #133-1010
Home Plan: #133-1010 Floor Plan First Story - first story Floor Plan First Story of Mediterranean Plan #133-1010
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 133-1010
Floors:
1
Bedrooms:
3
Full Baths:
3
Garage :
3

Square Footage

Heated Sq Feet:
2511
Main Floor:
2511
Unfinished Sq Ft:
Garage :
936

Dimensions

Width:
66' 6"
Depth:
84' 4"
Ridge Height:
25' 4"

Architectural Styles

Mediterranean
Coastal
Spanish
Concrete Block/ ICF Design

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

6/12

Special Feature

Swimming Pool
Dining Room
Main Level Laundry
Library
Split Bathroom
Storage
Open Floor Plan

Garage Type

Attached Garage
Courtyard Entry

Exterior Wall Framing

Concrete

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Outdoor Kitchen
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

These are concept plans and will need 2-3 weeks to complete after order.


Please Note that the designer's office will be closed between 8/4/22 to 8/9/2022. Any orders placed during this time will be processed once the designer resumes office after 8/9-2022.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
