4-Bedroom, 2499 Sq Ft Ranch Plan with Wrap Around Porch

Main image for house plan # 14476

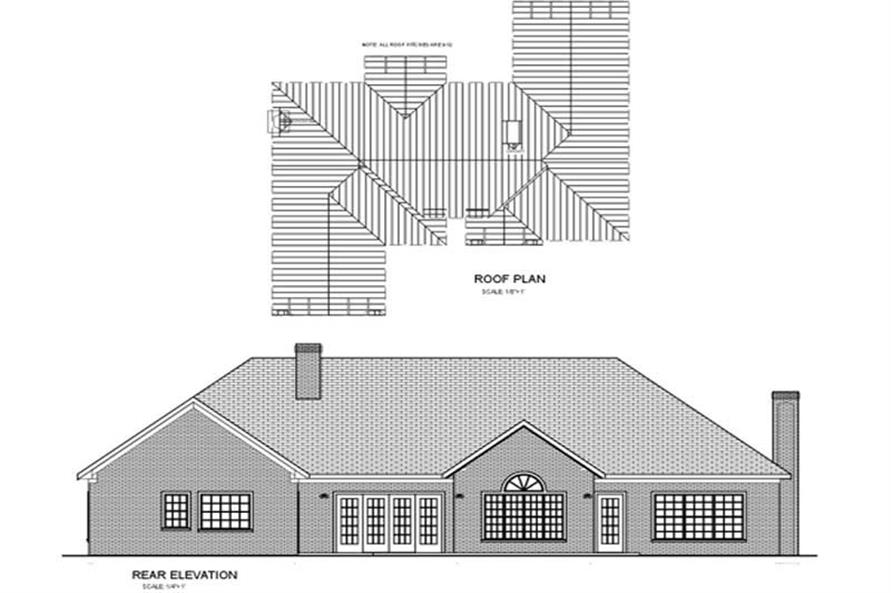

REAR ELEVATION
4-Bedroom, 2499 Sq Ft Ranch Home Plan - 109-1117 - Main Exterior
REAR ELEVATION

About Plan # 109-1117

About Plan # 109-1117

2499 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 70' 0" WIDTH 69' 0" DEPTH 0 GARAGE BAY
As you enter, you are greeted by a dramatic living area with a tray ceiling, fireplace, built-in bookcases, and a window-wall with French doors leading onto a large deck. The 12' by 14' formal dining room has mitered corners with a matching tray ceiling. The spaciousness of the kitchen and breakfast room is emphasized by a vaulted ceiling. Nearby are a large laundry room with a wash tub and a half bath with a pedestal sink. Adjoining the kitchen and breakfast room is the family room with a second fireplace, a tray ceiling, and a door leading onto the deck.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

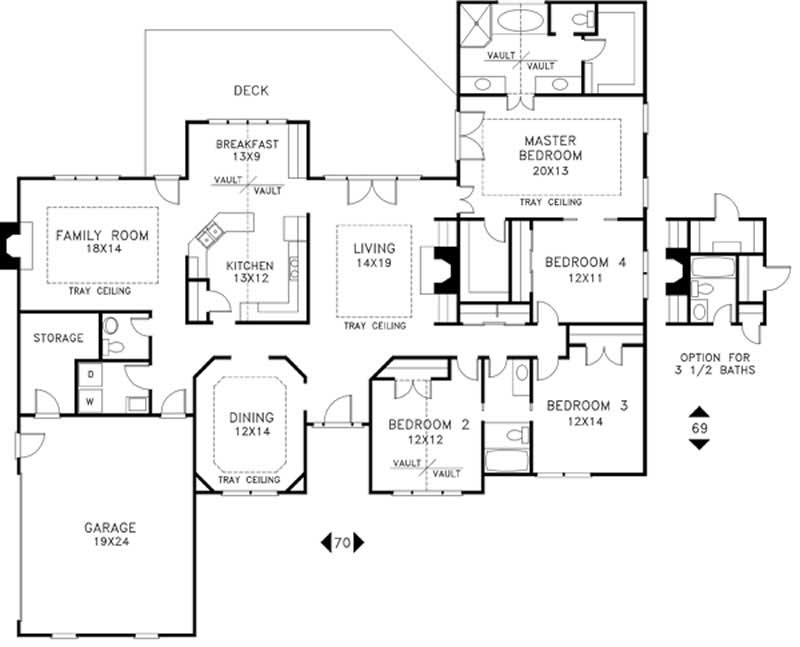

Home Plan: #109-1117 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #109-1117
