Mediterranean house (ThePlanCollection: Plan #192-1064)
3-Bedroom, 2357 Sq Ft Mediterranean Home - Plan #192-1064 - Main Exterior

About Plan # 192-1064

About Plan # 192-1064

2357 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 114' 0" WIDTH 53' 0" DEPTH 2 GARAGE BAY

Loaded with charm, comfort, and convenience, this Mediterranean style home gives you a total heated area of 2357 square feet. You're sure to love the expansive multi-pane windows, which allow a lot of natural light to flow through the home, and the vaulted ceiling in the Great Room, as well as the spacious bedrooms – each with its own walk-in closet – and the open floor plan. The different levels and shapes of the roof and well-balanced combination of natural materials – stone, stucco, and red clay roof tiles – give the home an attractive, homey curb appeal.

Each plan set includes a minimum of the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

PLEASE NOTE!! Some plans may include more information. Please check with us if there is a specific plan you have a question on. We will then check with the designer.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

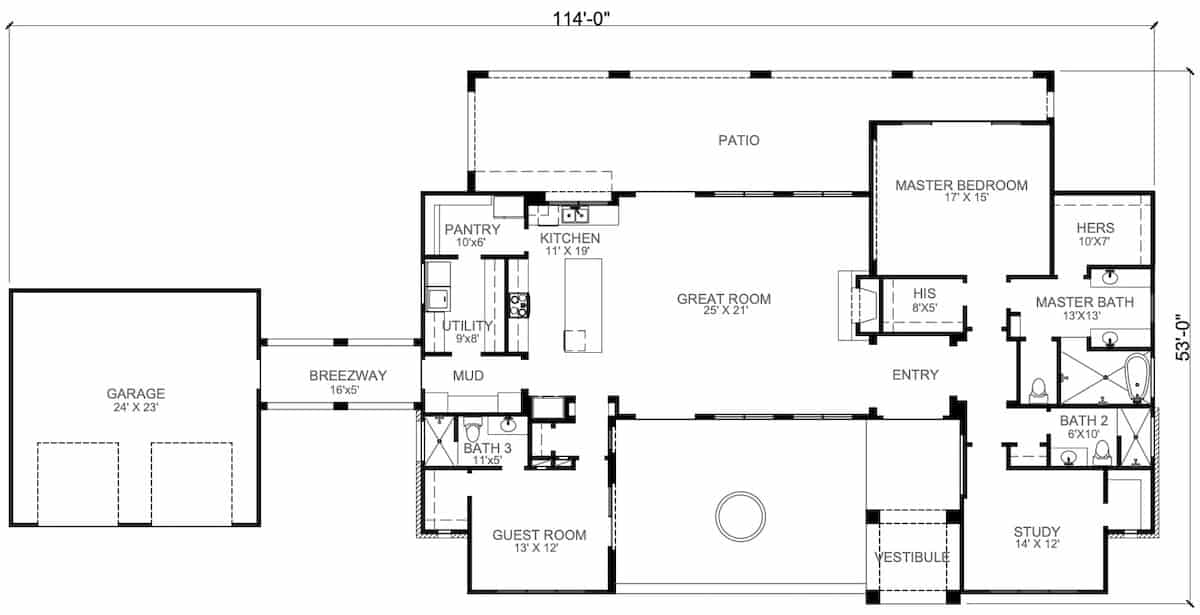

Home Plan: #192-1064 Floor Plan First Story - main level Main Level of Mediterranean Plan #192-1064
Home Plan: #192-1064 Floor Plan First Story - main level Main Level of Mediterranean Plan #192-1064
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 192-1064
Floors:
1
Bedrooms:
3
Full Baths:
3
Garage :
2

Square Footage

Heated Sq Feet:
2357
Main Floor:
2357
Unfinished Sq Ft:
Porch :
768

Dimensions

Width:
114' 0"
Depth:
53' 0"
Ridge Height:
19' 0"

Architectural Styles

Colonial
Mediterranean
Southwest
Traditional
Spanish
Tuscan
Texas Style

Exterior Wall Material

Stucco
Rock/Stone

Roofing Type

Gable
Hip

Roofing Material

Tiles

Ceiling Height

10 Foot Ceiling

Special Feature

Fireplace
Mud Room
Family Room
Main Level Laundry
Split Bathroom
Storage
Vaulted Ceilings
Open Floor Plan

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Courtyard
Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

Please Note: The Reproducible Master for this plan is sent to you on bond paper that reproduces well.

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
