Front elevation of Mediterranean home (ThePlanCollection: House Plan #192-1006)
3-Bedroom, 4129 Sq Ft Mediterranean Home Plan - 192-1006 - Main Exterior

About Plan # 192-1006

About Plan # 192-1006

4129 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 126' 8" WIDTH 98' 8" DEPTH 3 GARAGE BAY

This romantic Mediterranean style home with Spanish influences (House Plan #192-1006) is luxury at its best! With over 4,200 square feet of living space, this home will excite and delight just about everyone! The 2 story floor plan includes 3 spacious bedrooms including a huge master suite with its own private terrace and outdoor garden.

Each plan set includes a minimum of the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

PLEASE NOTE!! Some plans may include more information. Please check with us if there is a specific plan you have a question on. We will then check with the designer.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

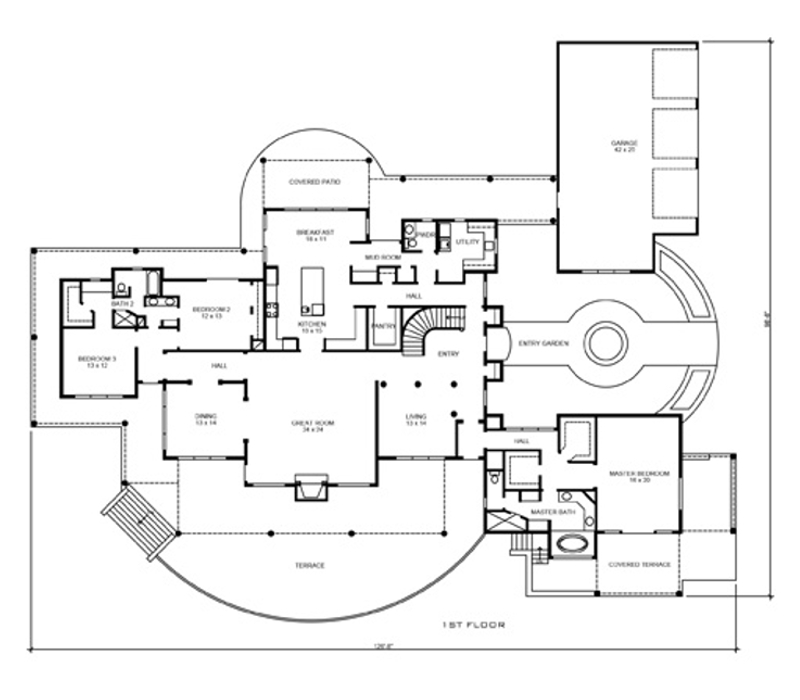

Home Plan: #192-1006 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #192-1006

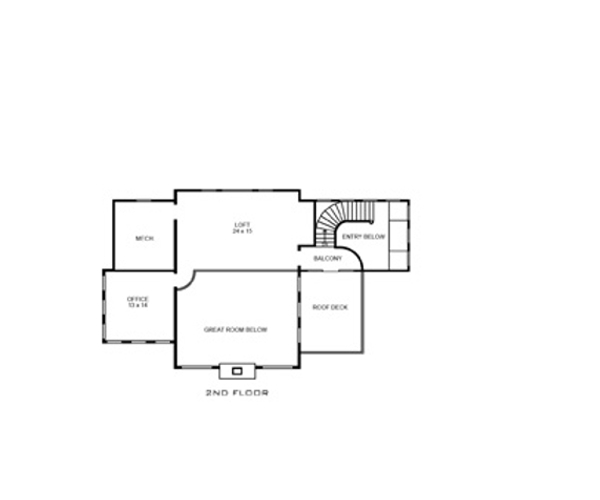

#192-1006 Floor Plan Second Story - upper level Floor Plan Second Story of Mediterranean Plan #192-1006
Home Plan: #192-1006 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #192-1006
#192-1006 Floor Plan Second Story - upper level Floor Plan Second Story of Mediterranean Plan #192-1006
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 192-1006
Floors:
2
Bedrooms:
3
Full Baths:
3
Half Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
4129
Main Floor:
3651
Upper Floor:
478
Unfinished Sq Ft:
Garage :
1005
Porch :
3552

Dimensions

Width:
126' 8"
Depth:
98' 8"
Ridge Height:
26' 0"

Architectural Styles

European
Mediterranean
Luxury
Spanish

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Other Composites

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Home Office
Main Level Laundry
Loft

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Courtyard
Covered Front Porch
Patio
Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

Note: 4,297 square feet figure includes 168 square feet of storage/mechanical on the second floor that is not otherwise listed in the second floor living square feet figure.


Please Note: The Reproducible Master for this plan is sent to you on bond paper that reproduces well.
