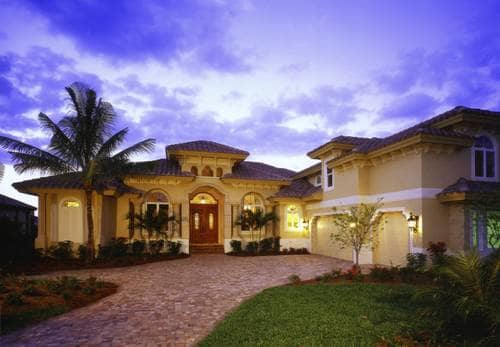

This image shows the Mediterranean style for these home plans.

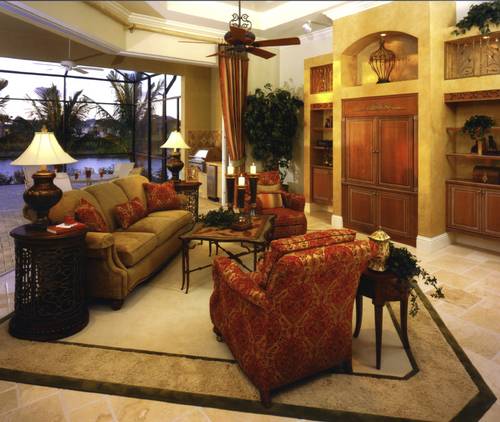

175-1071: Home Interior Photograph-Family Room

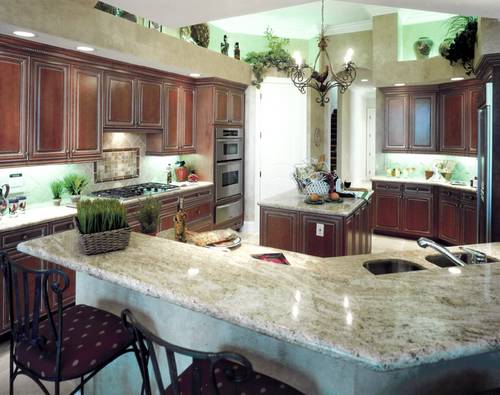

175-1071: Home Interior Photograph-Kitchen

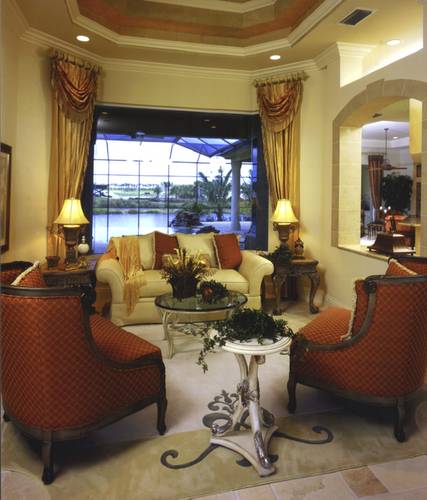

175-1071: Home Interior Photograph-Living Room
175-1071: Home Interior Photograph-Living Room

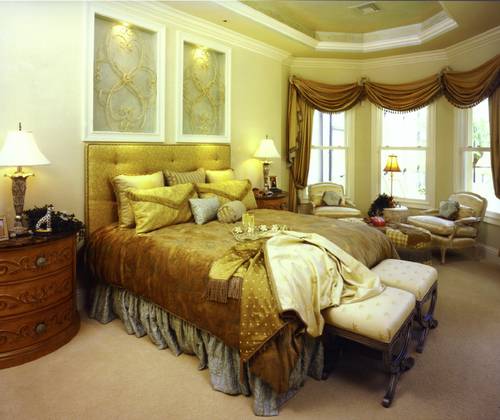

175-1071: Home Interior Photograph-Master Bedroom

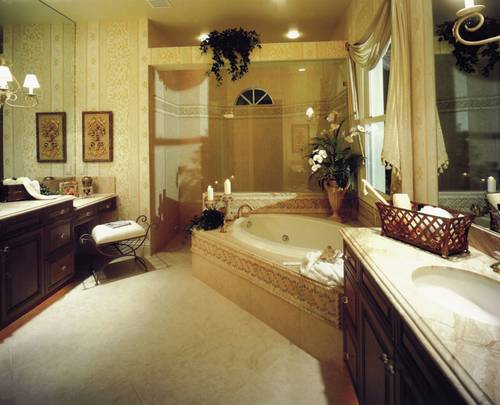

175-1071: Home Interior Photograph-Master Bathroom

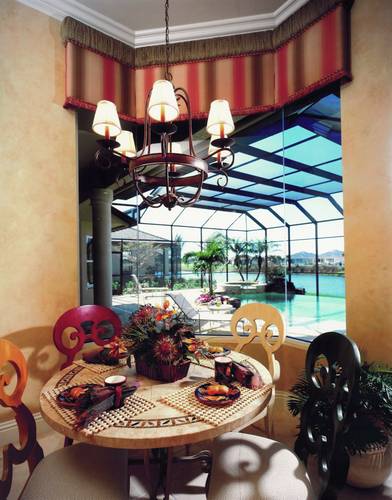

175-1071: Home Interior Photograph-Kitchen: Breakfast Nook
175-1071: Home Other Image-Front View
3-Bedroom, 4000 Sq Ft Florida Style House Plan - 175-1071 - Front Exterior
175-1071: Home Interior Photograph-Family Room
175-1071: Home Interior Photograph-Kitchen
175-1071: Home Interior Photograph-Living Room
175-1071: Home Interior Photograph-Living Room
175-1071: Home Interior Photograph-Master Bedroom
175-1071: Home Interior Photograph-Master Bathroom
175-1071: Home Interior Photograph-Kitchen: Breakfast Nook
175-1071: Home Other Image-Front View

About Plan # 175-1071

About Plan # 175-1071

4000 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 74' 6" WIDTH 109' 6" DEPTH 3 GARAGE BAY

This award winning design is a unique combination of coziness and elegance. The floor plan flows flawlessly without compromising privacy or style. Distinguishing qualities include the overall layout and flow of the house, coffered ceilings that maximize daylight while reflecting grandeur and richness. A pass through wet bar that can also be used as a butler pantry. The loft above the garage is a fun and logical use of space for a second floor game or media room. The gourmet kitchen is superior in design and convenience. The dropped coffered ceiling in the kitchen provides intimate recessed lighting and a wonderful place to display art and kitchen decor. Make this award-winning Mediterranean house plan your next dream home!

Each plan set includes the following:

  • Elevations
  • Floor Plans
  • Building Section Markers
  • Electrical Layout
  • Slab Plan
  • Roof Plan
  • Building Sections
  • Typical Wall Sections
  • Miscellaneous Notes & Details



Not Included with the Plan:

  • NO MEPs, NO Framing,
  • No Trusses: The client gets that from the truss manufacturer
  • No Engineering, You will need to get the plans stamped and engineered locally
  • HVAC and Plumbing is not included




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

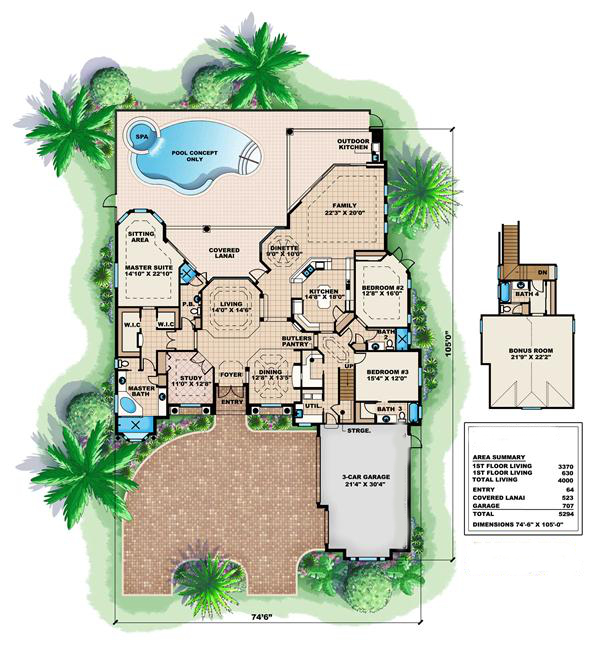

Home Plan: #175-1071 Floor Plan First Story - main level Floor Plan First Story of Florida Style Plan #175-1071
Home Plan: #175-1071 Floor Plan First Story - main level Floor Plan First Story of Florida Style Plan #175-1071
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1071
Floors:
2
Bedrooms:
3
Full Baths:
3

Square Footage

Heated Sq Feet:
4000
Main Floor:
3370
Upper Floor:
630
Unfinished Sq Ft:
Garage :
707

Dimensions

Width:
74' 6"
Depth:
109' 6"
Ridge Height:
26' 0"

Architectural Styles

Mediterranean
Florida Style

Exterior Wall Material

Stucco

Roofing Material

Tiles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling

Special Feature

Dining Room
Home Office
Bonus Room
Family Room
Main Level Laundry
Library
Split Bathroom
Den
Vaulted Ceilings

Garage Type

Attached Garage
Courtyard Entry
Side Entry

Kitchen Features

Kitchen Island
Butler's Pantry
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Courtyard
Covered Rear Porch
Screened in Lanai
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Sitting Area

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions and a 5-7 day processing time for their CAD and PDF orders. Please contact us to verify your zip code BEFORE you order!! 2x6 and Right-Reading Reverse options are available. PLEASE NOTE: The designer is currently not providing modifications. We suggest you purchase a CAD file and work with a local engineer for changes. Additionally, orders (including electronic formats) could take up to 5 days to be delivered or shipped. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
