3-Bedroom, 3938 Sq Ft Coastal Plan with Walk In Closet

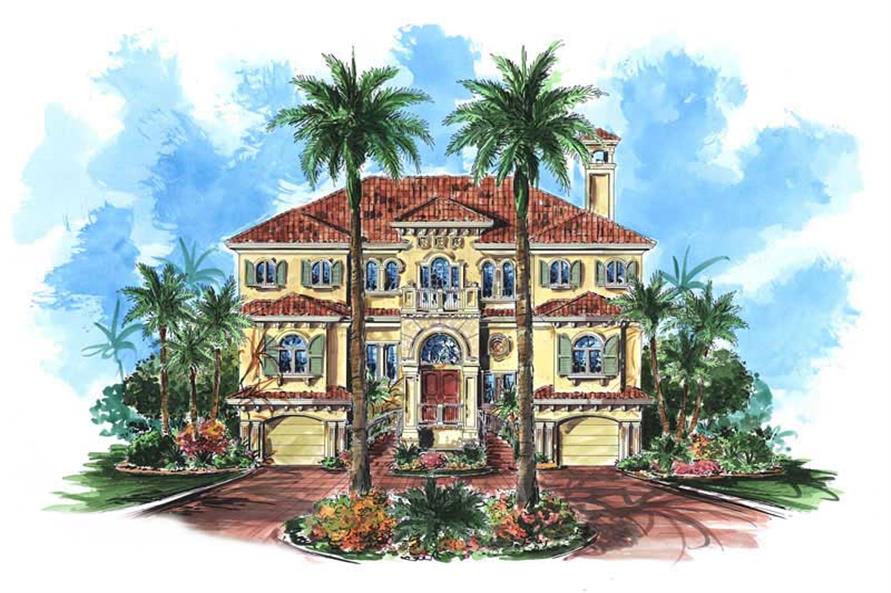

This image shows the front elevation for these Mediterranean Designs, Florida Homes.
3-Bedroom, 3938 Sq Ft Coastal Home Plan - 175-1070 - Main Exterior

About Plan # 175-1070

About Plan # 175-1070

3938 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 59' 8" WIDTH 60' 0" DEPTH 4 GARAGE BAY

The beautiful exterior facade of this Mediterranean plan is only the beginning of its charm. Perfect for narrow, waterfront lots, this 3-story home, with 2 full floors of living space, offers 3 bedrooms and 3 baths in an elegant great room design. Architectural detail and style flow easily through this plan from the spacious butler's pantry to the see-through fireplace connecting the parlor and office space. The oversized kitchen and gallery with fabulous columns and archways are sure to please. With beamed ceilings soaring over a bridged walkway, the upstairs level that is open to the great room below is a definite plus to this plan. Appointed with an expanded master suite with balcony, breathtaking master bath with large walk-in closets, and a spectacular split bedroom design, the top floor completes this view-oriented luxurious home. This plan is not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas. Concrete block exterior construction

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Typical wall sections are also included. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

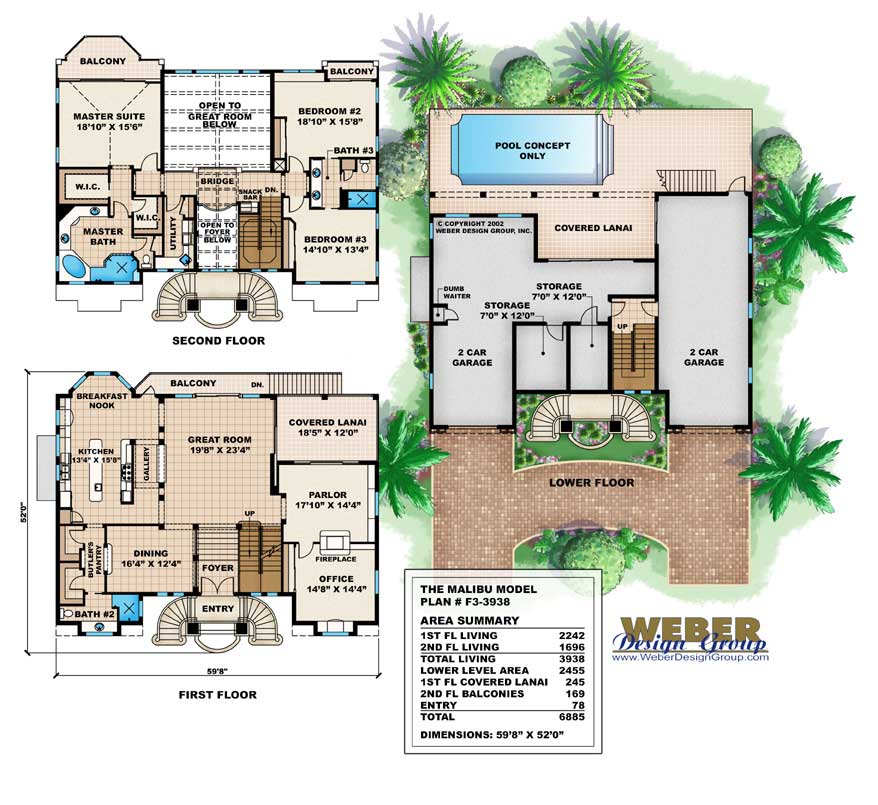

Home Plan: #175-1070 Floor Plan First Story - first story Floor Plan First Story of Coastal Plan #175-1070
Home Plan: #175-1070 Floor Plan First Story - first story Floor Plan First Story of Coastal Plan #175-1070
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1070
Floors:
2
Bedrooms:
3
Full Baths:
3

Square Footage

Heated Sq Feet:
3938
Main Floor:
2242
Unfinished Sq Ft:
Lower Floor:
1695
Garage :
1493

Dimensions

Width:
59' 8"
Depth:
60' 0"
Ridge Height:
45'6' 0"

Architectural Styles

Beachfront
Coastal
Concrete Block/ ICF Design
Mediterranean
Spanish
Wheelchair Accessible

Exterior Wall Material

Stucco

Roofing Material

Tiles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling

Special Feature

Balcony
Bonus Room
Den
Fireplace
Home Office
Loft
Split Bathroom
Vaulted Ceilings
Workshop

Garage Type

Attached Garage

Building Lot Type

View Lot

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Lanai
Covered Rear Porch
Screened in Lanai

Master Suite Features

Walk In Closet

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions on where their plans can be built!! Please contact us to see if you can purchase these plans BEFORE you order!! 2x6 and Right Reading Reverse are available. Please send in a modification request to receive a free quote. PLEASE NOTE: CAD files for this designer may take 2-3 business days to deliver. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
