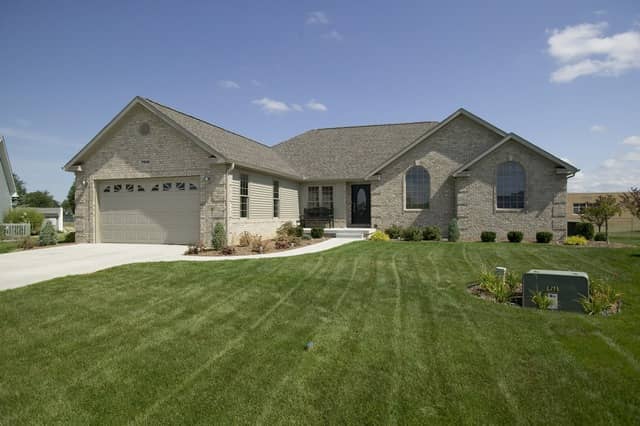

109-1192 main photo modified garage
109-1192 house plan original front elevation

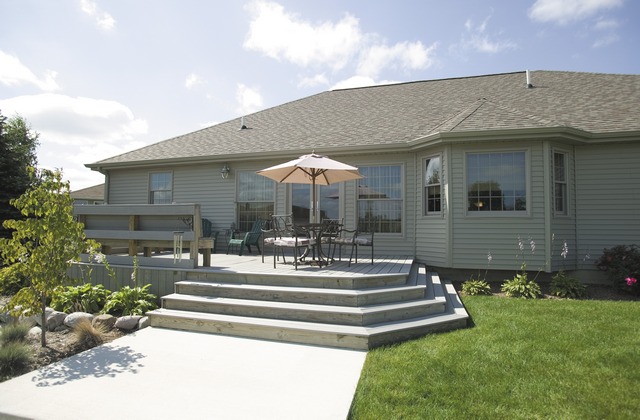

109-1192 house plan rear photo

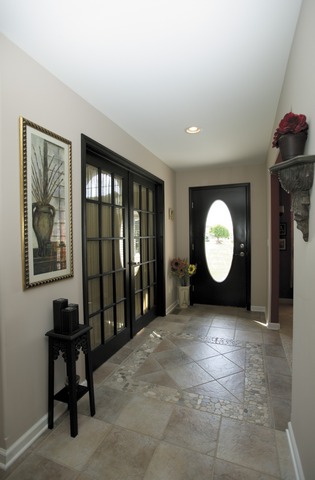

109-1192 entry way

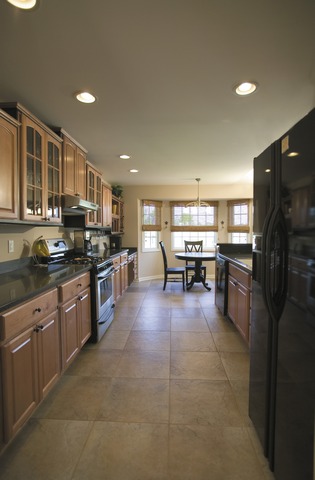

109-1192 house plan kitchen
109-1192 house plan master bedroom
109-1192 house plan family room 1

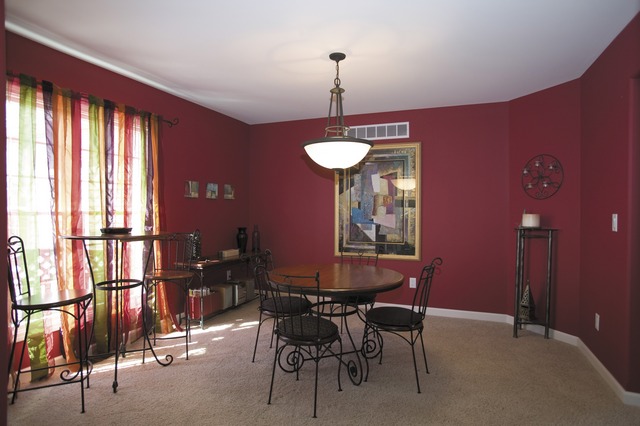

109-1192 house plan dining room

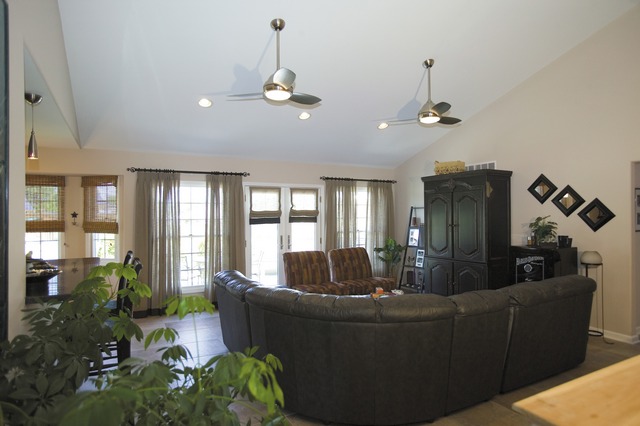

109-1192 house plan family room

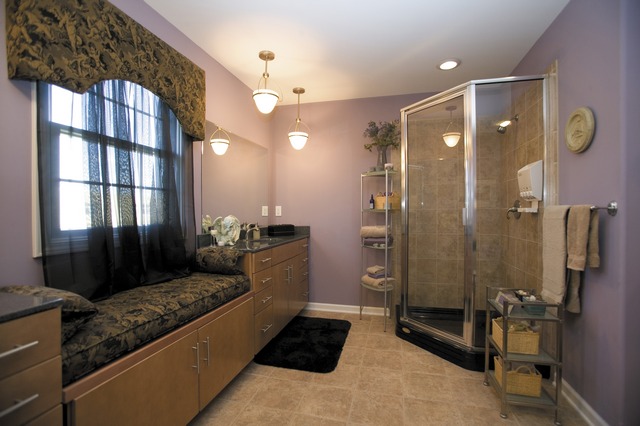

109-1192 house plan master bath room
3-Bedroom, 2275 Sq Ft Ranch House Plan - 109-1192 - Front Exterior
109-1192 house plan original front elevation
109-1192 house plan rear photo
109-1192 entry way
109-1192 house plan kitchen
109-1192 house plan master bedroom
109-1192 house plan family room 1
109-1192 house plan dining room
109-1192 house plan family room
109-1192 house plan master bath room

About Plan # 109-1192

About Plan # 109-1192

2275 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 62' 0" WIDTH 60' 0" DEPTH 2 GARAGE BAY

This traditional ranch design features 2,275 sq. ft. of living space. One of today's most popular features is a master suite which is isolated from the other bedrooms. This master suite measures 14'x18' and is highlighted by a trey ceiling. Spacious his-and-hers closets flank the hallway which leads to the master bath. Separate vanities and a garden tub as well as a shower and a commode closet complete this area. Double French doors lead from the master suite to a deck.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

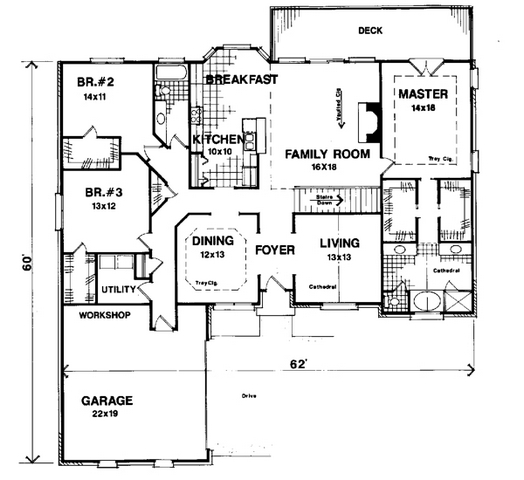

Home Plan: #109-1192 Floor Plan First Story - first floor Floor Plan First Story of Ranch Plan #109-1192
Home Plan: #109-1192 Floor Plan First Story - first floor Floor Plan First Story of Ranch Plan #109-1192
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1192
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
2275
Main Floor:
2275
Unfinished Sq Ft:
Garage :
418

Dimensions

Width:
62' 0"
Depth:
60' 0"

Architectural Styles

Country
Ranch
Southern

Exterior Wall Material

Brick

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry
Color Photos
Split Bathroom

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Building Lot Type

Flat Site
Side Slope Site

Kitchen Features

Nook/Breakfast Area

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you! PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
