3-Bedroom, 2006 Sq Ft Craftsman Plan with Covered Rear Patio
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
| 2006 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 66' 0" WIDTH | 54' 0" DEPTH | 2 GARAGE BAY |
This attractive 2,006 sq.ft. European style ranch, with 3 bedrooms and 2 baths, is loaded with luxurious features. Vaulted ceilings are featured in the formal living and dining areas as well as the master bedroom. The 18'x14' family room has a fireplace, an entertainment center, and a trey ceiling. A see-through fireplace is one of the highlights of the master bedroom which has access to a large deck. The deck is also accessible from bedroom #2. Numerous windows throughout the breakfast and family rooms make these rooms bright and airy.
Each plan set includes the following:
- Rendering cover page

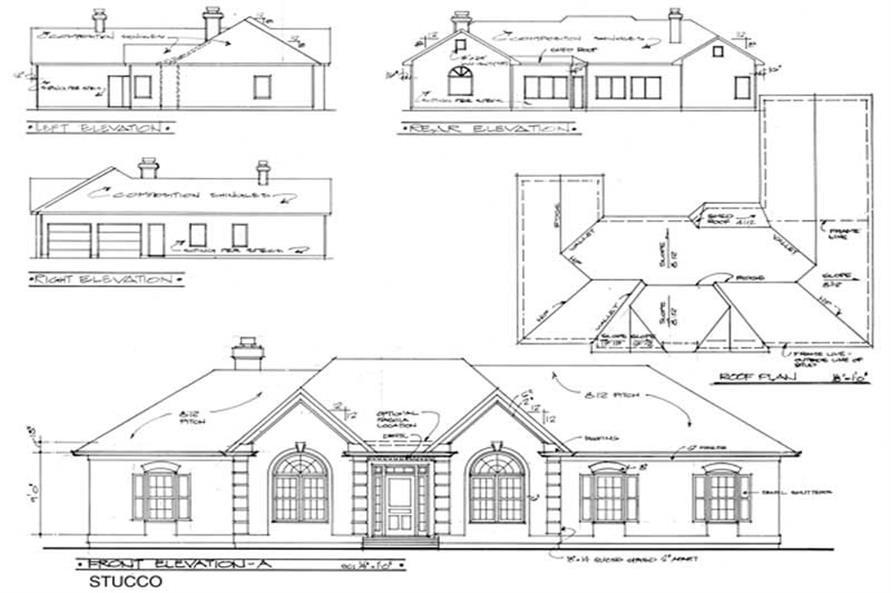

- Elevations
- Floor plans
- Foundation plan
- Cabinet/interior elevations
- Roof plan
- Section
- Construction details
- IRC code specifications
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

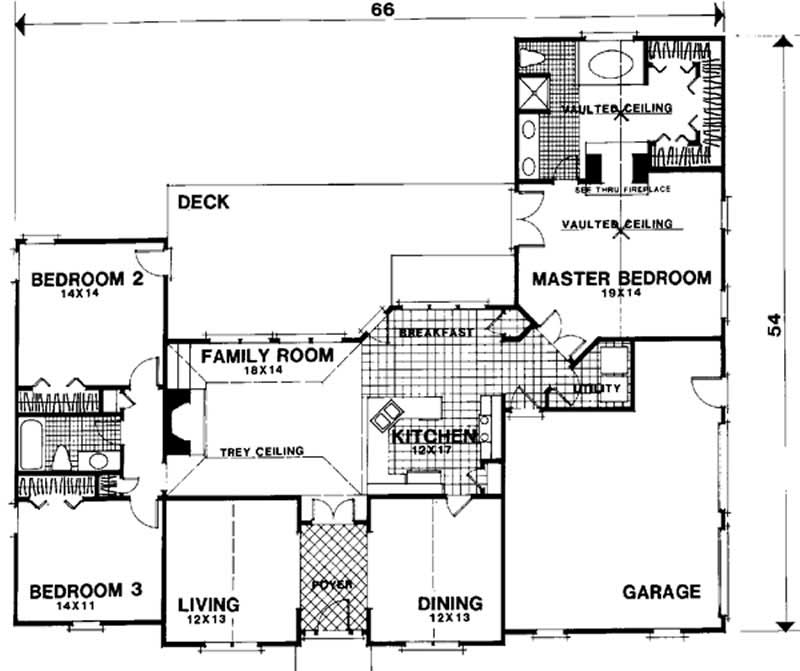

Home Plan: #109-1188 Floor Plan First Story
-
main
![Floor Plan First Story of Craftsman Plan #109-1188]( "MAIN FLOOR PLAN")
Home Plan: #109-1188 Floor Plan First Story
-
main
![Floor Plan First Story of Craftsman Plan #109-1188]( "MAIN FLOOR PLAN")
Special Offer
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Plan #:
# 109-1188
Floors:
1
Bedrooms:
3
Full Baths:
2
Square Footage
Heated Sq Feet:
2006
Main Floor:
2006
Unfinished Sq Ft:
Dimensions
Width:
66' 0"
Depth:
54' 0"
Architectural Styles
Ranch
Craftsman
Exterior Wall Material
Stucco
Roof Pitch
8/12
Ceiling Height
9 Foot Ceiling
Special Feature
Fireplace
Family Room
Garage Type
Side Entry
Exterior Wall Framing
2x6
Additional Notes from Designer
Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you!
PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.
