3-Bedroom, 3024 Sq Ft Plan with Covered Rear Porch

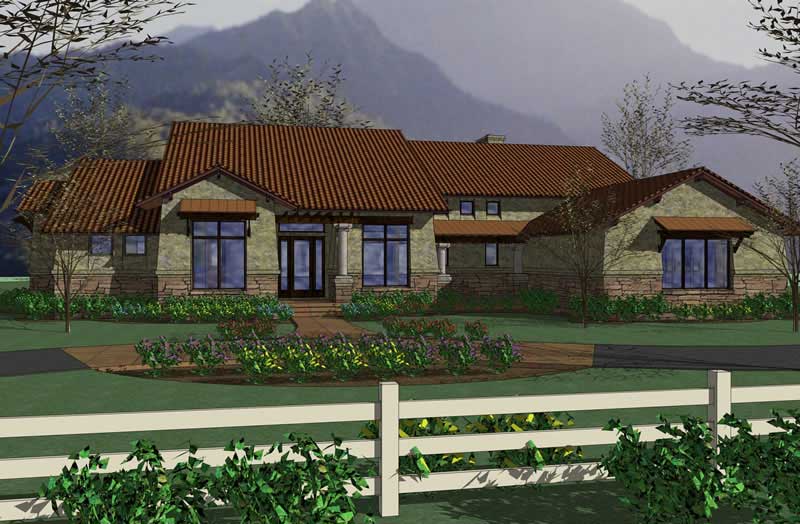

Main image for house plan # 20839
3-Bedroom, 3024 Sq Ft Home Plan - 117-1049 - Main Exterior

About Plan # 117-1049

About Plan # 117-1049

3024 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 103' 5" WIDTH 73' 11" DEPTH 3 GARAGE BAY

Home Plan The Cimarron is a great single story house plan with 3024 total square feet. Some of the special features of this plan include: Very large covered rear porch Open Kitchen/Nook/Family Spacious 3 Car Garage Huge WIC in Master Bath Walk-in pantry Features a Game Room

Each plan set includes the following:

  • Detailed floor plans
  • Exterior elevations
  • Cabinet elevations
  • Sections/Details
  • Framing plans
  • Foundation plans
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

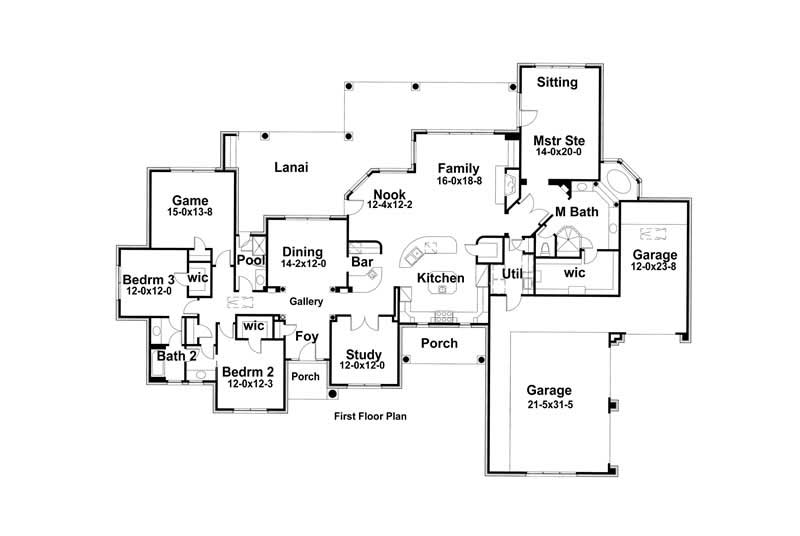

Home Plan: #117-1049 Floor Plan First Story - main Floor Plan First Story of Plan #117-1049
Home Plan: #117-1049 Floor Plan First Story - main Floor Plan First Story of Plan #117-1049
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 117-1049
Floors:
1
Bedrooms:
3
Full Baths:
3

Square Footage

Heated Sq Feet:
3024
Main Floor:
3024
Unfinished Sq Ft:

Dimensions

Width:
103' 5"
Depth:
73' 11"
Ridge Height:
26-4' 0"

Architectural Styles

Ranch
Traditional
Texas Style

Special Feature

Game Room

Exterior Wall Framing

2x4

Kitchen Features

Walk-in Pantry

Porches and Exterior Features

Covered Rear Porch

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
