4-Bedroom, 2964 Sq Ft Craftsman Plan with Covered Front Porch

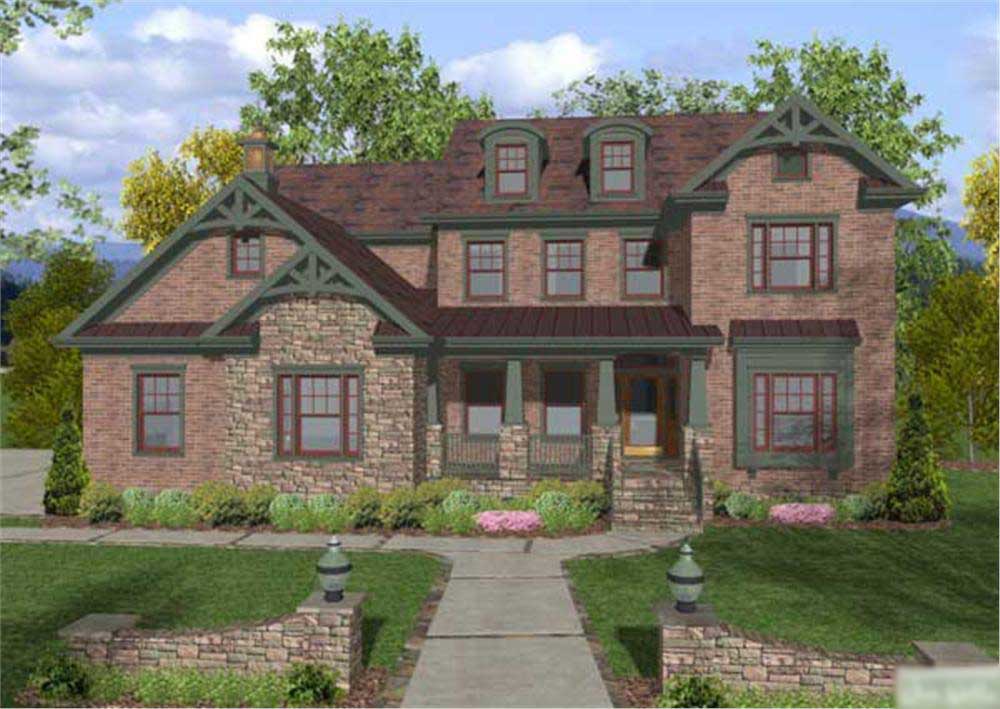

This is a computer-rendered image for these Craftsman Houseplans.

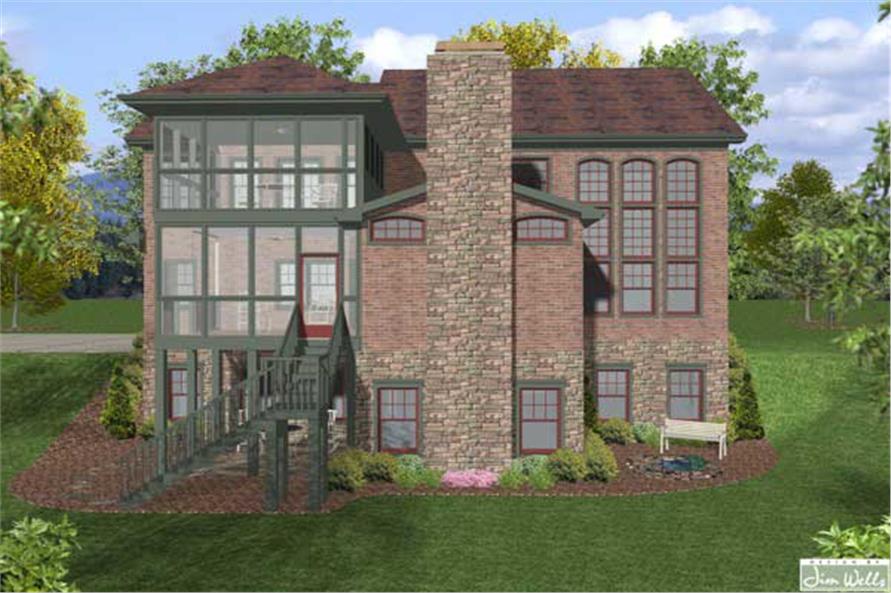

Home Plan Rear Elevation

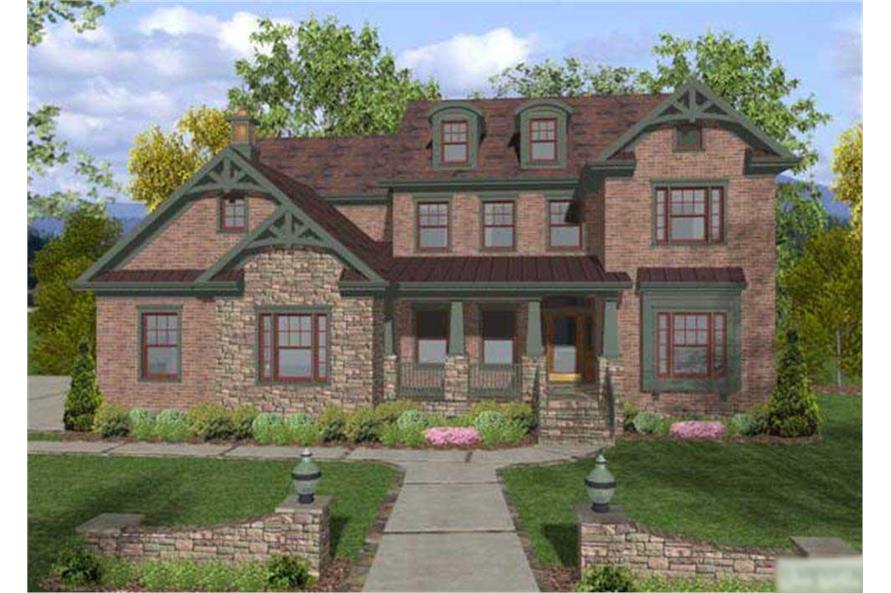

4-Bedroom, 2964 Sq Ft Craftsman Home Plan - 109-1022 - Main Exterior
Home Plan Rear Elevation

About Plan # 109-1022

About Plan # 109-1022

2964 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 53' 2" WIDTH 60' 8" DEPTH 3 GARAGE BAY

A spacious front porch bids you welcome to this 4 bedroom craftsman gem. This 2,964 sq. ft. home offers a remarkable collection of features. The foyer provides direct access to an exquisite dining area and a sizeable quest suite. The grand two-story family room is open to the gourmet kitchen/breakfast area as well as the dramatic hearth room. A home office is conveniently located off the breakfast nook. Also accessible from this area is a screened porch. In addition to the stairs, an elevator provides access to the upper level with its 2 bedrooms with en-suite bath plus a grand master suite. A convenient mini-kitchen services this floor. The laundry room is also located on this bedroom level. The master suite features a vaulted ceiling and a his-and-hers walk-in closet with an expansion area available to virtually triple its size. With its soaking tub and separate shower, the luxurious master bath is the perfect place to unwind. Then relax with a cup of coffee on the private screened porch! Completing this plan is a 3-car garage with a side entry. A workshop featuring a utility sink is a handyman's delight!

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

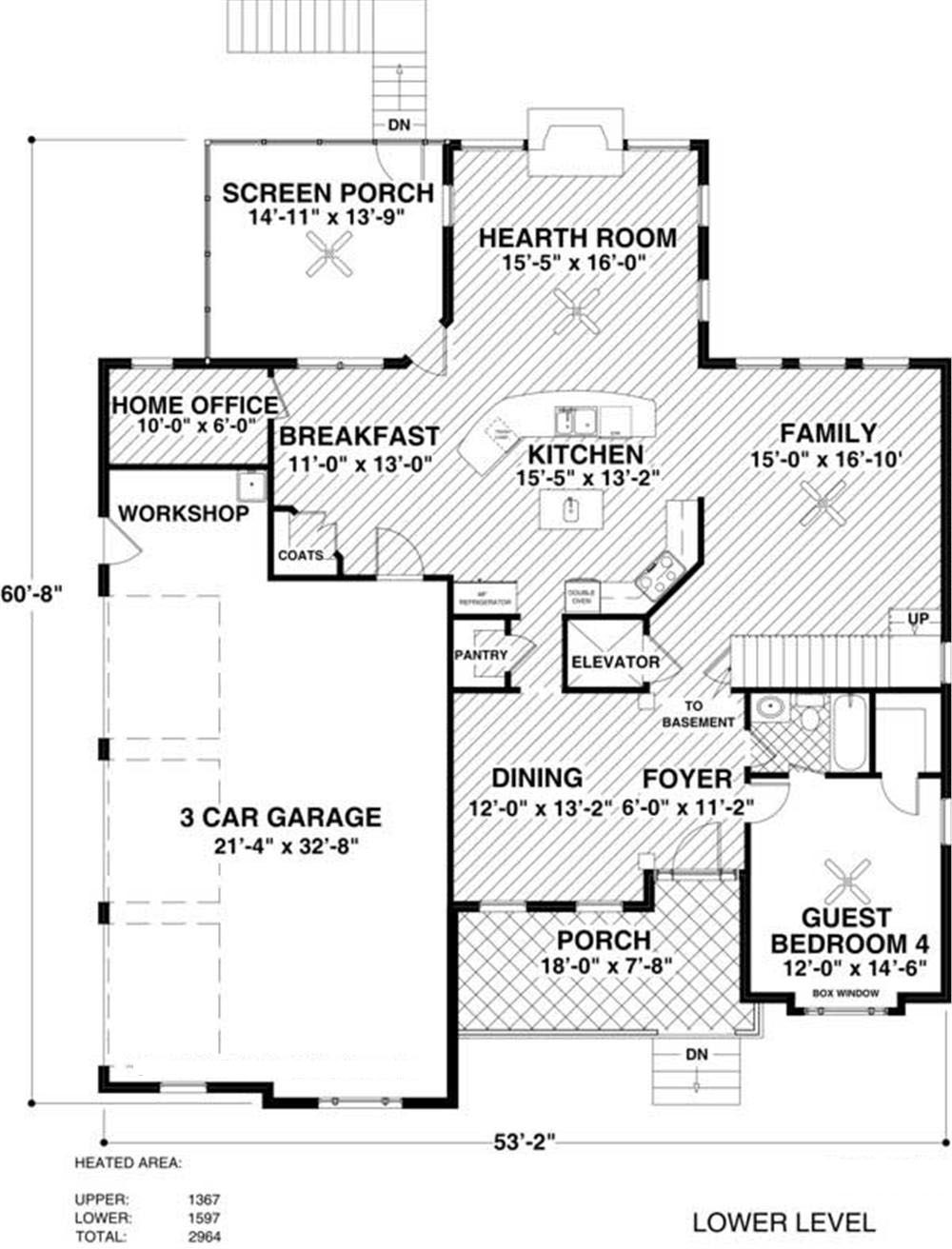

Home Plan: #109-1022 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1022
#109-1022 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #109-1022
Home Plan: #109-1022 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1022
#109-1022 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #109-1022
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1022
Floors:
2
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
2964
Main Floor:
1597
Upper Floor:
1367
Unfinished Sq Ft:

Dimensions

Width:
53' 2"
Depth:
60' 8"
Ridge Height:
30' 10"

Architectural Styles

Craftsman
European
Traditional

Exterior Wall Material

Brick
Rock/Stone

Roofing Type

Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Special Feature

Den
Dining Room
Family Room
Fireplace
Guest Room
Main Level Laundry
Mud Room
Second Level Laundry
Split Bathroom
Storage
Vaulted Ceilings
Workshop

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Screened Porch/Sunroom
Sundeck

Master Suite Features

Master Bathroom
Private Deck
Second Floor Master
Sitting Area
Walk In Closet

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
