About Plan # 109-1190

About Plan # 109-1190

2698 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 53' 2" WIDTH 51' 8" DEPTH 0 GARAGE BAY
Venture inside through the spacious foyer to discover direct access to an elegant dining area and a comfortable guest suite. Beyond the stairs, you will find a grand two story family room which opens to the kitchen and breakfast area. We think you will be pleased with the enormous 4 car garage providing plentiful space for today’s “mobile” family.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

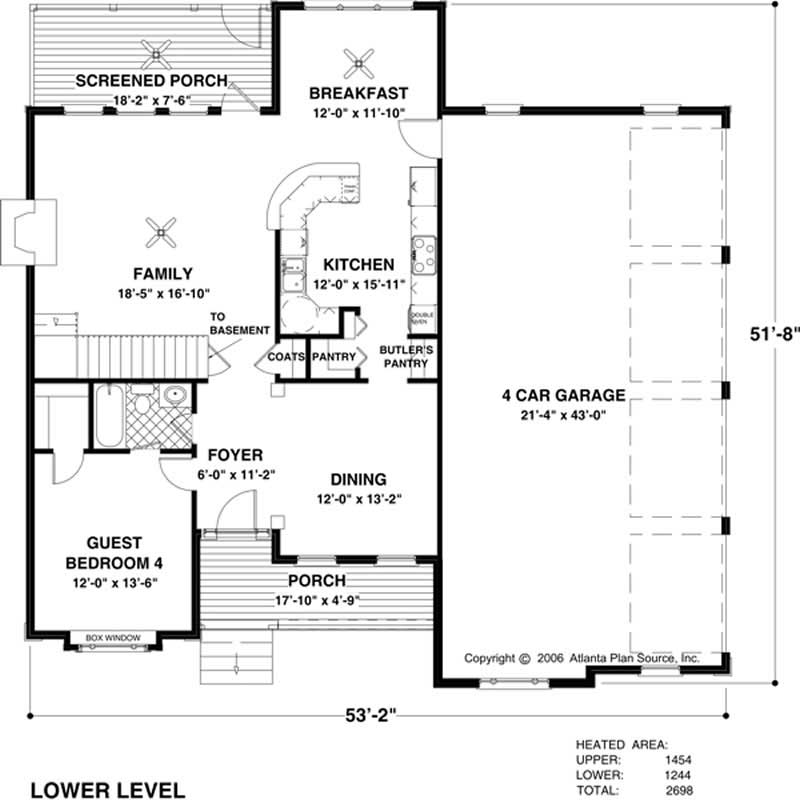

Home Plan: #109-1190 Floor Plan First Story - main Floor Plan First Story of Traditional Plan #109-1190

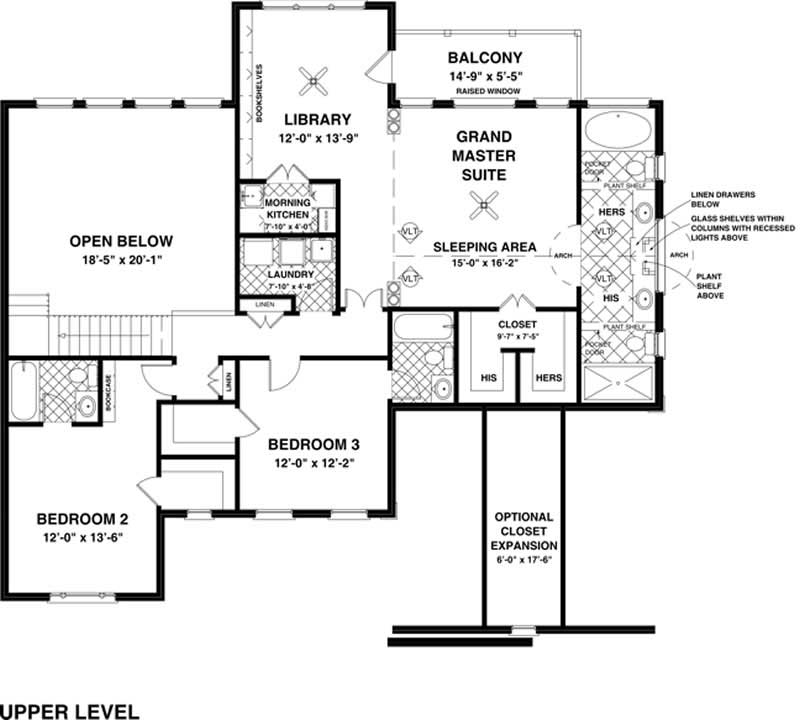

#109-1190 Floor Plan Second Story - second Floor Plan Second Story of Traditional Plan #109-1190
Home Plan: #109-1190 Floor Plan First Story - main Floor Plan First Story of Traditional Plan #109-1190
#109-1190 Floor Plan Second Story - second Floor Plan Second Story of Traditional Plan #109-1190
