4-Bedroom, 2296 Sq Ft European Plan with Master Bathroom

Main image for house plan # 14458
4-Bedroom, 2296 Sq Ft European House Plan - 109-1142 - Front Exterior

About Plan # 109-1142

About Plan # 109-1142

2296 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 56' 0" WIDTH 32' 0" DEPTH 0 GARAGE BAY
This elegant European stucco home features 2,296 sq. ft. of living space. Designed as a four bedroom home, it has an optional 210 sq. ft. bonus room which could be a fifth bedroom. One bedroom is located on the main level and would function nicely as a guest room, library or office. The spacious living room measures 15'x19' and is highlighted by a fireplace. Located off the living room is a cheerful sunroom. It is also accessible from the dining room. A bay window brightens the breakfast room and kitchen area. The washer and dryer are conveniently located off of the breakfast room in a laundry closet. Completing the lower level is a full bath with entrances from the hallway as well as from bedroom #4.

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

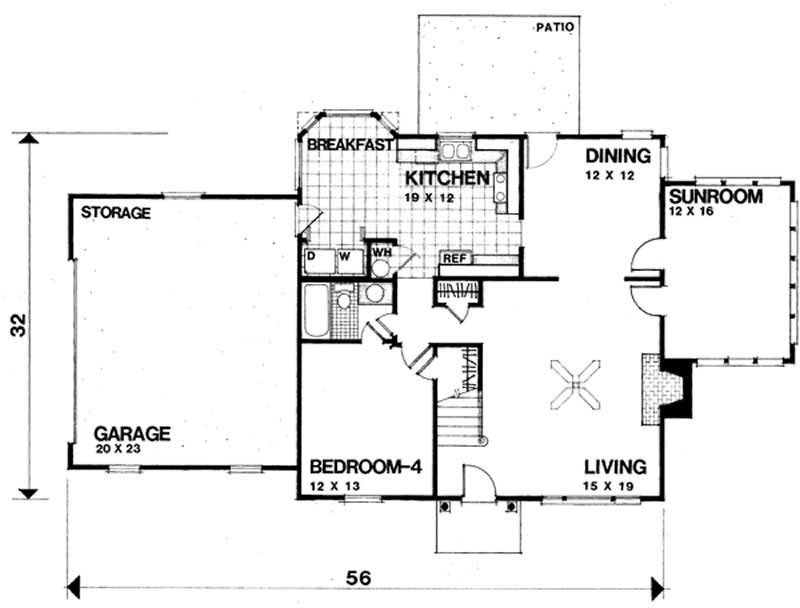

Home Plan: #109-1142 Floor Plan First Story - main Floor Plan First Story of European Plan #109-1142

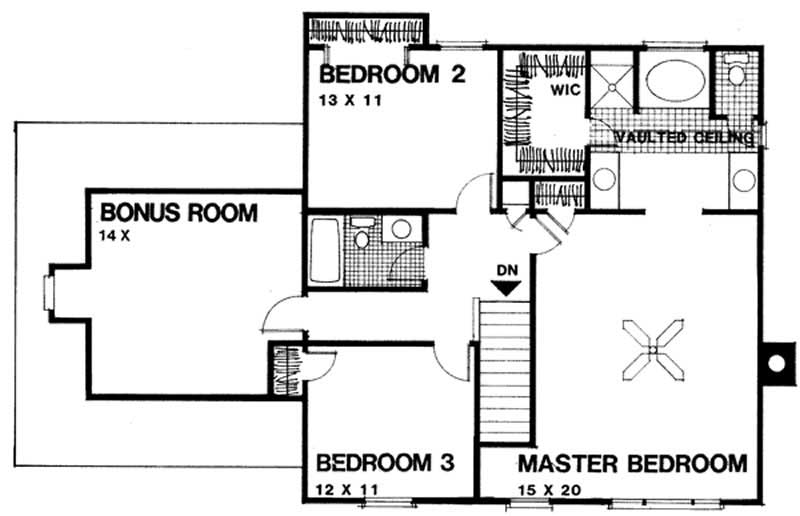

#109-1142 Floor Plan Second Story - second Floor Plan Second Story of European Plan #109-1142
Home Plan: #109-1142 Floor Plan First Story - main Floor Plan First Story of European Plan #109-1142
#109-1142 Floor Plan Second Story - second Floor Plan Second Story of European Plan #109-1142
