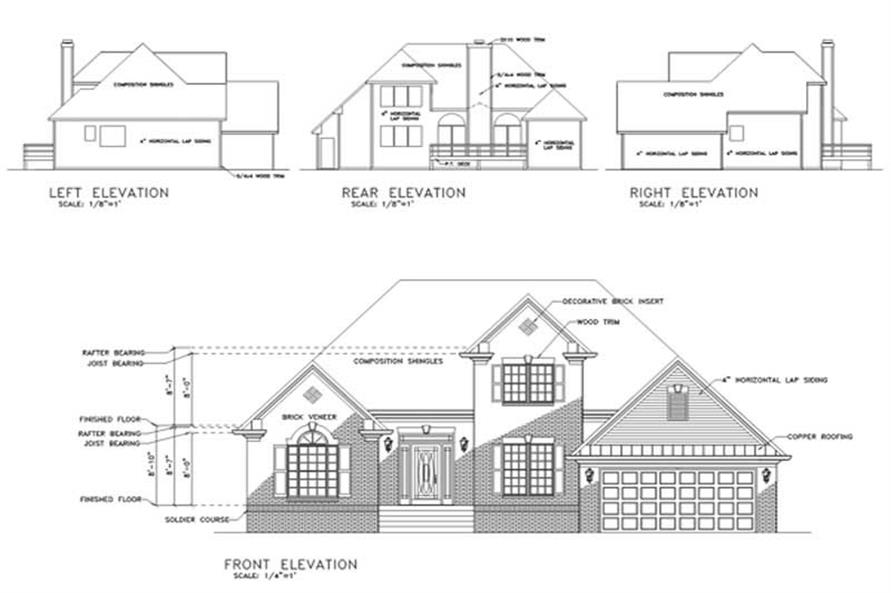

REAR ELEVATION
3-Bedroom, 1774 Sq Ft Craftsman House Plan - 109-1147 - Front Exterior
REAR ELEVATION

About Plan # 109-1147

About Plan # 109-1147

1774 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 53' 8" WIDTH 40' 6" DEPTH 1 GARAGE BAY

This luxurious new 1-1/2 story design is the culmination of many of today's most requested features. The appealing brick exterior is accented with multi-level wood trim and copper roofing returns. Thoughtful planning creates a spacious feel which seems to contradict its compact 1774 square foot interior.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

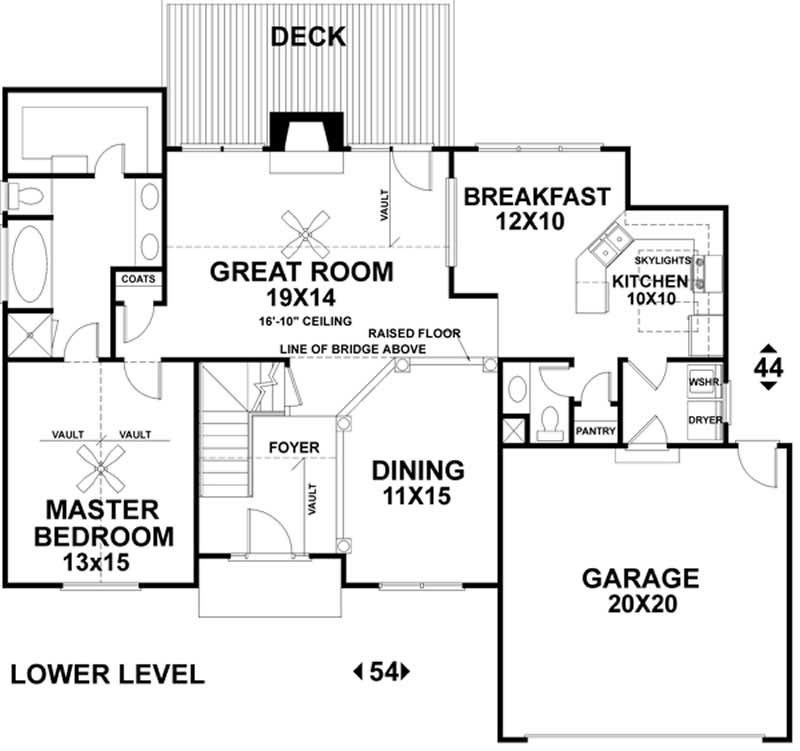

Home Plan: #109-1147 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #109-1147

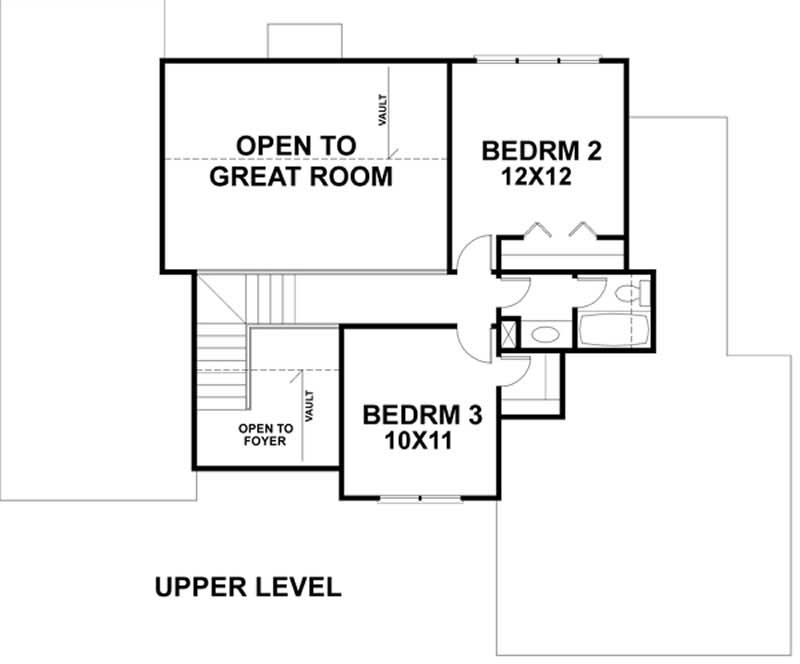

#109-1147 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #109-1147
