Ranch home (ThePlanCollection: Plan #140-1086)
3-Bedroom, 1768 Sq Ft Ranch House - Plan #140-1086 - Front Exterior

About Plan # 140-1086

About Plan # 140-1086

1768 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 73' 0" WIDTH 73' 0" DEPTH 2 GARAGE BAY

You'll feel right at home by the sight of this stunning Ranch Country style home, for it showcases a covered outdoor living space – a covered porch that virtually surrounds the house – where you can enjoy the fresh air and the surrounding landscape. This is the house just avout any car enthusiast would love, as its oversize 2-car garage on its rear left side is equipped with a storage room that can be also used as another car bay or workshop. The 1-story floor plan has 1768 square feet of living space and includes 3 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • GENERAL NOTES
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • Window Specifications to e provided by Manufacturer




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

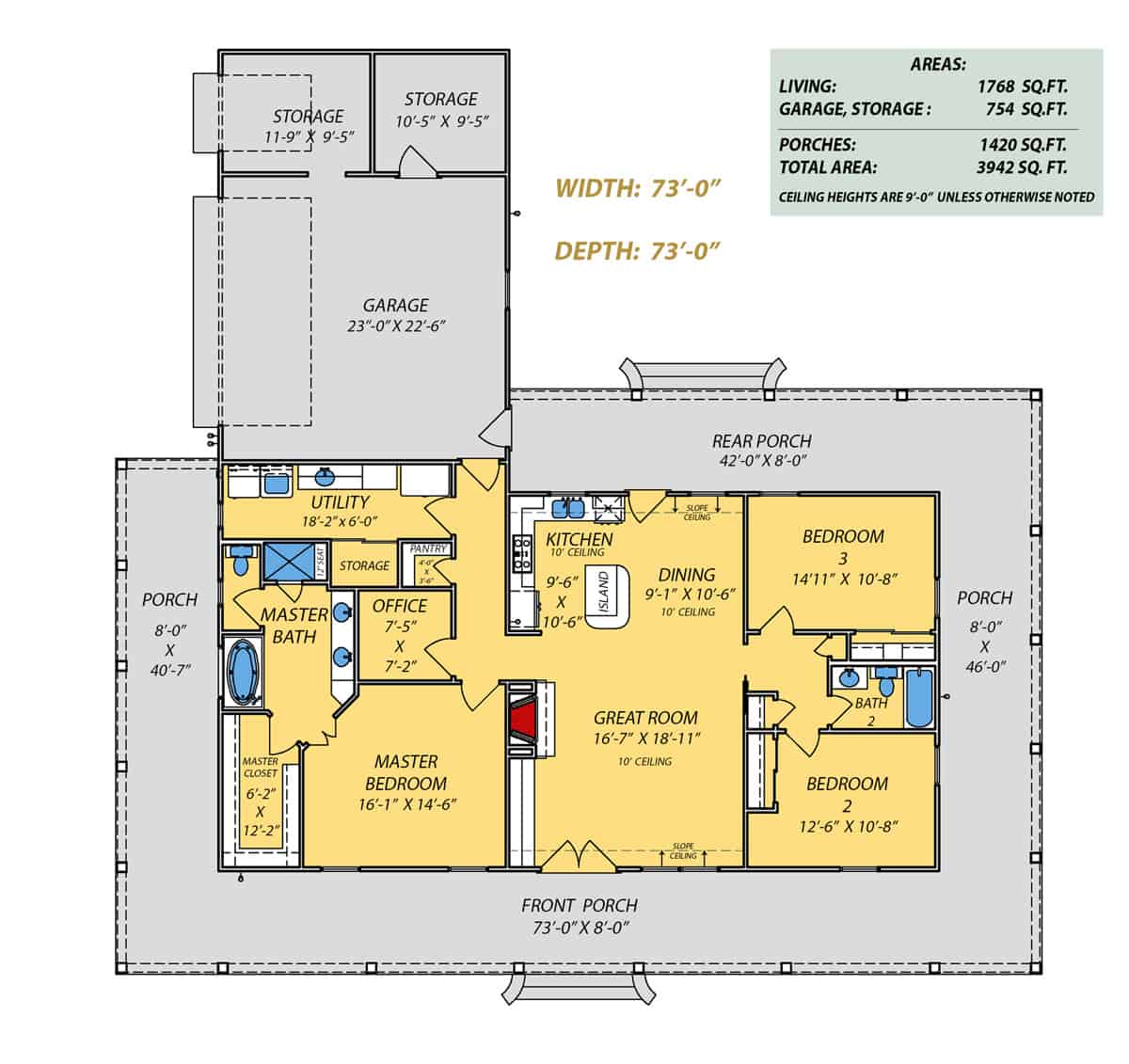

Home Plan: #140-1086 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #140-1086
