Ranch home (ThePlanCollection: Plan #140-1090)

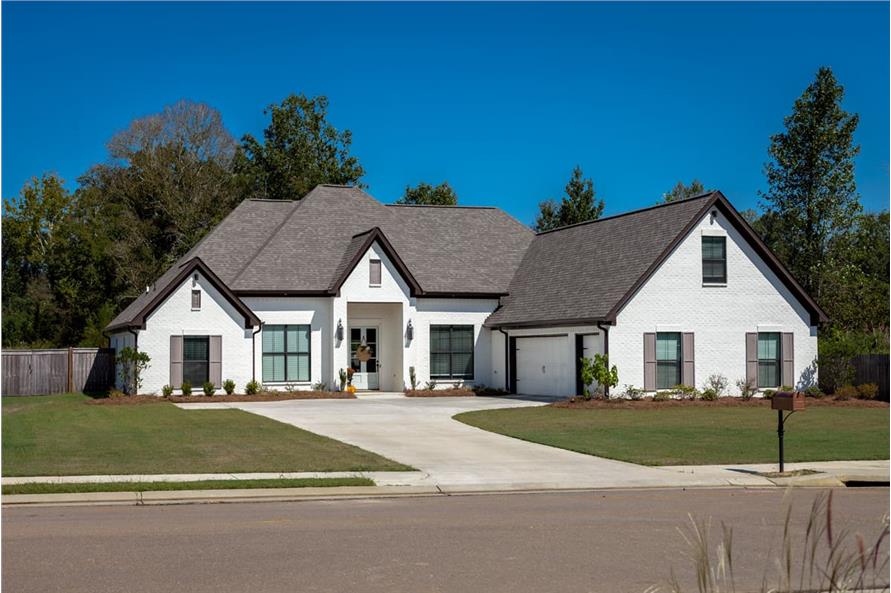

140-1090: Home Exterior Photograph-Front View
4-Bedroom, 2399 Sq Ft Ranch House - Plan #140-1090 - Front Exterior

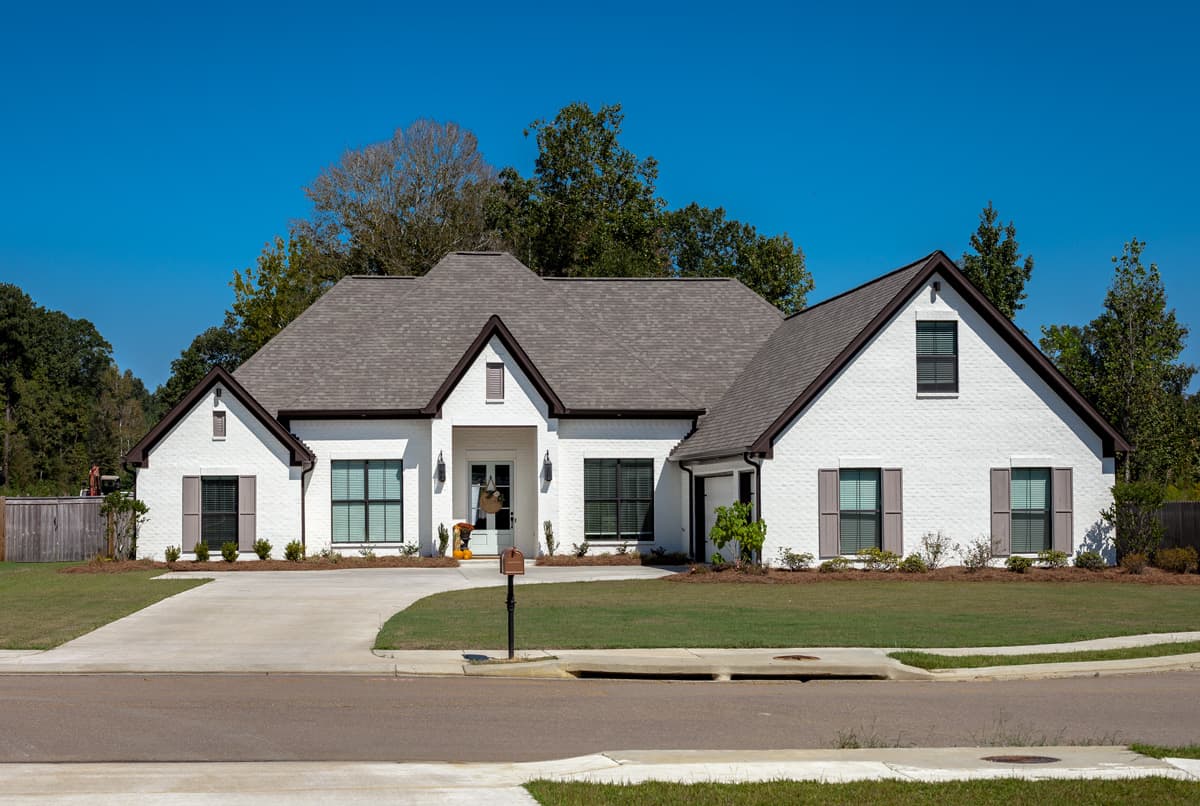

140-1090: Home Exterior Photograph-Front View

About Plan # 140-1090

About Plan # 140-1090

2399 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1.5 FLOOR 69' 5" WIDTH 76' 9" DEPTH 3 GARAGE BAY

This European style Ranch home with its innovative design and looks will surely rise to the top of your checklist. Its combination of brick and white paint hues exudes a clean, homey ambiance both inside and out. And the steep hip roof gives it a stately appearance that helps create its attractive curb appeal. The 1-story floor plan has 2399 square feet of living space includes 4 bedrooms and 3 full bathrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • GENERAL NOTES
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • Window Specifications to e provided by Manufacturer




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

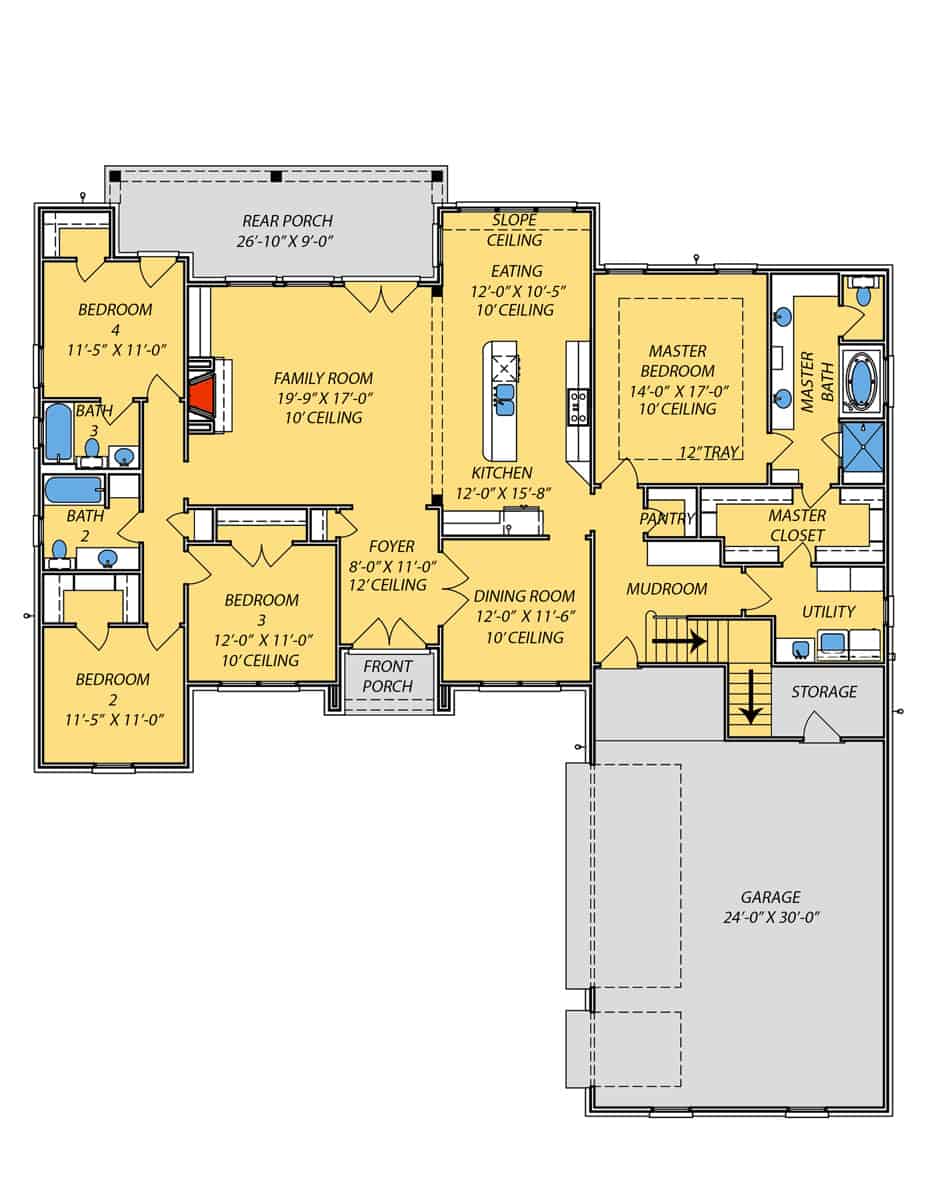

Home Plan: #140-1090 Floor Plan First Story - main level Floor Plan Main Level of European Plan #140-1090

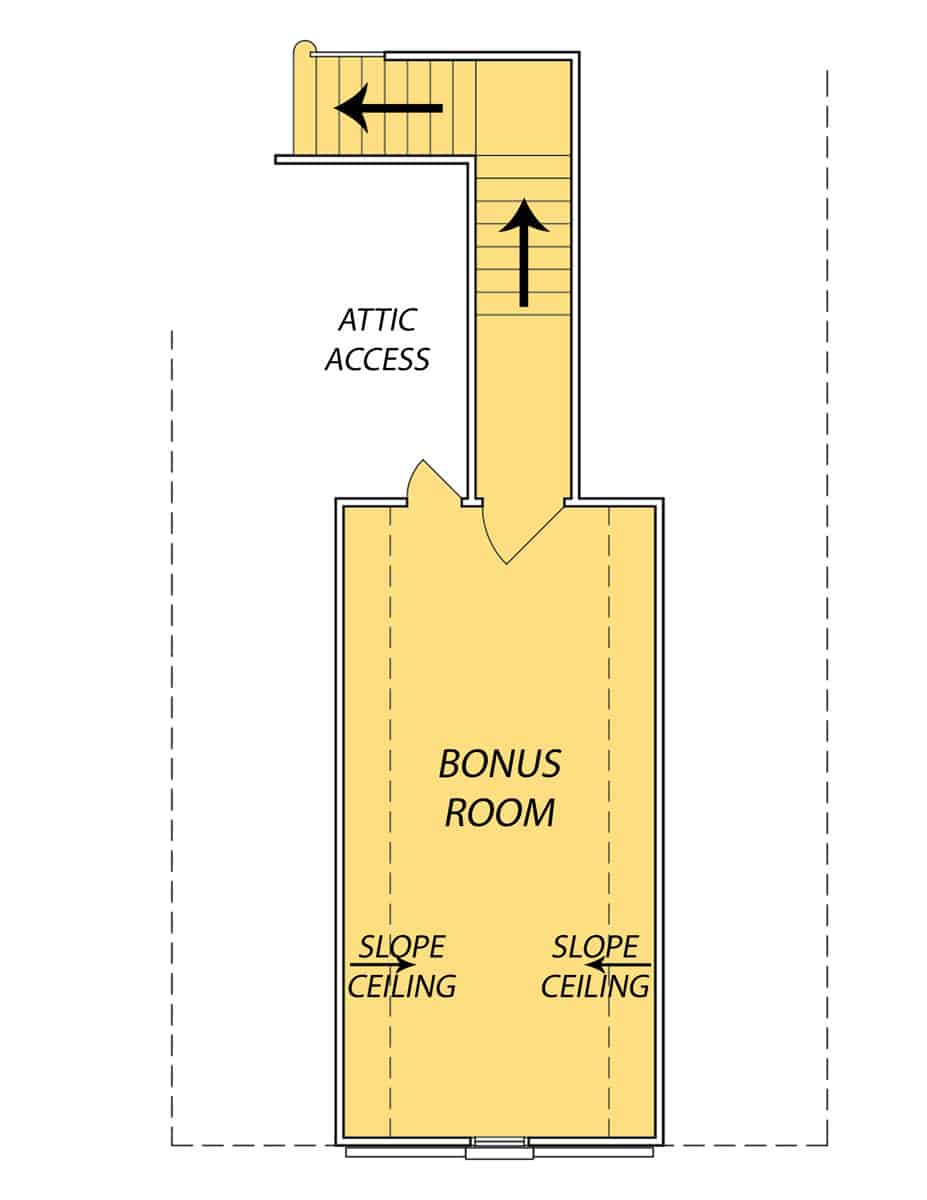

#140-1090 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of European Plan #140-1090
Home Plan: #140-1090 Floor Plan First Story - main level Floor Plan Main Level of European Plan #140-1090
#140-1090 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of European Plan #140-1090
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 140-1090
Floors:
1.5
Bedrooms:
4
Full Baths:
3
Garage :
3

Square Footage

Heated Sq Feet:
2399
Main Floor:
2399
Unfinished Sq Ft:
Bonus Room:
311
Garage :
862
Porch :
269

Dimensions

Width:
69' 5"
Depth:
76' 9"
Ridge Height:
27' 6"

Architectural Styles

European
Ranch
French
Traditional

Exterior Wall Material

Brick

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
10/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Mud Room
Bonus Room
Family Room
Main Level Laundry
Color Photos
Split Bathroom
Storage
Open Floor Plan
L-Shaped

Garage Type

Attached Garage
Courtyard Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

PRICING OPTIONS

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
