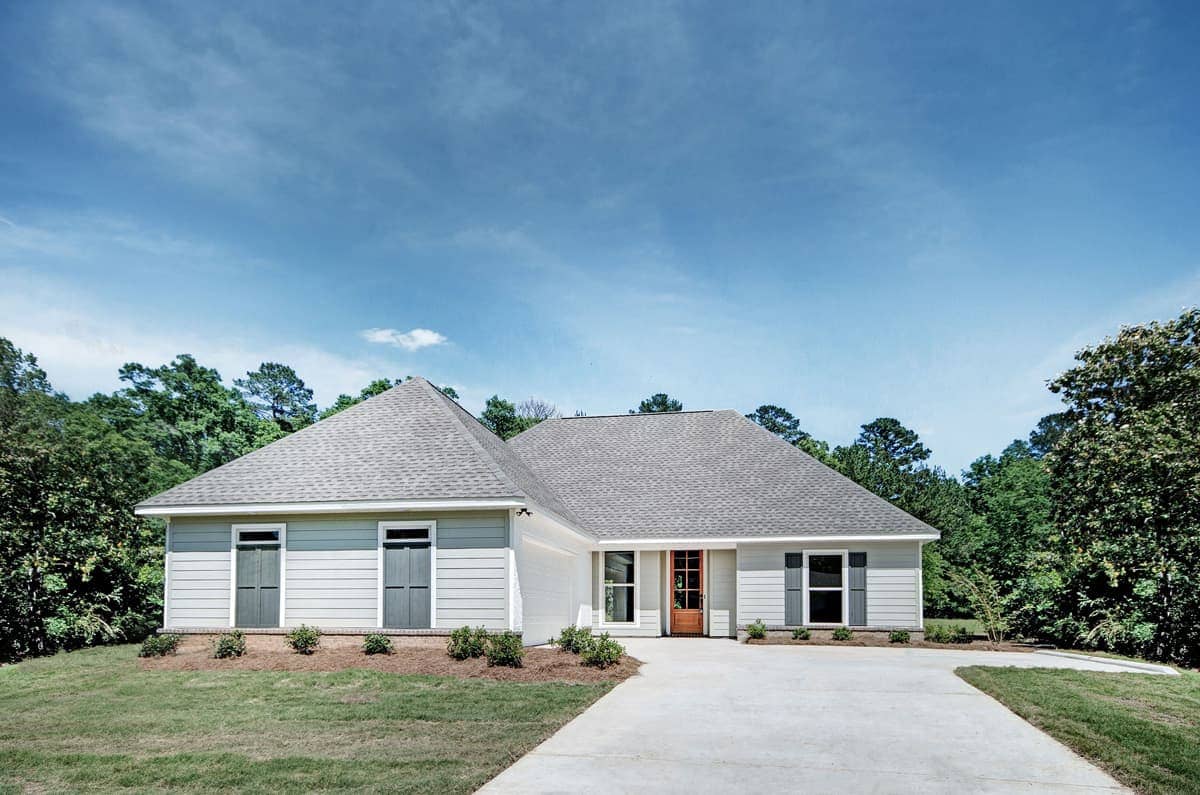

3-Bedroom, 1581 Sq Ft French Style Ranch with Mudroom

Main Image
Thumbnail Image

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #140-1099

Sq Ft
1581
Sq Ft
Bedrooms
3
Bedrooms
Bathroom
2
Baths
Half Baths
0
Half Baths
Bedrooms
2
Cars
Bedrooms
1
Stories
Bedrooms
48' 4'
Width
Bedrooms
66
Depth
From$845What's included
STEP 1Bedrooms
STEP 2Bedrooms
STEP 3Bedrooms

Subtotal:$0
Plan Collection

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Floor Plans

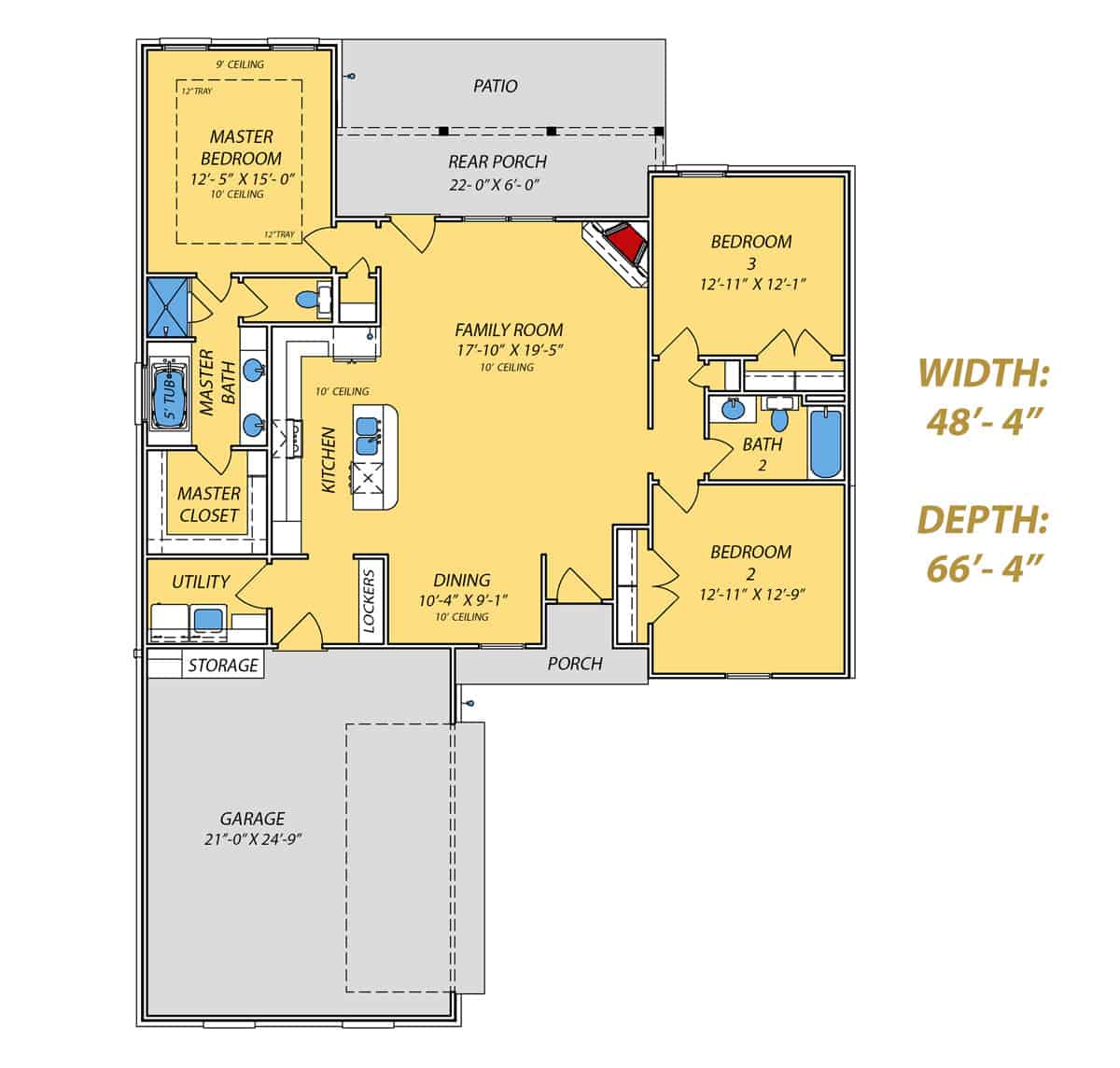

Floor Plan Main Level
Floor Plan Main Level
Floor Plan Main Level
Plan Collection

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

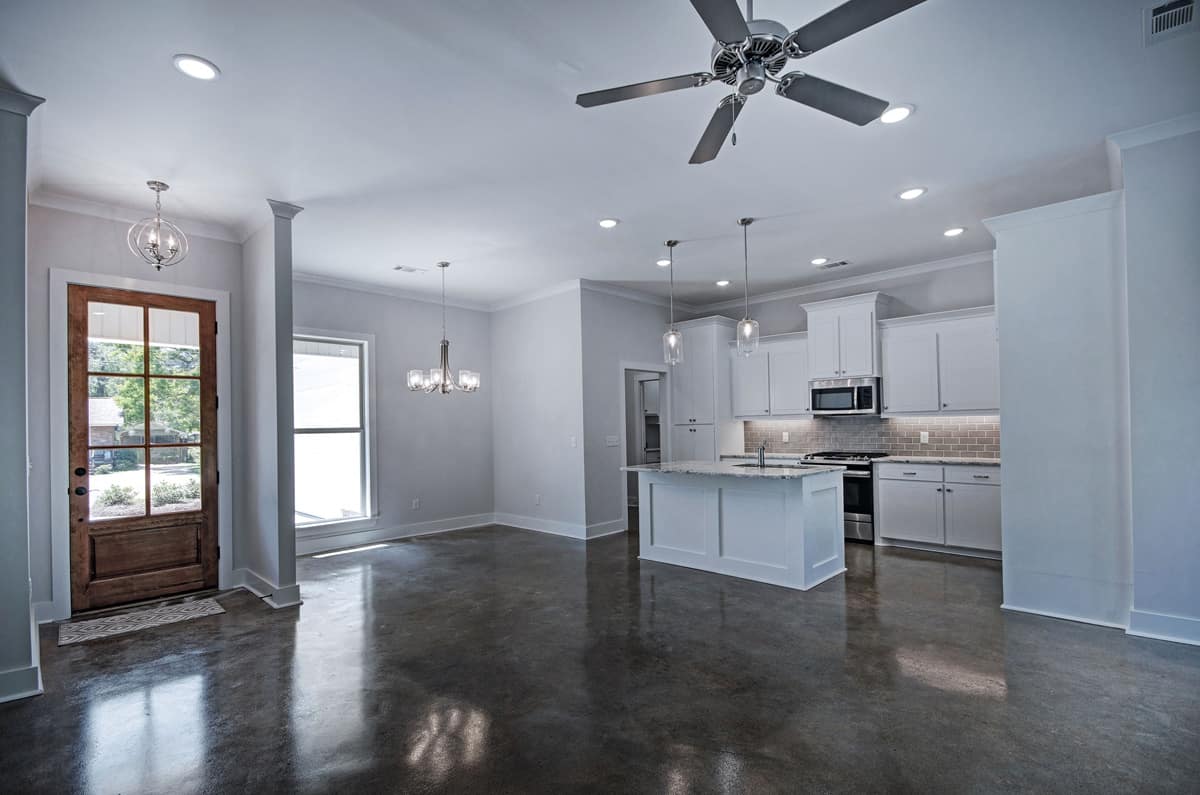

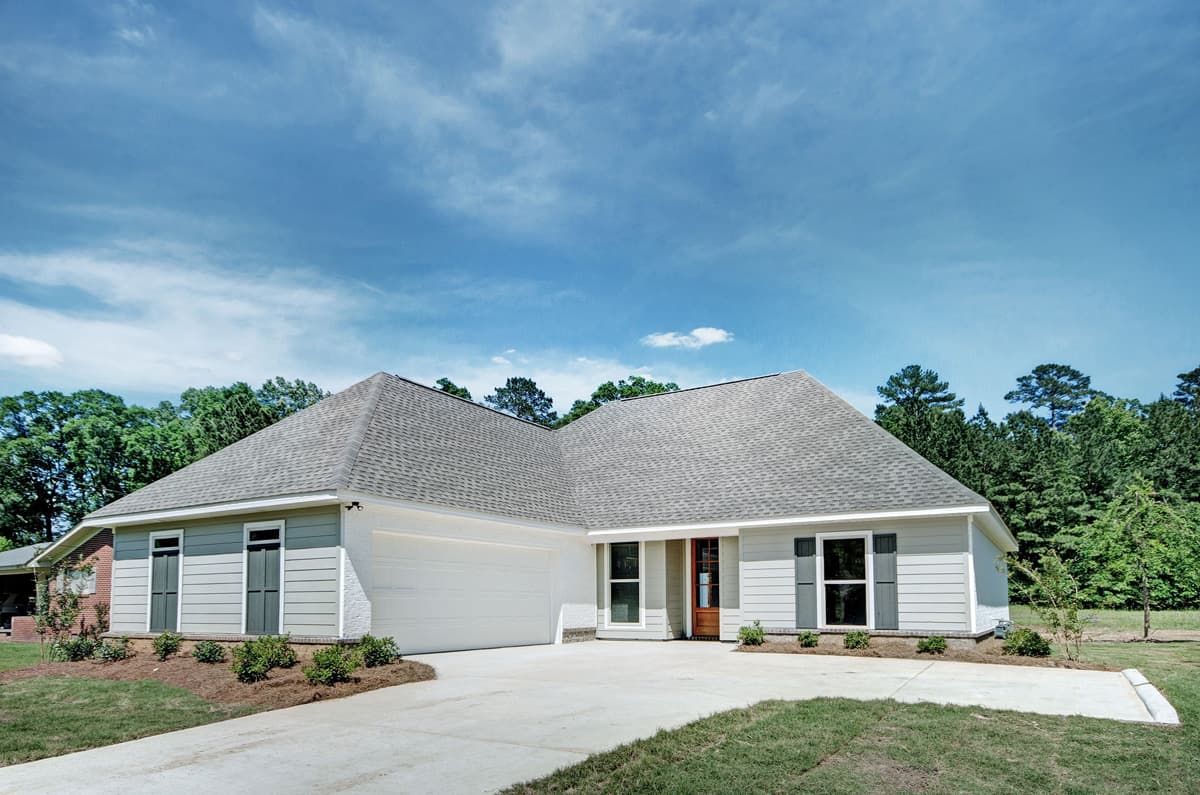

This Ranch style home with French Acadian characteristics is a dynamic, compact house design for an average-size lot, with a front-courtyard-load garage and an open concept floor plan. The house covers a total conditioned living area of 1581 square feet with a 526-square-foot 2-car garage – and it's sure to capture your attention with its elegant space and looks.

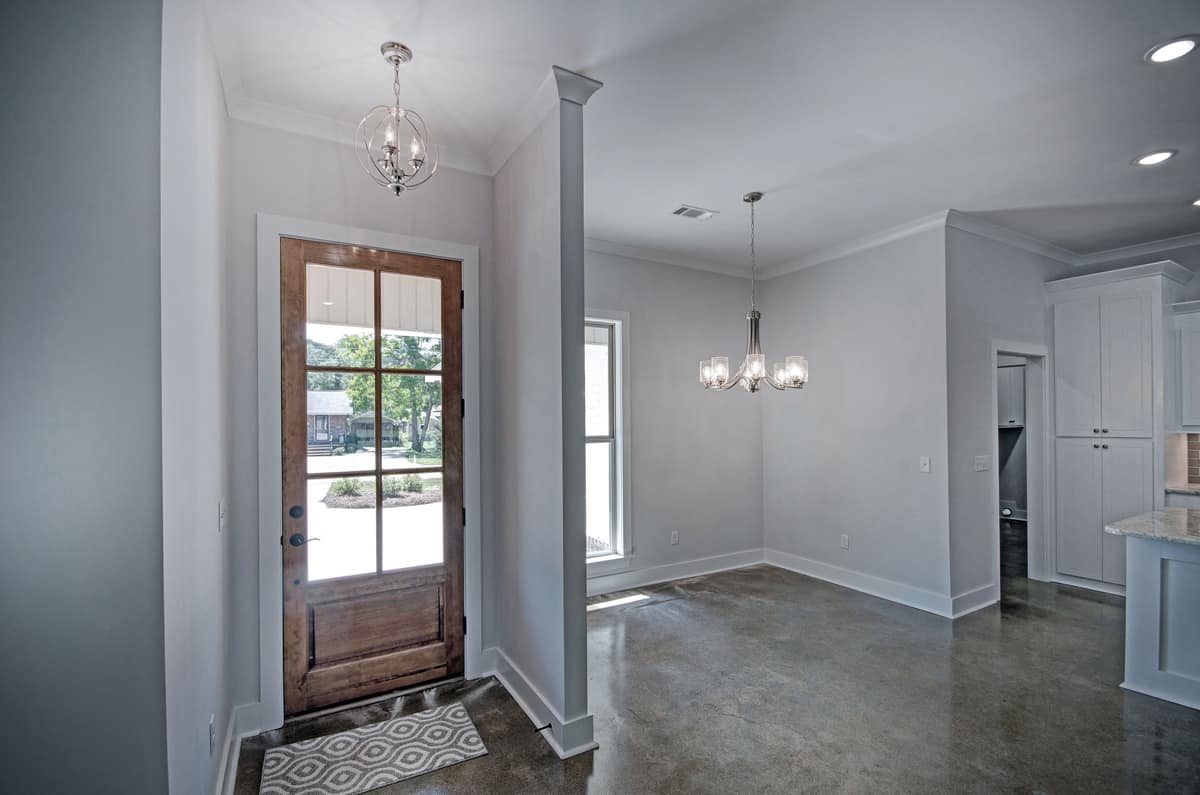

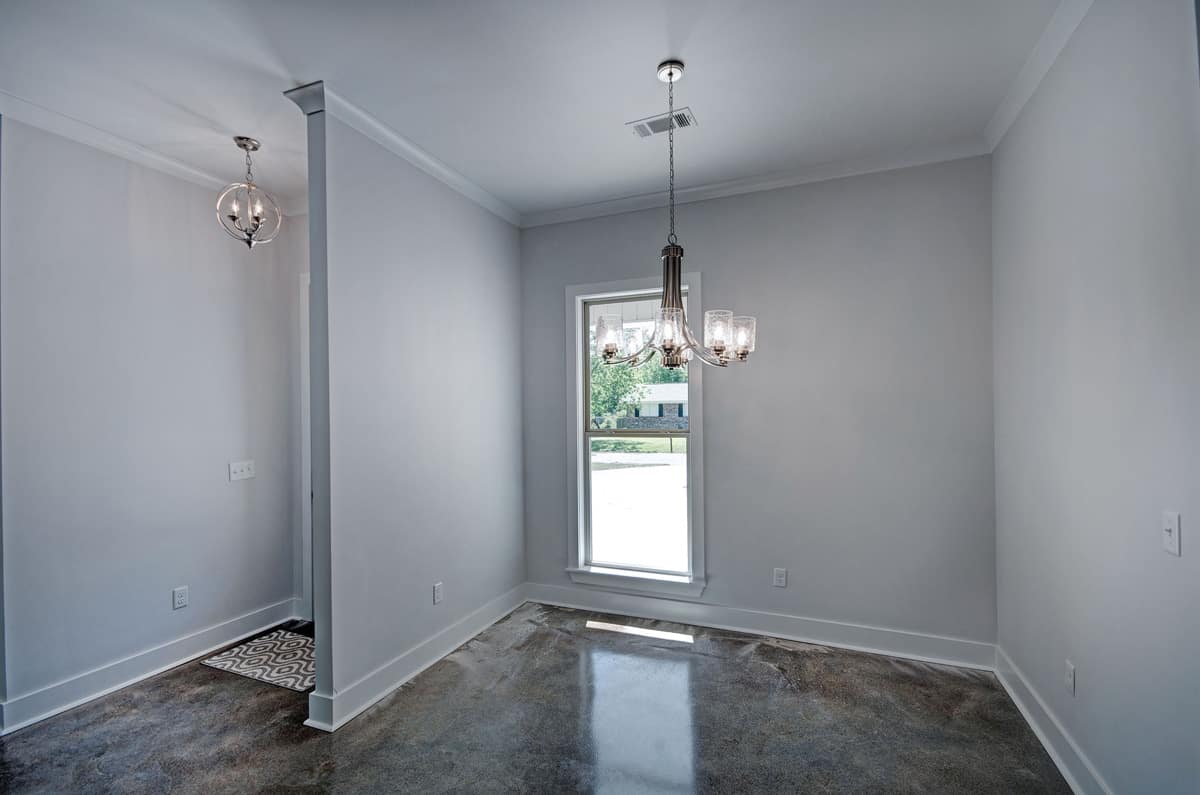

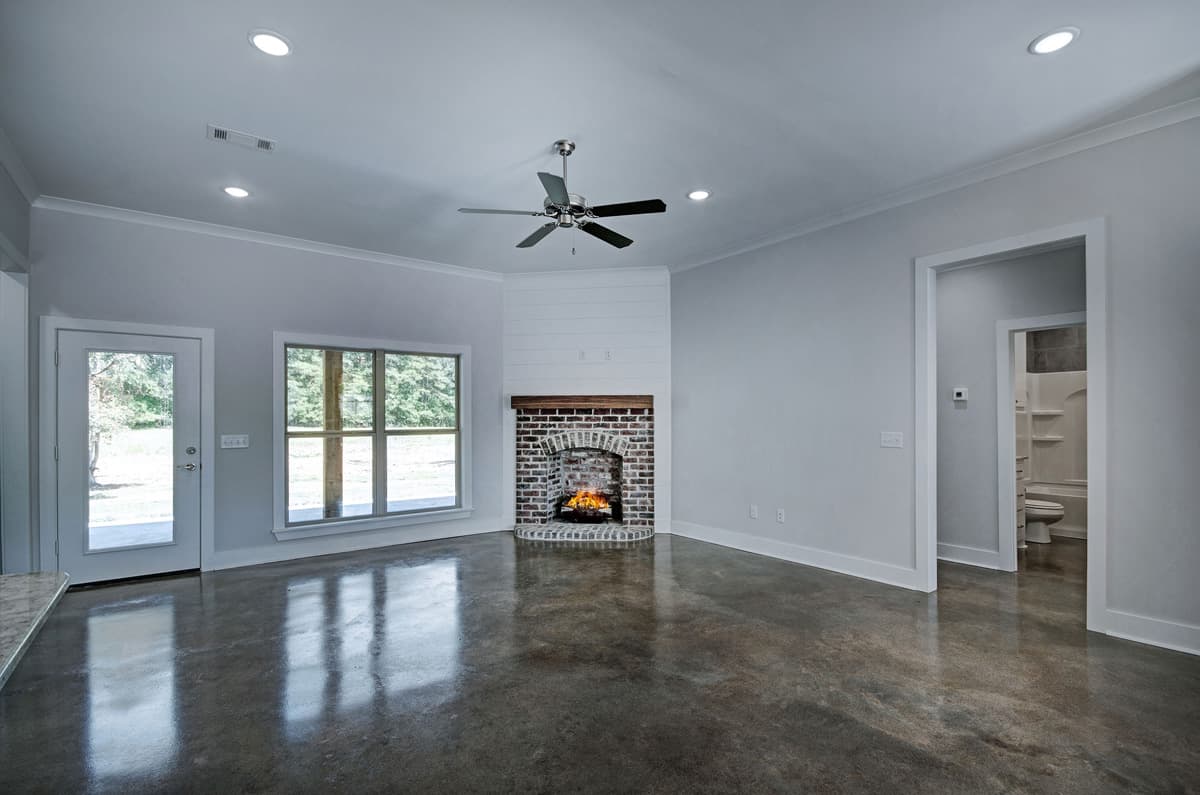

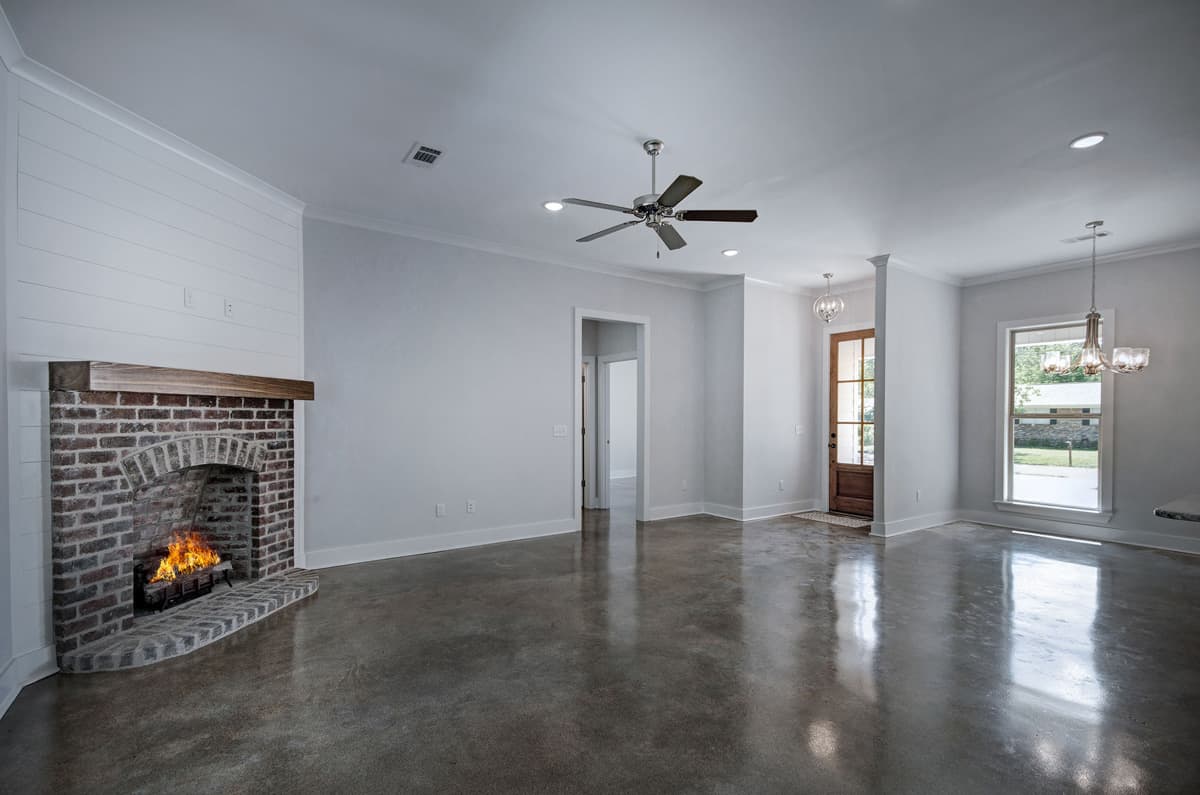

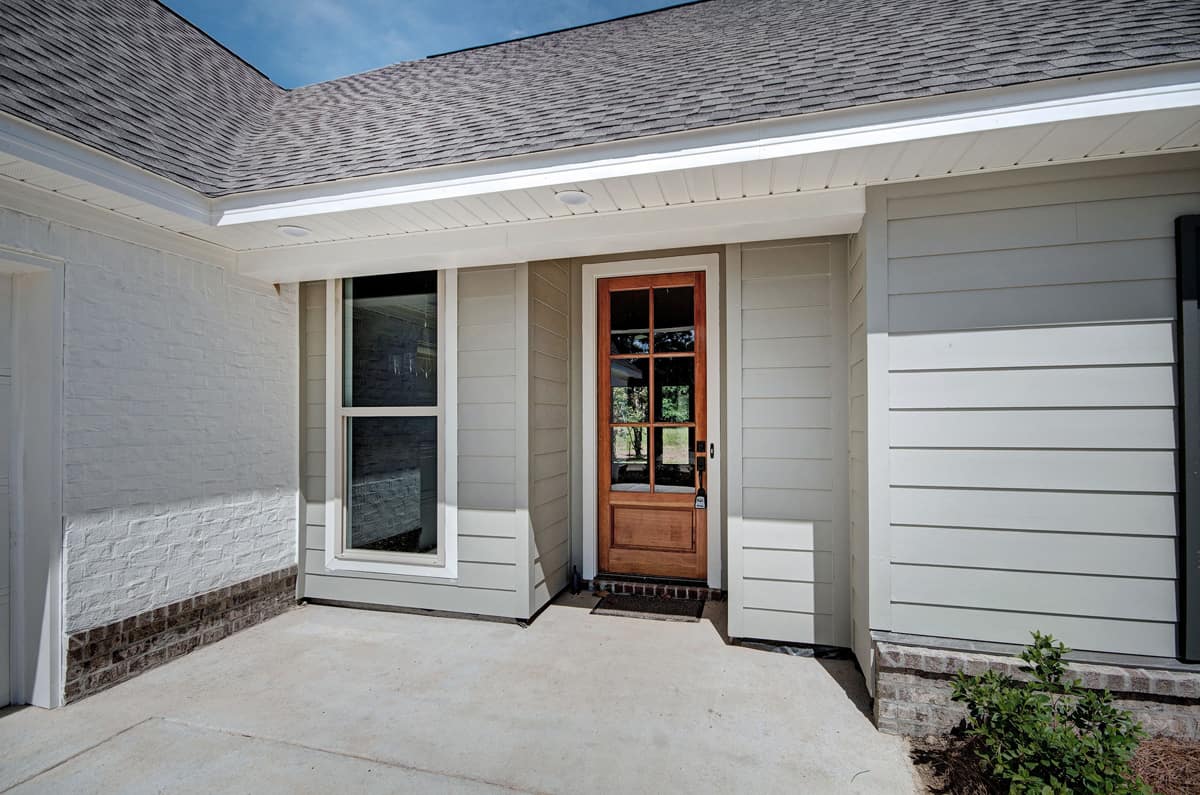

The front porch embraces the grand entrance door, which leads to the dining area at the right side and the family room straight ahead where every member of the family...

Home Details

Summary
Plan #:140-1099
Floors:1
Bedrooms:3
Full Baths:2
Half Baths:0
Garage:
Square Footage
Heated Area::1581 Sq. Ft.
Main Floor:1581 Sq. Ft.
Dimensions
Width:48' 4''
Depth:66' 4''
Architectural Styles
Exterior Wall Material
Vinyl SidingRock/Stone
Roofing Type
Hip
Roofing Material
Asphalt Shingles
Roof Pitch
12/1210/12
Ceiling Height
10 Foot Ceiling9 Foot Ceiling
Special Feature

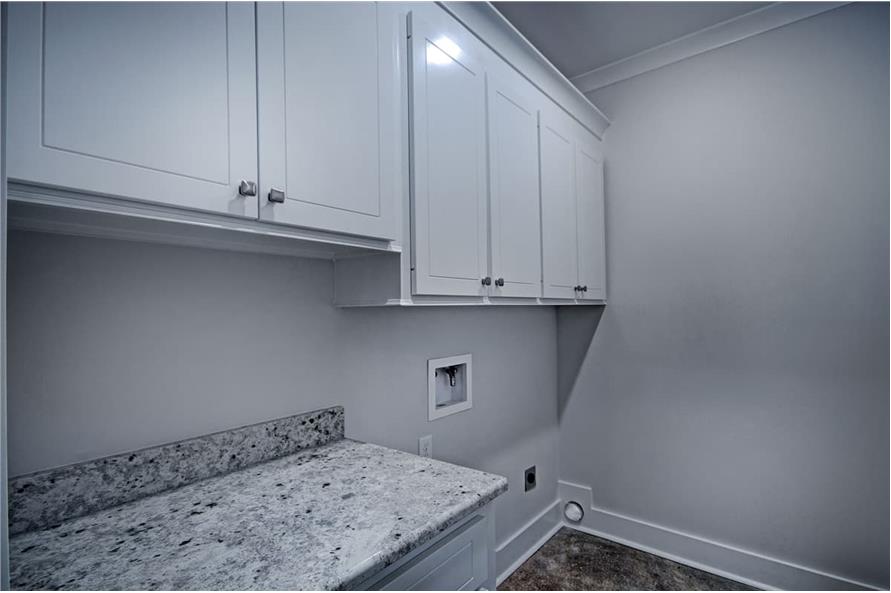

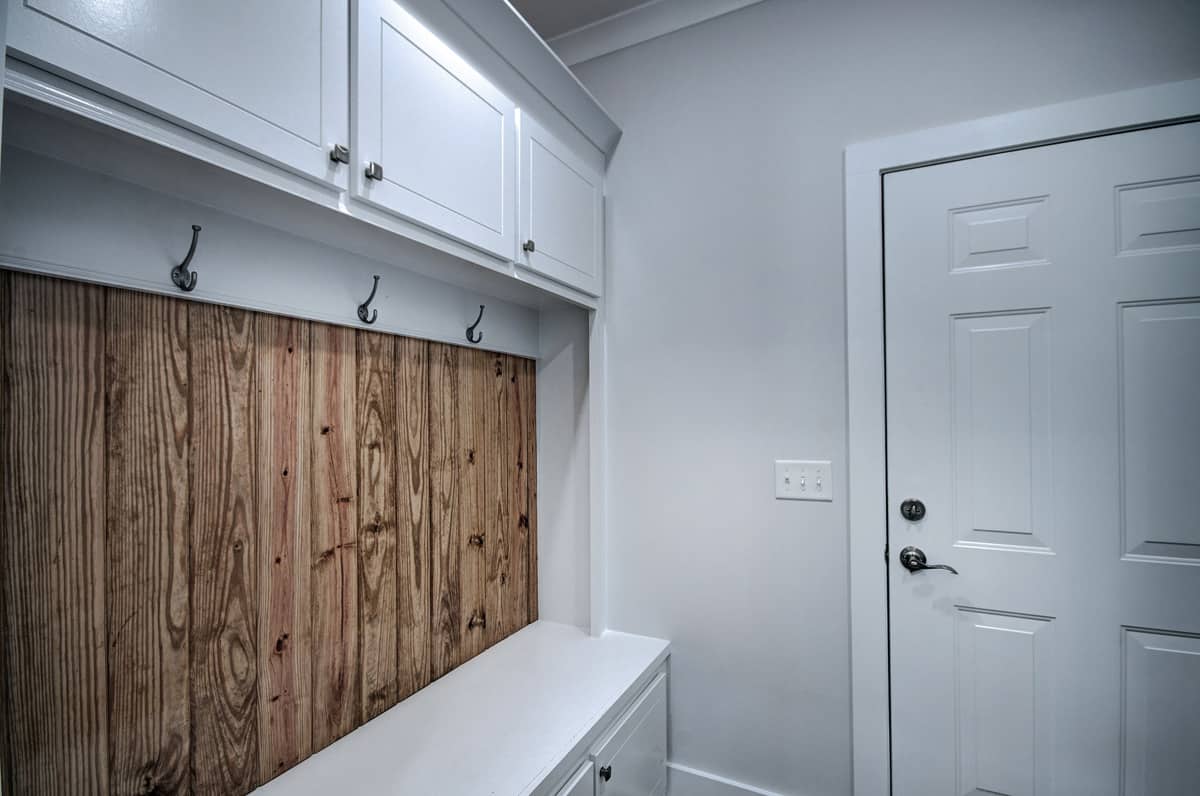

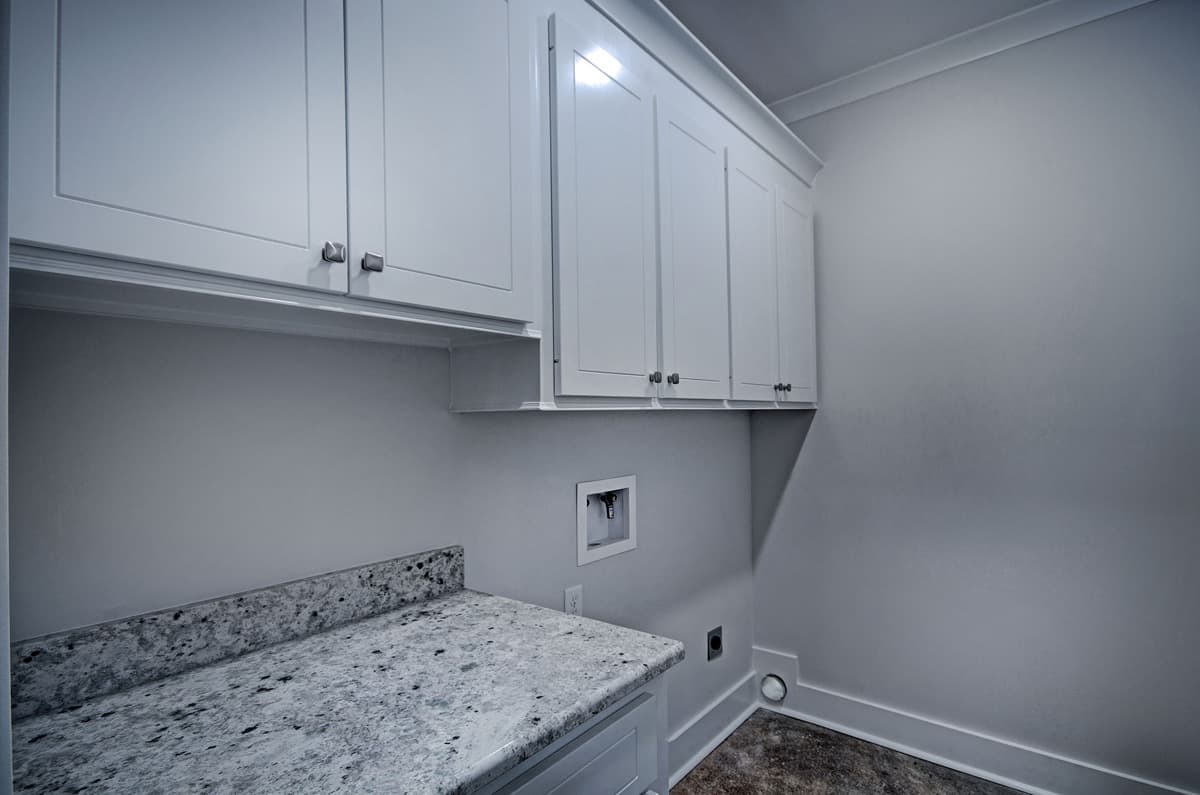

FireplaceMud RoomFamily RoomMain Level LaundryColor PhotosSplit BathroomStorageOpen Floor PlanInterior PhotosL-Shaped
Garage Type
Attached GarageCourtyard Entry

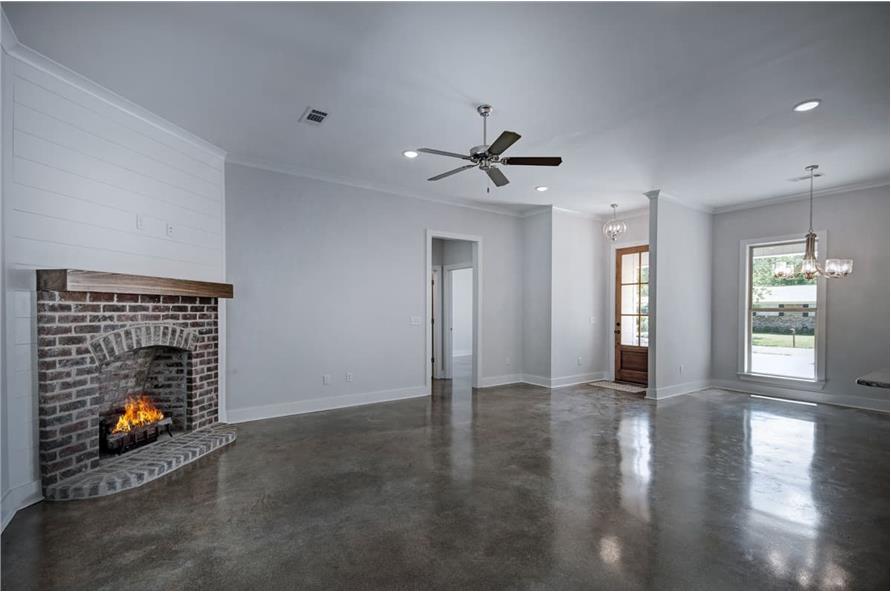

Fireplaces
Two Fireplaces
Exterior Wall Framing
2x4
Kitchen Features

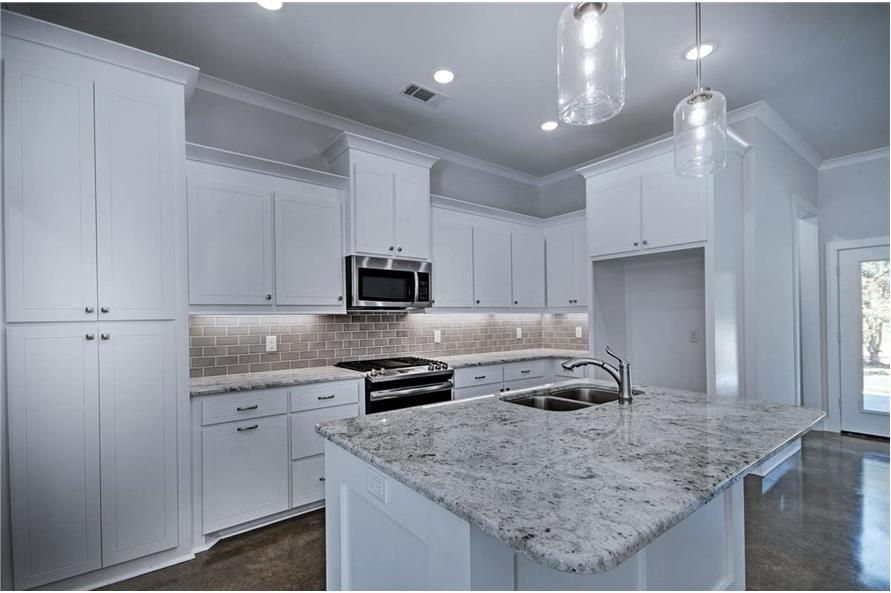

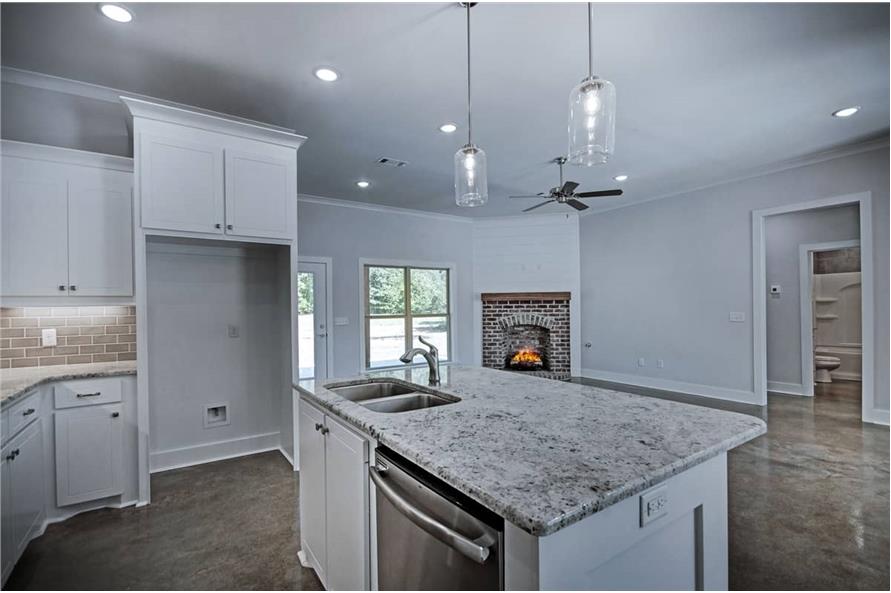

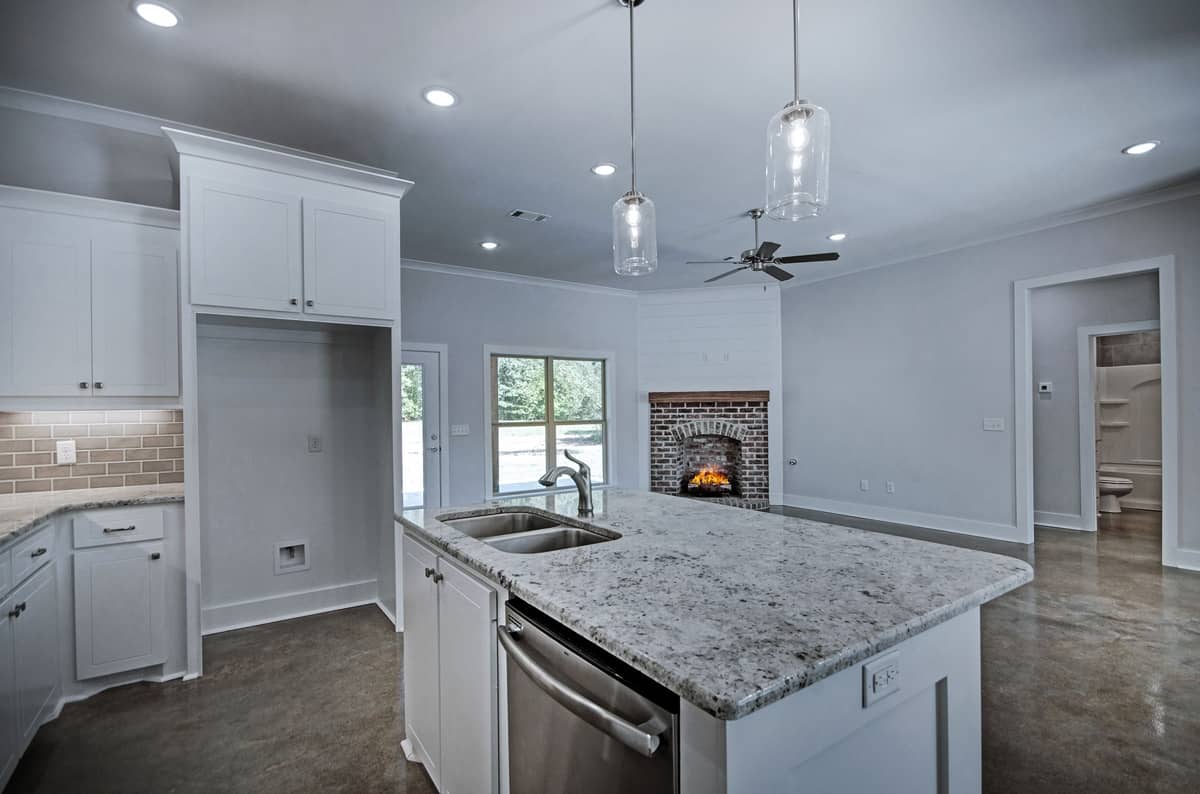

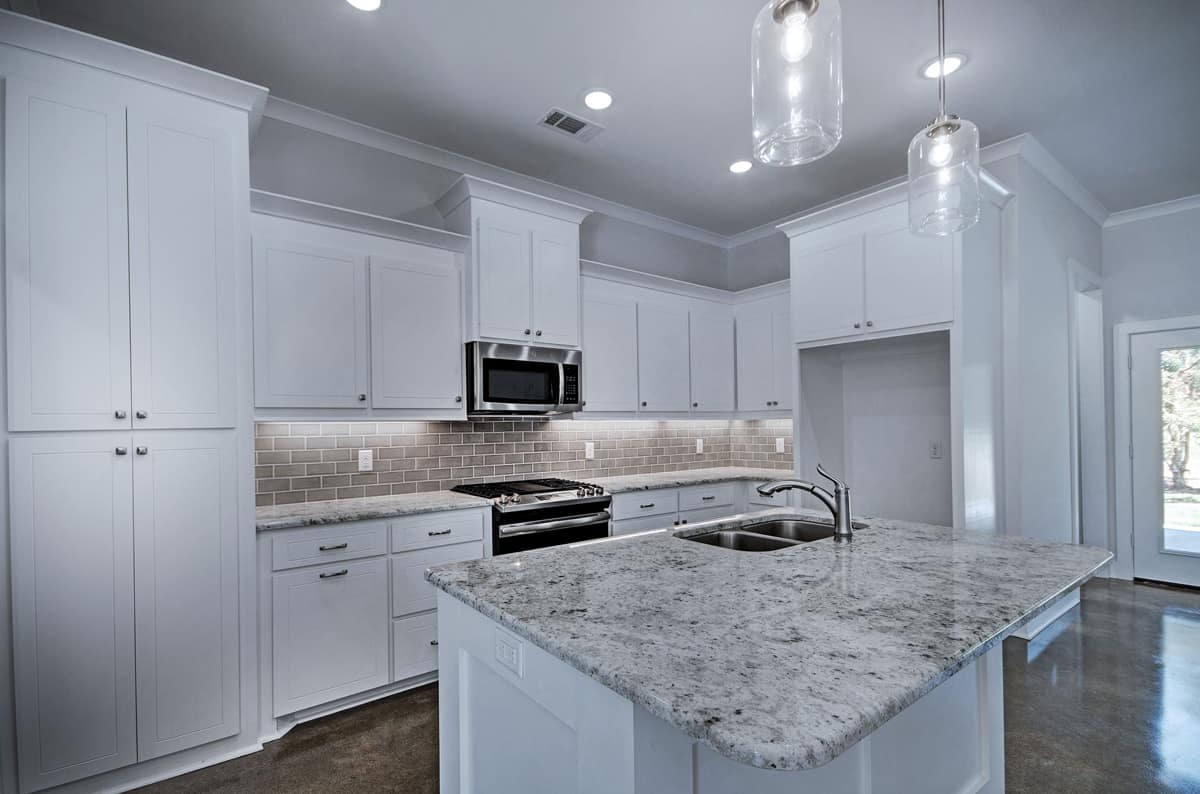

Kitchen IslandWalk-in PantryPeninsula/Eating Bar
Porches and Exterior Features

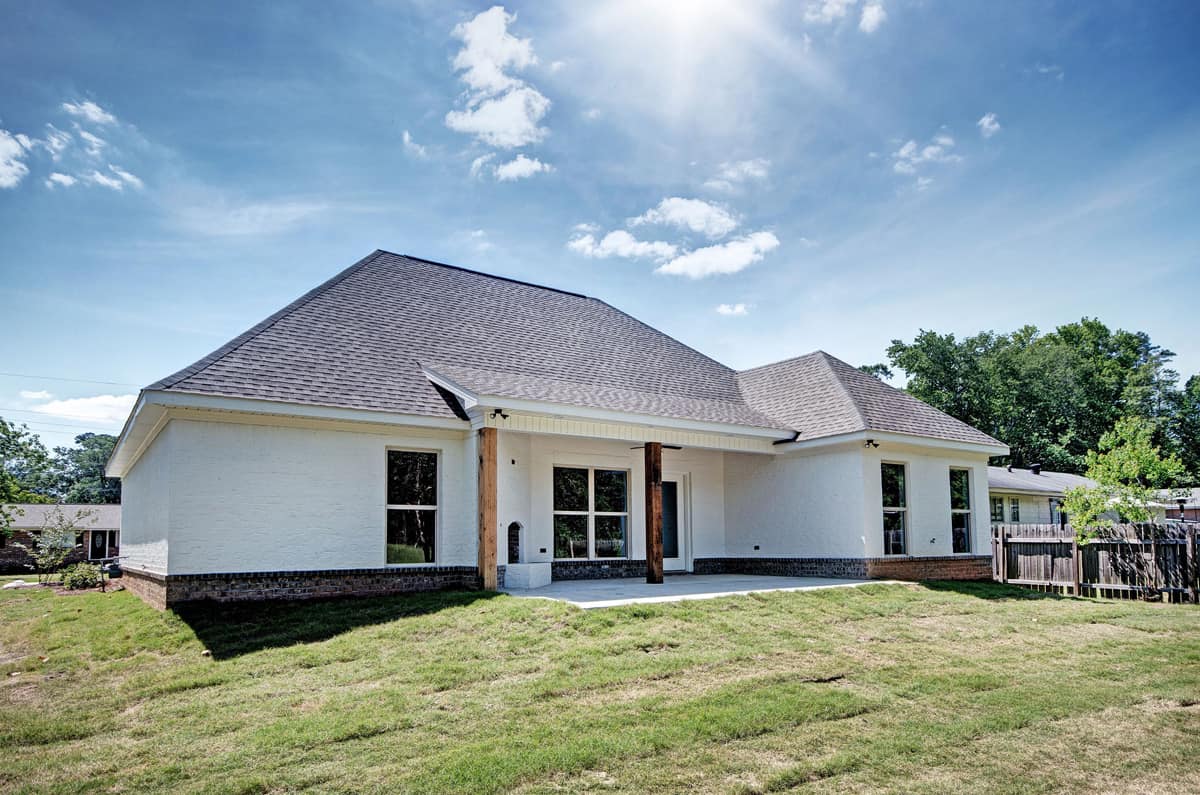

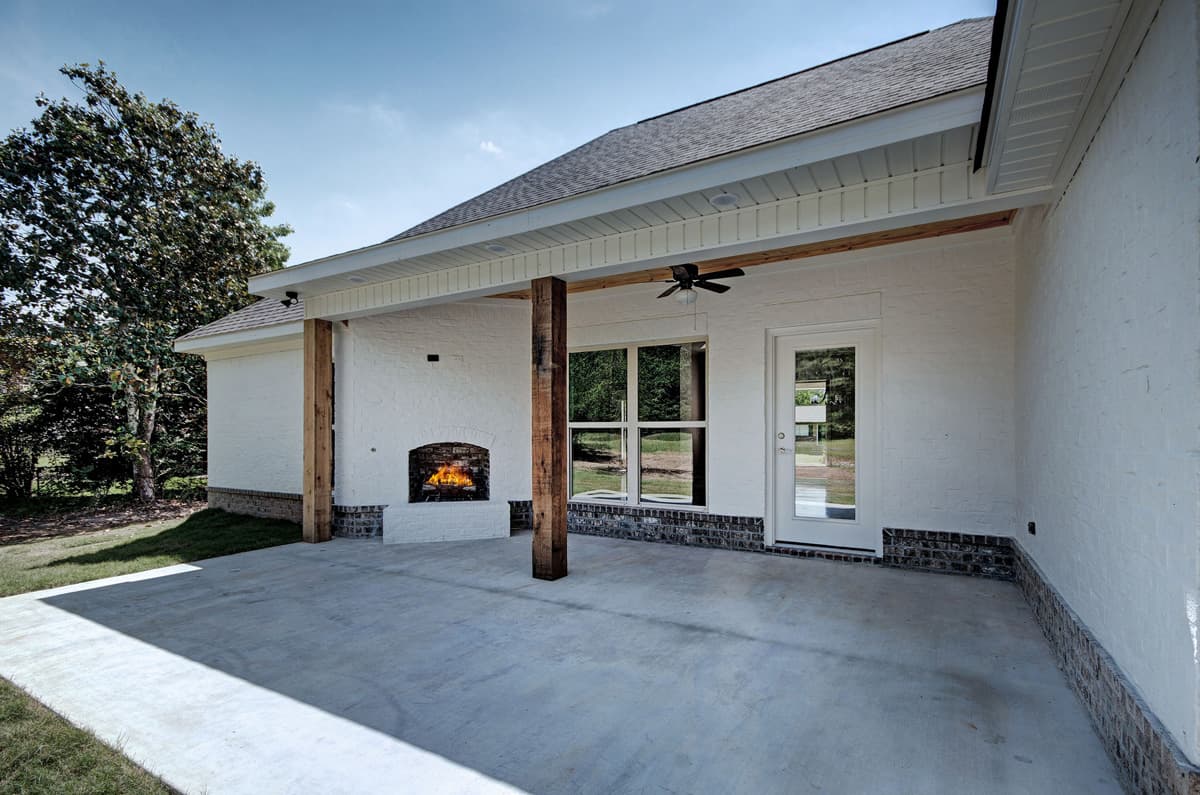

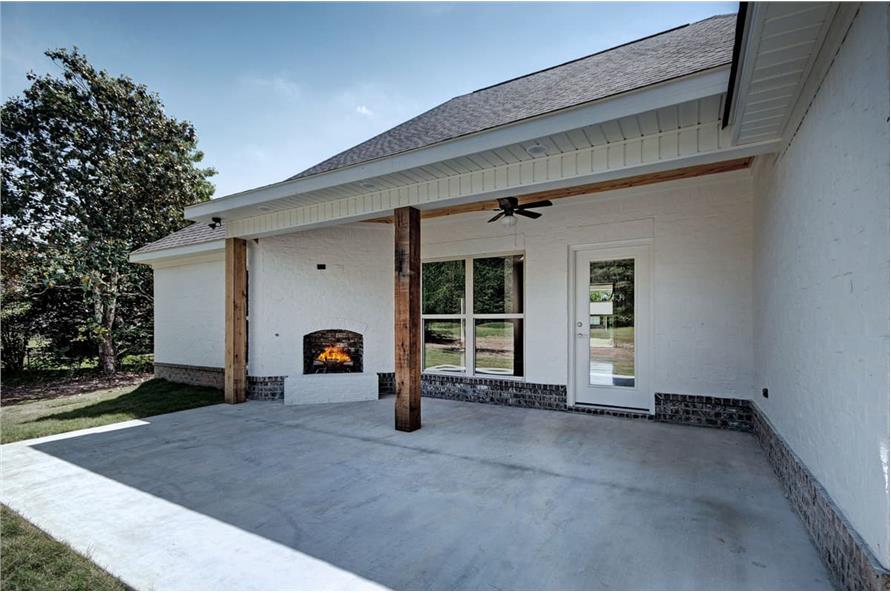

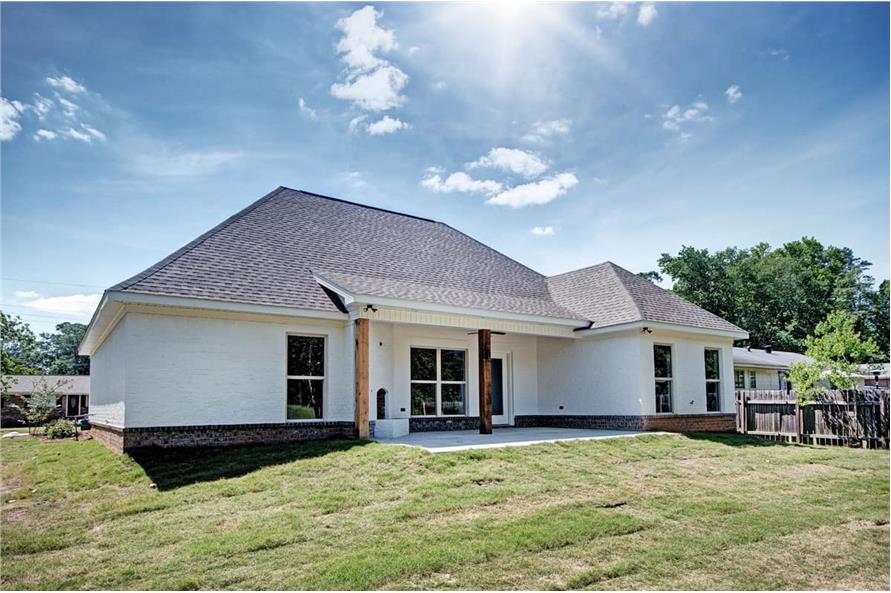

PorticoPatioCovered Rear Patio
Master Suite Features

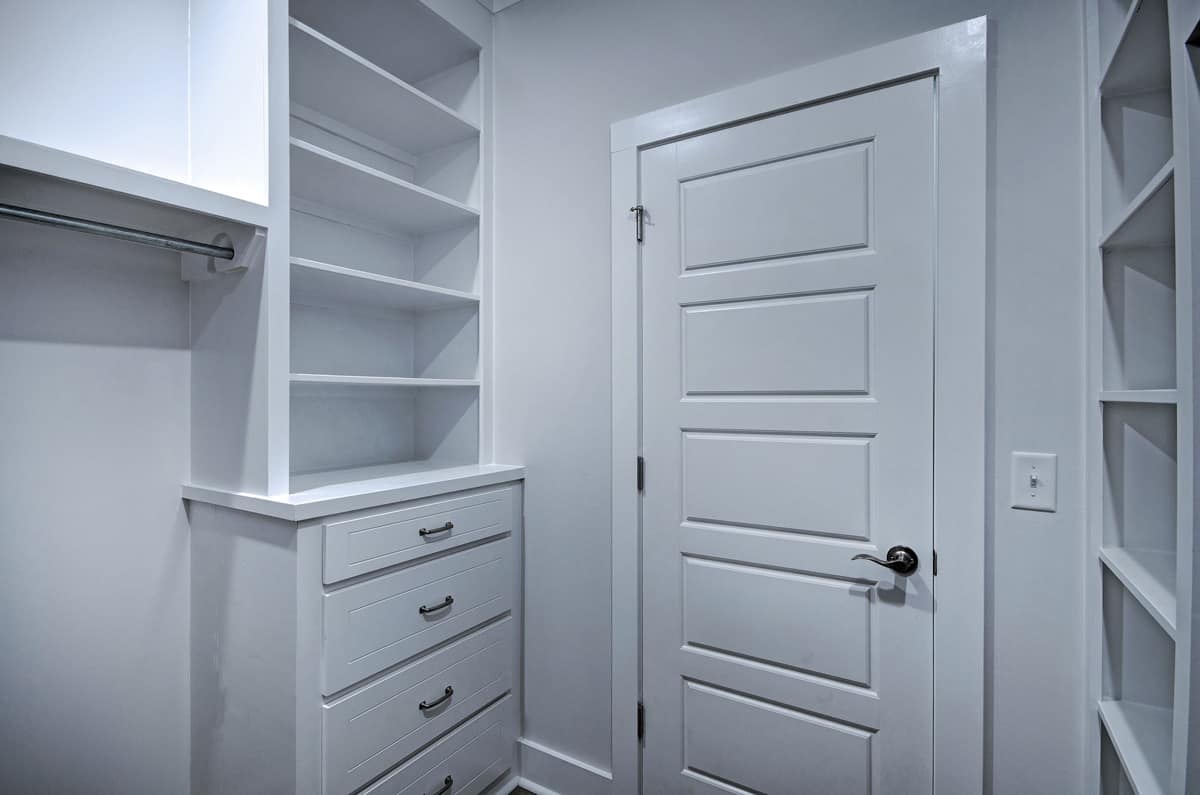

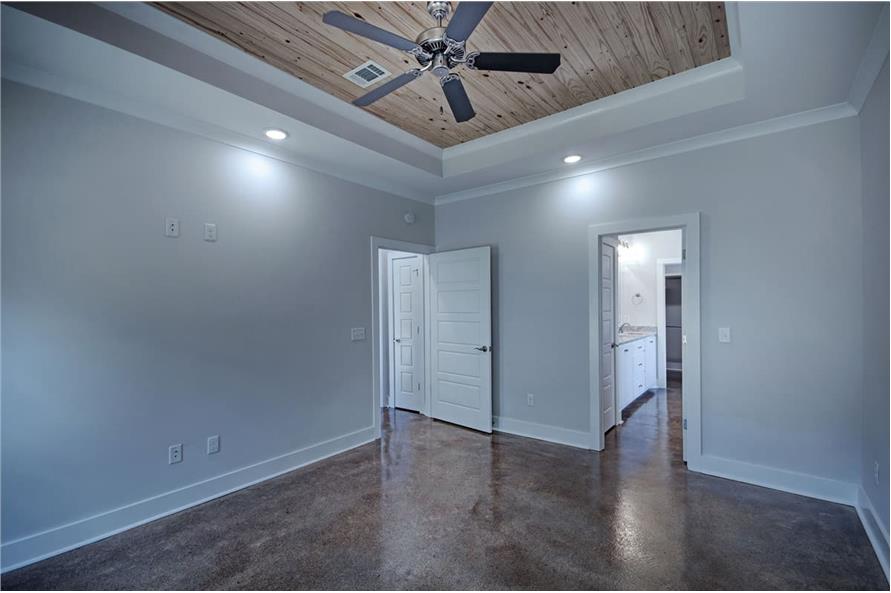

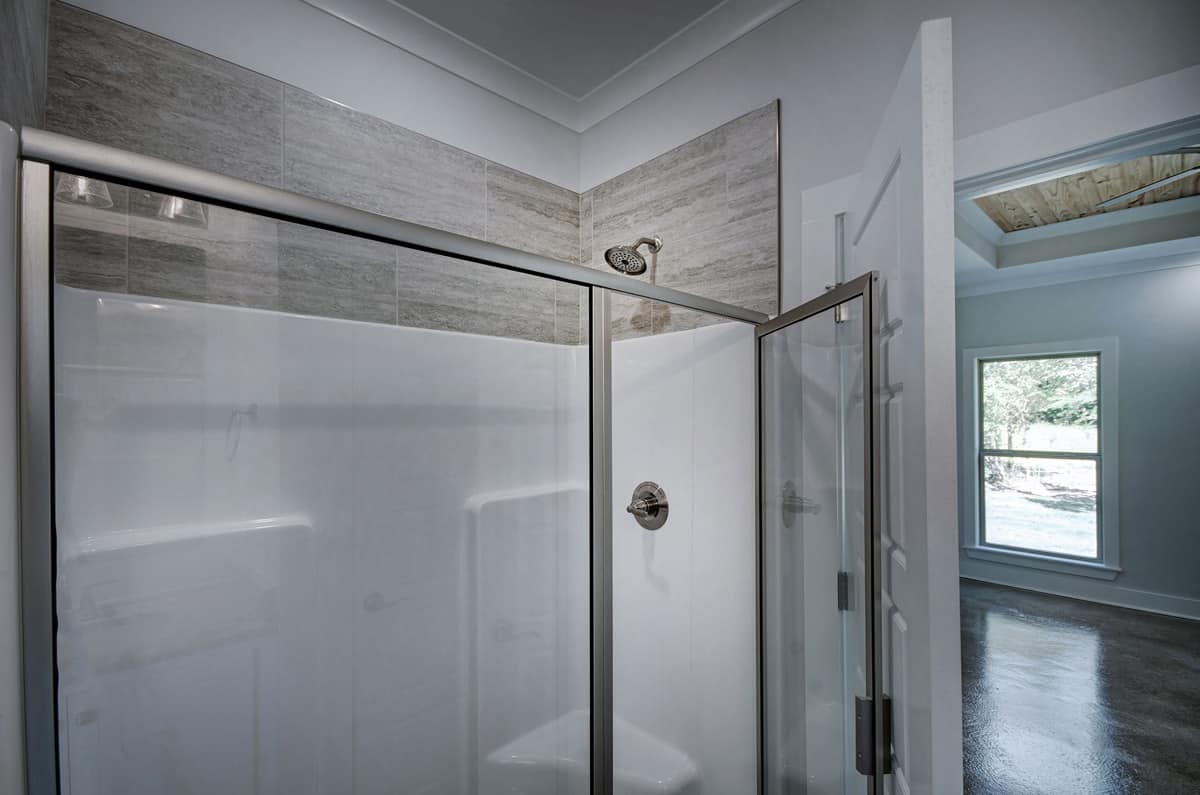

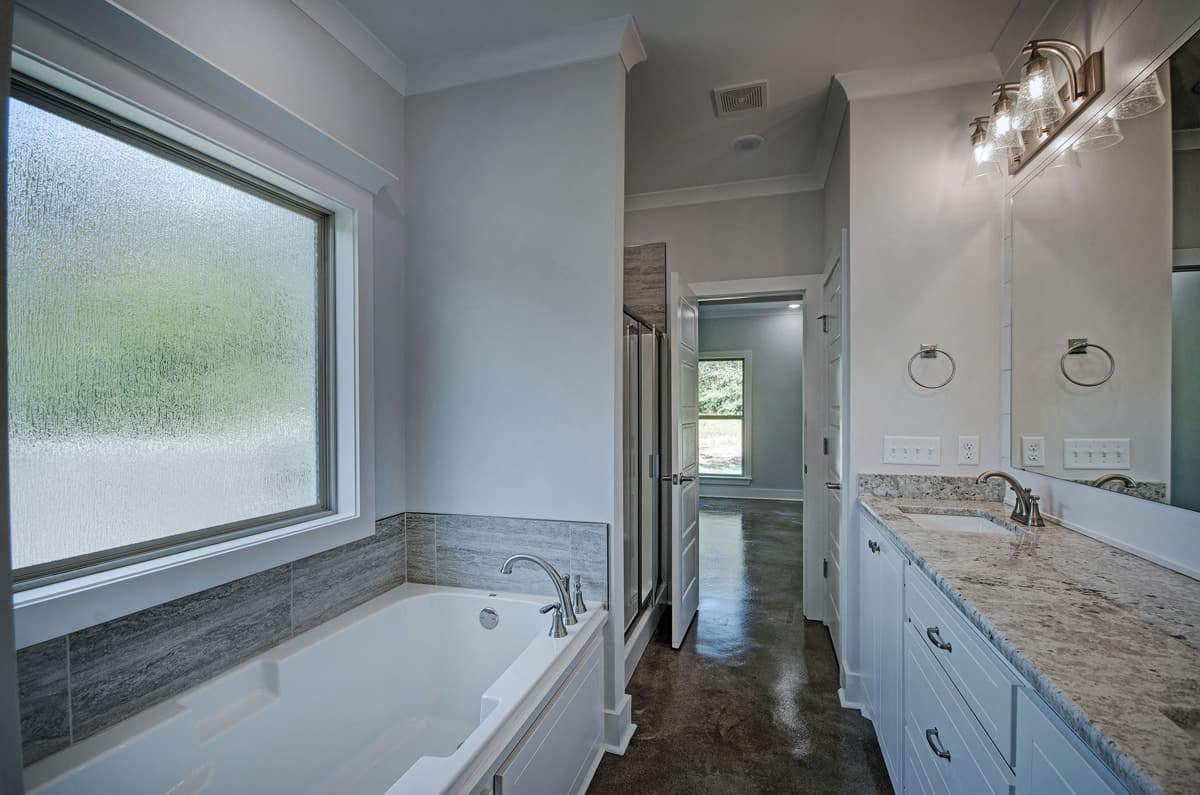

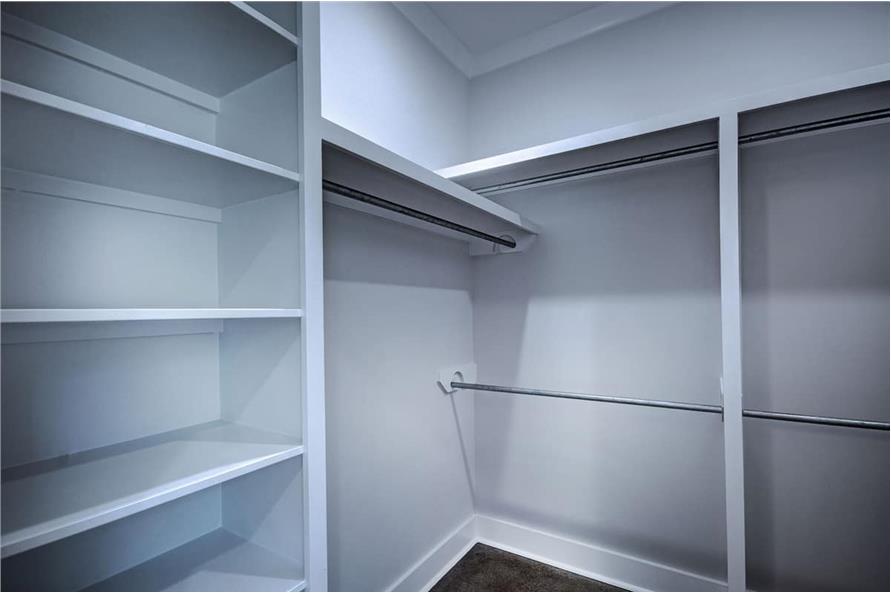

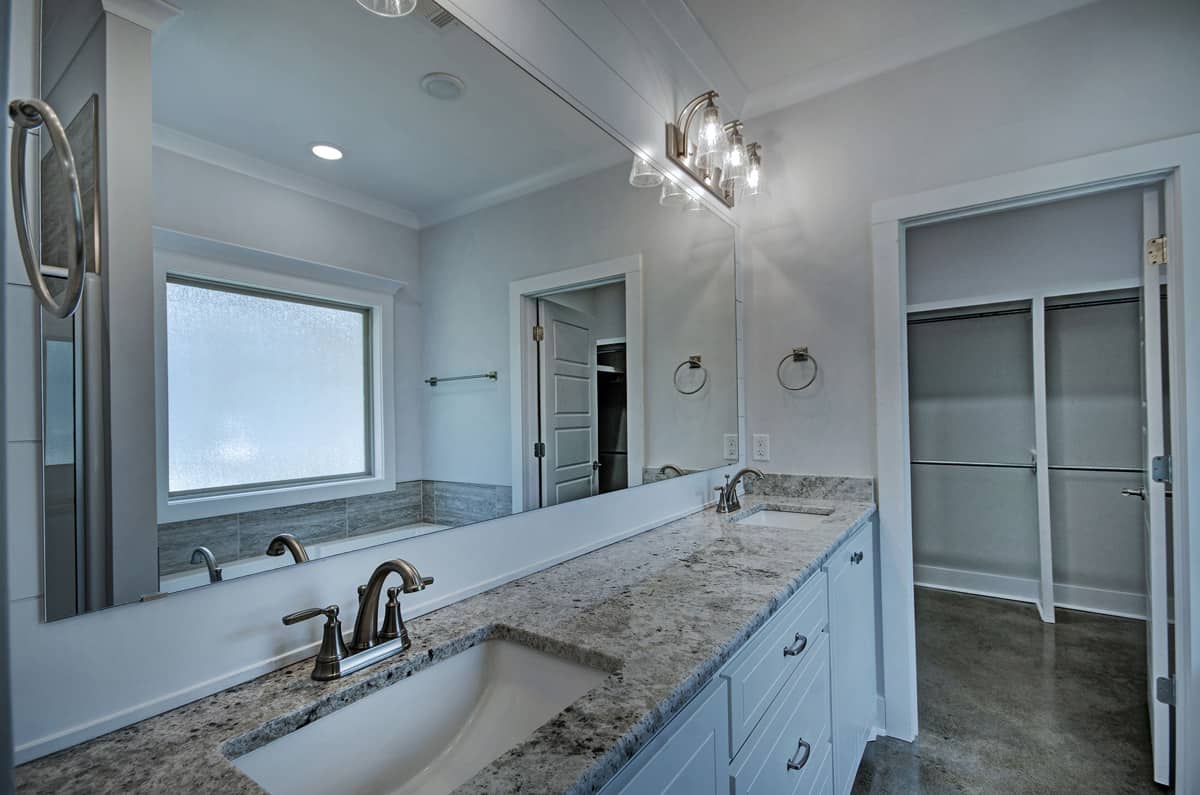

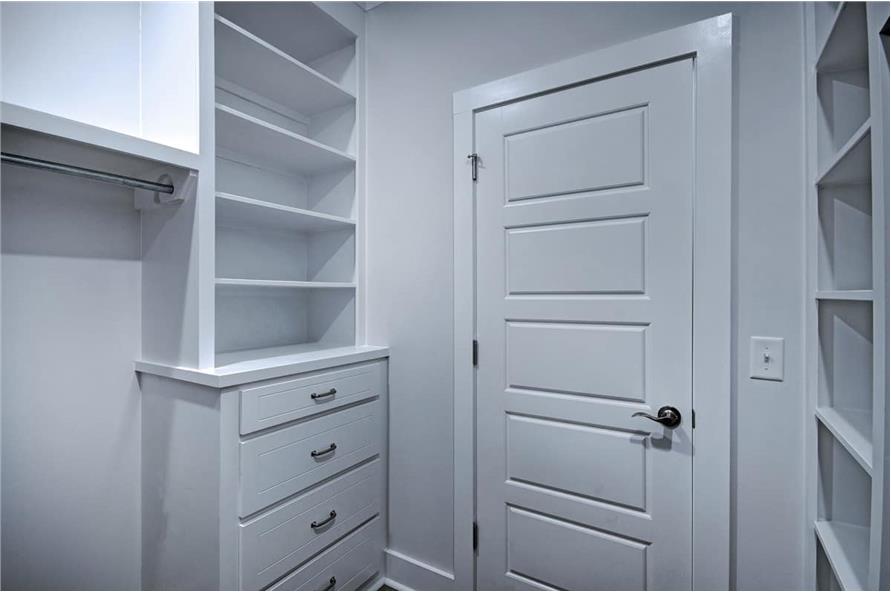

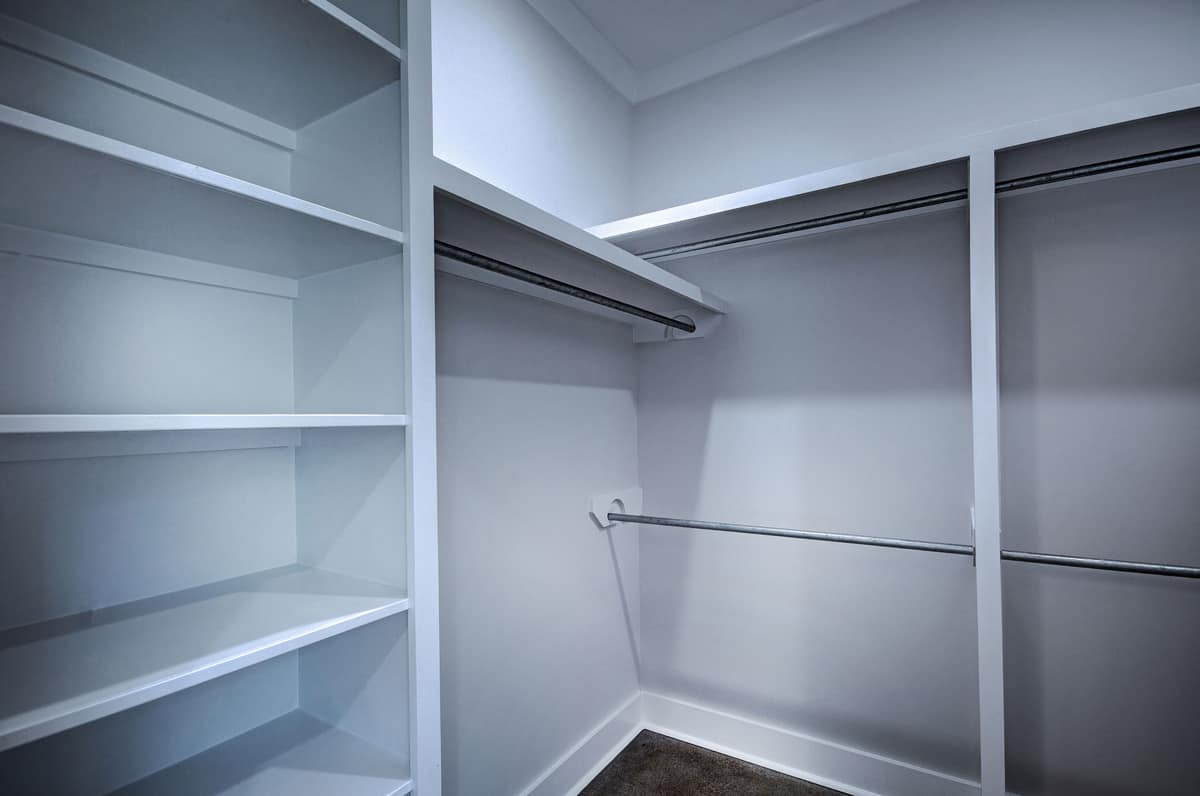

Main Floor MasterMaster BathroomWalk In ClosetSplit Master Bedroom

What’s Included

Most plan sets include the following:

icon text-secondary-400 includedFLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.

icon text-secondary-400 includedGENERAL NOTES

icon text-secondary-400 includedFOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.

icon text-secondary-400 includedFRONT, REAR, AND SIDE ELEVATIONS:The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.

icon text-secondary-400 includedCROSS SECTIONS AND INTERIOR DETAILS:Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

What’s Not Included

These items are  NOT included:

icon text-secondary-400 includedArchitectural or Engineering Stamp - handled locally if required.

icon text-secondary-400 includedSite Plan - handled locally when required.

icon text-secondary-400 includedMechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

icon text-secondary-400 includedPlumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

icon text-secondary-400 includedEnergy calculations - handled locally when required.

icon text-secondary-400 includedWindow Specifications to e provided by Manufacturer
